KDU.IT14NVE Underground Double Leaf Swing Gate Operator Kit - Up to 2.1m Per Leaf

KDU.IT14NVE Underground Double Leaf Swing Gate Operator Kit - Up to 2.1m Per Leaf

The DU.IT14NVE Underground Double Leaf Swing Gate Operator Kit is a comprehensive collection of all the items needed to convert your gate into an automatic version.

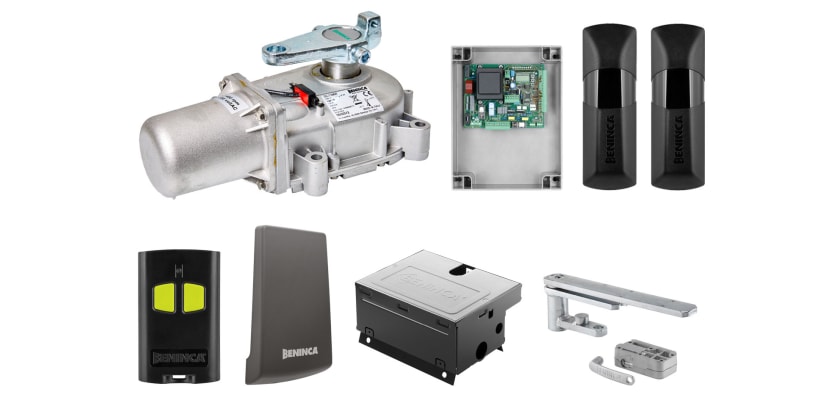

Kit Contents

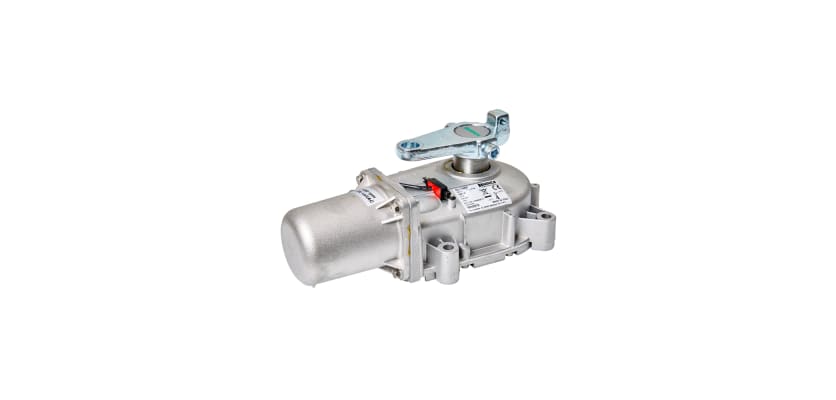

DU.IT14NVE Underground Swing Gate Operator (x2)

The DU.IT14NVE is a 230 Vac underground operator for gate leaves up to 2.1 metres.

This gate operator is electromechanical and irreversible, meaning that once the gate is closed or opened, manual manipulation is impossible without disengaging the mechanism. This feature effectively prevents unauthorised tampering or access attempts.

Underground swing gate operators are often chosen for locations where looks matter, providing a discreet solution for gate automation. Their primary advantage is their concealment, as the motors and mechanical components are buried beneath the gate. This design saves above-ground space and protects the equipment from harsh weather conditions.

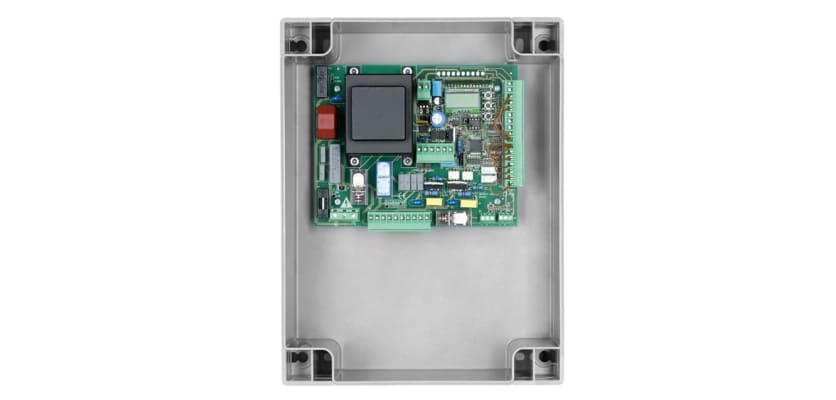

Brainy 230V Control Panel

The Brainy 230V control panel is tailored for swing gates and accommodates one or two motors. It includes an integrated LCD for easy setup and a 433.92 MHz radio receiver that supports Advanced Rolling Code, Rolling Code, and Fixed Code. The panel features removable terminal boards, multiple operating modes (automatic, semi-automatic, deadman’s), and inputs for an encoder, limit switches, and various gate functions. It also has dedicated photocell inputs for controlling opening and closing phases, along with an input for N.C. or 8K2 sensitive edges.

Pupilla Hard-Wired Photocells - 1 pair

The Pupilla photocells are crucial for gate automation systems, enhancing both security and safety. When placed near gate openings, they create an invisible barrier that senses movement or obstacles, causing the gate to stop or reverse to avoid damage or accidents. The Pupilla is a dependable and adaptable photocell with a 180-degree rotating lens.

TO.GO2VA Two Button Dual Code Transmitter (x2)

The TO.GO2VA is a flexible transmitter designed for gate automation systems. It can control two different functions or gates, making it perfect for properties with multiple gates or for situations requiring distinct entry and exit commands. This transmitter employs secure coding technology to safeguard against unauthorized access and code duplication. It also includes a battery.

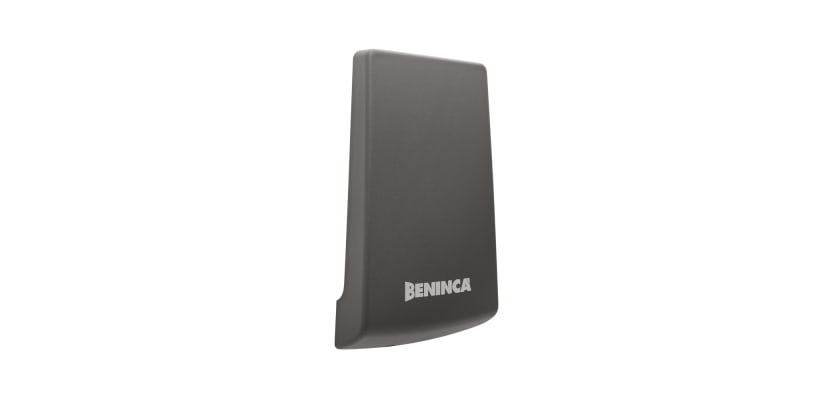

AWO Long Range Aerial

The AWO long range aerial is designed for outdoor use and comes with a 5 metre shielded RG58 cable enclosed in an IP54-rated housing. Operating at 433.92 MHz, this antenna provides excellent range and effective penetration through physical obstacles.

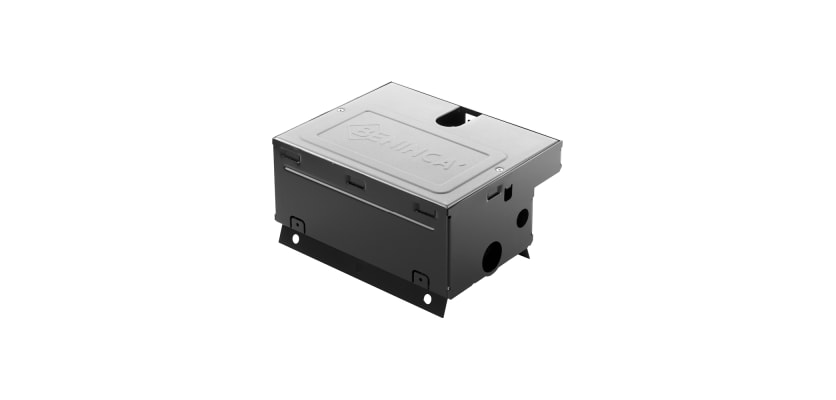

DU.CZS Foundation Box for DU.IT Underground Motors (x2)

The DU.CZS foundation box is for encasing the underground gate operator. Foundation Boxes play a vital role in protecting gate operators, ensuring efficient operation and longevity. The motor fits inside the foundation box and is then protected from debris, moisture and temperature fluctuations.

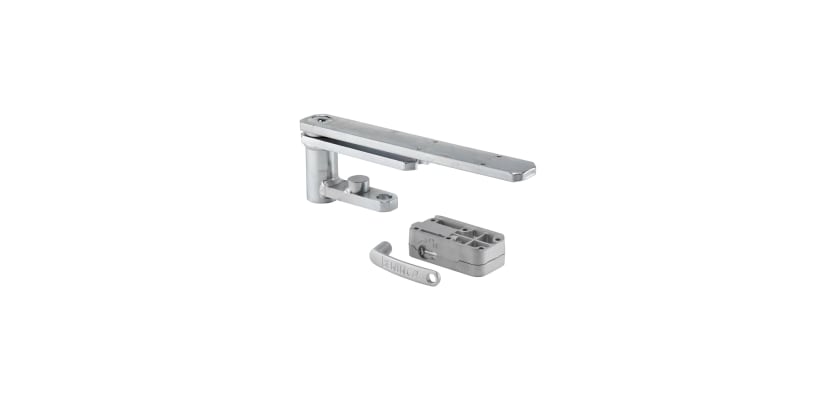

SB.DUITL Manual Release Shoe Kit with Hex Key (x2)

The SB.DUITL kit allows users to manually override the automated system if needed, such as during power cuts or maintenance.
