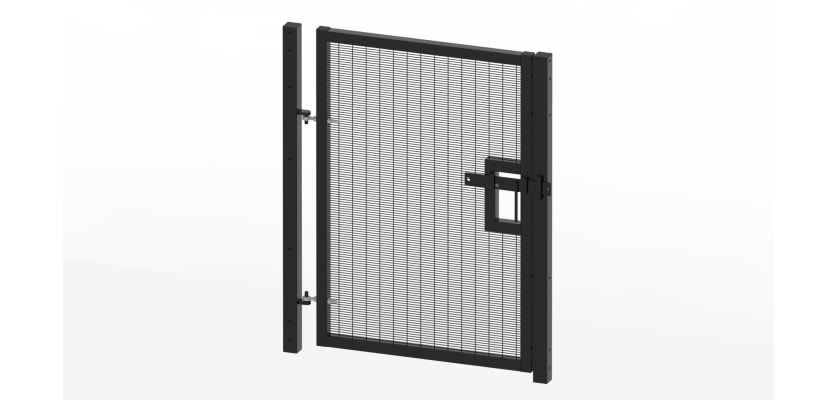

3.0m High x 1.0m Wide 358 Prison Mesh Single Leaf Gate Kit
| Height | 3000mm (above ground) |
| Access Width | 1000mm |
| Total Gate Width | 1270mm |
| Box Sections of Posts | 80 x 80mm |
| Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
| Thickness of Wires | 4mm |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Brown - Other custom RAL colours are also available |
| Name | Quantity |
|---|---|
| Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts [For Gate Posts] | 2 |
| Ribbed Inserts [For Gate Frame] | 2 |
3.0m High x 1.2m Wide 358 Prison Mesh Pedestrian Gate Kit
Engineered for high-security applications, the 3.0m High x 1.0m Wide 358 Prison Mesh Pedestrian Gate Kit is a dependable solution for sites where controlled pedestrian access and maximum security are essential. Designed to integrate seamlessly with existing 358 mesh fencing, this gate is a trusted choice for correctional facilities, utility sites, data centers, and high-risk perimeter areas.
The mesh gate features 358 security mesh, often referred to as “prison mesh,” which is known for its incredibly tight apertures—measuring 76.2mm x 12.7mm. This anti-climb, anti-cut mesh design makes it virtually impossible for intruders to gain a foothold or use cutting tools effectively. The fine mesh also allows for excellent visibility, enabling surveillance through the gate without compromising safety.
Constructed from galvanised steel and finished with a durable polyester powder coating, this gate is built to withstand harsh environmental conditions and resist corrosion. Its robust frame and structural integrity make it ideal for long-term use in demanding locations. The powder-coated finish not only enhances aesthetics but also extends the lifespan of the product with minimal maintenance.
With a clear opening width of 1.0 metre, this pedestrian gate is ideal for sites that require restricted foot traffic access without compromising the security of the perimeter. Whether managing entry points to secure compounds or segmenting different zones within a site, this gate supports efficient, controlled movement.
Originally developed for use in prisons and detention facilities, the 358 mesh system has evolved into a go-to security solution across a wide range of sectors. Its superior strength and anti-climb properties make it ideal for high-risk environments such as military and MOD sites, airports, transportation hubs, and data centres. It is also widely used in utility installations, commercial and industrial estates, as well as sports grounds and public infrastructure where a secure yet visually unobtrusive barrier is required.
Available in a standard green (RAL 6005) or black (RAL 9005) powder coat, the gate can also be custom coloured on request to suit specific branding or planning requirements. Additional hardware such as closers or electronic access control systems can be integrated as needed.
