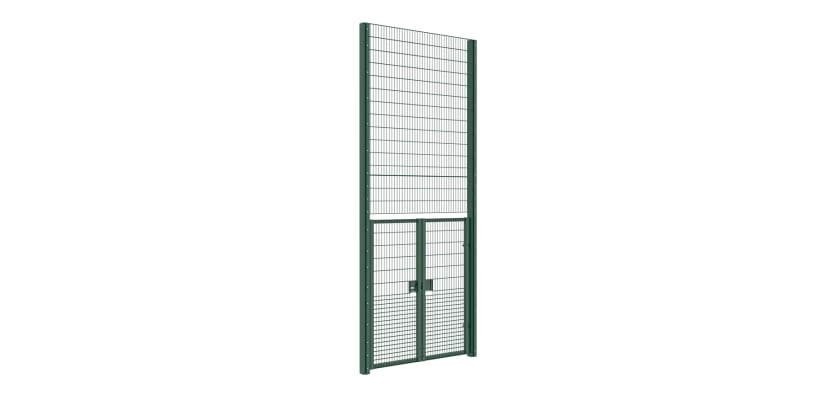

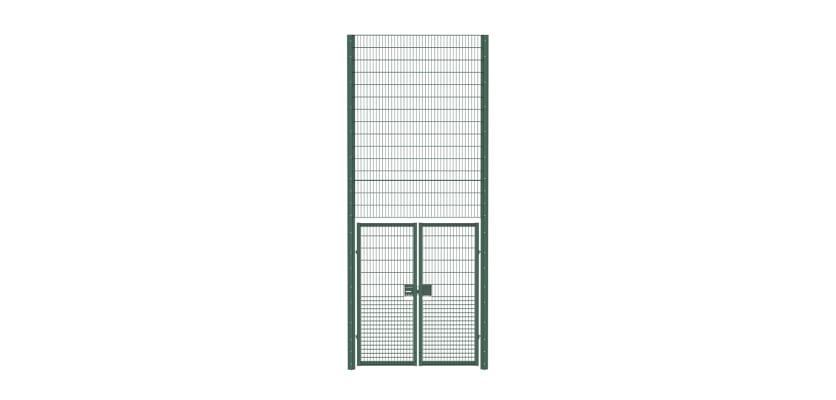

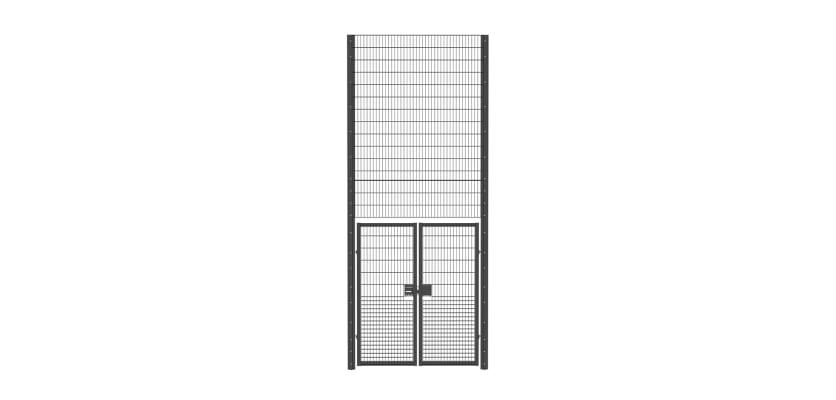

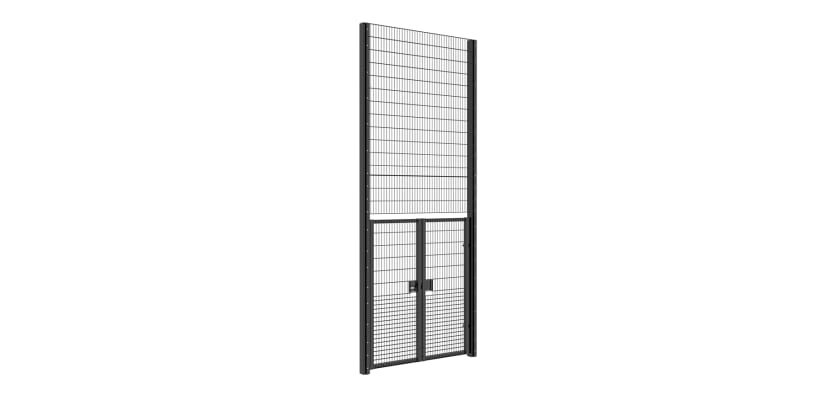

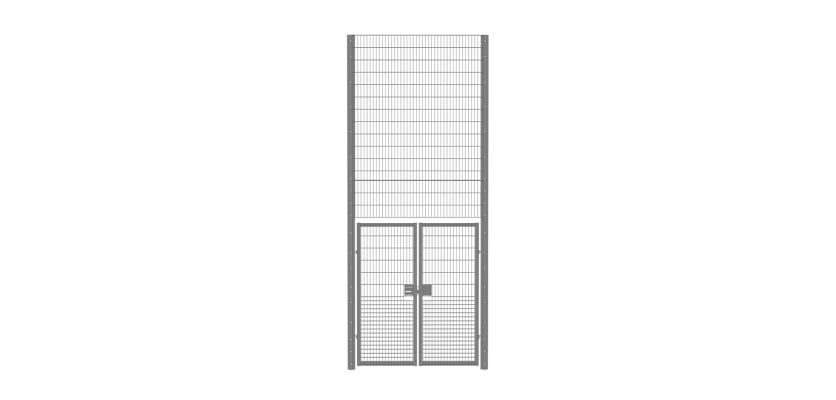

5.4m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
| Height | 5400mm [above ground], 6460mm [actual length] |
| Access Width | 2000mm |
| Box Sections of Posts | [Hinge Post: 120mm x 120mm] |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |

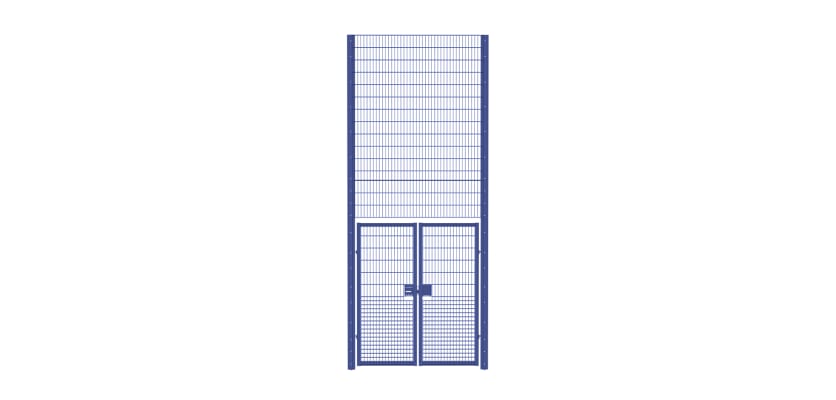

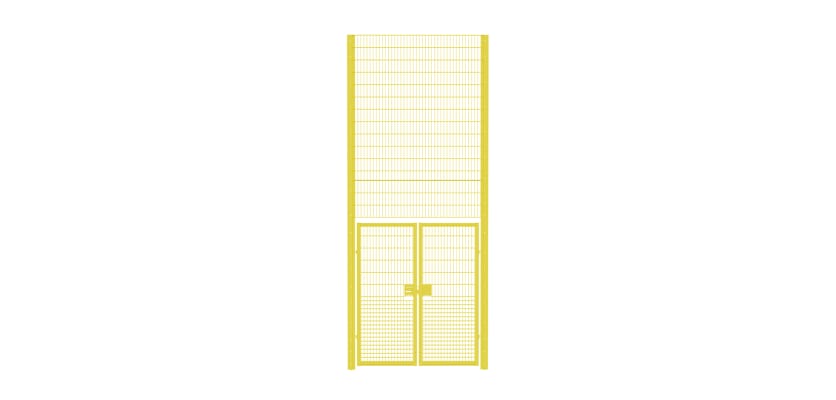

| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Post Style | Dig In |
| Material | Pre-Galvanised Steel |
| Name | Quantity |
|---|---|
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, RHH] | 1 |
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, LHH] | 1 |
| Hinge Gate Post [120 x 120 x 3mm x 6460mm] | 2 |
| 868 Mesh Panel [2350mm x 2150mm] | 1 |
| 868 Mesh Panel [600mm x 2150mm] | 1 |
| M8 x 40mm Mesh Security Bolt | 38 |
| Rebound Nylon Spacer | 38 |
| Folded Clamp Bar [3030mm long x 40 x 4mm] | 2 |
| Folded Clamp Bar [2430mm long x 40 x 4mm] | 2 |
| Ribbed Inserts [60 x 60mm] | 4 |
| Ribbed Inserts [120 x 120mm] | 2 |

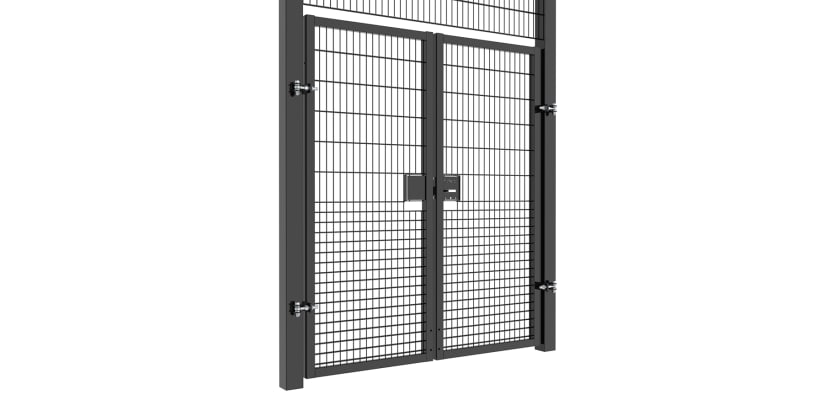

| 20mm Two-Way Adjustable Hinge [180° Opening] | 4 |

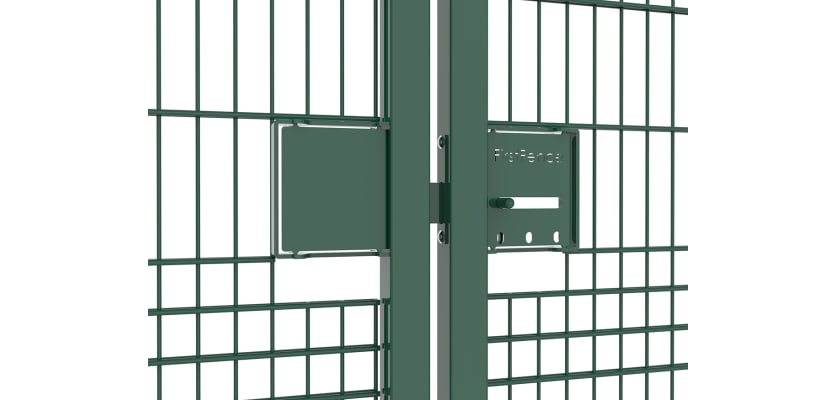

| Unislide Double Slider | 1 |
| Blank Double Slider Plate Kit | 1 |
| First Fence Universal Light Duty Drop Bolt with Expanding Fastener | 2 |
5.4m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
868 rebound mesh gates are designed for strength and impact resistance, making them a dependable access solution for multi-use games areas (MUGAs) and sports facilities. With a dig-in installation format, they come in single or double leaf options and a range of heights, perfectly complementing First Fence's premium rebound mesh fencing range.
Features and Benefits of Rebound Mesh
Impact-resistant mesh fencing, made from high-tensile steel wires, boasts a welded construction that provides exceptional durability and impact resistance for lasting strength. The compact mesh design efficiently contains balls while offering excellent visibility. Engineered for low maintenance, it delivers dependable performance and safety in high-demand sports settings. Its clear sightlines ensure optimal visibility for players, spectators, and supervisors, enhancing the user experience and supporting effective safety monitoring.
Choice of height

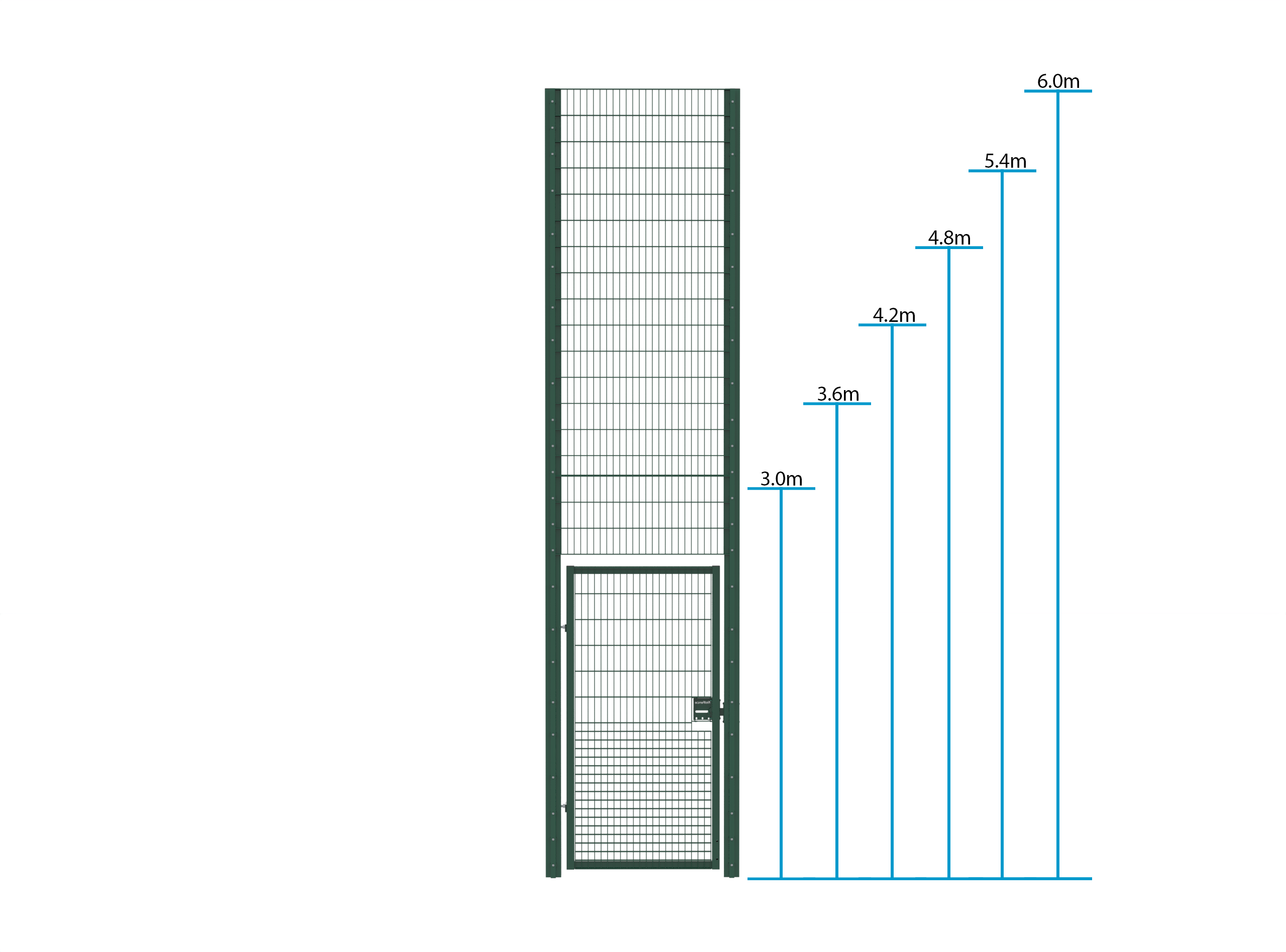

First Fence offers rebound mesh fencing in a wide range of sizes to meet diverse needs and applications. This fencing is an excellent choice for modern sports facilities, offering outstanding durability, safety, and flexibility. Available heights include 3.0m, 3.6m, 4.2m, 4.8m, 5.4m and 6.0m, with standard panels measuring 2.5m in width.
Introducing Double Leaf Rebound Mesh Gate Kits

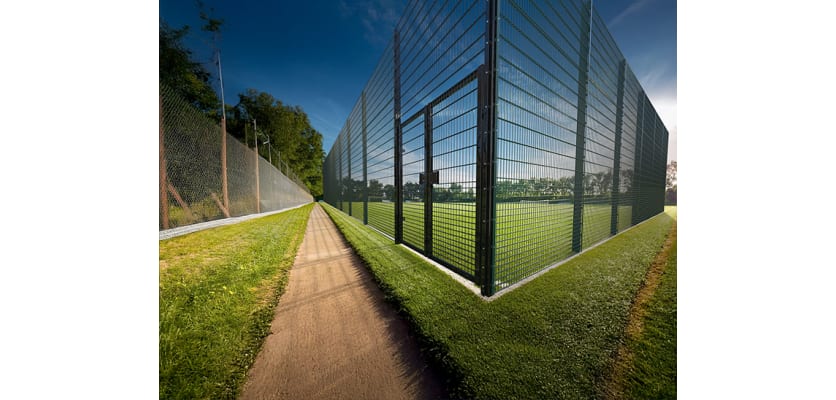

First Fence's 868 rebound mesh double leaf gates provide a strong and versatile solution for a variety of applications, including sports and educational facilities. Designed to create secure enclosures for fields, courts, and stadiums, these gates are an excellent choice for reliable entry and exit points in MUGAs and similar settings. The double-leaf design, with two swingable gates, allows for a wider opening, accommodating vehicles, equipment, and heavy foot traffic while offering more flexibility than single-leaf gates.
Built with double horizontal 8mm and vertical 6mm steel wires, these gates are highly durable and impact-resistant, ensuring long-lasting performance. They are specifically designed for dig-in installation, requiring below-ground mounting for added stability. Don’t forget to include Post Mix in your order, with 6 bags per post recommended for secure installation.
Manufactured from galvanised steel, the gates feature a polyester powder coating in standard green or black. Additional RAL colours are available on request. This premium coating provides excellent resistance to weather, corrosion, and wear, ensuring a durable and attractive finish.
To streamline installation, First Fence offers rebound mesh gate kits containing all necessary components. Available heights include 3.0m, 3.6m, 4.2m, 4.8m and 6.0m, with a width of 2.0m to suit various requirements. Single-leaf gates are also available for smaller access points.
Theses gates open outwards 180° to comply with SAPCA Code of Practice.
