3.6m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
Product Description

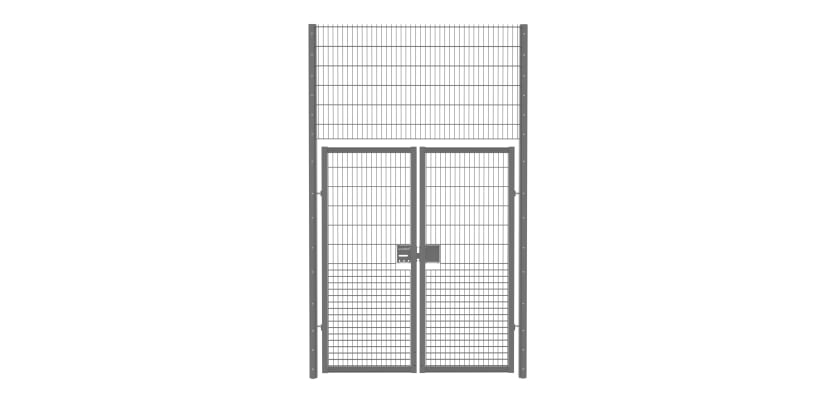

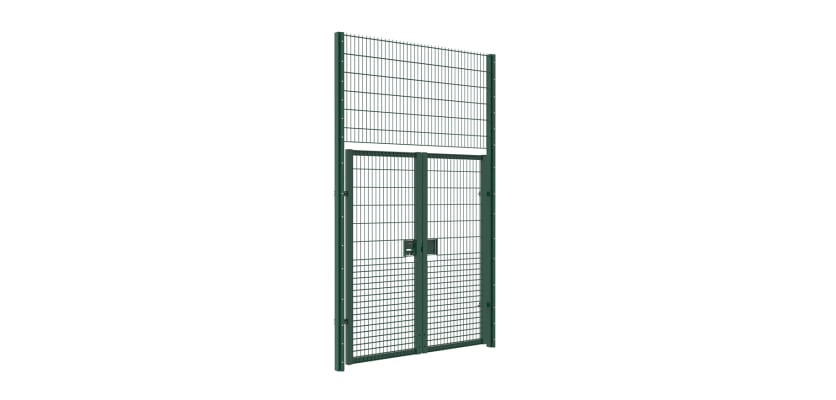

3.6m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit

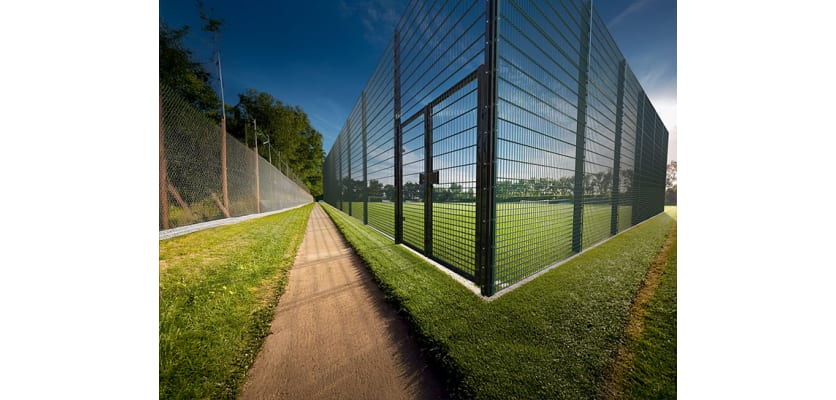

868 rebound mesh gates are designed for strength and impact resistance, offering a secure access point for multi-use games areas (MUGAs) and sports facilities. With a dig-in installation design, available in both double and single leaf versions, and multiple height options, they are the ideal complement to First Fence's premium rebound mesh fencing offering.
Features & Benefits of Rebound Mesh
Made from high-tensile steel wires, the impact-resistant mesh fencing is welded for durability and impact resistance, maintaining its strength over time. Its compact mesh contains balls while ensuring clear visibility. The design minimises maintenance and delivers long-lasting performance, providing safety and security in high-intensity sports environments. Clear sightlines enhance visibility for players, spectators, and supervisors, improving the experience and enabling effective safety monitoring.

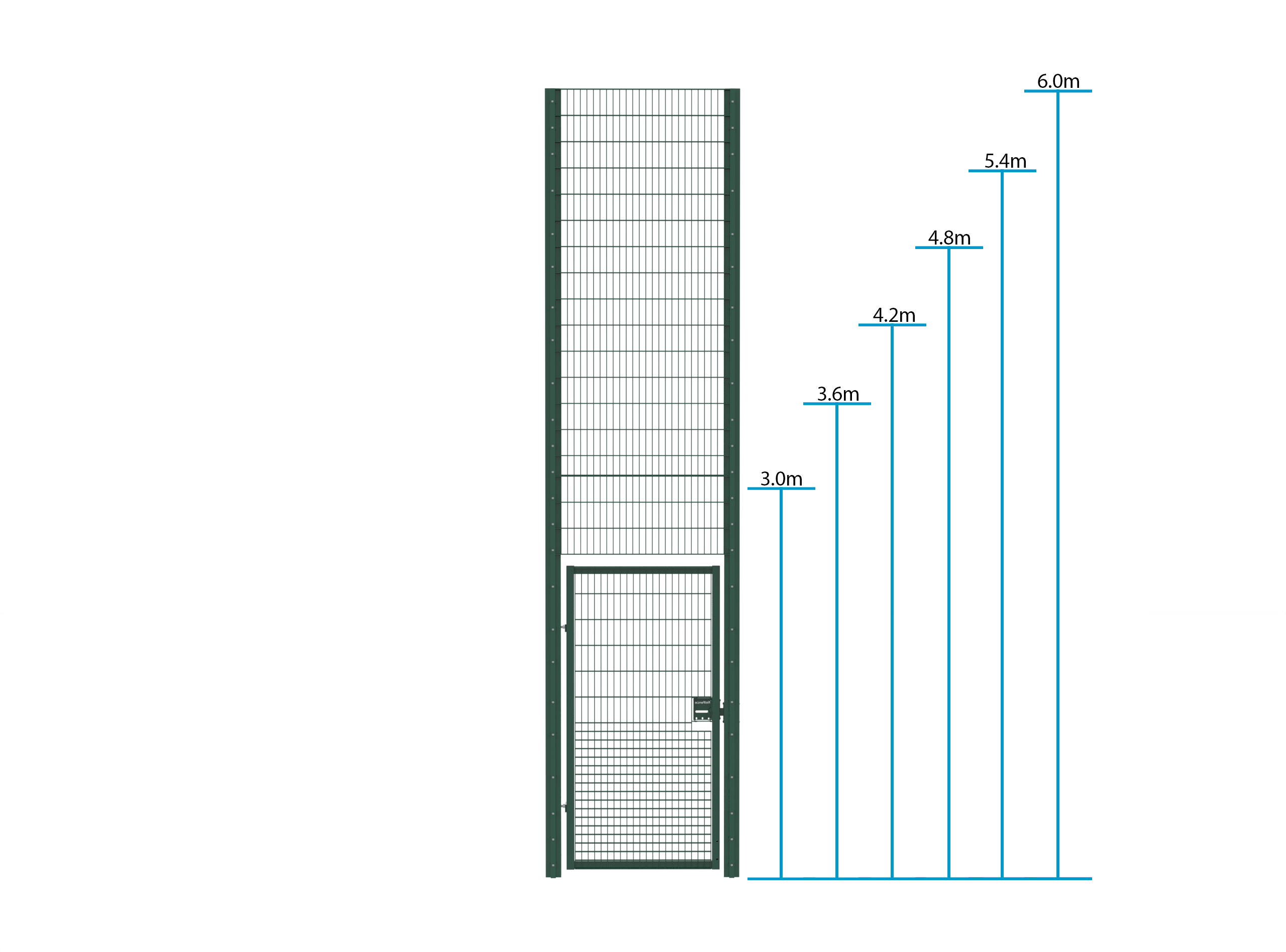

Choice of height
First Fence offers Rebound mesh fencing in a range of sizes to suit various needs and applications. An ideal solution for modern sports facilities, it provides exceptional durability, safety, and versatility. It is available in sizes 3.0m, 3.6m, 4.2m, 4.8m, 5.4m and 6.0m. Our rebound mesh panels come in a standard width of 2.5m.

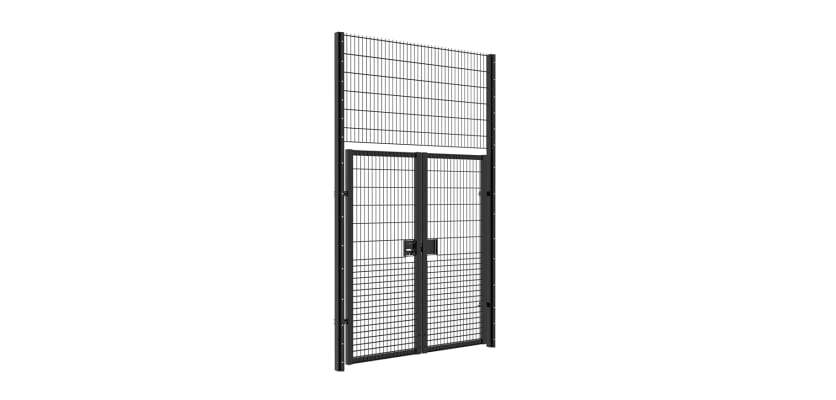

Introducing Double Leaf Rebound Mesh Gate Kits
First Fence's 868 rebound mesh double leaf gates provide a strong and adaptable solution for a variety of uses, including sports and educational facilities, ensuring secure boundaries for fields, courts, and stadiums. These gates are perfect for creating safe and reliable entry and exit points in MUGAs or similar spaces. The two swingable gate leaves allow for a wider opening, making them ideal for vehicle access, equipment, or high foot traffic. The double-leaf design offers greater flexibility for managing access compared to a single-leaf gate.
Built with double horizontal 8mm and vertical 6mm steel wires for superior strength and rigidity, these gates are designed to withstand heavy impacts while providing a secure, long-lasting installation. Specifically made for dig-in installation, they require below-ground mounting for added stability. Remember to add Post Mix to your order, with a recommended 4 bags per post.

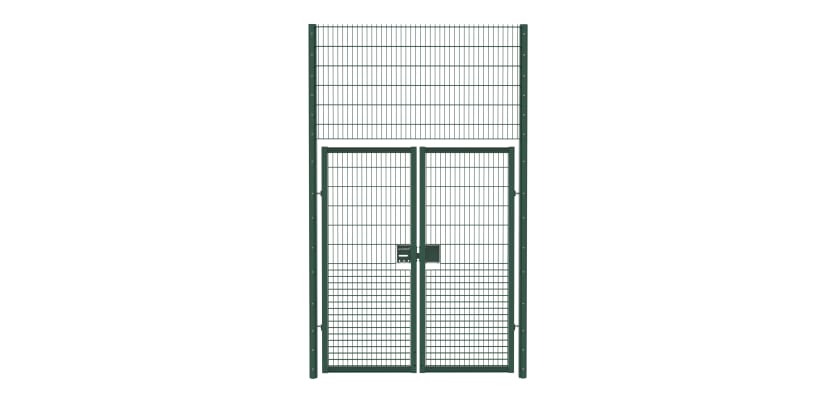

The rebound mesh gates are made from galvanised steel and are coated with a standard polyester powder finish in green or black. Other RAL colours can be requested. This high-quality coating offers exceptional resistance to weather, corrosion, and wear, ensuring long-lasting durability and a maintained appearance.
To make things easy, First Fence has curated a number of rebound mesh gate kits that contain the items you need for creating your new gate. Available as a 3.0m, 4.2m, 4.8m, 5.4m and 6.0m high format and with a width of 2.0m, ensuring coverage for diverse requirements. Single-leaf gates are also available.
These gates open outwards 180° to comply with the SAPCA Code of Practice.
Get in touch
Contact us today to learn more or to discuss your specific requirements. The team can be reached by calling 01283 512 111 or by using the live chat tool.
Specifications & Downloads
| Height | 3600mm [above ground], 4460mm [actual length] |
| Access Width | 2000mm |
| Box Sections of Posts | [Hinge Post: 80mm x 80mm] |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |

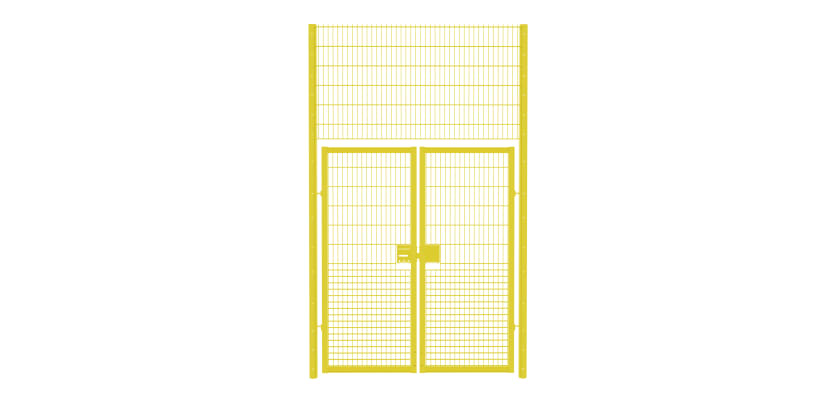

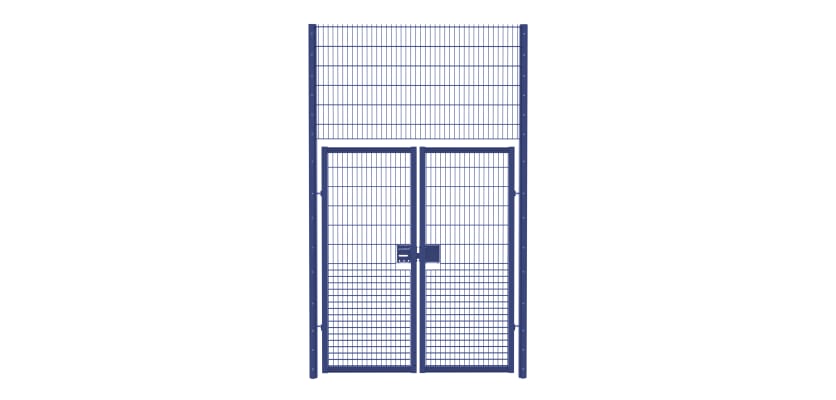

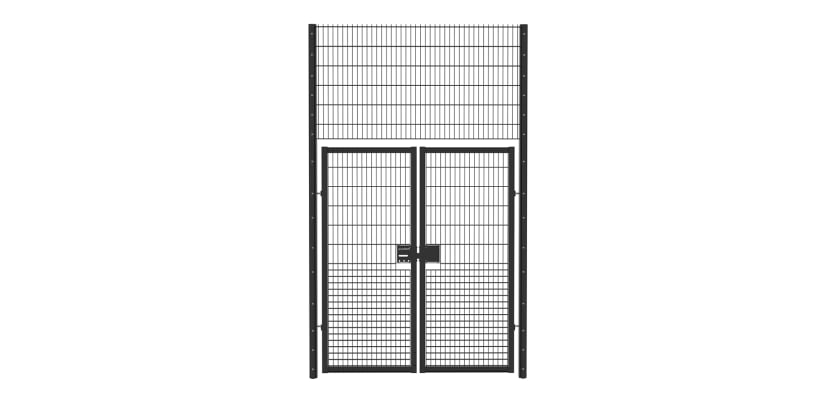

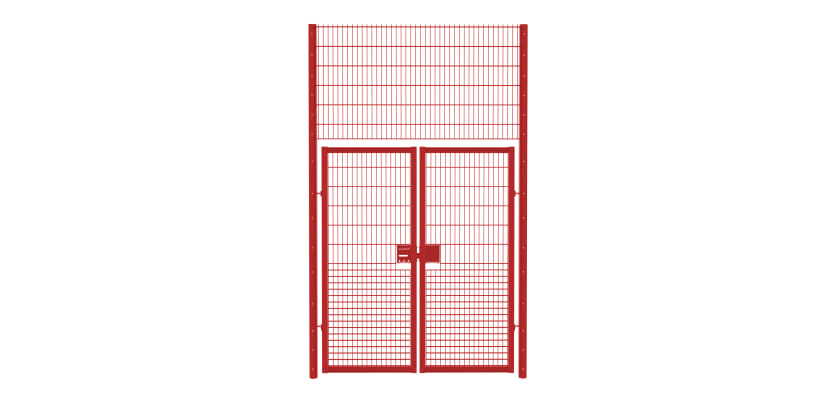

| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Post Style | Dig In |
| Material | Pre-Galvanised Steel |
What's Included
| Name | Quantity |
|---|---|
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, RHH] | 1 |
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, LHH] | 1 |
| Hinge Gate Post [80 x 80 x 2.5mm x 4460mm] | 2 |
| 868 Mesh Panel [1150mm x 2150mm] | 1 |
| Folded Clamp Bar [3030mm long x 40 x 4mm] | 2 |
| Folded Clamp Bar [630mm long x 40 x 4mm] | 2 |
| M8 x 40mm Mesh Security Bolt | 30 |
| Rebound Nylon Spacer | 30 |
| Ribbed Inserts [60 x 60mm] | 4 |
| Ribbed Inserts [80 x 80mm] | 2 |
| 20mm Two-Way Adjustable Hinge [180° Opening] | 4 |

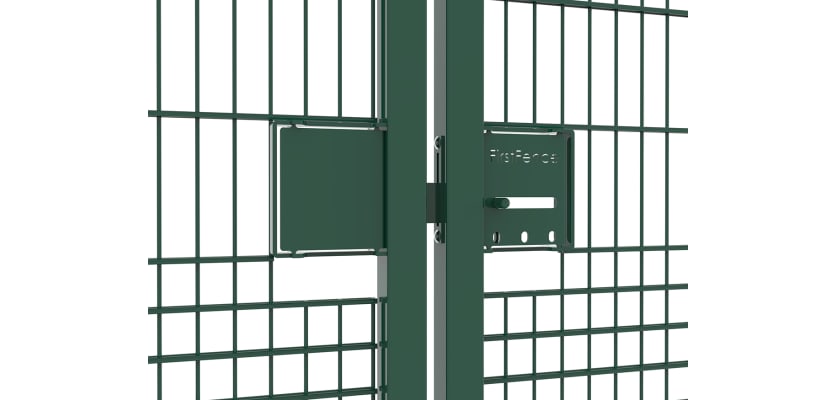

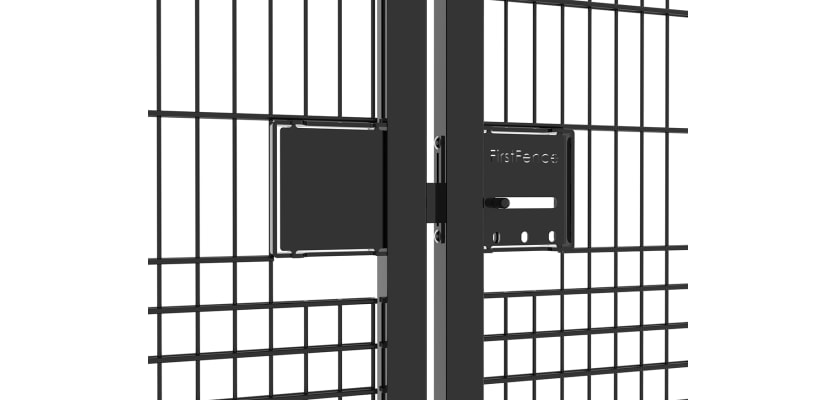

| Unislide Double Slider | 1 |
| Blank Double Slider Plate Kit | 1 |
| First Fence Universal Light Duty Drop Bolt with Expanding Fastener | 2 |
Specifications & Downloads
| Height | 3600mm [above ground], 4460mm [actual length] |
| Access Width | 2000mm |
| Box Sections of Posts | [Hinge Post: 80mm x 80mm] |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Post Style | Dig In |
| Material | Pre-Galvanised Steel |
What's Included
| Name | Quantity |
|---|---|
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, RHH] | 1 |
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, LHH] | 1 |
| Hinge Gate Post [80 x 80 x 2.5mm x 4460mm] | 2 |
| 868 Mesh Panel [1150mm x 2150mm] | 1 |
| Folded Clamp Bar [3030mm long x 40 x 4mm] | 2 |
| Folded Clamp Bar [630mm long x 40 x 4mm] | 2 |
| M8 x 40mm Mesh Security Bolt | 30 |
| Rebound Nylon Spacer | 30 |
| Ribbed Inserts [60 x 60mm] | 4 |
| Ribbed Inserts [80 x 80mm] | 2 |
| 20mm Two-Way Adjustable Hinge [180° Opening] | 4 |
| Unislide Double Slider | 1 |
| Blank Double Slider Plate Kit | 1 |
| First Fence Universal Light Duty Drop Bolt with Expanding Fastener | 2 |
