3.6m High 868 Rebound Mesh Fencing System - Clamp Bar Kit
Product Description
3.6m High 868 Rebound Mesh Fencing System – Clamp Bar Kit
The 3.6m High 868 Rebound Mesh Fencing System is designed for sports courts, ball game areas and recreational or professional pitches where strong, reliable fencing is essential.
Built to withstand repeated impact from fast-moving balls, the system helps keep play contained while protecting players, spectators and surrounding property.
Ideal for MUGAs & Multi-Sport Facilities
868 Rebound Mesh Fencing is an excellent choice for Multi-Use Games Areas (MUGAs) at schools, colleges, leisure facilities and public recreation areas.
Compared with traditional plywood rebound boards and chain link fencing, rebound mesh provides excellent durability, reduced noise and consistent ball rebound performance. The fencing can also become part of gameplay where appropriate.
Strong Rebound Mesh Design
The 3.6m Clamp Bar Kit includes:
- 3.6m dig-in intermediate post
- 3.0m full rebound 868 mesh lower panel
- 0.6m 868 mesh top panel
- Intermediate mesh post
- Two rebound clamp bars
The lower 3.0m section features additional horizontal wires, creating a denser mesh pattern. This reinforced design helps absorb high-impact ball strikes while providing excellent rebound performance and returning balls quickly into play.

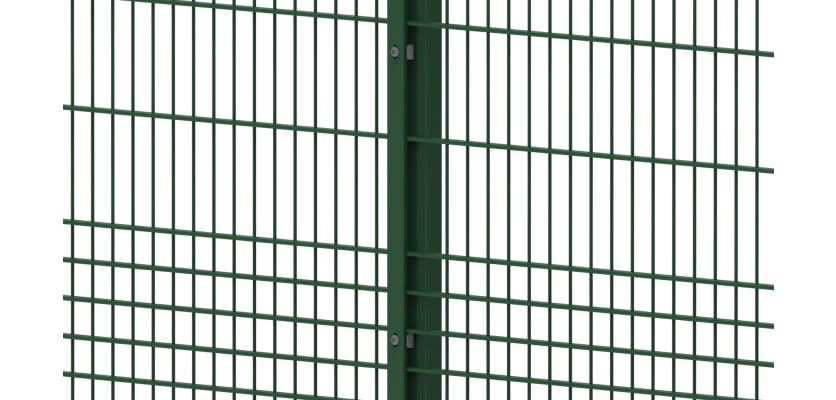

The rebound clamp bars provide a smooth, professional finish, help eliminate exposed sharp edges and allow for faster installation than clip-only systems.
Durable Powder-Coated Steel
Manufactured from pre-galvanised steel, the system is polyester powder-coated for increased protection against weathering, corrosion and general outdoor wear.
This hard-wearing construction makes it suitable for long-term external installation around schools, sports clubs, leisure facilities and public recreation areas.
Dig-In Installation
This fencing system is supplied as a dig-in solution, making it suitable for softer ground conditions such as grass.
Concrete is required to securely install the posts. A torque bit is also required for installation of the mesh fencing system.
Add Gates & Accessories
Create a secure entrance and exit point with compatible mesh fencing gates and accessories.
Contact our team to discuss your project requirements or any customisation options.
Contact Us
Need help choosing the right rebound fencing system? Our experienced team can provide product advice, specification guidance and support with custom requirements. Call 01283 512 111, email sales@firstfence.co.uk, or speak to us via live chat.
Specifications & Downloads
| Height | 3.6m [Installed, Above Ground Incl. Clearance] |
| Total Post Length | 4460mm |
| Width | 2500mm |
| Post Dimensions | 80x40x2.5mm |
| Panel Dimensions | 1.2m and 2.4m High x 2.5m Wide |
| Post Type | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Black or Green |
| Compliant To | BS EN 10244-2:2001 Class D |
What's Included
| Name | Quantity |
|---|---|
| 3.6m Dig In Intermediate Mesh Post | 1 |
| 3.0m High x 2.5m Wide 868 Rebound Bottom Mesh Fence Panel | 1 |
| 0.6m High x 2.5m Wide 868 Top Mesh Fence Panel | 1 |
| 3.0m Clamp Bar | 1 |
| 630mm Clamp Bar | 1 |
| M8 x 40mm Mesh Security Bolt | 15 |
| 20mm Rebound Rubber Spacer | 15 |
| Black Ribbed Inserts | 1 |
Videos
Specifications & Downloads
| Height | 3.6m [Installed, Above Ground Incl. Clearance] |
| Total Post Length | 4460mm |
| Width | 2500mm |
| Post Dimensions | 80x40x2.5mm |
| Panel Dimensions | 1.2m and 2.4m High x 2.5m Wide |
| Post Type | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Black or Green |
| Compliant To | BS EN 10244-2:2001 Class D |
What's Included
| Name | Quantity |
|---|---|
| 3.6m Dig In Intermediate Mesh Post | 1 |
| 3.0m High x 2.5m Wide 868 Rebound Bottom Mesh Fence Panel | 1 |
| 0.6m High x 2.5m Wide 868 Top Mesh Fence Panel | 1 |
| 3.0m Clamp Bar | 1 |
| 630mm Clamp Bar | 1 |
| M8 x 40mm Mesh Security Bolt | 15 |
| 20mm Rebound Rubber Spacer | 15 |
| Black Ribbed Inserts | 1 |
