6.0m High 868 Rebound Mesh Fencing System - Clamp Bar Kit
Product Description
6.0m High 868 Rebound Mesh Fencing System – Clamp Bar Kit
The 6.0m High 868 Rebound Mesh Fencing System is designed for high-performance sports facilities including Multi-Use Games Areas (MUGAs), football and hockey pitches, tennis courts, and professional sporting environments.
The 6.0m height provides excellent ball containment while creating a secure, clearly defined playing area. It helps keep stray balls within the facility, protecting players, spectators, nearby property, and surrounding public areas.
Built for High-Intensity Sports
Ideal for schools, local authorities, sports organisations, and professional facilities, this fencing system is designed for areas with frequent use and repeated ball impact. The enclosed playing area helps to:
- Protect players and spectators
- Prevent balls leaving the playing area
- Protect nearby buildings and property
- Improve safety for pedestrians and surrounding areas
- Reduce interruptions during play

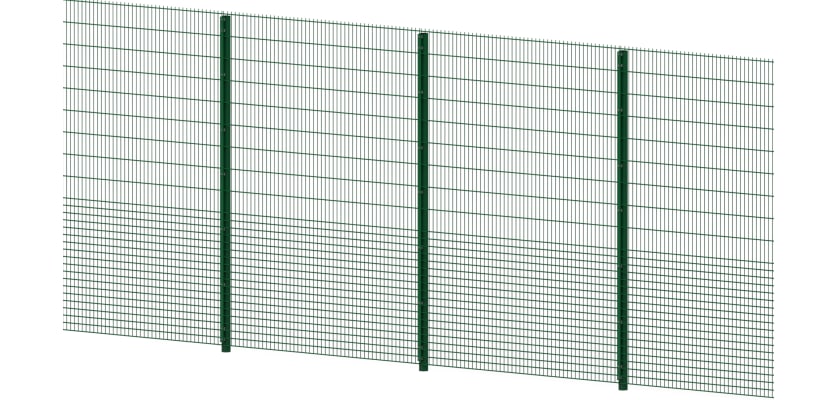

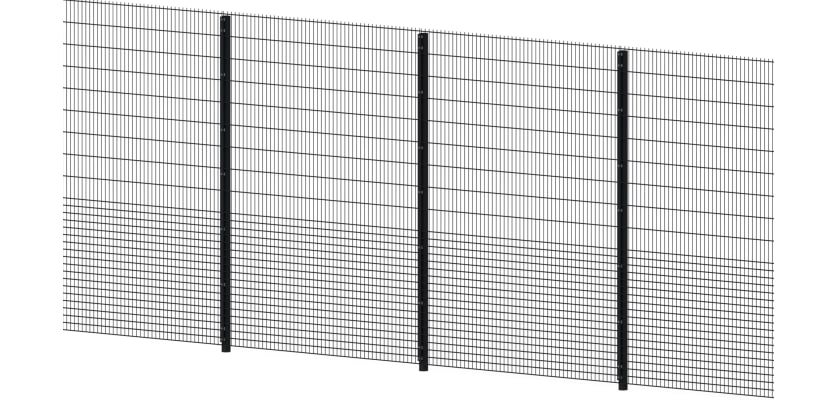

High-Performance 868 Rebound Mesh
The system features a reinforced lower section with a tighter mesh formation and additional horizontal wires. This provides increased strength and impact resistance for fast-moving balls and repeated strikes. Key benefits include:
- Enhanced shock absorption
- Excellent resistance to repeated impacts
- High rebound performance
- Reduced disruption to gameplay
- Reliable containment of standard sports balls
- Clear visibility across the playing area
The reinforced design helps return balls into play while maintaining a secure perimeter around the facility.

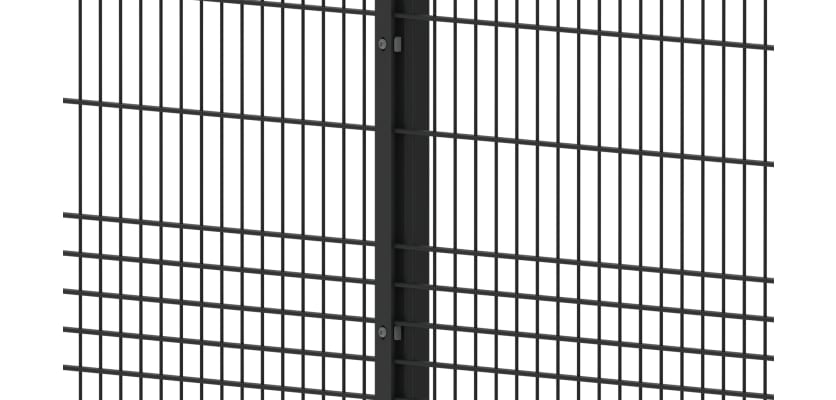

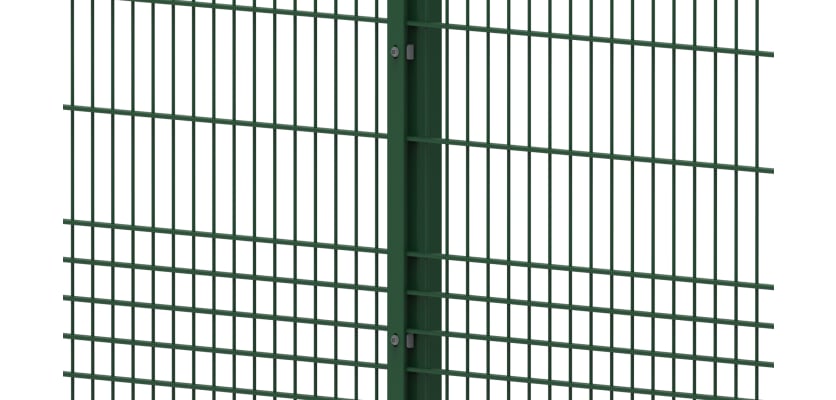

Secure Clamp Bar Fixing System
The 868 Rebound Mesh Fencing System is supplied with a clamp bar fixing system, providing a strong and professional installation finish. Each system includes:
- Steel posts
- Rebound mesh panels at the specified height
- Clamp bars
- Associated fixing components
The clamp bar system provides a secure connection between the mesh panels and posts while helping to streamline installation.
Durable Construction for Outdoor Sports
Manufactured from pre-galvanised steel and finished with a durable polyester powder coating, the system is designed for long-term outdoor use. It provides resistance against:
- Year-round weather exposure
- Repeated ball impacts
- Frequent sports use
- General wear and tear
- Outdoor environmental conditions
This makes it a reliable choice for permanent sports fencing and recreational facilities.
Installation Information
The 6.0m system is supplied in a dig-in format, making it suitable for installation into softer ground such as grass. Post Mix is required to securely install the fencing posts.
Please note: A torque bit is required to install this mesh fencing system.
Gates & Access Control
Complete your sports perimeter with a compatible mesh fencing gate for controlled access. Gates can be securely locked when the facility is not in use. First Fence also offers a wide range of compatible fencing accessories, with bespoke solutions available for non-standard requirements.
Contact Us
For expert advice, specification guidance, or help choosing the right sports fencing solution, our team is here to help. Call us on 01283 512111, email sales@firstfence.co.uk, or use our online chat to speak with a member of the First Fence team.
Specifications & Downloads
| Height | 6.0m [Installed, Above Ground Incl. Clearance] |
| Total Post Length | 7060mm |
| Width | 2500mm |
| Post Dimensions | 120x60x3mm |
| Panel Dimensions | 2 @ 3.0m High x 2.5m Wide |
| Post Type | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated |
| Compliant To | BS EN 10244-2:2001 Class D |
What's Included
| Name | Quantity |
|---|---|
| 6.0m Dig In Intermediate Mesh Post | 1 |
| 3.0m High x 2.5m Wide 868 Rebound Mesh Fence Panel | 1 |
| 3.0m High x 2.5m Wide 868 Mesh Fence Panel | 1 |
| 3.0m Clamp Bar | 2 |
| M8 x 40mm Mesh Security Bolt | 24 |
| 20mm Rebound Rubber Spacer | 24 |
| Black Ribbed Inserts | 1 |
