3.0m High 868 Rebound Mesh Fencing System - Clamp Bar Kit
Product Description
3.0m High 868 Rebound Mesh Fencing System – Clamp Bar Kit
The 3.0m High 868 Rebound Mesh Fencing System is designed for sports courts, pitches and high-impact areas. Its strong construction and reinforced mesh help withstand repeated ball strikes while keeping balls within the playing area.
Ideal for creating safer sports facilities while helping protect nearby roads, pathways, spectators and property from stray balls.
Ideal for MUGAs & Sports Facilities
868 Rebound Mesh Fencing is particularly suited to Multi-Use Games Areas (MUGAs) and other busy sports facilities.
Compared with traditional timber rebound boards and chain link fencing, the reinforced mesh provides excellent strength, durability and rebound performance, making it well suited to intensive sporting use.
High-Performance 868 Rebound Mesh

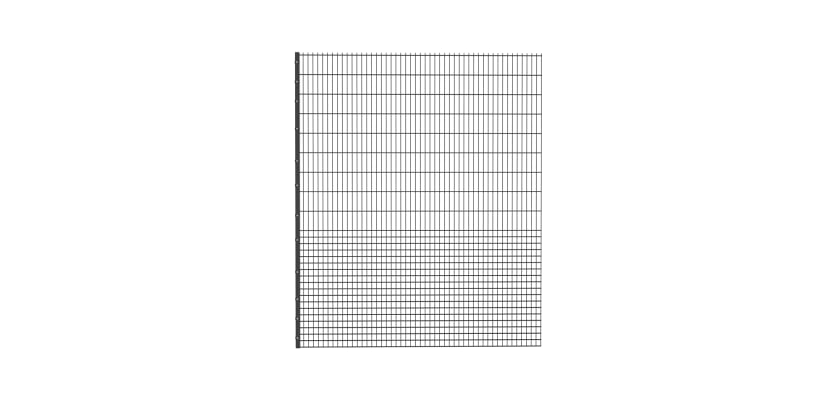

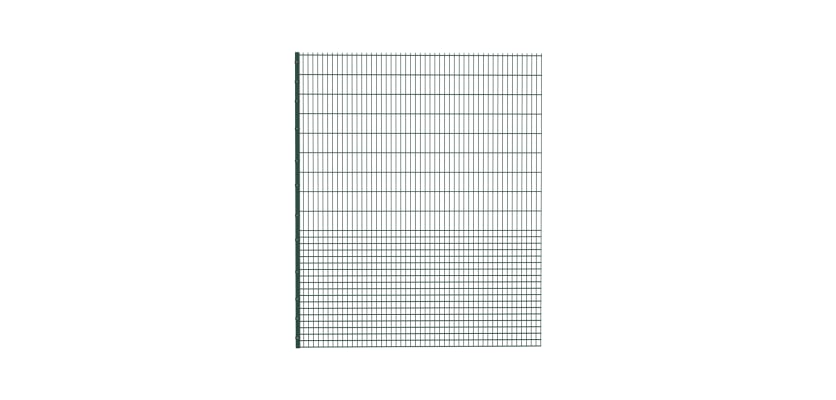

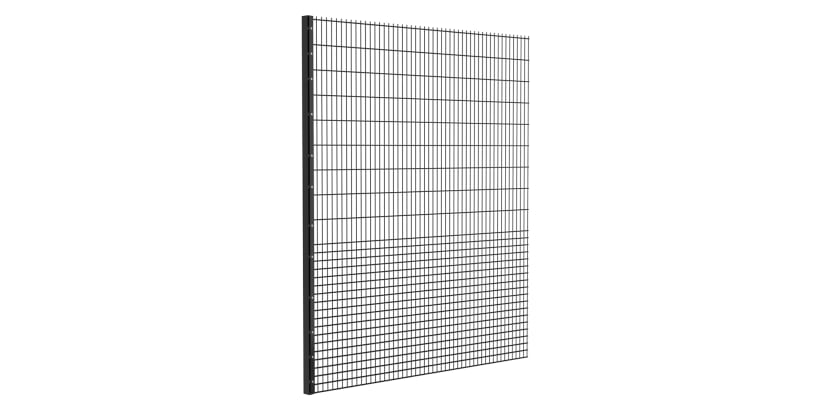

The fencing panels are manufactured from high-strength 868 mesh, with additional horizontal wires in the lower section to create a tighter, denser mesh pattern.
This reinforced area is designed to:
- Absorb repeated ball impacts
- Provide consistent rebound performance
- Return balls quickly into play
- Withstand intensive use over time
The lower section receives the most impact during gameplay, so the reinforced wire configuration provides additional strength where it’s needed most.
What’s Included?
The 3.0m High Clamp Bar Kit includes:
- 3.0m dig-in intermediate post
- 3.0m high x 2.5m wide 868 rebound mesh panel
- Rebound clamp bar
- U-clips
- M8 x 40mm mesh security bolts
- Black ribbed post insert
Together, these components provide a robust and professional sports fencing system.
Available Heights & Finishes
The Rebound Mesh Fencing System is available in heights from 3.0m to 6.0m:
- 3.0m
- 3.6m
- 4.2m
- 4.8m
- 5.4m
- 6.0m
Panels and posts are manufactured from pre-galvanised steel and finished with a durable powder coating for improved weather resistance and longevity.
Green and black are standard colour options, with custom colours available on request.
Dig-In Installation
This is a dig-in fencing system, making it suitable for softer ground conditions. Post Mix is required for installation and should be ordered separately.
A torque bit is also required to install the mesh fencing system securely.
Add Gates for Easy Access
Create a secure entrance with a range of compatible mesh fencing gates. Contact our team to discuss the most suitable access solution for your sports facility.
Contact Us
Need help choosing the right rebound fencing system? Contact our team on 01283 512 111, email sales@firstfence.co.uk, or speak to us via online chat for expert advice and support.
Specifications & Downloads
| Height | 3.0m [Installed, Above Ground Incl. Clearance] |
| Total Post Length | 3860mm |
| Width | 2500mm |
| Post Dimensions | 80x40x2.5mm |
| Post Type | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated |
| Compliant To | BS EN 10244-2:2001 Class D |
What's Included
| Name | Quantity |
|---|---|
| 3.0m Dig In Intermediate Post | 1 |
| 3.0m High x 2.5m Wide 868 Rebound Mesh Fence Panel | 1 |
| Rebound Clamp Bar | 1 |
| Black Ribbed Inserts | 1 |
| M8 x 40mm Mesh Security Bolt | 12 |
| 20mm Rebound Rubber Spacer | 12 |
Videos
Specifications & Downloads
| Height | 3.0m [Installed, Above Ground Incl. Clearance] |
| Total Post Length | 3860mm |
| Width | 2500mm |
| Post Dimensions | 80x40x2.5mm |
| Post Type | Dig In |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated |
| Compliant To | BS EN 10244-2:2001 Class D |
What's Included
| Name | Quantity |
|---|---|
| 3.0m Dig In Intermediate Post | 1 |
| 3.0m High x 2.5m Wide 868 Rebound Mesh Fence Panel | 1 |
| Rebound Clamp Bar | 1 |
| Black Ribbed Inserts | 1 |
| M8 x 40mm Mesh Security Bolt | 12 |
| 20mm Rebound Rubber Spacer | 12 |
