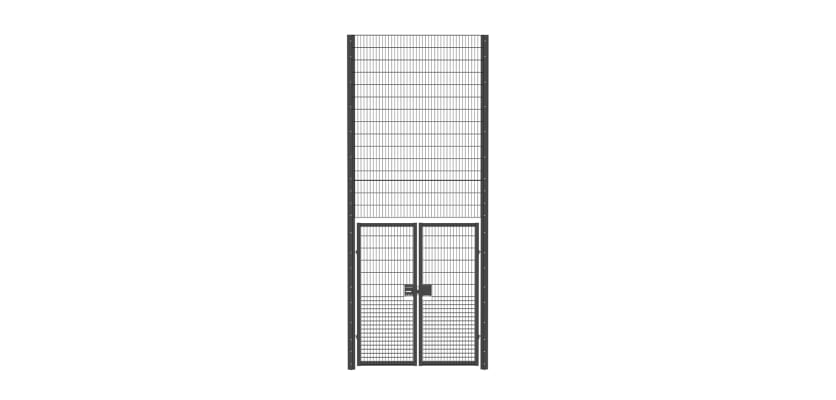

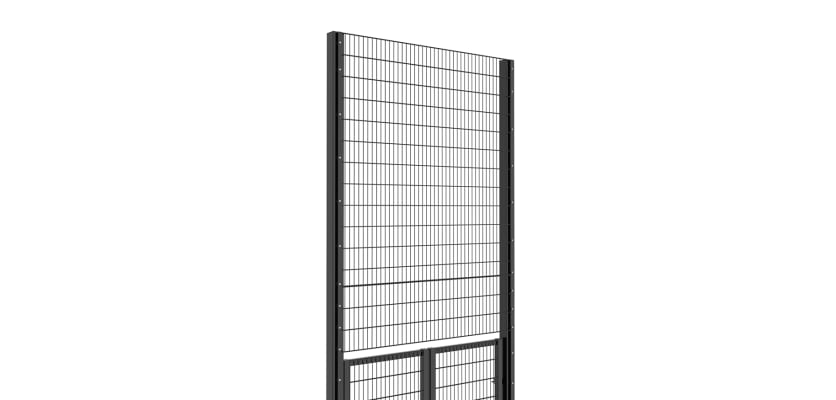

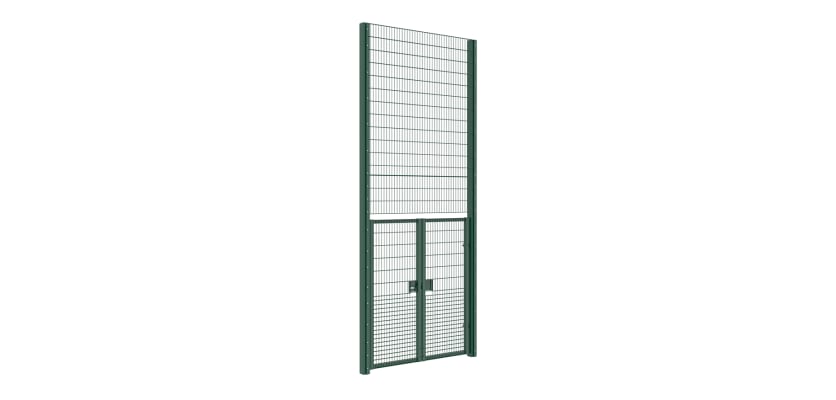

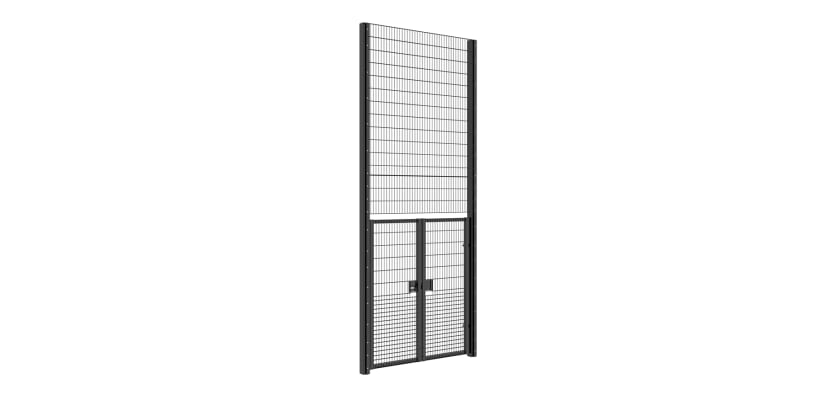

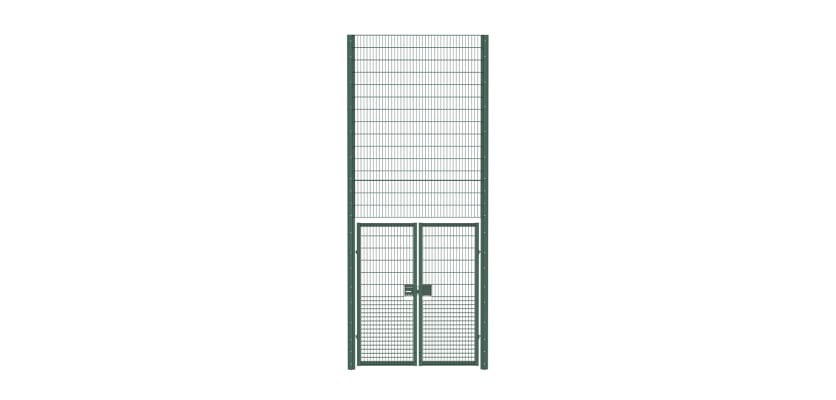

6.0m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
| Height | 5400mm [above ground], 7060mm [actual length] |
| Access Width | 2000mm |
| Box Sections of Posts | [Hinge Post: 120mm x 120mm] |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |

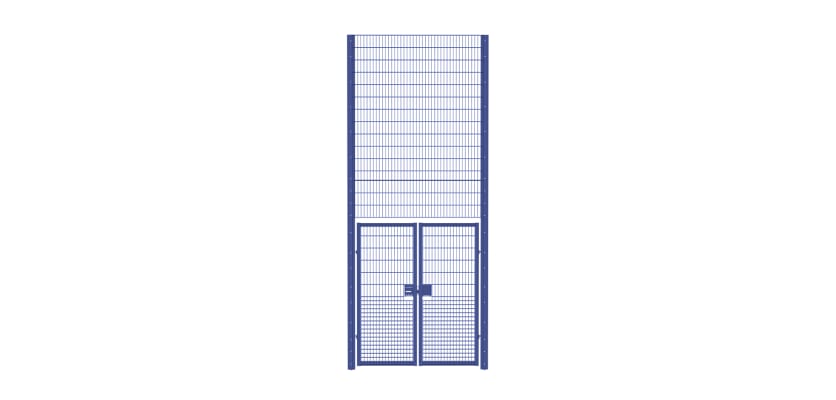

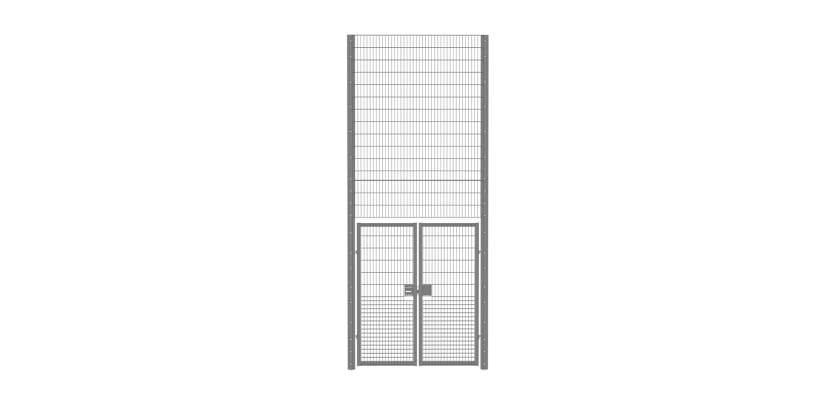

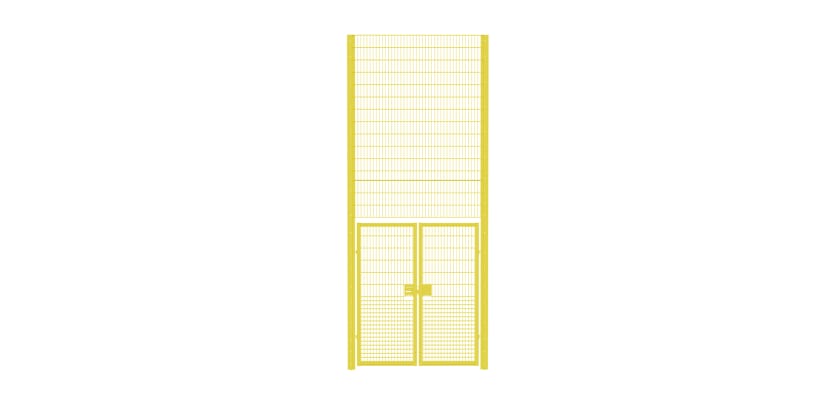

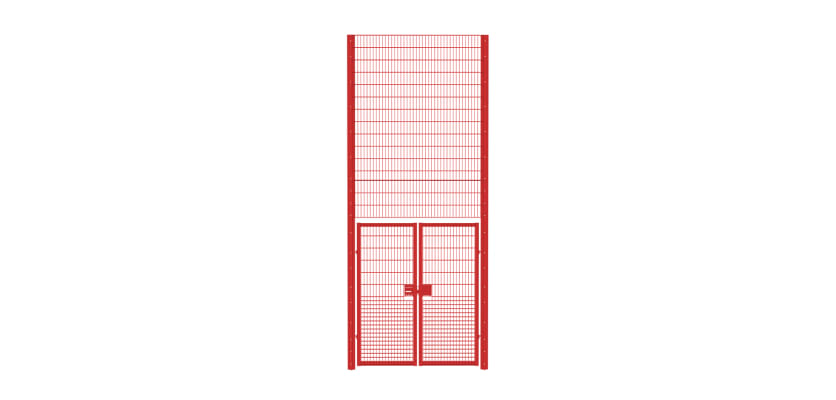

| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Post Style | Dig In |
| Material | Pre-Galvanised Steel |
| Name | Quantity |
|---|---|
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, RHH] | 1 |
| Gate Leaf 898 Rebound Mesh [1.0m Wide x 2.4m High, LHH] | 1 |
| Hinge Gate Post [120 x 120 x 3mm x 7060mm] | 2 |
| 868 Mesh Panel [2950mm x 2150mm] | 1 |
| 868 Mesh Panel [600mm x 2150mm] | 1 |
| Folded Clamp Bar [3030mm long x 40 x 4mm] | 4 |
| M8 x 40mm Mesh Security Bolt | 48 |
| Rebound Nylon Spacer | 48 |
| Ribbed Inserts [60 x 60mm] | 4 |
| Ribbed Inserts [120 x 120mm] | 2 |
| 20mm Two-Way Adjustable Hinge [180° Opening] | 4 |

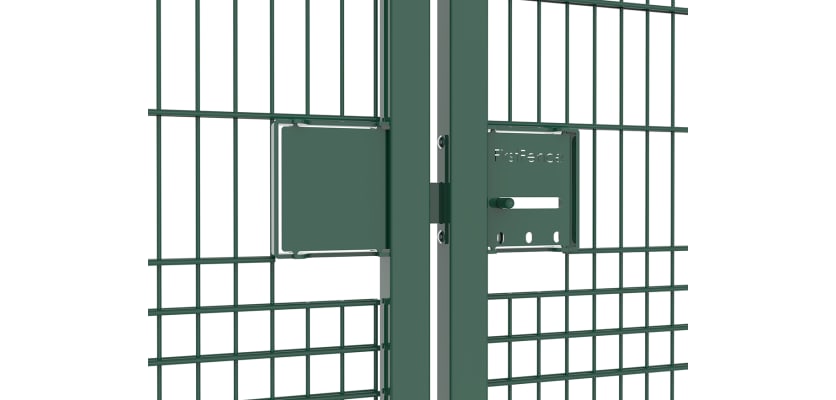

| Unislide Double Slider | 1 |
| Blank Double Slider Plate Kit | 1 |
| First Fence Universal Light Duty Drop Bolt with Expanding Fastener | 2 |
6.0m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
868 rebound mesh gates are engineered for durability and impact resistance, providing a reliable access solution for multi-use games areas (MUGAs) and sports facilities. Featuring a dig-in installation design, they are available in single or double leaf configurations and various heights, making them an ideal match for First Fence's premium rebound mesh fencing range.
Features and Benefits of Rebound Mesh

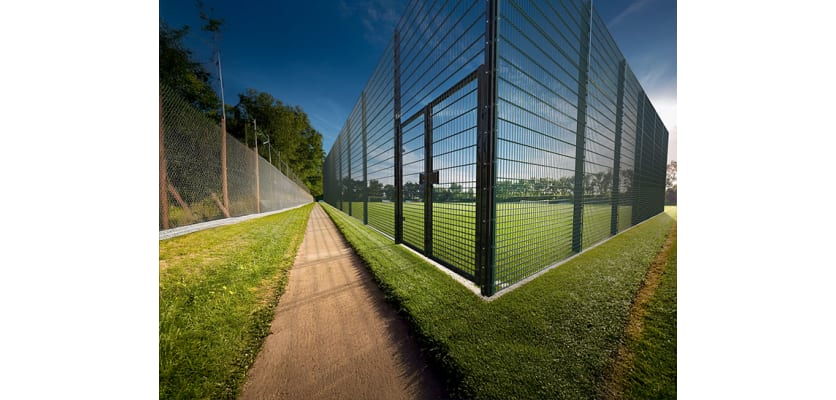

High-impact mesh fencing, crafted from high-tensile steel wires, features a welded construction that ensures outstanding strength and impact resistance. Its dense mesh pattern effectively contains balls while maintaining excellent visibility. Designed for minimal upkeep, it offers reliable performance and safety in demanding sports environments. The fencing's unobstructed sightlines enhance visibility for players, spectators, and supervisors, improving the overall user experience and facilitating efficient safety monitoring.
Choice of height

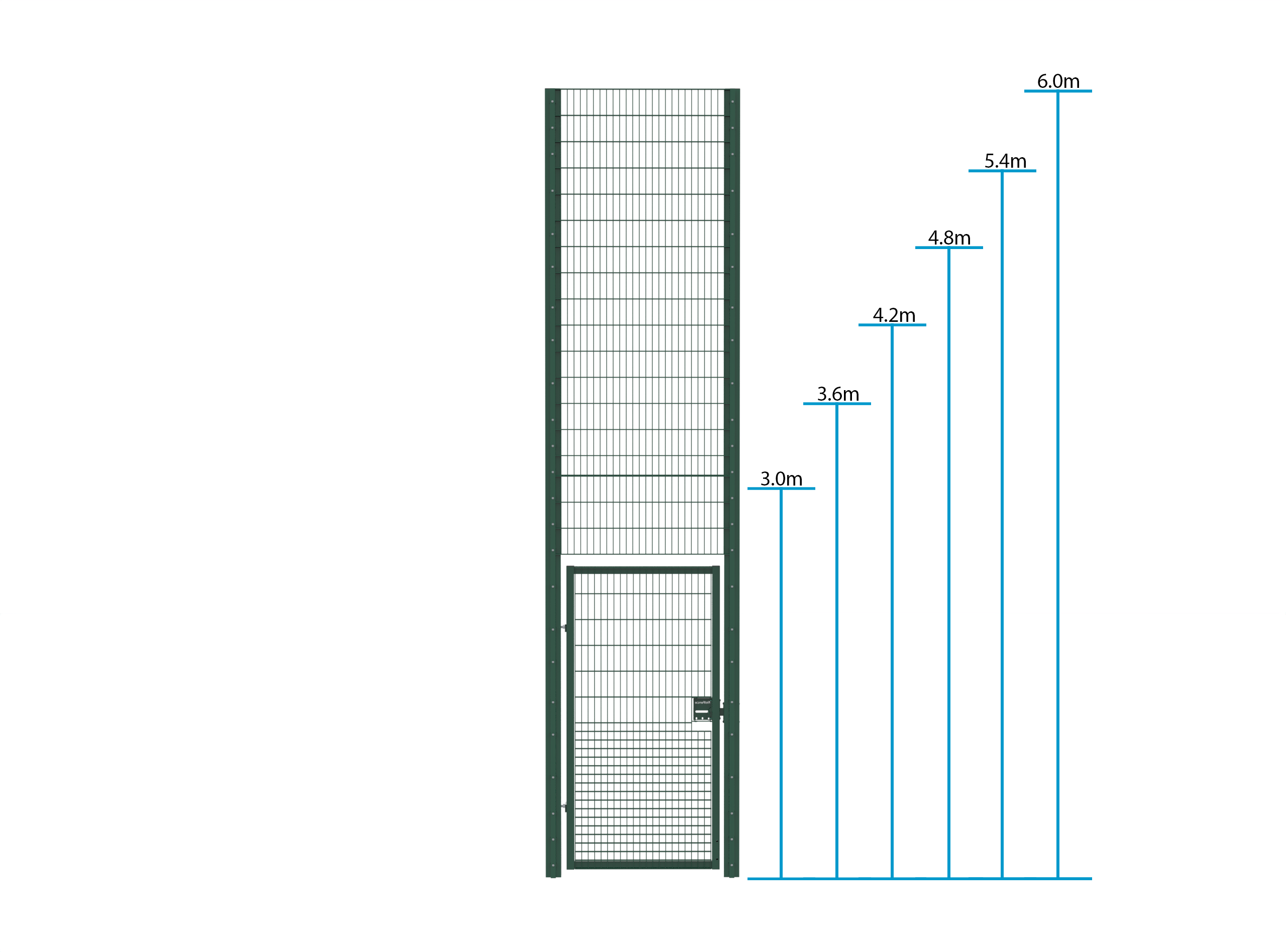

First Fence offers rebound mesh fencing in various sizes to accommodate a wide range of needs and applications. This fencing is a superb option for contemporary sports facilities, delivering exceptional durability, security, and versatility. Available heights include 3.0m, 3.6m, 4.2m, 4.8m, 5.4m and 6.0m, with standard panels measuring 2.5m in width.

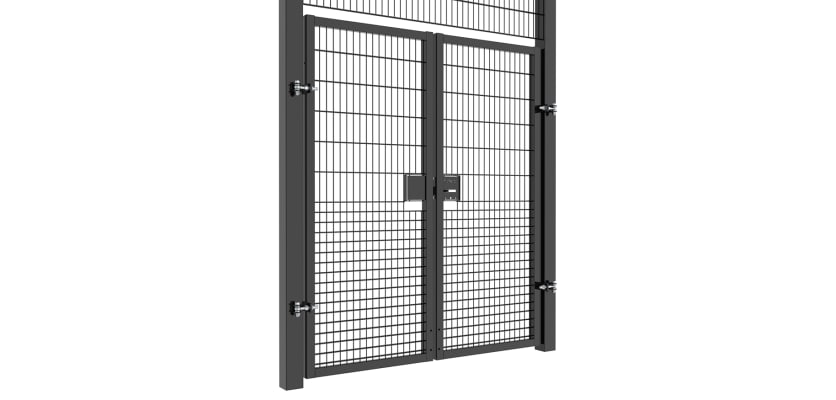

Introducing Double Leaf Rebound Mesh Gate Kits

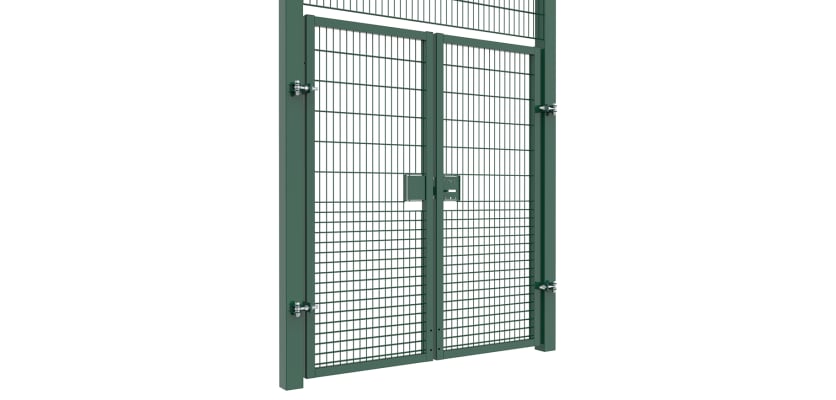

First Fence's 868 rebound mesh double leaf gates offer a robust and adaptable solution for a range of settings, including sports complexes and educational institutions. Designed to secure enclosures such as fields, courts, and stadiums, these gates provide dependable access points for multi-use games areas (MUGAs) and similar environments. The double-leaf configuration, featuring two swingable gates, allows for a wider opening, making it ideal for accommodating vehicles, equipment, and heavy foot traffic, offering greater flexibility compared to single-leaf gates.
Constructed with double horizontal 8mm and vertical 6mm steel wires, these gates are engineered for superior durability and impact resistance, ensuring long-term reliability. Designed for dig-in installation, they require below-ground mounting for enhanced stability. To ensure a secure setup, include Post Mix in your order, with six bags per post recommended.
Made from galvanised steel, the gates are finished with a high-quality polyester powder coating, available in standard green or black. Custom RAL colours can be requested to suit specific preferences. This coating provides excellent protection against weather, corrosion, and general wear, delivering a durable and visually appealing finish.
For added convenience, First Fence supplies rebound mesh gate kits that include all necessary components for a smooth installation process. Heights range from 3.0m to 6.0m, with a standard width of 2.0m to accommodate various needs. Single-leaf gates are also available for smaller entry points.
Theses gates open outwards 180° to comply with SAPCA Code of Practice.
Get in Touch
Contact us today to discuss your requirements or learn more about our products. Reach our team at 01283 512111 or via the live chat tool on our website.
