4.2m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit
Product Description
4.2m High x 2.0m Wide 868 Rebound Mesh Double Leaf Gate Kit

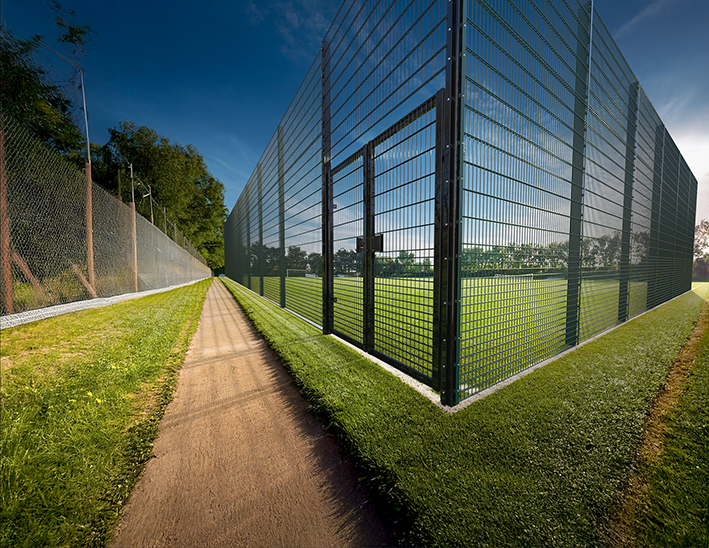

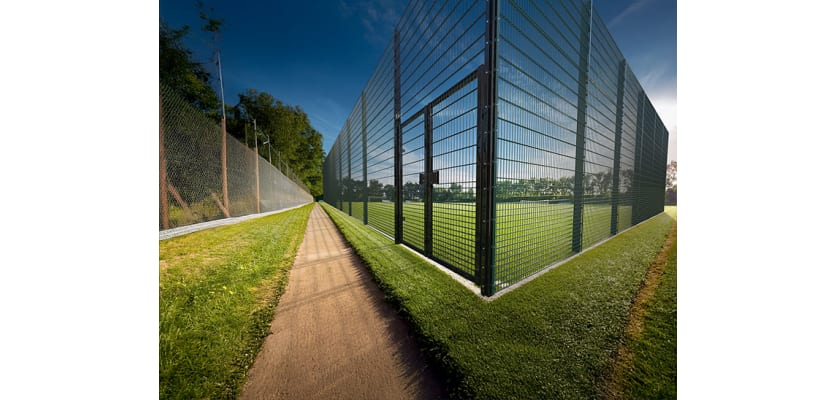

868 rebound mesh gates are built for durability and impact resistance, providing a reliable access point for multi-use games areas (MUGAs) and sports facilities. Featuring a dig-in installation design, available in single or double leaf configurations and various height options, they are the perfect match for First Fence's premium rebound mesh fencing offering.
Features & Benefits of Rebound Mesh
Crafted from high-tensile steel wires, impact-resistant mesh fencing features a welded design for superior durability and impact resistance, ensuring lasting strength. Its compact high-impact mesh effectively contains balls while maintaining excellent visibility. Designed for minimal maintenance, it offers long-term performance and reliable safety in demanding sports environments. Clear sightlines enhance visibility for players, spectators, and supervisors, improving the overall experience and facilitating effective safety monitoring.

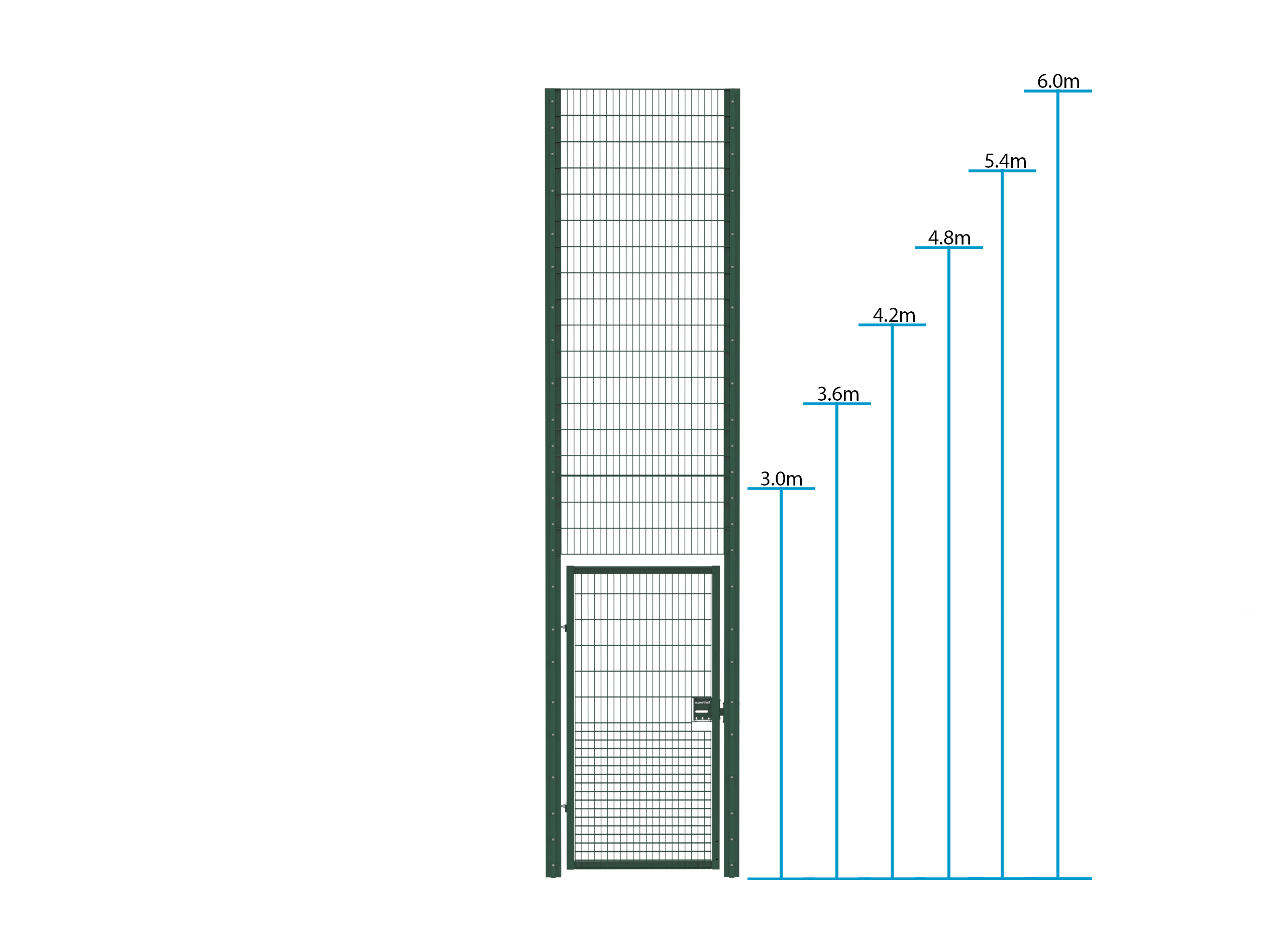

Choice of height
First Fence offers Rebound mesh fencing in a large choice of sizes to suit various needs and applications. An ideal solution for modern sports facilities, providing exceptional durability, safety, and versatility. It is available in sizes 3.0m, 3.6m, 4.2m, 4.8m, 5.4m and 6.0m. The rebound mesh panels have a standard width of 2.5m.

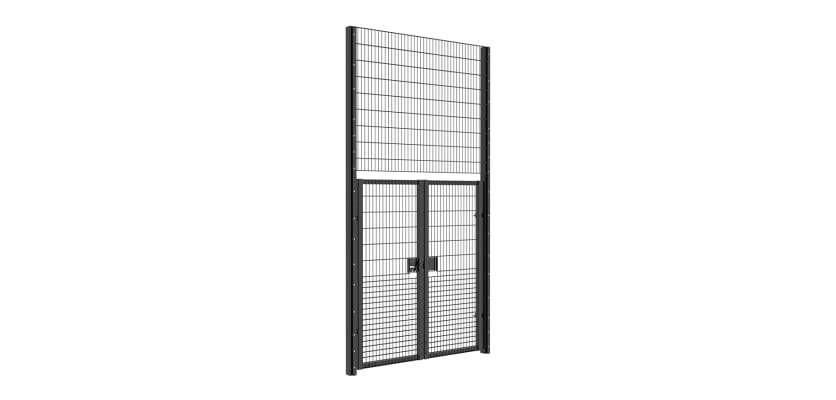

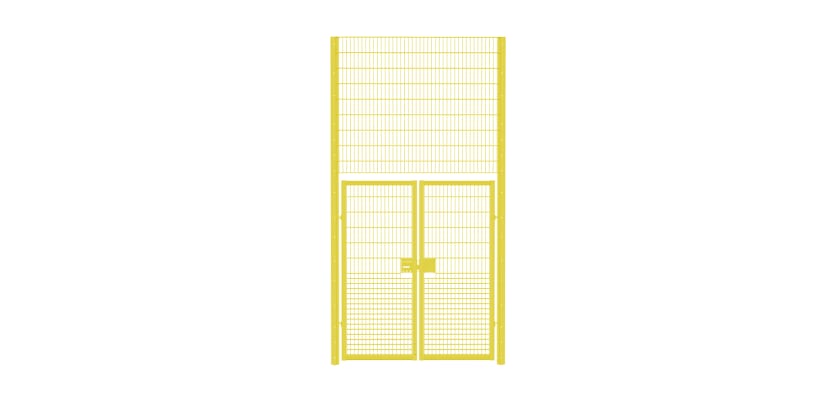

Introducing Double Leaf Rebound Mesh Gate Kits
First Fence's 868 rebound mesh double leaf gates offer a durable and versatile solution for various applications, including sports and educational facilities. They provide secure enclosures for fields, courts, and stadiums, making them ideal for safe and reliable entry and exit points in MUGAs and similar environments. The double-leaf design, featuring two swingable gates, allows for a wider opening, accommodating vehicles, equipment, and high pedestrian traffic while offering greater access flexibility than single-leaf gates.
Constructed with double horizontal 8mm and vertical 6mm steel wires, these gates deliver exceptional strength and rigidity, built to withstand heavy impacts. Designed for dig-in installation, they require below-ground mounting for enhanced stability. Be sure to include Post Mix with your order, with a recommended 5 bags per post for secure installation.
Made from galvanised steel, the gates are finished with a standard polyester powder coating in green or black. Other RAL colour options are available upon request. This premium coating provides excellent resistance to weather, corrosion, and wear, ensuring long-lasting performance and an attractive appearance.
To simplify your project, First Fence offers rebound mesh gate kits that include all necessary components for installation. Available in heights of 3.0m, 3.6m, 4.8m, 5.4m, and 6.0m with a width of 2.0m, these gates cater to diverse needs. Single-leaf gates are also available to suit smaller access points.
These gates open outwards 180° to comply with the SAPCA Code of Practice.
Get in touch
Contact us today to learn more or to discuss your specific requirements. The team can be reached by calling 01283 512 111 or by using the live chat tool.
Specifications & Downloads
| Height | 4200mm [above ground], 5060mm [actual length] |
| Access Width | 2000mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] |
| Thickness of Wires | [Horizontal: 8mm] [Vertical: 6mm] |

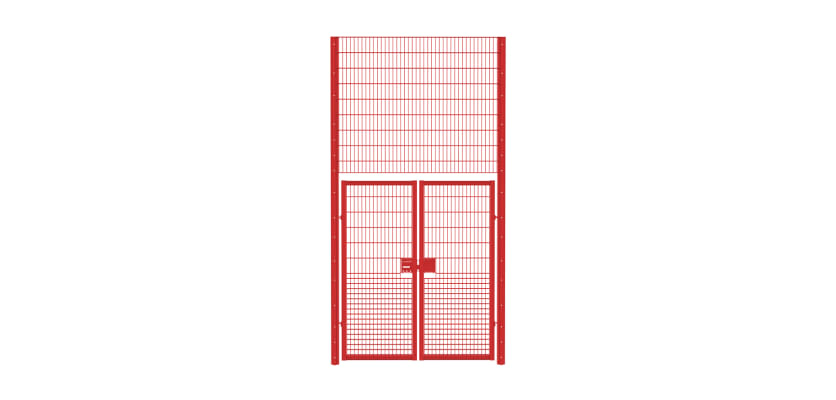

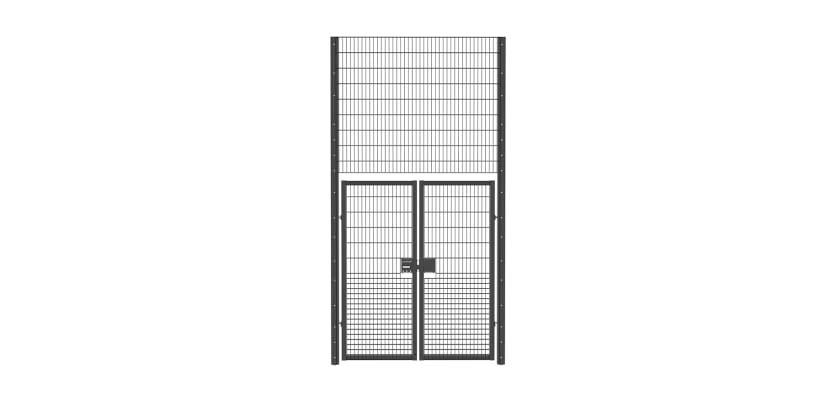

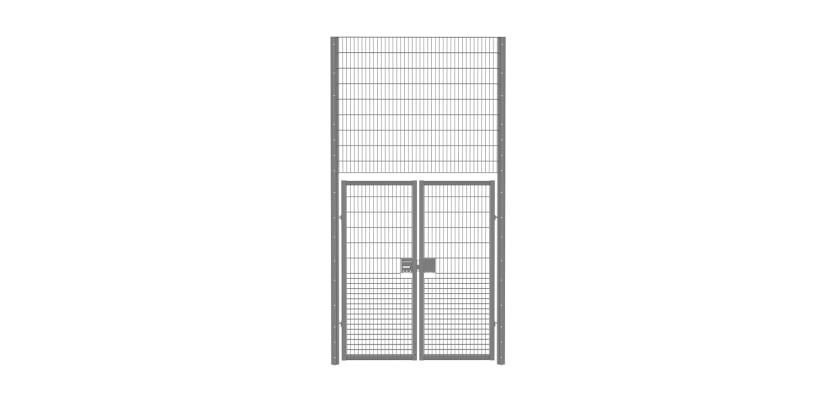

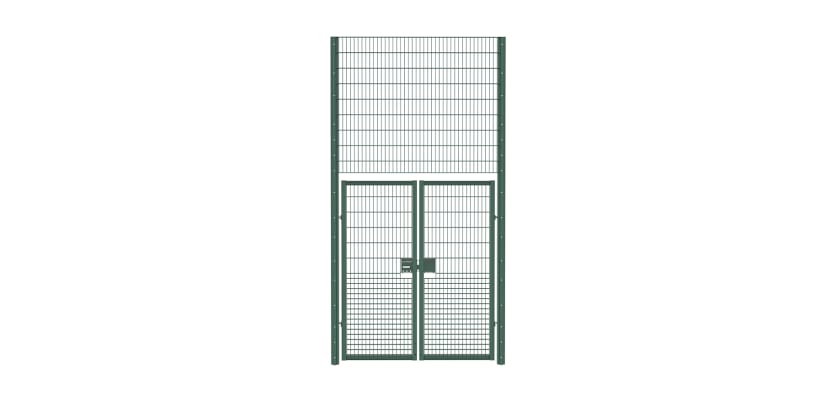

| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Post Style | Dig In |
| Material | Pre-Galvanised Steel |
What's Included
| Name | Quantity |
|---|---|
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, RHH] | 1 |
| Gate Leaf 868 Rebound Mesh [1.0m Wide x 2.4m High, LHH] | 1 |
| Hinge Gate Post [100 x 100 x 3mm x 5060mm] | 2 |

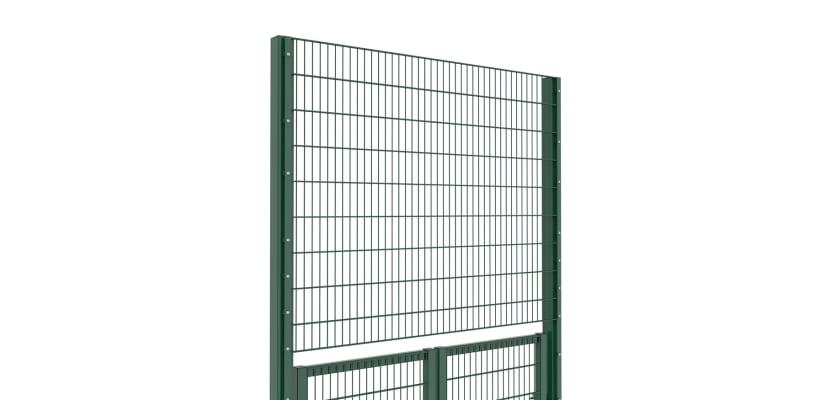

| 868 Mesh Panel [1750mm x 2150mm] | 1 |
| Folded Clamp Bar [3030mm long x 40 x 4mm] | 2 |
| Folded Clamp Bar [1230mm long x 40 x 4mm] | 2 |
| M8 x 40mm Mesh Security Bolt | 32 |
| Rebound Nylon Spacer | 32 |
| Ribbed Inserts [60 x 60mm] | 4 |
| Ribbed Inserts [100 x 100mm] | 2 |

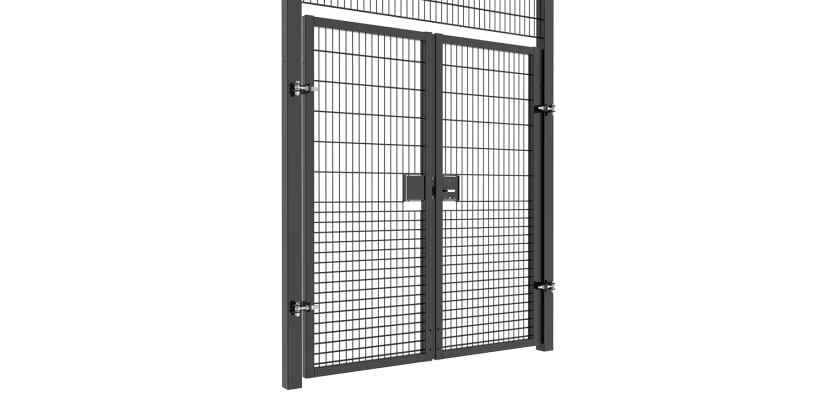

| 20mm Two-Way Adjustable Hinge [180° Opening] | 4 |

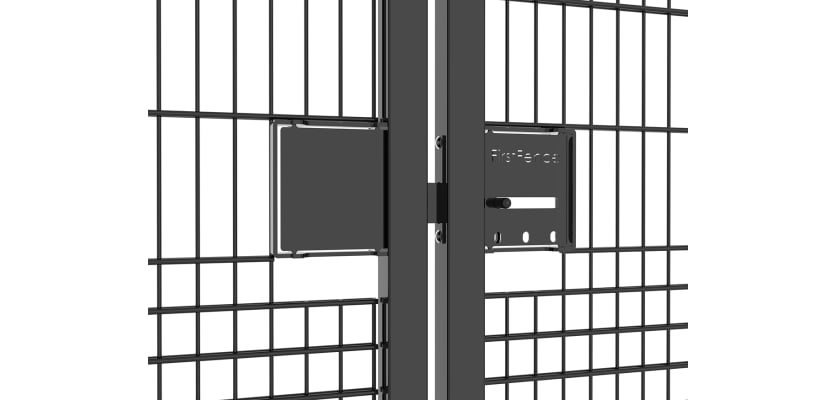

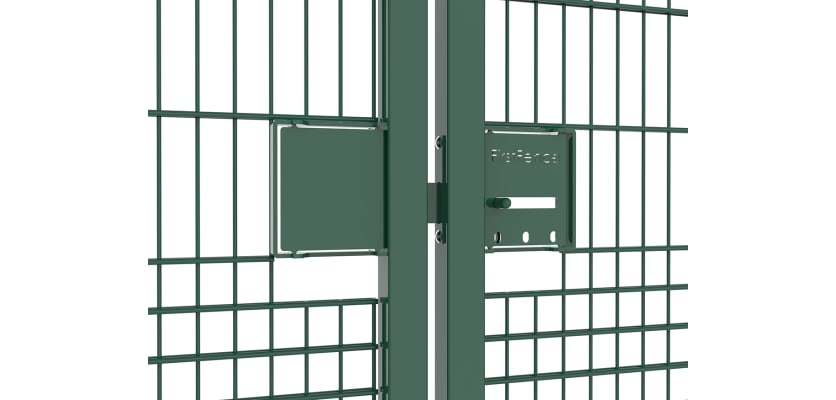

| Unislide Double Slider | 1 |
| Blank Double Slider Plate Kit | 1 |
| First Fence Universal Light Duty Drop Bolt with Expanding Fastener | 2 |
