2.0m High RapidShield® V Mesh Intermediate Fencing Kit
Temporary Works Design
Professional Engineering Calculations and Site-Specific SolutionsProduct Description
2.0m High RapidShield® V Mesh Intermediate Fencing Kit

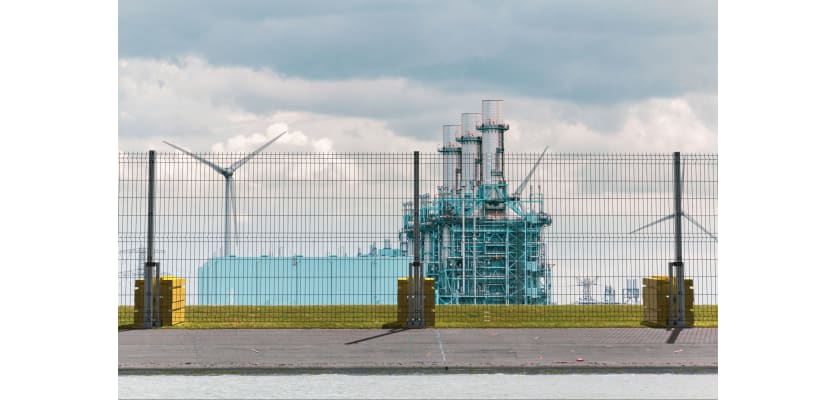

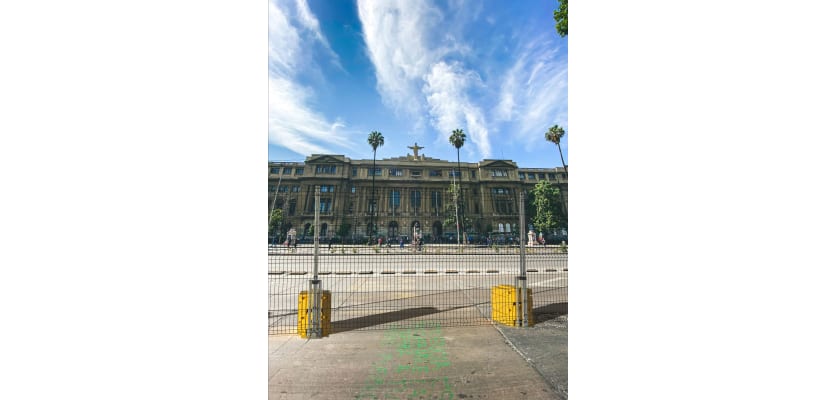

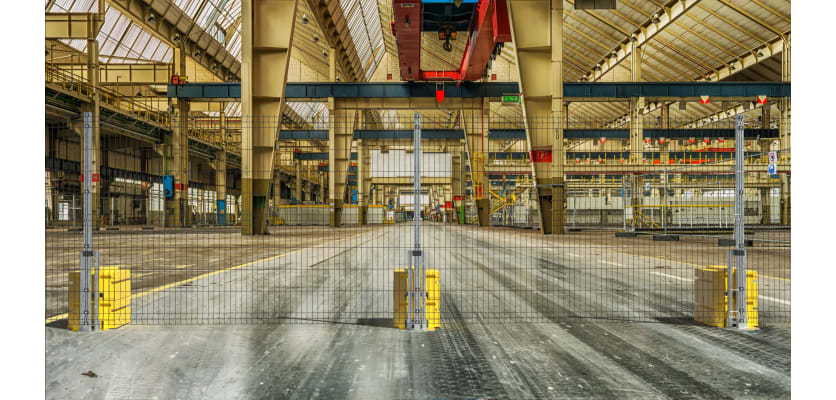

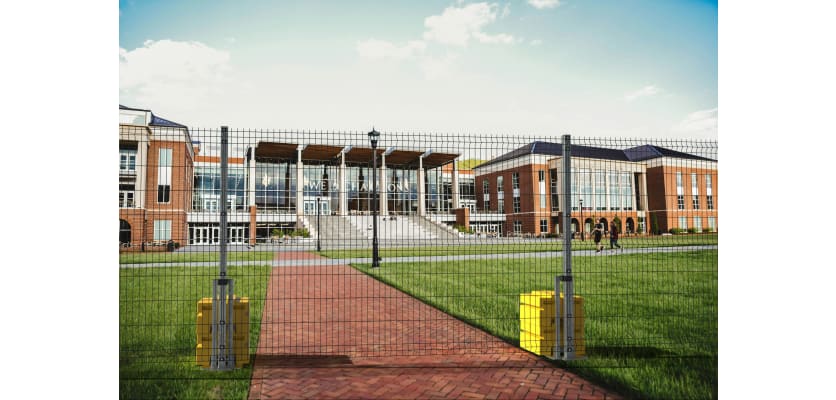

The 2.0m High RapidShield® V Mesh Intermediate Fencing Kit provides a fast, flexible and secure solution for temporary and semi-permanent perimeter protection. Designed for quick installation without excavation or permanent fixings, RapidShield® combines the strength of permanent fencing with the convenience of a temporary system.
Introducing RapidShield® from First Fence
RapidShield® is a modular, high-security fencing system designed to secure sites quickly with minimal disruption. Manufactured from pre-galvanised steel, the system offers excellent durability and weather resistance, while its modular design allows fencing runs of virtually any length.
Unlike conventional permanent fencing, RapidShield® does not require ground assessment, excavation or concrete foundations. The panels can be installed directly onto a flat surface, making the system ideal for sites where speed and flexibility are important.

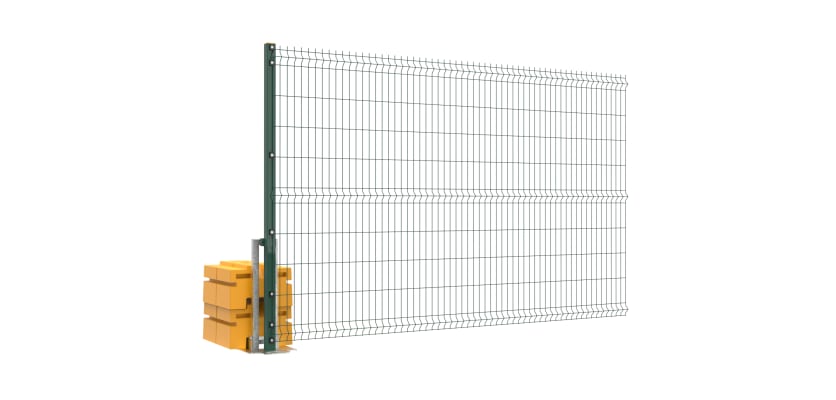

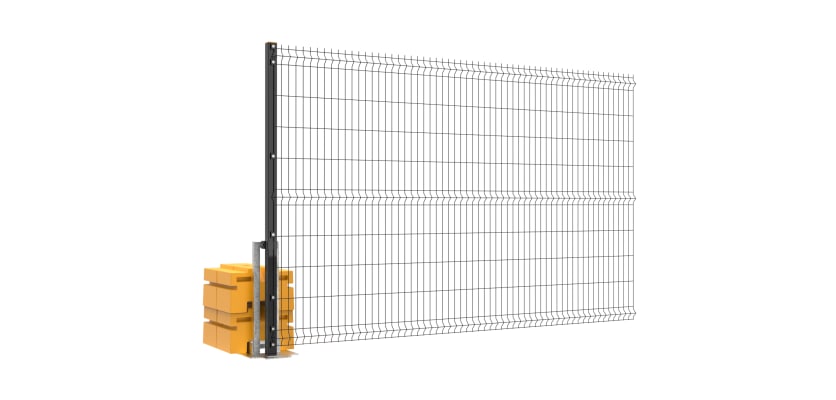

The 2.0m High V Mesh Intermediate Fencing Kit includes:
- 1 x 2.0m high x 3.0m wide V Mesh panel
- 1 x Intermediate post
- 7 x M8 x 40mm mesh security bolts
- 7 x Black universal fencing clips
- 1 x Black ribbed post-end insert
- 1 x UniFoot kit with ballast
V Mesh features a distinctive pressed V-shaped profile that increases the strength, rigidity and impact resistance of each panel. This makes it a reliable choice for sites requiring a robust security perimeter while maintaining good visibility.
RapidShield® V Mesh is also available in 1.8m, 2.4m and 3.0m heights.
Innovative Stabilising System

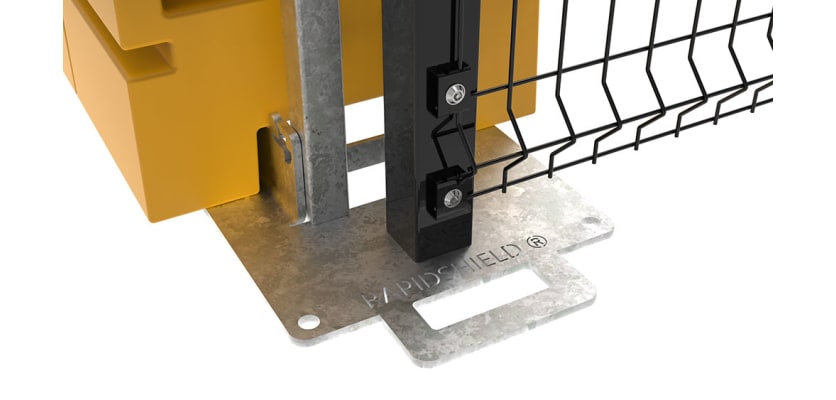

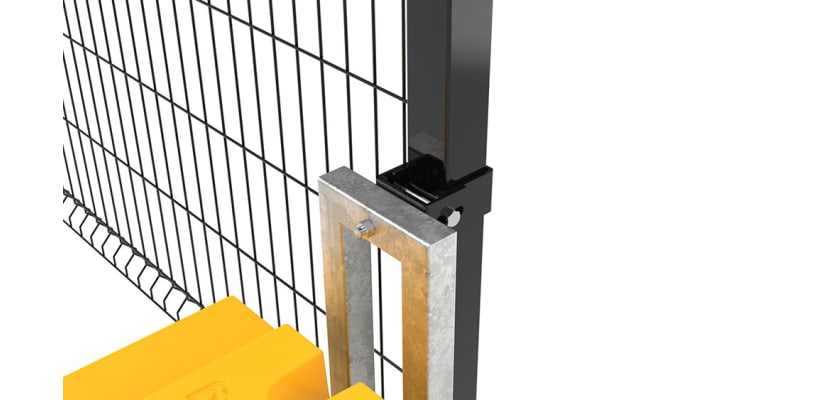

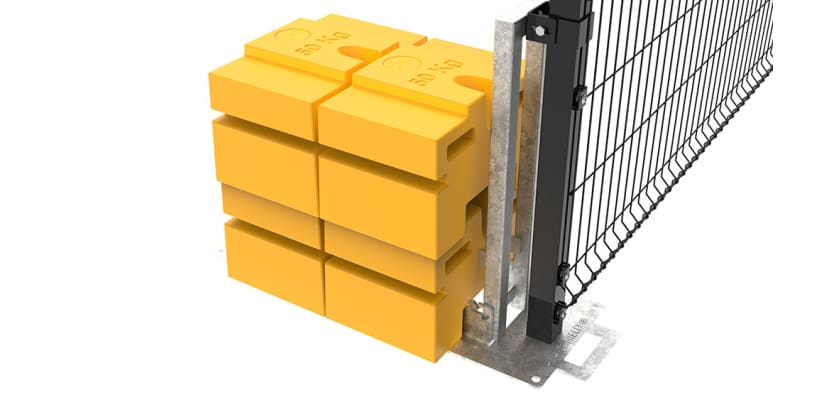

Each kit includes a RapidShield® UniFoot system with 200kg of ballast, providing stability without the need for permanent ground fixings.
The patented UniFoot features a folding design with an integrated handle, making it easier to manoeuvre, transport and store. The units can also be stacked neatly when not in use, helping to maximise storage space.
Complete Your RapidShield® System
Additional components are available to create a complete and adaptable fencing system. A corner post kit and end post kit allow you to create changes in direction or finish your fencing run.
For controlled access, add a RapidShield® site gate. Available in single and double leaf configurations and various widths, the gates feature flush-fitting drop bolts for convenient storage and stacking.
RapidShield® gates also include pre-lasered holes for a safety tether, helping them comply with BS 12604 safety standards.
Available to Hire
Need temporary fencing for a project? Our RapidShield® systems are available for both short- and long-term hire. Call 01283 512111 to discuss your requirements.
Contact Us
Need help choosing the right RapidShield® system for your project? Our knowledgeable team can provide advice on products, installation and project requirements. Call 01283 512111 or contact us through our online live chat service.
Specifications & Downloads
| Height | 2.0m |
| Width | 3.0m |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
What's Included
| Name | Quantity |
|---|---|
| 2.0m High x 3.0m Wide V Mesh Panel | 1 |
| RapidShield® 2.0m High Intermediate Post [60 x 60mm x 1992mm] | 1 |
| M8 x 40mm Star Profile Mesh Security Screw | 7 |
| Universal Mesh Fencing Fixing Clips [Black] | 7 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 1 |
Videos
Specifications & Downloads
| Height | 2.0m |
| Width | 3.0m |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
What's Included
| Name | Quantity |
|---|---|
| 2.0m High x 3.0m Wide V Mesh Panel | 1 |
| RapidShield® 2.0m High Intermediate Post [60 x 60mm x 1992mm] | 1 |
| M8 x 40mm Star Profile Mesh Security Screw | 7 |
| Universal Mesh Fencing Fixing Clips [Black] | 7 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 1 |
