1.8m High RapidShield® V Mesh Intermediate Fencing Kit
Temporary Works Design
Professional Engineering Calculations and Site-Specific SolutionsProduct Description
1.8m High RapidShield® V Mesh Intermediate Fencing Kit

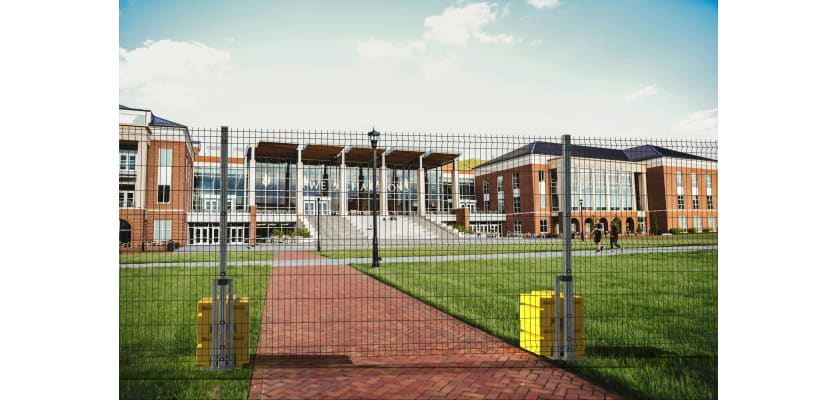

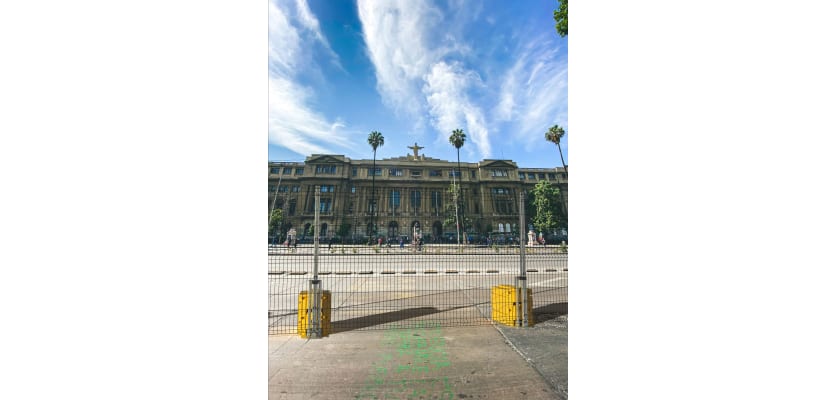

The RapidShield® V Mesh Intermediate Fencing Kit is a high-security, rapid deployment solution for temporary and semi-permanent site protection. Its modular design allows secure fencing to be installed and removed quickly, without excavation, concrete or permanent ground fixings.
To assemble the Rapid Deployment Mesh Fencing, you will need an M8 x 40mm Star Torque Bit.
Introducing RapidShield®

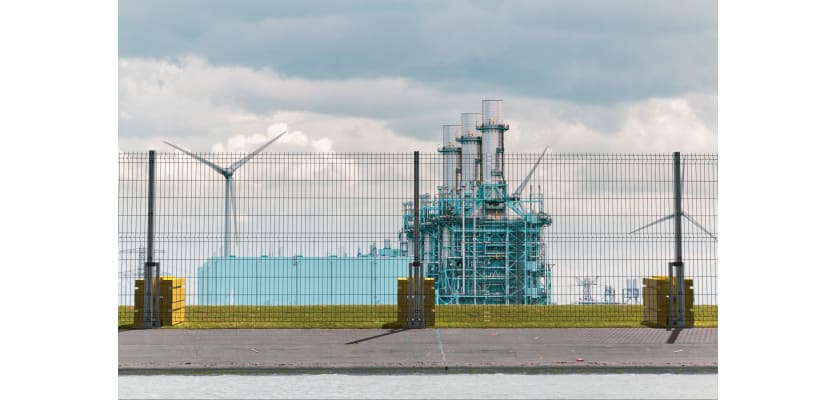

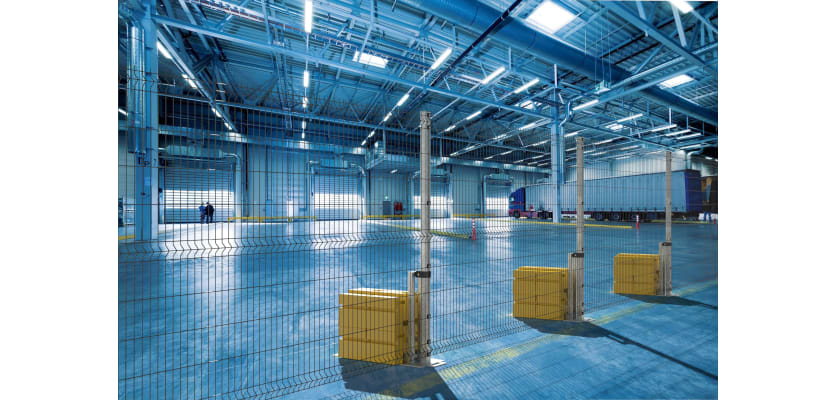

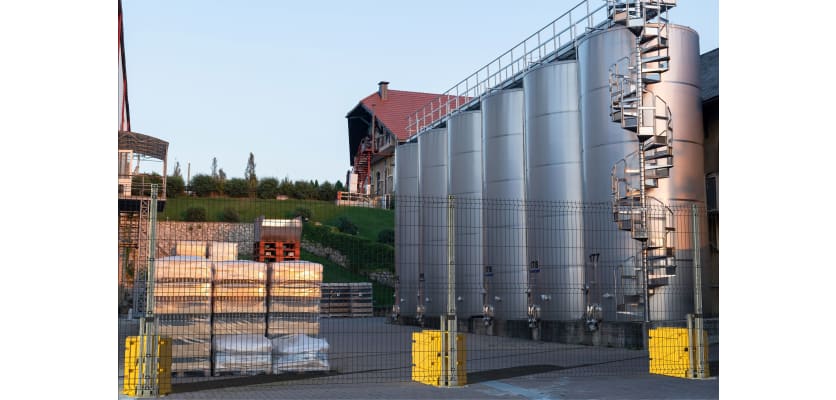

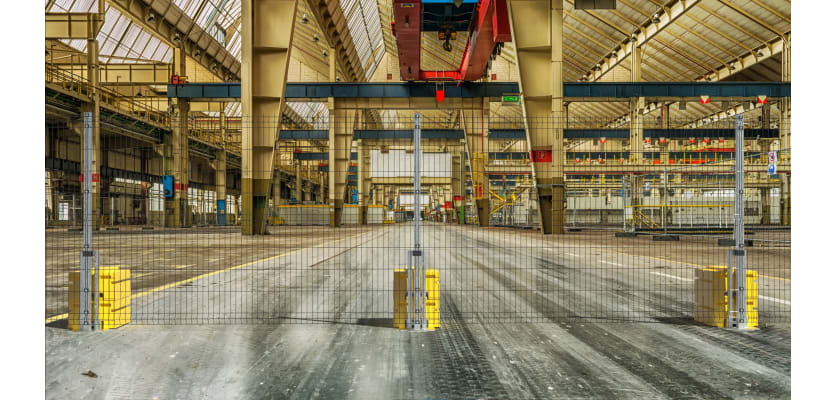

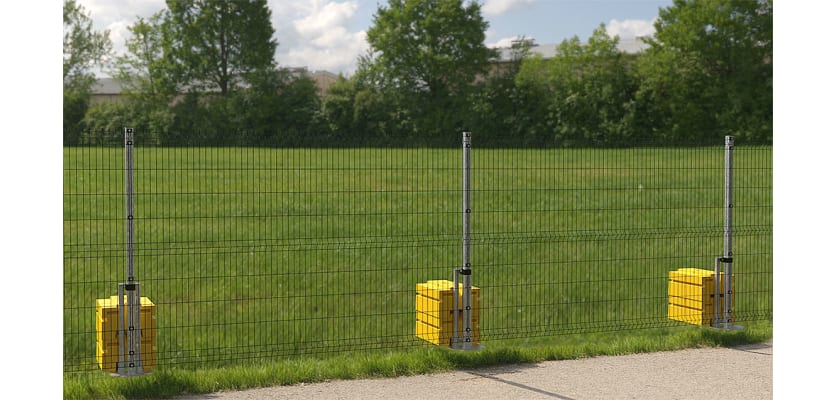

Manufactured from pre-galvanised steel, RapidShield® combines the strength and durability of permanent fencing with the flexibility and quick installation of a temporary system. The panels can be installed directly onto flat ground, making RapidShield® ideal for sites where speed, minimal disruption and reliable security are essential.

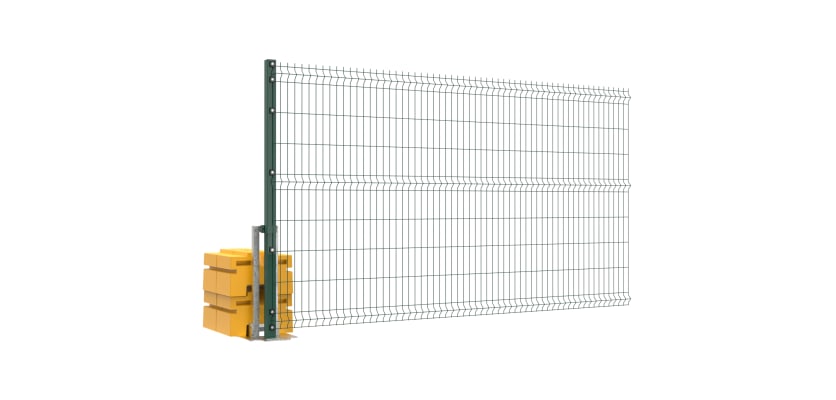

The 1.8m High RapidShield® V Mesh Intermediate Fencing Kit includes:
- 1 x 1.8m high x 3.0m wide V mesh panel
- 1 x intermediate post
- 7 x M8 x 40mm mesh security bolts
- 7 x black universal fencing clips
- 1 x black ribbed post end insert
- 1 x UniFoot kit with ballast
The V mesh panel features a distinctive pressed V profile that adds strength, rigidity and resistance to deformation and impact. RapidShield® is also available in 2.0m, 2.4m and 3.0m heights, with 868 mesh and 358 mesh infill options also available.

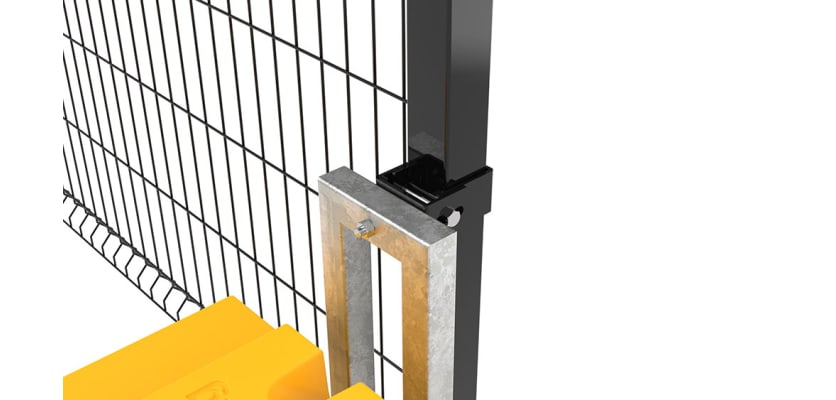

Innovative UniFoot Stabilising System

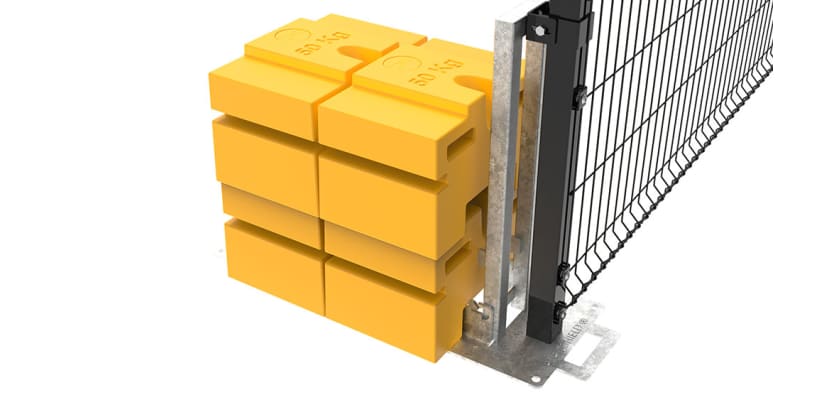

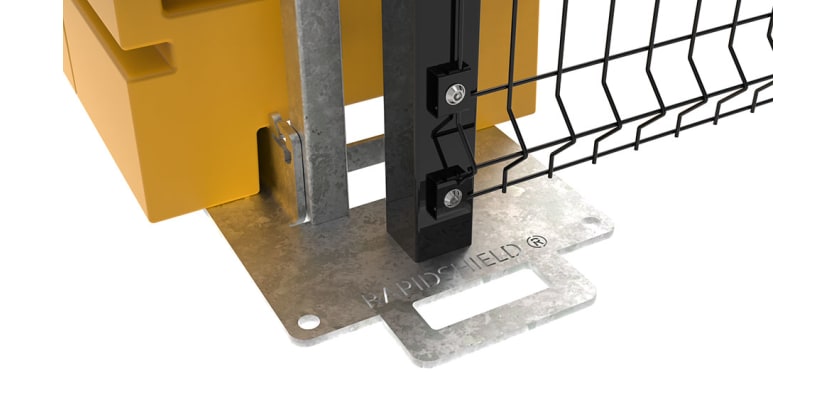

Each kit includes a RapidShield® UniFoot with 200kg of ballast, providing stability without the need to permanently fix the fencing to the ground.
The patented folding design features an integrated handle for easy manoeuvrability and allows the UniFoot units to be stacked neatly when not in use, making transportation and storage more efficient.
Complete Your RapidShield® System
Build a complete fencing run with a RapidShield® corner post kit for changes in direction or an end post kit to finish your perimeter.
For controlled site access, add a RapidShield® site gate. Available in single and double leaf configurations and a range of widths, these gates feature flush-fitting drop bolts for easy storage and stacking.
RapidShield® gates also include pre-lasered holes for a safety tether, helping the gates comply with BS 12604 safety standards.
Available to Hire
RapidShield® rapid deployment fencing is available for both short- and long-term hire, providing a flexible option for temporary projects and changing site requirements.
Contact Us
For more information about RapidShield® V Mesh Fencing or help selecting the right system for your project, contact our knowledgeable sales team on 01283 512 111 or speak to us through our online live chat.
Specifications & Downloads
| Height | 1.8m |
| Width | 3.0m |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
What's Included
| Name | Quantity |
|---|---|
| 1.8m High x 3.0m Wide V Mesh Panel | 1 |
| RapidShield® 1.8m High Intermediate Post [60 x 60mm x 1792mm] | 1 |
| M8 x 40mm Star Profile Mesh Security Screw | 7 |
| Universal Mesh Fencing Fixing Clips [Black] | 7 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 1 |
Videos
Specifications & Downloads
| Height | 1.8m |
| Width | 3.0m |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
What's Included
| Name | Quantity |
|---|---|
| 1.8m High x 3.0m Wide V Mesh Panel | 1 |
| RapidShield® 1.8m High Intermediate Post [60 x 60mm x 1792mm] | 1 |
| M8 x 40mm Star Profile Mesh Security Screw | 7 |
| Universal Mesh Fencing Fixing Clips [Black] | 7 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 1 |
