RapidShield® 2.0m High x 1.2m Wide Single Leaf Gate Kit
| Height | 2.0m [Installed] |
| Width | 1.2m |
| Number of Leaves | 1 |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Safety Standards | BS 12604 [When used with a Gate Safety Tether] |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
| Name | Quantity |
|---|---|
| RapidShield® 2.0m High 60 x 60mm 868 Mesh Hinge Frame | 1 |
| RapidShield® 2.0m High 60 x 60mm 868 Mesh Catch Frame | 1 |
| AdaptiGuard® 2.0m High x 1.2m Wide Slider Gate Leaf | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 2 |
| Black Ribbed Inserts [60 x 60mm] | 4 |
| Universal Mesh Fencing Clips [Black] | 14 |
| M8 x 40mm Star Profile Mesh Security Screw | 14 |
| Black Ribbed Inserts [40 x 40mm] | 2 |
| Adjustable Gate Eyes | 2 |
| M5 x 20mm One-Way Pan Head Screw A2 | 1 |
| M5 Shear Nut A2 | 1 |
| Universal Gate Drop Bolt | 1 |
Please note: This product is in a pre-order phase. Design may vary.
RapidShield® 2.0m High x 1.2m Wide Single Leaf Gate Kit
Pedestrian site gates are specifically designed for foot traffic, providing secure entry and exit points at construction sites, industrial facilities, and other areas where controlling pedestrian access is critical for safety and security. These gates can be outfitted with access control systems, such as keypads or card readers, to restrict entry to authorized individuals. Constructed to endure heavy use and exposure to the elements, they offer long-term durability and dependability.
Features and Benefits

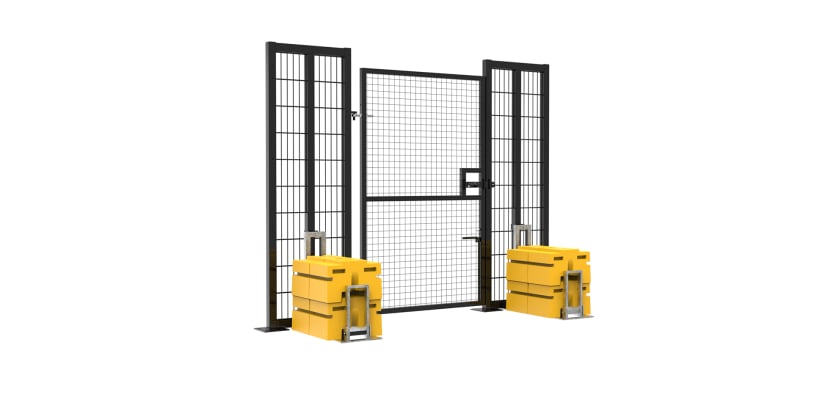

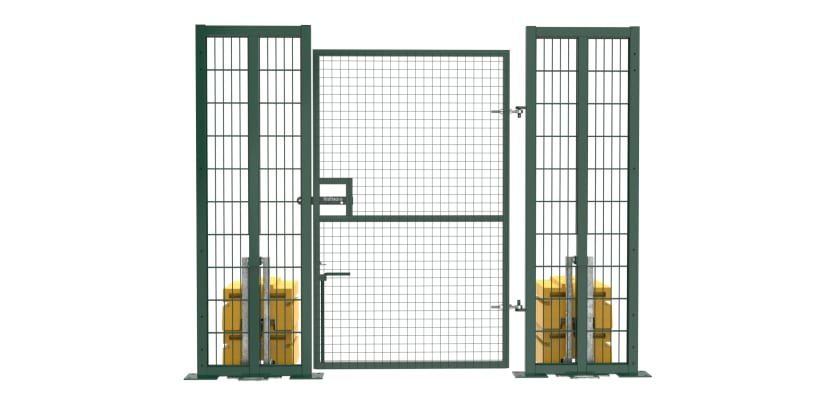

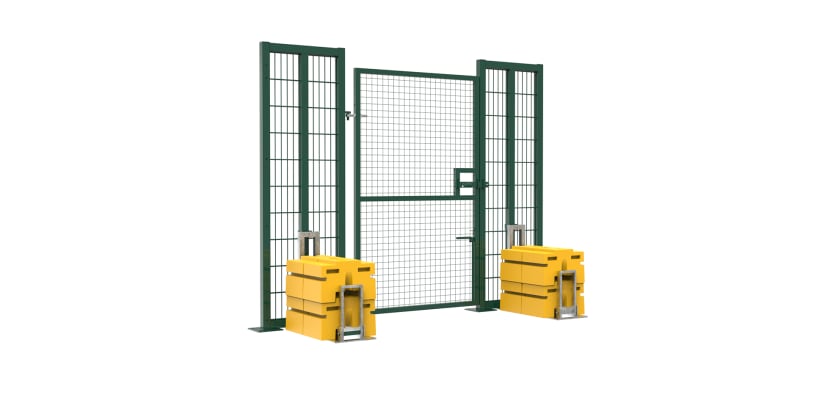

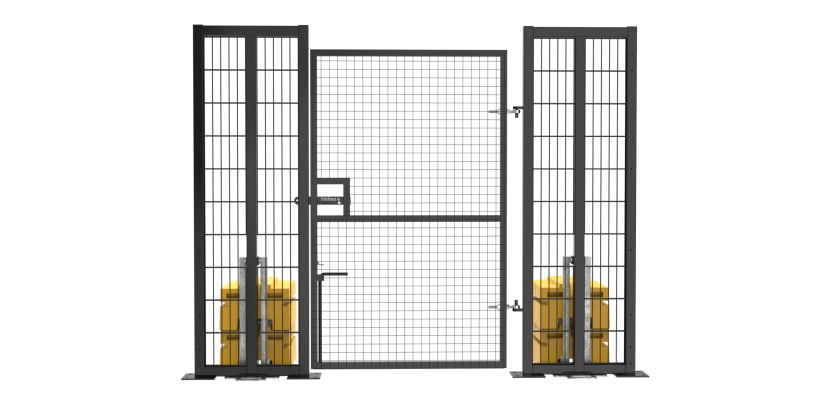

The 2.0m High x 1.2m Wide RapidShield® single leaf pedestrian site gate kit from First Fence is designed to work with the RapidShield® rapid deployment fencing system and will serve as an ideal, secure entry and exit solution for your site. Manufactured from pre-galvanised steel and powder coated in black or green as standard, this gate is built to last and, when installed properly, will give many years of faithful service with minimal maintenance required.
- The RapidShield® single leaf gate kit comes with:
- 868 Mesh Hinge Frame x1
- 868 Mesh Catch Frame x1
- AdaptiGuard® Slider Gate Leaf x1
- RapidShield® Unifoot with 200kg ballast x2
- Mesh Clips and M8 x 40mm Star Profile Security Screw x14
- Black Ribbed Inserts (60 x 60mm) x4
- Black Ribbed Inserts (40 x 40mm) x2
- Adjustable Gate Eyes x2
- M5 x 20mm One-Way Pan Head Screw x1
- M5 Shear Nut x1
- Universal Gate Drop Bolt x1

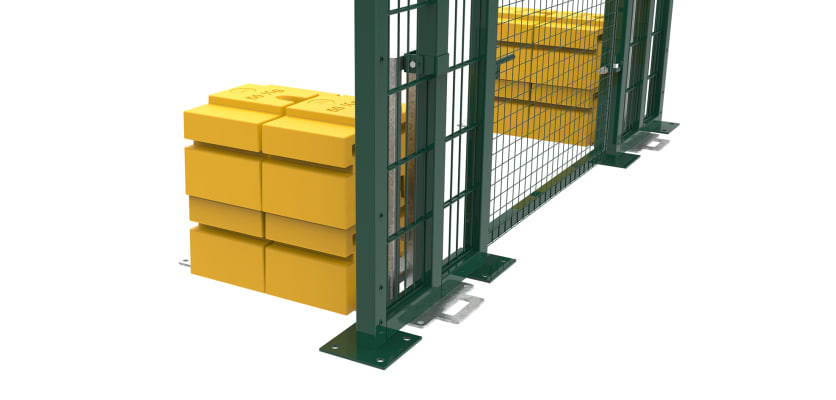

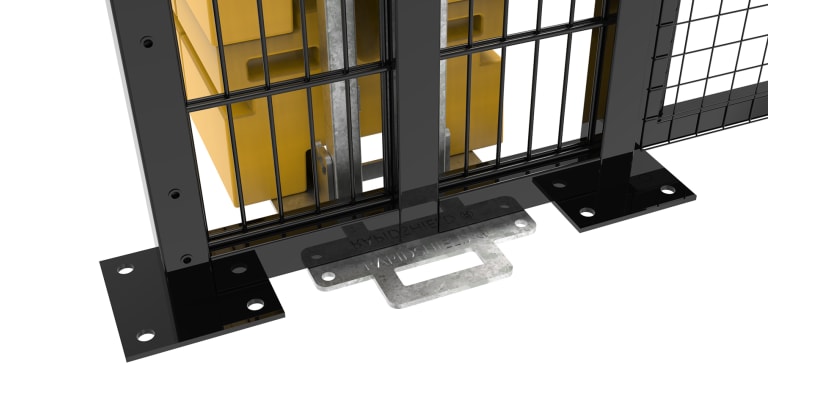

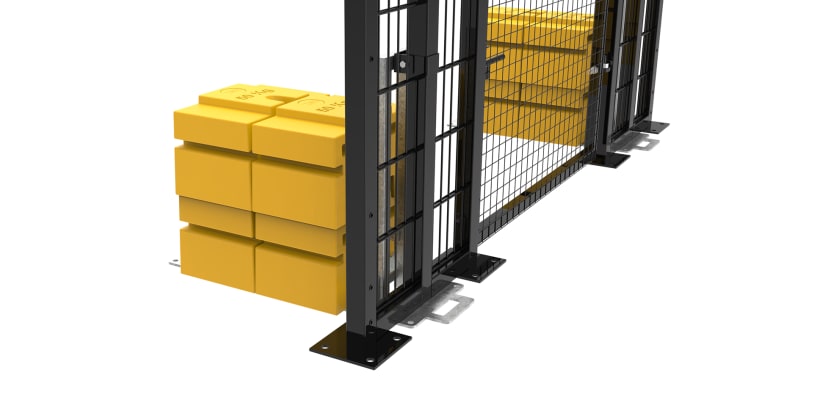

This gate uses an innovative ballast foot to secure to the ground, there is no ground excavation needed. The RapidShield® Unifoot kit (with 200kg of ballast) is used to secure your fencing in place. The RapidShield® Unifoot kit features an innovative, patented folding design with a handle to ensure straightforward manoeuvrability, and the capacity to be stacked neatly on top of each other.
