3.0m High RapidShield® V Mesh Intermediate Fencing Kit
Temporary Works Design
Professional Engineering Calculations and Site-Specific SolutionsProduct Description

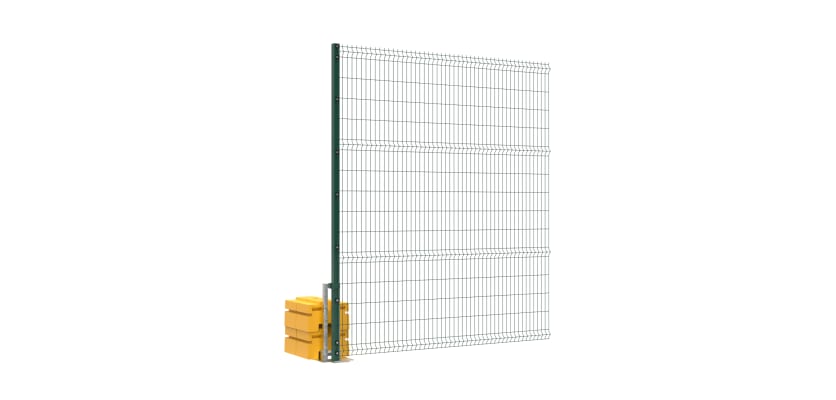

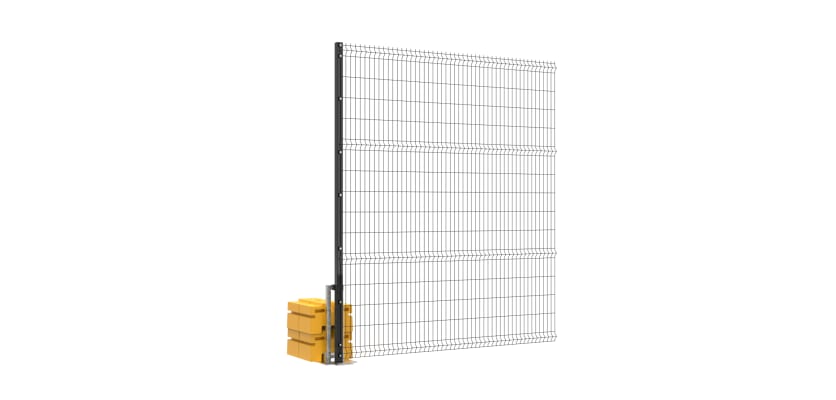

3.0m High RapidShield® V Mesh Intermediate Fencing Kit

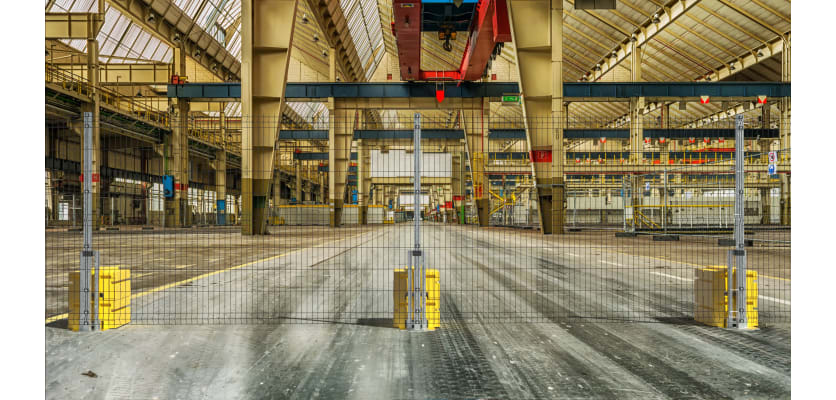

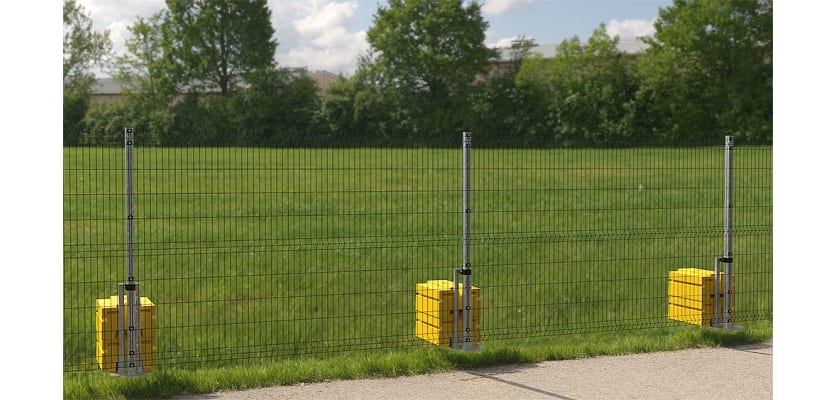

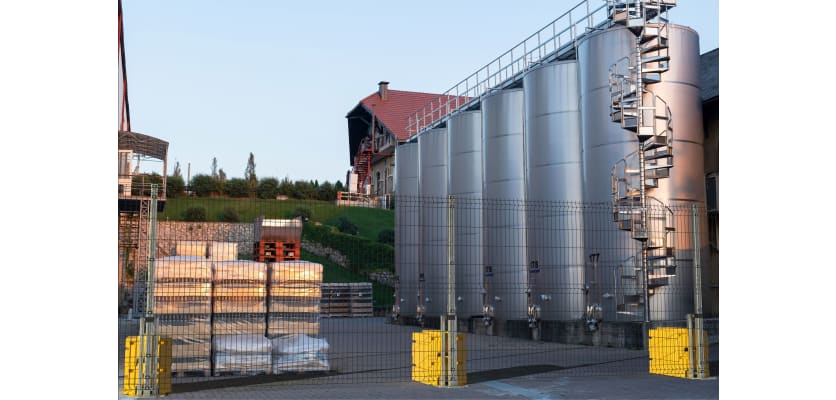

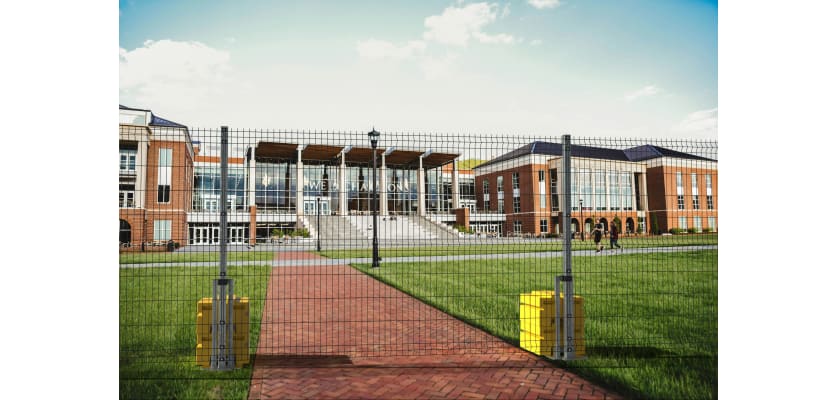

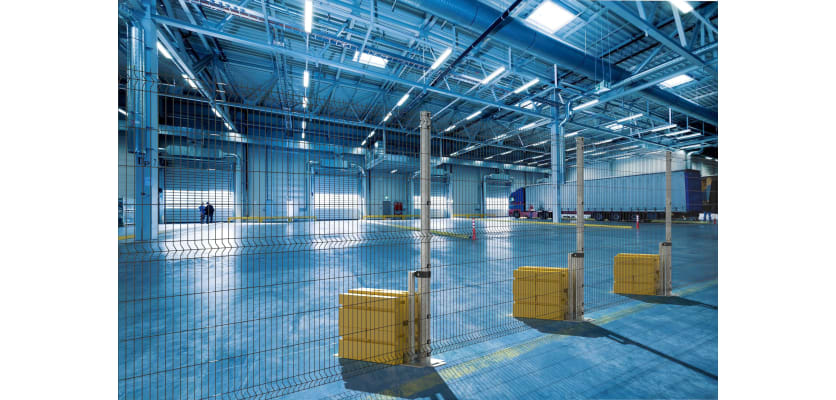

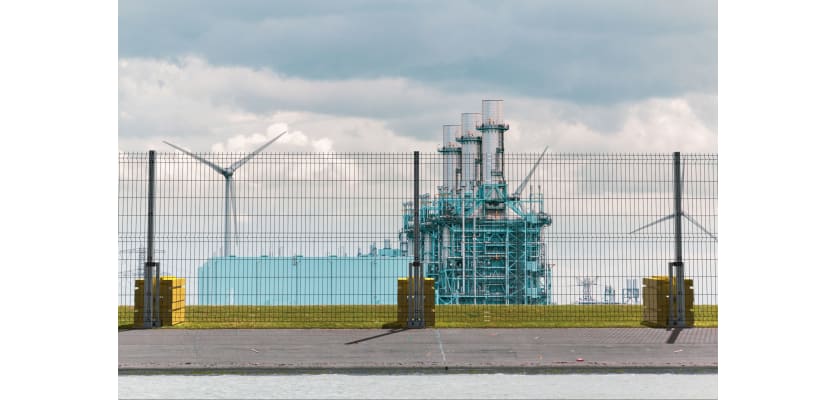

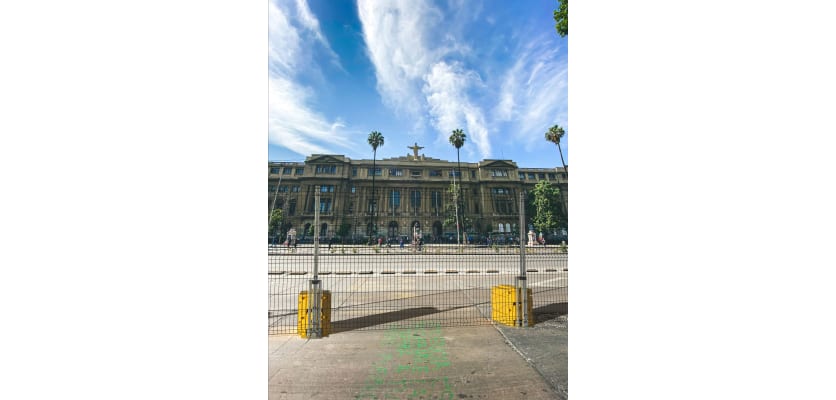

The 3.0m High RapidShield® V Mesh Intermediate Fencing Kit provides a flexible, high-security perimeter that can be installed and removed quickly. Designed for temporary and semi-permanent applications, RapidShield® is ideal for construction sites, events, emergencies and temporary work areas where reliable security and flexibility are essential.
To assemble the Rapid Deployment Mesh Fencing, you will need an M8 x 40mm Star Torque Bit.
Strong V Mesh Construction
RapidShield® is manufactured from robust pre-galvanised steel, providing excellent strength and durability in demanding outdoor environments. The V-shaped mesh profile adds rigidity to the fencing panel, creating a strong physical barrier while maintaining a professional appearance. The system is also available with green or black polyester powder coating, providing additional protection against weathering and wear.
Quick & Easy Installation
RapidShield® can be installed directly onto suitable flat ground, without the need for excavation, ground assessment or permanent bolting. The modular design allows you to create a secure perimeter of virtually any length or configuration. It can also be dismantled and relocated quickly as your site requirements change.
What's Included?
Each 3.0m High RapidShield® V Mesh Intermediate Fencing Kit includes:
- 3.0m high x 2.5m wide V mesh panel
- Intermediate post
- Security bolts and clips
- Black ribbed post end insert
- UniFoot kit with ballast

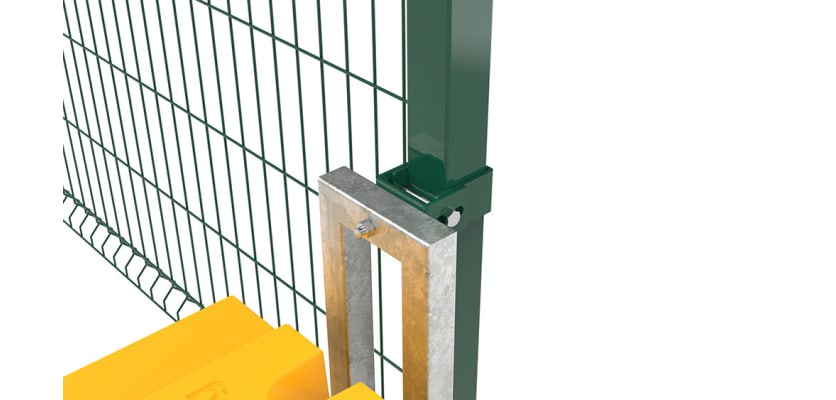

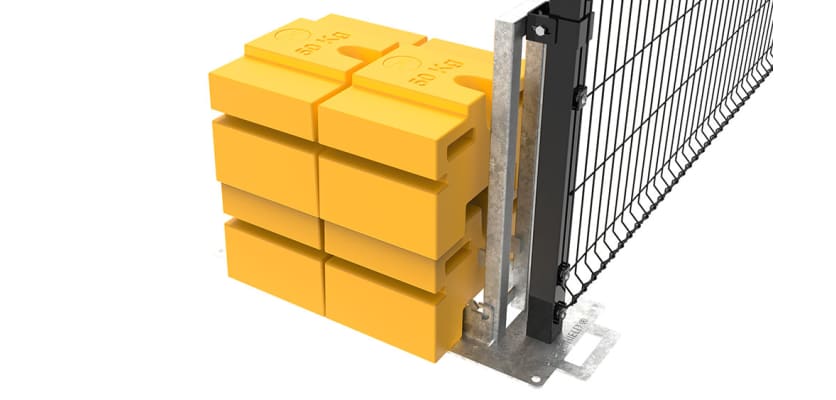

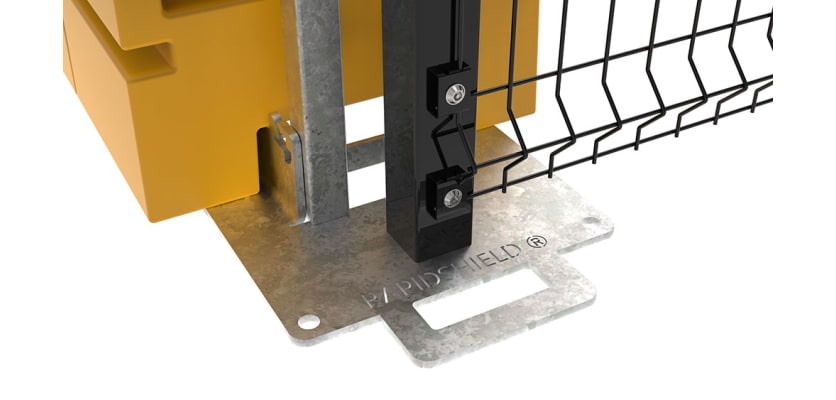

Patented UniFoot Stabilising System
The RapidShield® UniFoot system includes 200kg of ballast to provide stability and keep the fencing securely in position. Its patented folding design features an integrated handle for easy manoeuvrability and allows the feet to be stacked neatly for convenient storage.
Build Your RapidShield® Perimeter
Complete your fencing system with compatible corner and end post kits, ideal for creating changes in direction or finishing your perimeter. For controlled access, add a RapidShield® site gate. Gates are available in single or double leaf configurations and a range of widths. RapidShield® gates feature pre-lasered holes for safety tethers to help meet BS 12604 safety standards. Flush-fitting drop bolts also make the gates easy to store and stack without protruding hardware.
Available to Hire
RapidShield® fencing is available for short-term or long-term hire, making it a flexible option for temporary projects and changing site requirements. Call 01283 512 111 for more information.
Contact Us
Need help choosing the right RapidShield® system for your project? Our sales team can provide expert advice and help you find the right solution. Call 01283 512 111, email sales@firstfence.co.uk or speak to us via live chat.
Specifications & Downloads
| Height | 3.0m |
| Width | 2.5m |
| Material | Pre-Galvanised/Hot Dip Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
| Wind Loading Standards Compliance | BS-EN 1991-1-4:2005+A1:2010 |
What's Included
| Name | Quantity |
|---|---|
| 3.0m High x 2.5m Wide V Mesh Panel | 1 |
| RapidShield® 3.0m High Intermediate Post [60 x 60mm x 2992mm] | 1 |
| M8 x 40mm Star Profile Mesh Security Screw | 9 |
| Universal Mesh Fencing Fixing Clips [Black] | 9 |
| Black Ribbed Inserts [60 x 60mm] | 1 |
| RapidShield® UniFoot Kit with 200kg Ballast | 1 |
