Locinox Valentino Code Lock Installation & Setup Guide
Product Overview & Key Features
Learn how to configure and fit the Locinox Valentino surface-mounted battery-powered code lock for gates. Available to order online today from First Fence, this electronic keypad lock delivers secure keyless access without requiring external electrical wiring.
100% Wire-Free Operation: Operates on an internal battery pack without requiring electrical wiring or external power lines.
Up to 100 User Codes: Easily program, manage, add, or remove custom access PIN codes.
High Energy Efficiency: High-capacity battery system provides up to 150,000 open/close cycles per set.
Weatherproof Casing: Heavy-duty, vandal-resistant aluminium housing designed specifically for outdoor perimeter security.
Adjustable Latching: Features 20 mm adjustable bolts for precise gate alignment and smooth closing operation.
🛠️ Step-by-Step Fitting
00:00 – Site Overview: Review the gate and post setup prior to installation.
00:03 – Mark Drill Locations: Measure and mark hole spacings and offsets on the gate profile.
00:06 – Drill Mounting Holes: Drill the required mounting, cylinder, and fixing holes on the gate post.
00:20 – Open Keypad Housing: Remove the retaining screws with an Allen key and open the protective cover.
00:34 – Connect Battery Pack: Insert and secure the internal battery pack into the lock body.
00:59 – Reassemble Cover: Re-seat the keypad panel and tighten the outer housing plate.

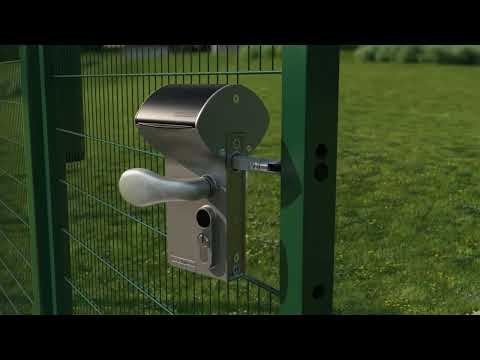

01:14 – Mount Lock Body: Align the lock unit against the gate post and tighten the mounting bolts.
🧰 Tools Required
Hex / Allen key set
Power drill & drill bits
Tape measure & marking tool
