Timber Construction Site Hoarding Calculator
Images shown are for illustration purposes only and may differ slightly
Add Posts
Set at 1.8m centres
Add Horizontal Rails
Recommended quantity based on a 3-rail system. These are positioned at the top, middle and bottom of the framework, the sheets are then fixed to this frame.
Choose Number of Sheets
Use three sheets per bay. Use infills to fill any gaps and cover joins.

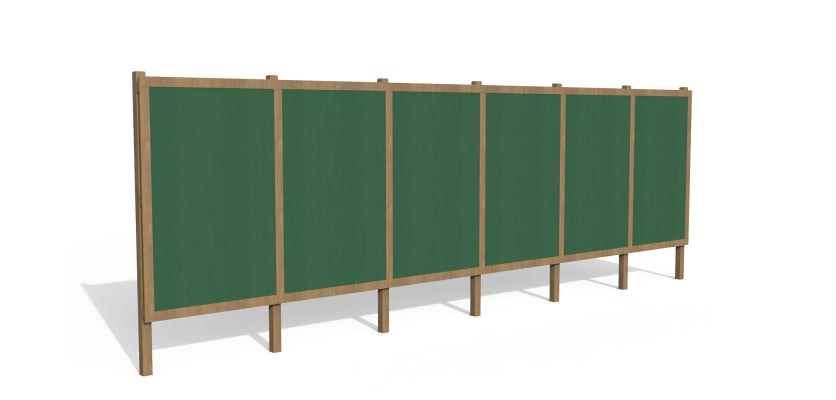

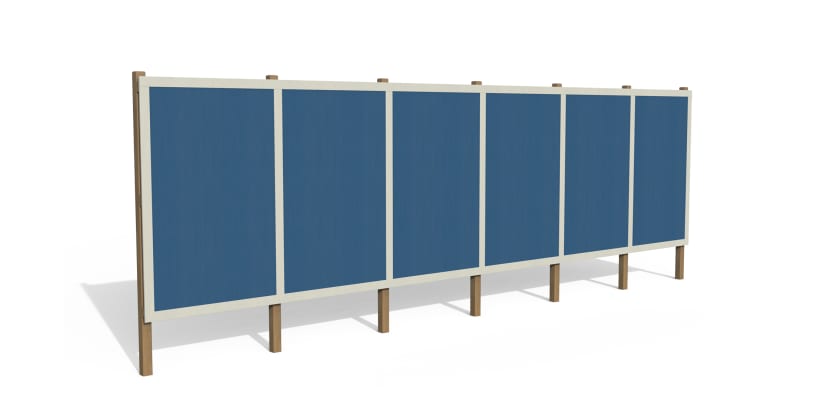

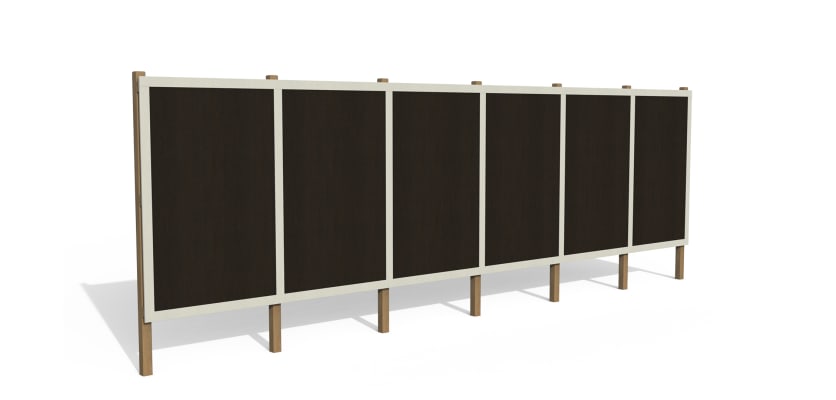

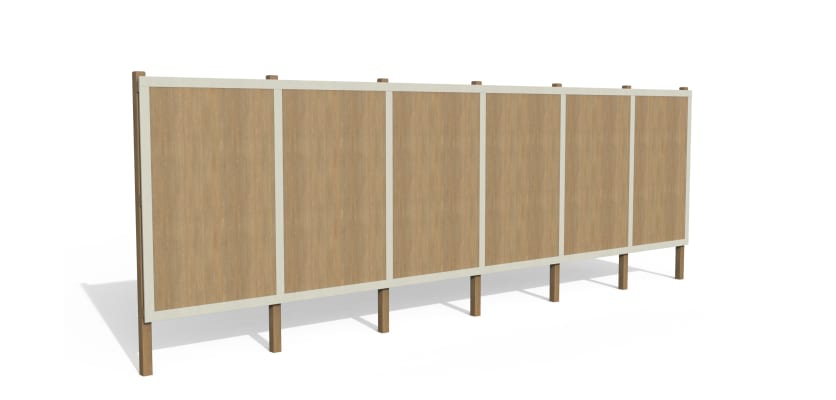

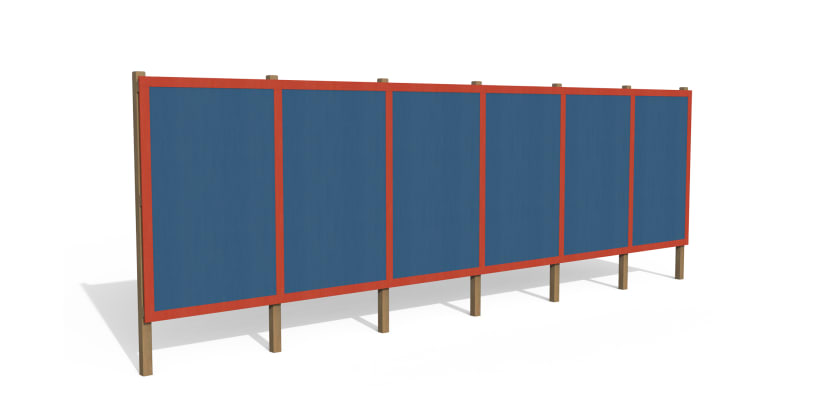

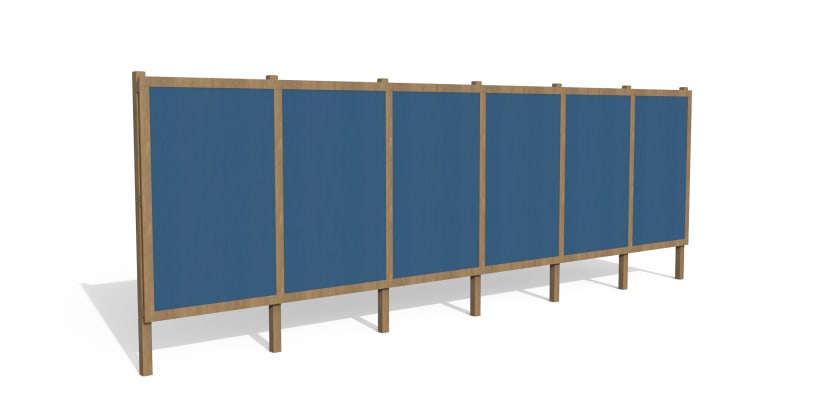

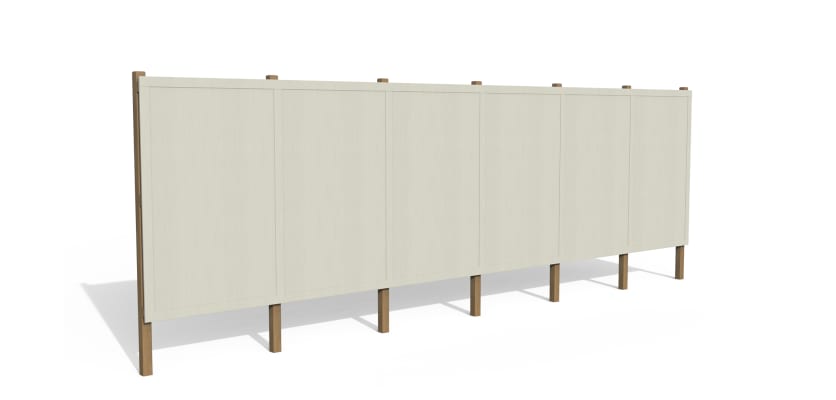

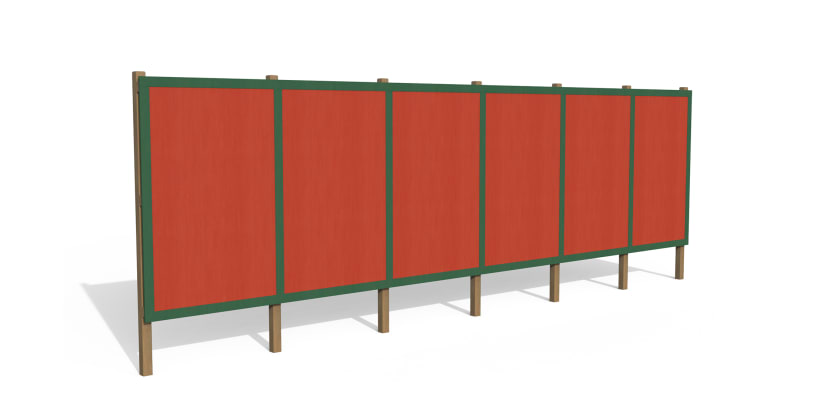

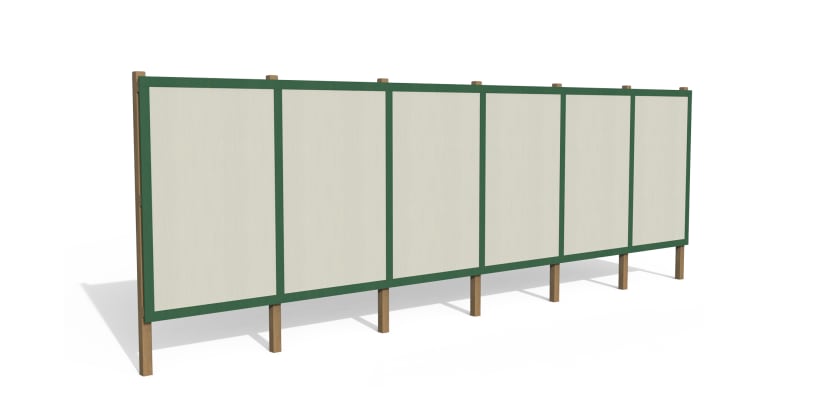

Choose Sheet Colour
Show More Options
Add Vertical Infill Strips
A vertical infill strip is used to cover the gap between sheets over the posts.
Show More Options
Add Horizontal Infill
Each measures 4.8m in length, use along the top and bottom to cover joins.
Show More Options
Do you need any additional posts/backstays?
Finish your hoarding run with this. This post can also be used as a backstay/raking prop, when cut at an angle and concreted into the ground (use one every second post)
Do you need additional infill strips?
A vertical infill strip may be needed for end post to end the run of fencing.
Show More Options
Do you require any nails?
Use the 90mm nails for Rail to Post & 50mm for Sheet to Rail.
Show More Options
Do you require any accessories?
Use Allegro blocks when the TWD stipulates it. Use resin studs when securing the timber post to the blocks. Consult with the TWD to ensure compliance.
Show More Options
Need help or advice?
Get in touch with us at 01283 512 111Product Description
Timber Construction Site Hoarding Calculator
Secure your perimeter with our robust and fully customisable timber hoarding panels. Designed for durability and flexibility, our hoarding systems are the ideal solution for construction sites, property developments, and event management, providing essential safety, security, and privacy.
Features and Benefits
While primarily associated with construction, timber hoarding can be used in any situation requiring a solid, temporary perimeter.
Construction & Demolition Sites: This is the most common use. It's a legal requirement (under regulations like the Construction Design and Management - CDM) to secure a site perimeter to protect the public from hazards and prevent unauthorised access.
Vacant Property Security: Used to secure empty buildings, land, or properties undergoing renovation. It deters squatters, vandals, and fly-tipping, preventing property degradation.
Retail & Shop-Fitting: When a shop, restaurant, or office is being refurbished, hoarding is erected inside a shopping centre or on the high street. It conceals the messy work, builds anticipation, and can feature "coming soon" branding.
Events & Festivals: Hoarding creates secure perimeters, blocks views to non-ticketed areas, conceals backstage and staff-only zones, and provides a solid surface for signage and crowd-flow directions.
Public Infrastructure Projects: Used to secure areas around roadworks, railway maintenance, or utility upgrades, protecting workers from traffic and the public from machinery.
Build Your Own System
Choose from a range of panel materials and finishes to perfectly match your project's budget, duration, and corporate identity.
Panel Sheet Options - Select the ideal material and thickness for your site's requirements.
Plywood Panels - A traditional and popular choice known for its smooth finish and durability. 18mm Plywood: Our heavy-duty solution, offering maximum strength, impact resistance, and security for long-term sites or high-risk areas.
OSB 3 (Oriented Strand Board) Panels - A strong, engineered-wood alternative offering excellent value and structural integrity. 18mm OSB 3: A heavy-duty option with superior strength, ideal for long-term installations and demanding environments requiring high impact resistance.
Finish & Colour Options

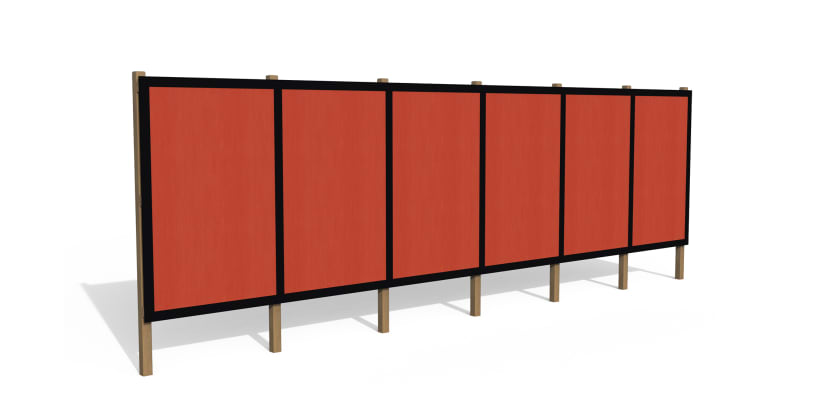

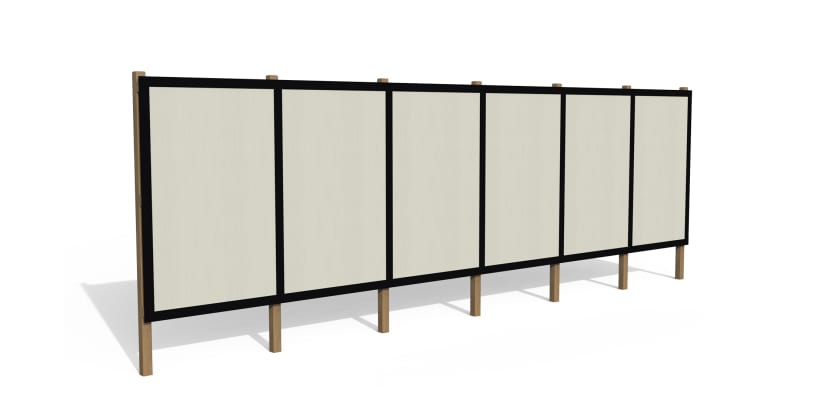

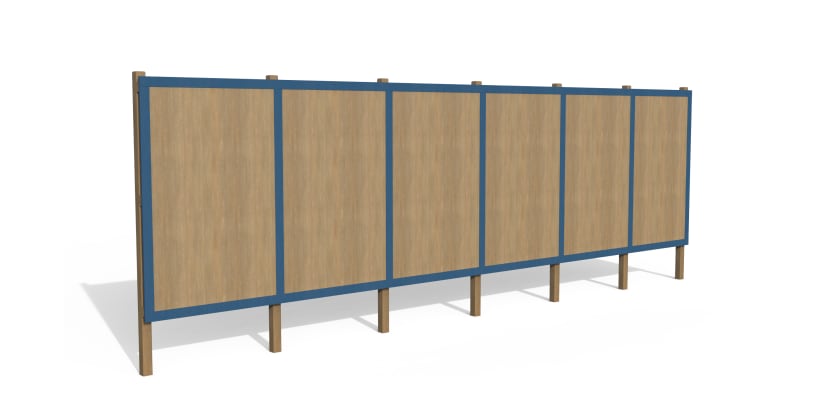

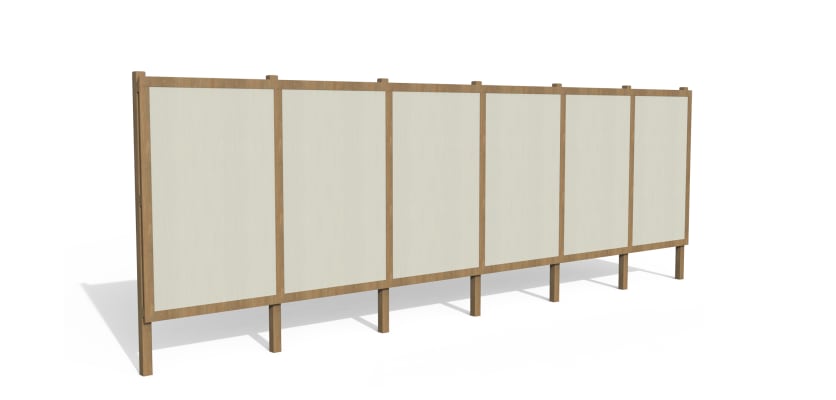

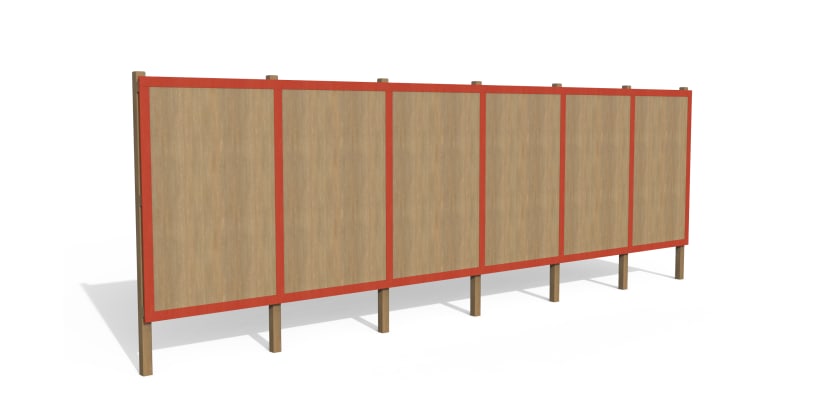

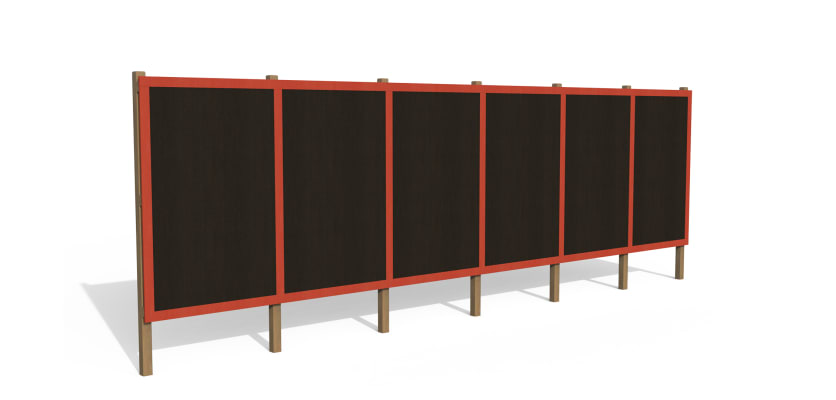

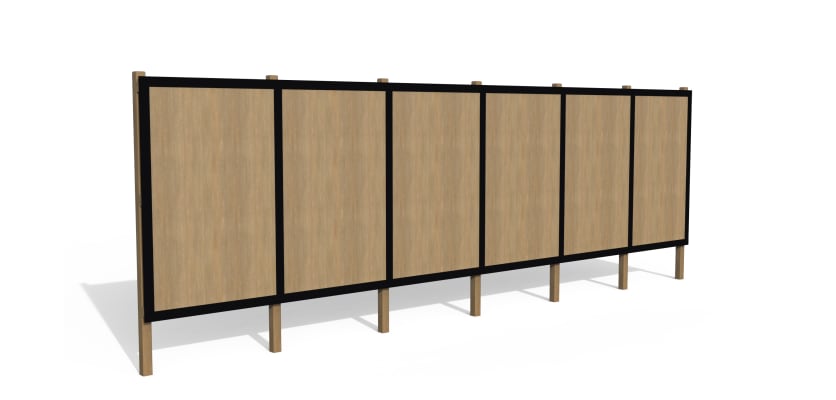

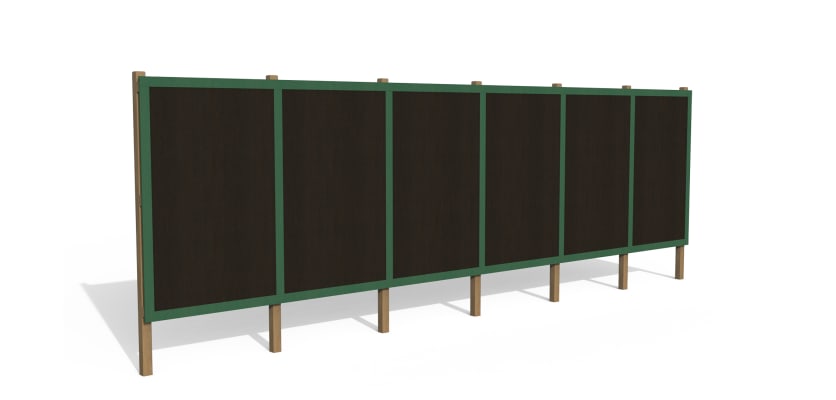

The main sheets, horizontal infill strips, and vertical infill strips, can be provided in a finish that suits your needs.

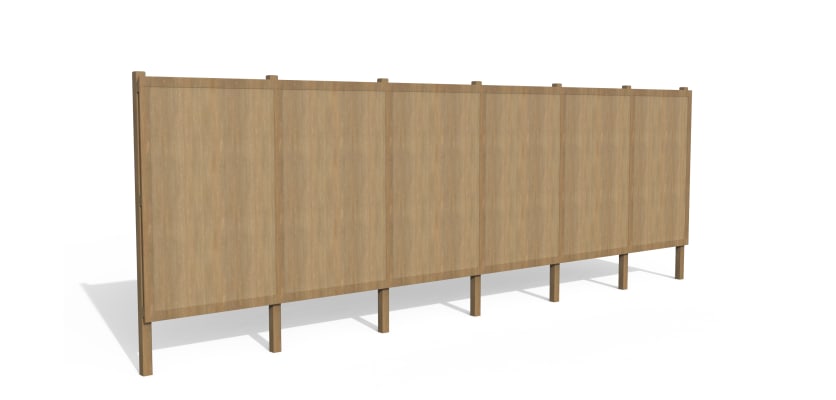

Unpainted - A natural, raw timber or OSB 3 finish. Ideal for sites where aesthetics are secondary or for customers who wish to apply their own branding, advertising, or paint finish on-site.
Painted Finish - A professional, durable, and weather-resistant painted finish applied prior to delivery.

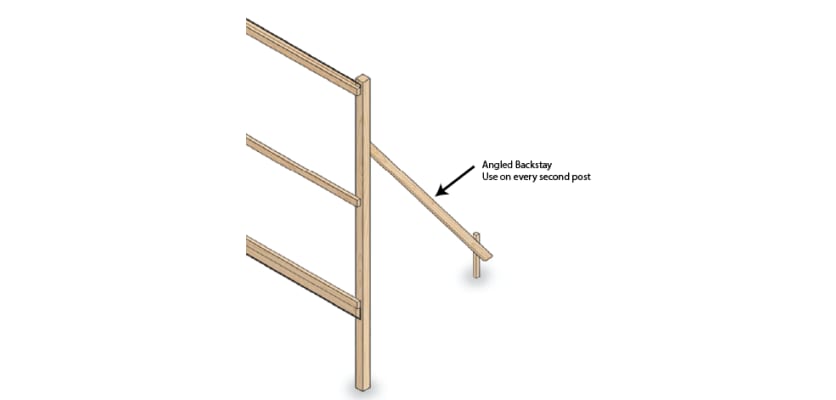

Backstays/Raking Props - For additional support, the timber posts can also be used as a backstay or raking prop, when cut at an angle, fixed to the post and concreted into the ground. Use one every second post.
For guidance on concrete, add a Temporary Works Design to your order or give the team a call to discuss your requirements.
Contact Us
If you need any more information about First Fence's products or are unsure what you need for your project, get in touch today. The friendly First Fence team is on hand to guide you through your selection and can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Sheet Material | OSB 3 or Plywood |
| Other Material | Timber C24 |
| Sheet Dimensions | 2440mm x 1220mm x 18mm |
| Dimensions [Horizontal Rail] | 72mm x 72mm x 3.6m or 100mm x 75mm x 3.6m |
| Dimensions [Vertical Posts] | 150mm x 100mm x 3.6m or 200mm x 100mm x 3.6m |
| Dimensions [Vertical Infill Strips] | 150mm x 22mm x 2.4m [Rough Sawn] |
| Dimensions [Horizontal Infill Strips] | 150mm x 22mm x 4.8m [Rough Sawn] |
Specifications & Downloads
| Sheet Material | OSB 3 or Plywood |
| Other Material | Timber C24 |
| Sheet Dimensions | 2440mm x 1220mm x 18mm |
| Dimensions [Horizontal Rail] | 72mm x 72mm x 3.6m or 100mm x 75mm x 3.6m |
| Dimensions [Vertical Posts] | 150mm x 100mm x 3.6m or 200mm x 100mm x 3.6m |
| Dimensions [Vertical Infill Strips] | 150mm x 22mm x 2.4m [Rough Sawn] |
| Dimensions [Horizontal Infill Strips] | 150mm x 22mm x 4.8m [Rough Sawn] |
