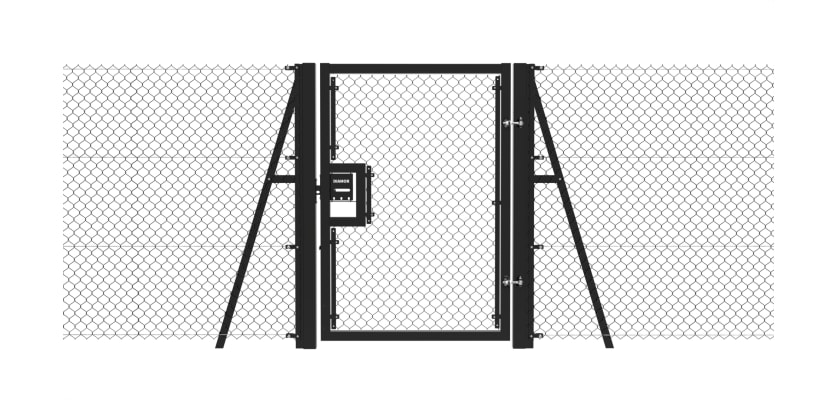

1.8m High Diamor™ Chain Link Single Leaf Gate Kit
Product Description

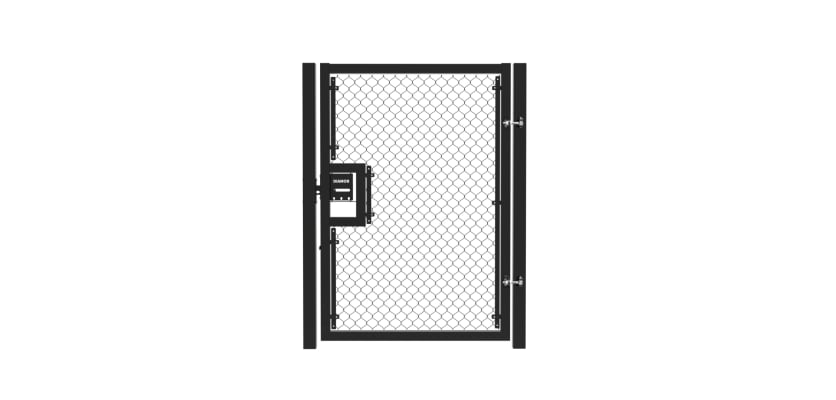

1.8m High Diamor™ Chain Link Single Leaf Gate Kit
Maximise your property’s security and establish robust access control with our 1.8m High Chain Link Single Leaf Gate Kit. Engineered as a high-performance, full-height security pedestrian gate, this heavy-duty steel system provides an unyielding entry point. It is the industry-standard choice for commercial perimeters, industrial compounds, school boundaries, and secure sports facilities.
Designed to seamlessly integrate with standard 1.8m security fencing, this 6ft chain link gate offers a clean, low-profile aesthetic that delivers maximum boundary protection without blocking sightlines or light flow.
Product Specifications & Customisation
Tailor this single leaf security gate to your exact site requirements with our versatile range of widths and finishes:
Available Widths: 1.0m, 1.2m, 1.5m, 2.0m, 2.5m, and 3.0m

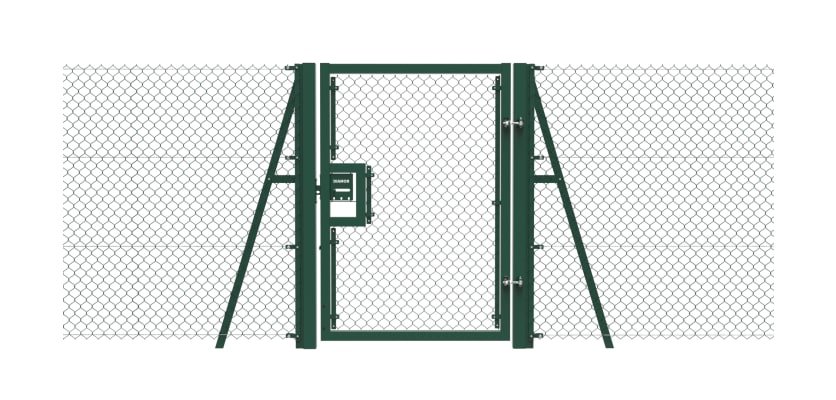

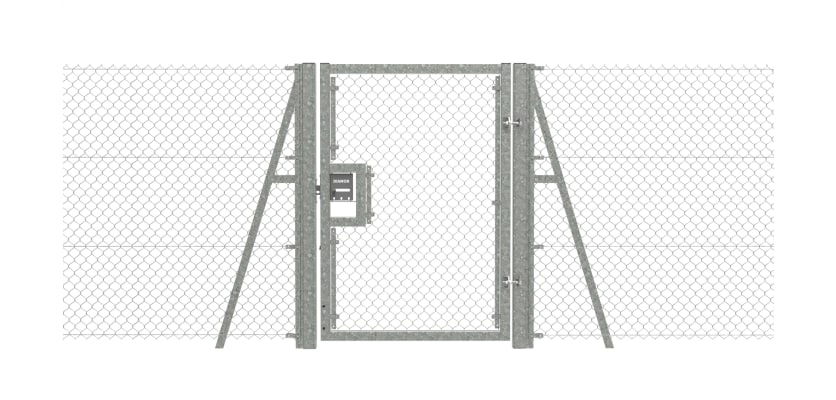

Available Finishes: Standard Galvanised Steel, Polyester Powder-Coated Black, or Polyester Powder-Coated Green
Installation Type: Dig-in posts only (ideal for grass, soil, or soft ground installation)
Features and Benefits
Steel Strength: Manufactured from premium structural steel, the 1.8m gate frame and heavy-duty matching support posts offer exceptional rigidity to withstand high-traffic commercial environments and deter unauthorised access.
Ultimate Corrosion & Rust Shield: Every kit is galvanised or polyester powder-coated as standard. This creates a tough, weather-resistant barrier inside and out, ensuring a completely rot-proof, rust-free, and zero-maintenance service life.
Aerodynamic Wind Defence: At a full 6ft high, wind loading can cause severe damage to solid gates. Our open-weave diamond mesh allows high winds to pass cleanly through the structure, eliminating the ‘sail effect’ and preventing the warping or hinge failure common with solid timber or PVC gates.

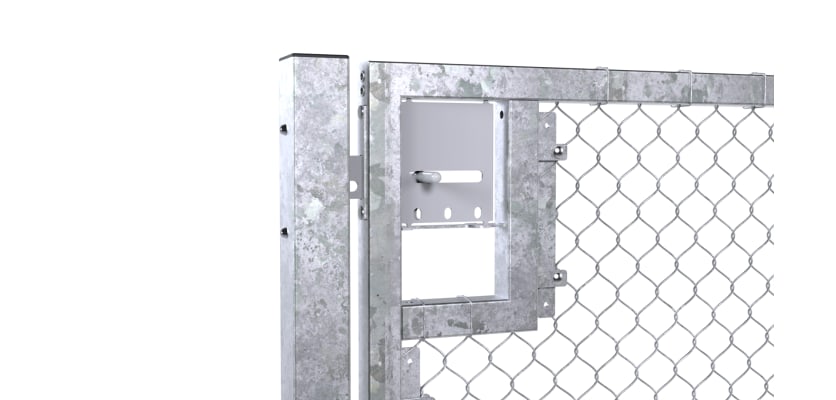

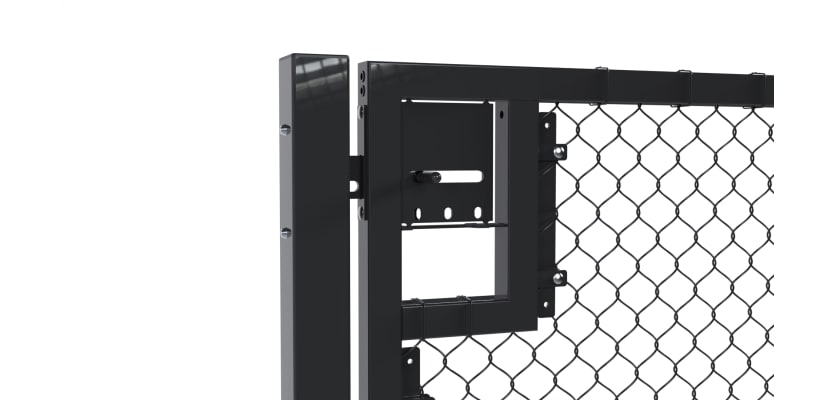

Adaptable Modularity (Unislide Kit Included): Each gate system is supplied with a flexible Unislide Kit. This hardware allows contractors to seamlessly upgrade the gate to secure key access or mechanical digital code locks later on.
Cost-Effective Commercial Security: When securing a large industrial or public sector boundary on a budget, a chain link steel gate offers an unbeatable cost-to-benefit ratio compared to heavy palisade or automated mesh gate systems.
What’s Included in Your Kit?
Our chain link gate kits are supplied as comprehensive, commercial-grade systems ready for a straightforward below-ground installation:
1.8m High Single Leaf Gate: Full-height structural steel gate leaf, pre-filled with high-tensile galvanised chain link wire mesh.

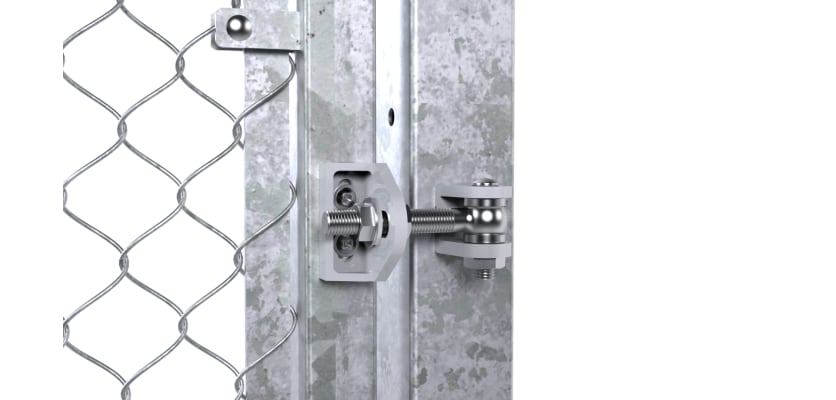

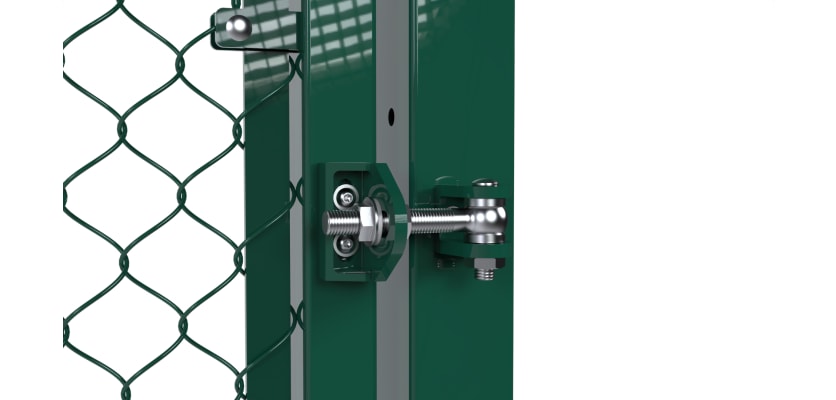

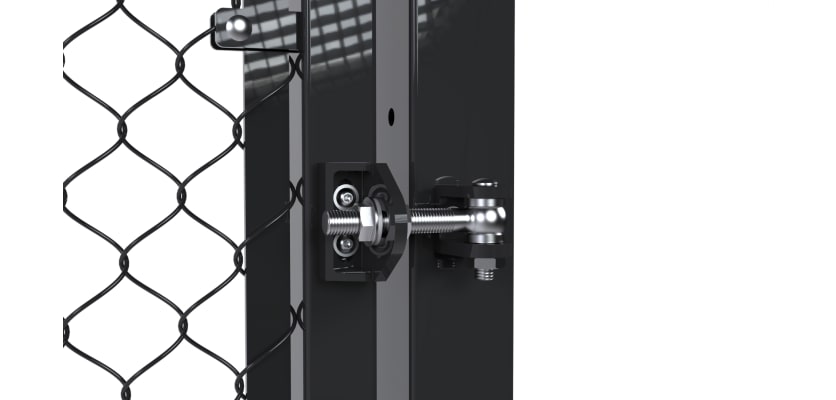

Hinge & Catch Posts: Two heavy-duty matching steel dig-in posts designed for deep below-ground anchoring to support the substantial swinging weight. These gates include the Locinox Bolt On HD 4D Adjustable Hinges for precise adjustment.
Premium Hardware: Fully adjustable, commercial-grade hinges and a secure latch mechanism.
Installation Tip: This is a dig-in only format. Due to the full 1.8m height and increased dynamic swinging weight of the gate leaf, we recommend using a minimum of 3 bags of post mix per post to guarantee maximum structural stability, depth, and a perfectly plumb line.
Versatile Applications
Commercial & Industrial Compounds: Functions as a highly secure, budget-friendly pedestrian side gate alongside standard industrial security fencing.
Schools, Colleges & Academies: Allows fencing contractors to establish clear, safe, and easily monitored full-height perimeter access lines for students and staff.
Sports Facilities & Public Parks: Creates a robust barrier for tennis courts, football pitches, and public facility boundaries.
High-Security Residential Estates: Provides a commanding, low-profile pedestrian access point for larger 6ft domestic boundaries requiring enhanced security.
Explore Complementary Products

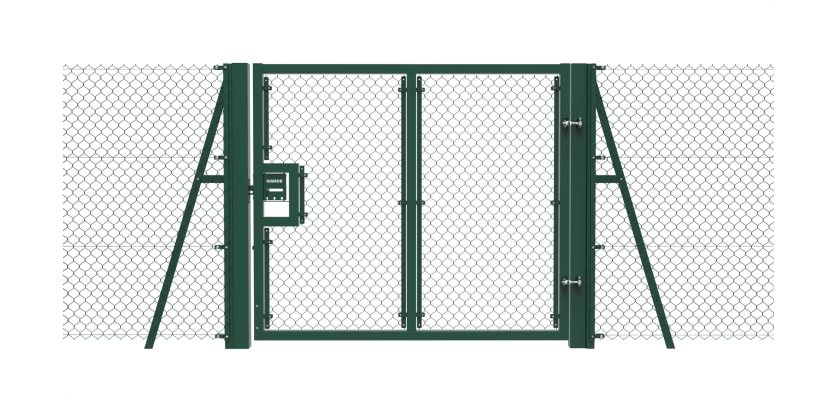

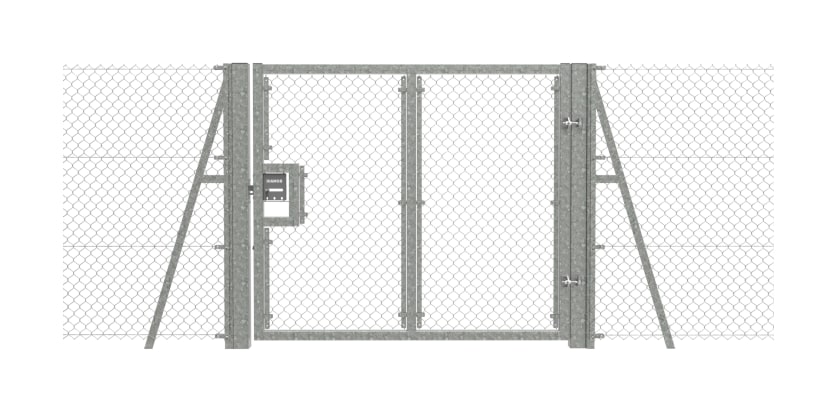

To create a seamless, high-security perimeter, pair this gate kit with our standard 1.8m Chain Link Fencing Rolls, Steel Strainer Posts, and Intermediate Fencing Posts for a long-lasting, completely rot-free installation.
Contact Us
Our friendly and helpful sales team is here to assist with any questions or technical queries you may have regarding these chain link gate kits or any of our other ground protection and perimeter fencing items. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or through our online live chat service.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Width | 1.0m, 1.2m, 1.5m, 2.0m, 2.5m and 3.0m |
| Total Post Length | 2400mm |
| Post Box Section | 80mm x 80mm [1.0, 1.2, 1.5m wide], 100mm x 100mm [2.0, 2.5, 3.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Gate Type | Pedestrian Gate |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 1.8m high chain link mesh dig in hinge post | 1 |
| 1.8m high chain link mesh dig in receiver post | 1 |
| 1.8m chain link universal mesh gate leaf cladded kit | 1 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 1 |
| Blank slide bolt security plate single kit | 1 |
| Unislide single slider padlockable gate kit | 1 |
| 60x60 black ribbed inserts | 2 |
| 80x80 black ribbed inserts [1.0, 1.2, 1.5m wide only] | 2 |
| 100x100 black ribbed inserts [2.0, 2.5, 3.0m wide only] | 2 |
| 15mm plastic ribbed plug | 4 |

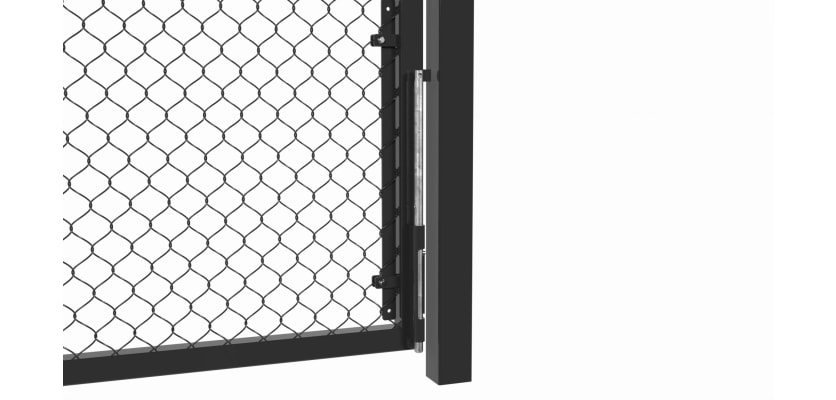

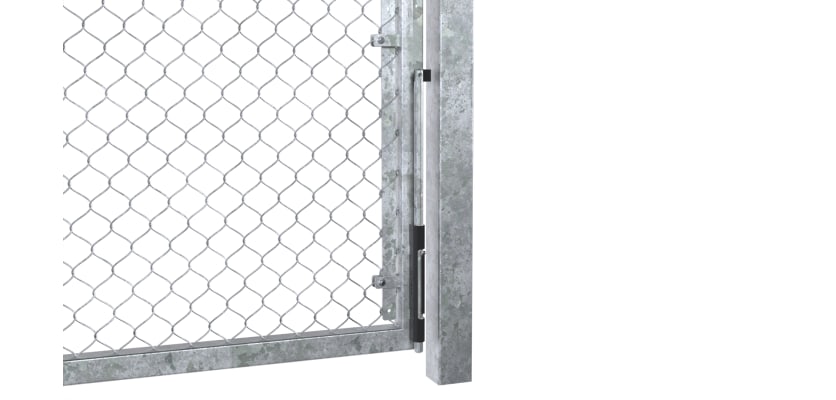

| First Fence branded locking drop bolt kit | 1 |
