0.9m High Diamor™ Chain Link Double Leaf Gate Kit
Product Description

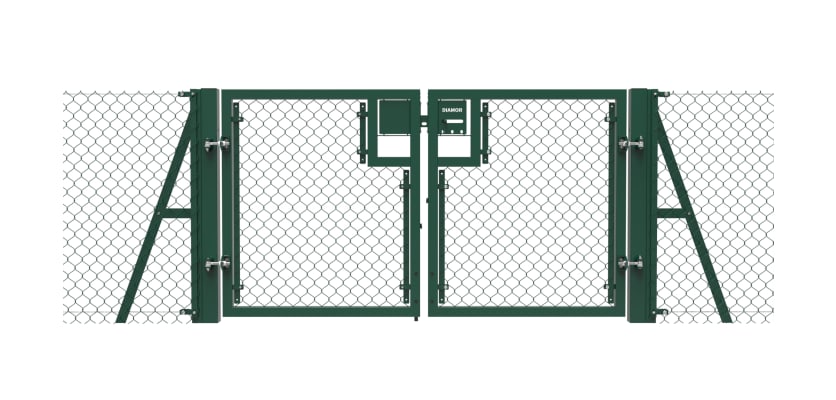

0.9m High Diamor™ Chain Link Double Leaf Gate Kit
Streamline wide-access vehicle entry and reinforce your property’s boundary with our 0.9m High Chain Link Double Leaf Gate Kit. Designed as an easy-to-operate dual-gate solution, this high-performance kit provides a secure, resilient, and expansive opening. It is the perfect choice for domestic driveways, commercial yards, public park boundaries, and allotment access points.
Engineered to seamlessly integrate with standard 3ft fencing lines, this 3ft double chain link gate offers a clean, low-profile aesthetic that delivers wide-clearance access control without creating a visually closed-in or imposing barrier.
Product Specifications & Customisation
Tailor this dual-leaf mesh driveway gate to your exact site requirements with our versatile range of expansive widths and finishes:
Available Widths (Total Span): 2.0m, 3.0m, 4.0m, 5.0m, and 6.0m

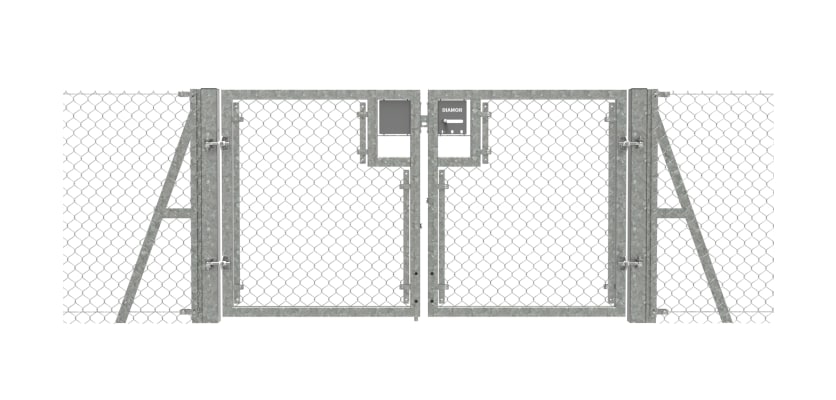

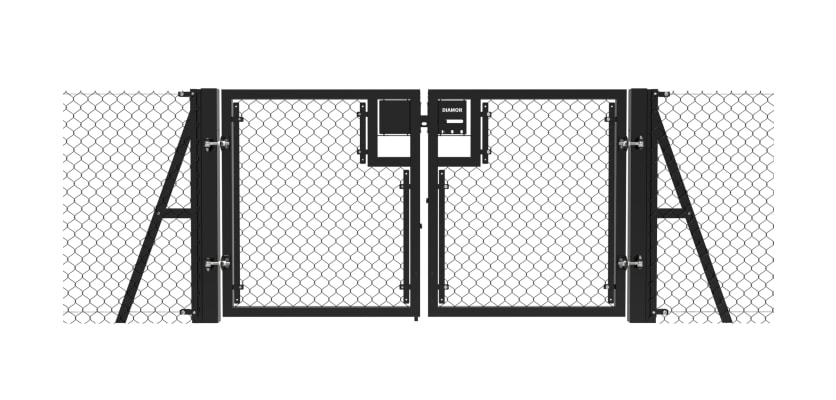

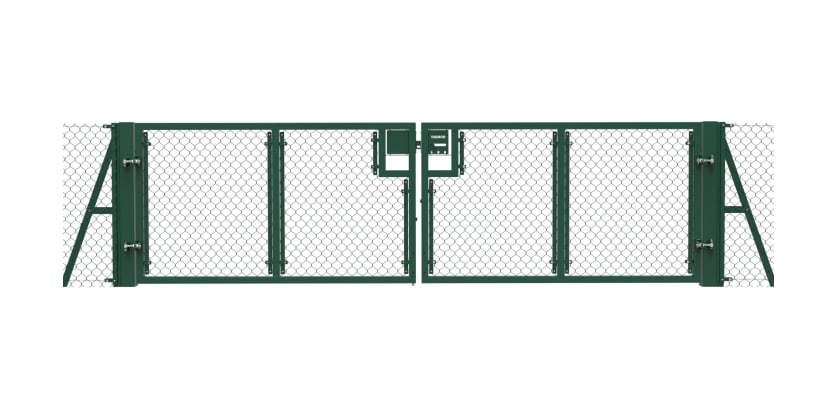

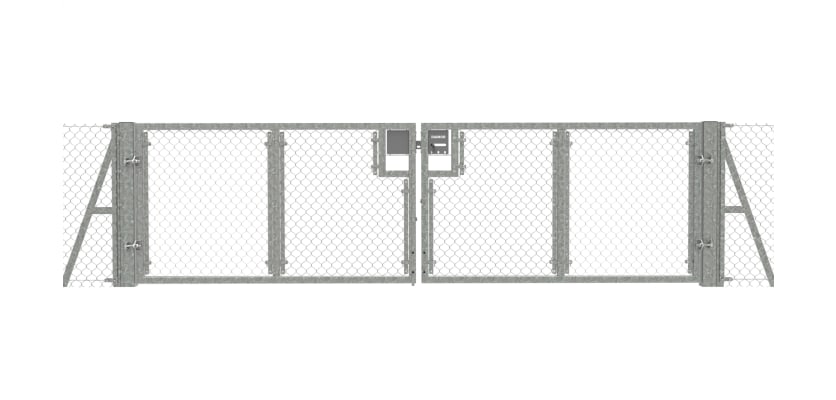

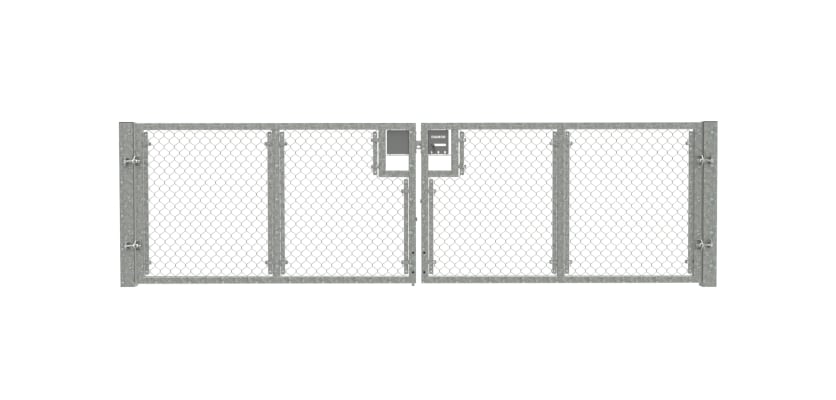

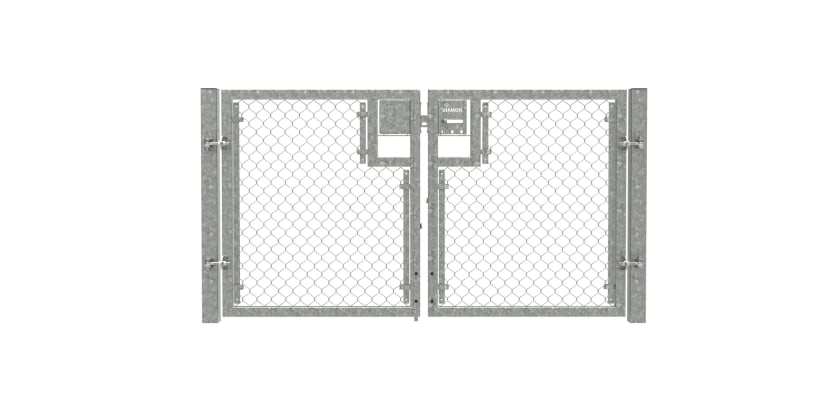

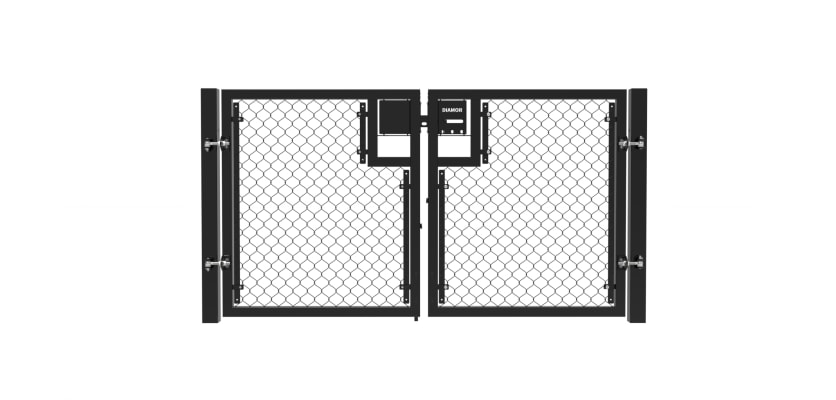

Available Finishes: Standard Galvanised Steel, Polyester Powder-Coated Black, or Polyester Powder-Coated Green
Installation Type: Dig-in posts only (ideal for grass, soil, or soft ground installation)
Features and Benefits
Dual-Leaf Wide Vehicular Access: The twin-gate configuration allows for significantly wider openings than single gates, making it the ideal budget-friendly choice for driveways, maintenance vehicles, lawnmowers, and high-traffic pedestrian zones.
Precision-Engineered Strength: Manufactured from premium structural steel, the double gate frames and supporting posts deliver maximum rigidity. Despite their strength, the leaves remain remarkably easy to swing, minimising strain on the hinges and accelerating installation times.
Ultimate Corrosion & Rust Shield: Every kit is galvanised and finished with an optional powder coating as standard. This multi-layer defence protects against rust, peeling, and UV degradation—ensuring a completely rot-proof, low-maintenance service life.
Aerodynamic Wind Defence: Double gates face immense leverage from heavy gales. Our open-weave diamond mesh design allows high winds to pass cleanly through the structure, completely eliminating the ‘sail effect’ and preventing the warping or hinge-snapping common with solid timber or PVC close board double gates.

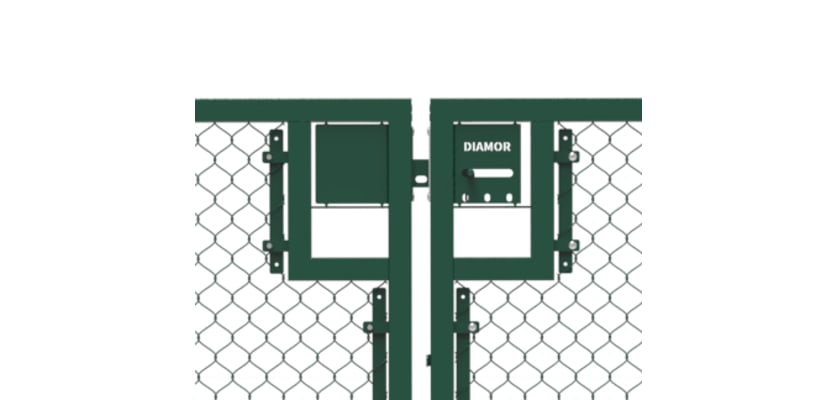

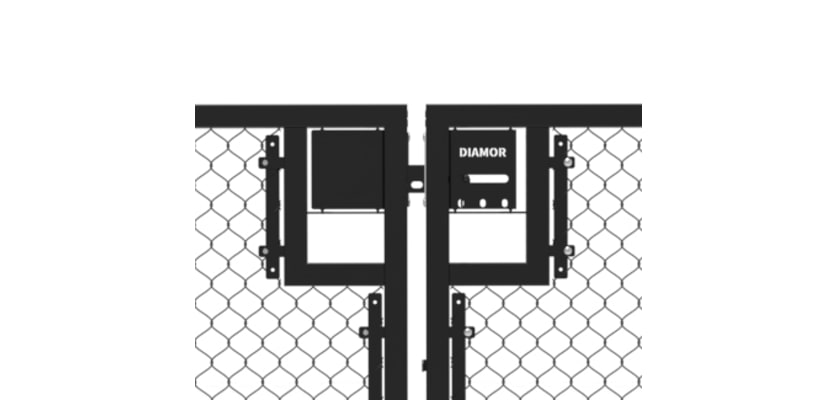

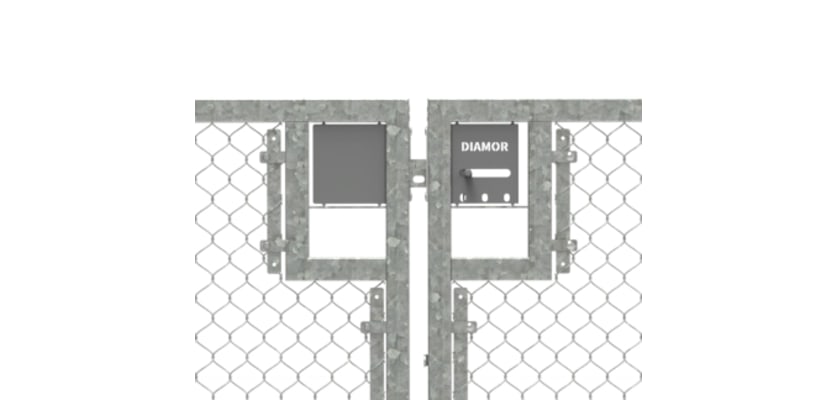

Adaptable Lock Modularity (Unislide Kit Included): Each double gate kit is supplied with a highly adaptable Unislide Kit. This hardware can be easily upgraded to key-lockable entry or digital keypad access control systems if your security requirements change later on.
Cost-Effective Wide Boundary Security: When securing wide access points on a tight project budget, a chain link double leaf gate offers an unbeatable cost-to-benefit ratio. Get a robust, lockable steel physical barrier at a fraction of the cost of heavy automated palisade gates or ornamental wrought ironmongery.
What’s Included in Your Kit?
Our chain link gate kits are supplied as comprehensive, all-in-one systems ready for straightforward assembly:

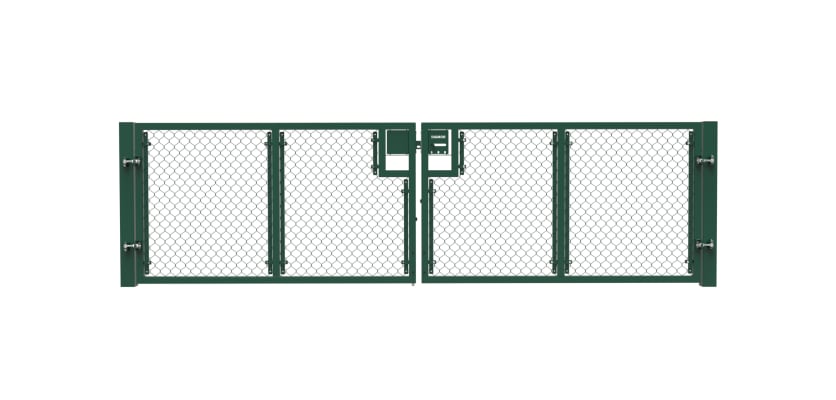

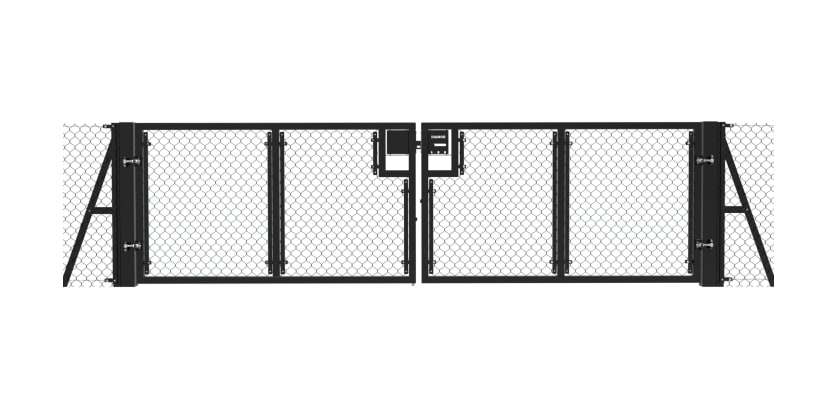

0.9m High Double Leaf Gate (Chosen Width): Twin structural steel gate frames, pre-filled with high-tensile galvanised chain link wire mesh.

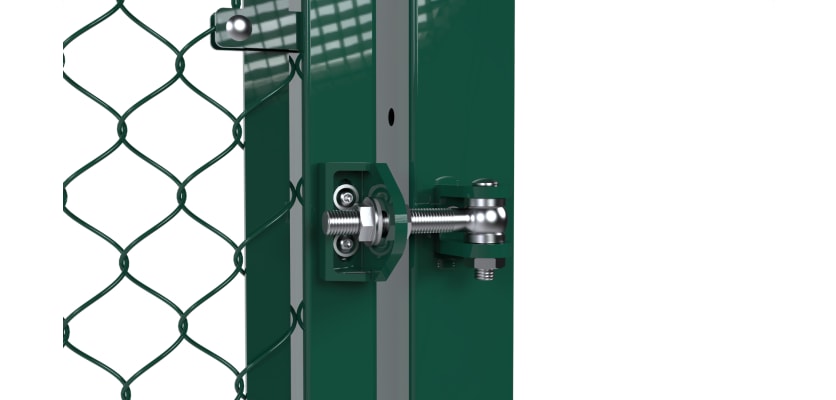

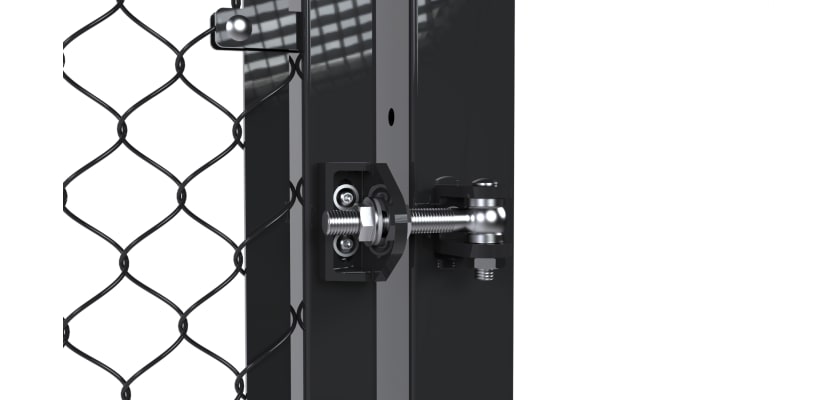

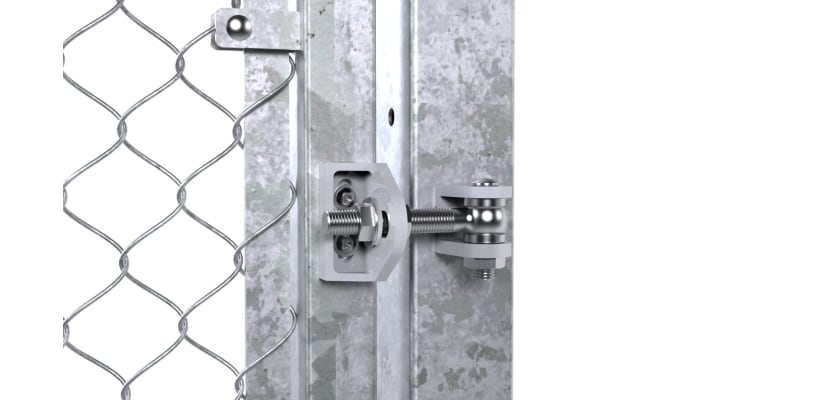

Heavy-Duty Hinge & Catch Posts: Two matching steel dig-in posts engineered to anchor deep below ground and support the dynamic swinging weight of both leaves. These gates include the Locinox Bolt On HD 4D Adjustable Hinges for precise adjustment.
Drop Bolt & Central Catch: Includes a secure ground drop bolt mechanism, allowing you to lock one leaf firmly into the ground for pedestrian use, or open both sides fully for vehicle clearance.
Professional Installation Tip: This is a dig-in only format. Because double gates exert significant dynamic leverage on the outer support posts, a solid foundation is critical. We recommend using a minimum of 3 to 4 bags of rapid-setting post mix per post to ensure a perfectly plumb line and prevent sagging over time.
Versatile Applications
Residential Driveways & Garden Borders: Provides secure, wide-clearance vehicular access for standard 3ft domestic boundary lines.
Allotments, Orchards & Community Gardens: Creates wide entryways for tractors, wheelbarrows, and supply deliveries while keeping out unwanted local wildlife.
Schools, Parks & Play Areas: Establishes safe, easily monitored, wide-access maintenance points for groundskeeping equipment, lawnmowers, and emergency vehicles.
Commercial Yard & Perimeter Control: Serves as a low-maintenance, budget-friendly double side gate alongside existing commercial fencing layouts.
Explore Complementary Products
To build a continuous, high-performance boundary, pair this double gate system with our matching Chain Link Fencing Rolls, Steel Strainer Posts, and Intermediate Line Posts for a completely unified, rot-free installation.
Contact Us
Unsure which total width or finish best suits your driveway or commercial yard? Our expert sales team is here to assist with technical queries, trade accounts, and bulk pricing. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or through our online live chat service; just click the chat icon in the bottom right corner of your screen to speak to the team.
Specifications & Downloads
| Height Above Ground | 900mm |
| Width | 2.0m, 3.0m, 4.0m, 5.0m, 6.0m |
| Total Post Length | 1500mm |
| Post Box Section | 80mm x 80mm [2.0, 2.4 and 3.0m wide], 100mm x 100mm [4.0, 5.0 and 6.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 0.9m high chain link mesh dig in hinge post | 2 |
| 0.9m chain link universal mesh gate leaf cladded kit | 2 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 2 |
| Blank slide bolt security plate double kit | 1 |
| Unislide Double slider padlockable gate kit | 1 |
| 80x80 black ribbed inserts [2.0 and 3.0m wide only] | 2 |
| 100x100 black ribbed inserts [4.0, 5.0 and 6.0m wide only] | 2 |
| 15mm plastic ribbed plug | 8 |
| First Fence branded locking drop bolt kit | 2 |
