Steel Corner Strainer Post Kit to Suit 1.5m High Chain Link System
This post kit does not come with mesh
Product Description
Steel Corner Strainer Post Kit to Suit 1.5m High Chain Link System
Chain link fencing is a very popular option for homeowners and businesses, as it is both durable and affordable. It’s commonly employed for marking boundaries, enhancing security, enclosing sports areas, and containing animals—offering a robust yet unobtrusive alternative to more prominent fencing options.
It is made from galvanised steel or PVC-coated wire and offers excellent weather resistance, thus ensuring long-lasting performance.
This type of mesh fencing is easy to maintain and repair. Once properly installed, there is little required to ensure it stays in good working order.
Introducing the Corner Strainer Post Kit from First Fence

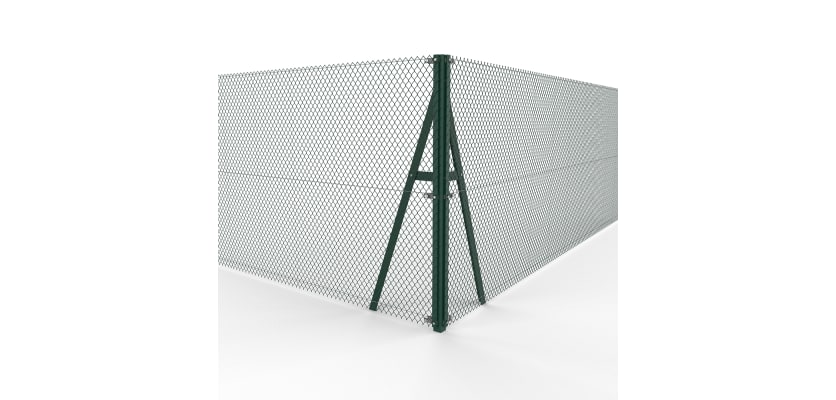

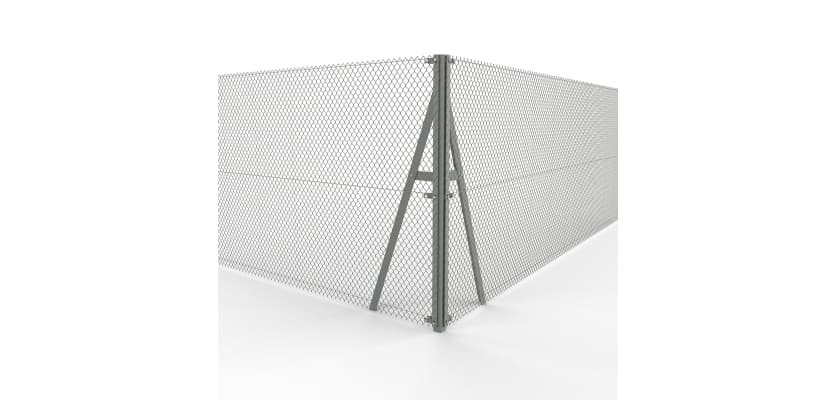

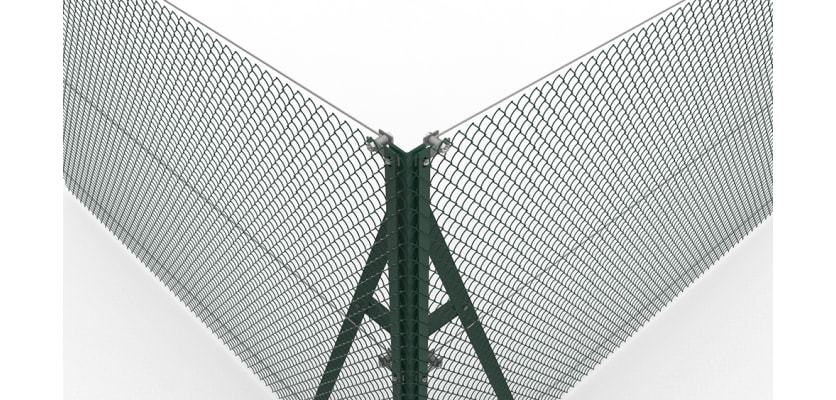

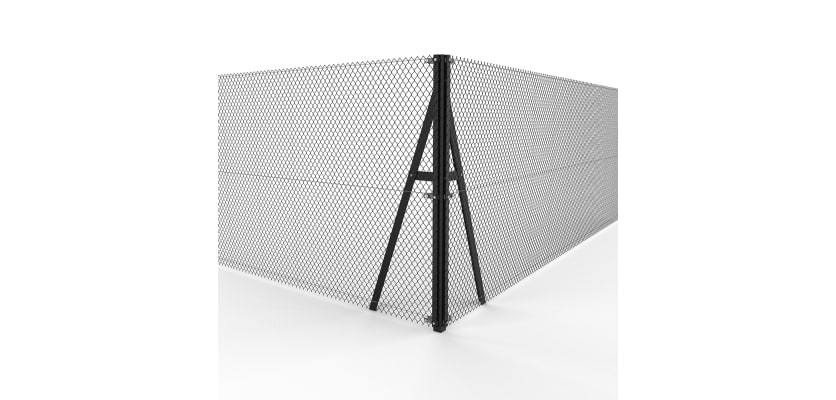

An important element in chain link fencing systems, corner strainer posts are designed for areas where a fence line changes direction. These corner posts are engineered to withstand the tension exerted on the fence at turning points, ensuring structural integrity and overall stability.
Made from hot-dip galvanised steel (to ISO 1461) and also available powder coated (to BS EN 13438) in green or black, this post has significant resistance to rust and weathering, making it ideal for outdoor applications. It is 2100mm in total length and is for the 1.5m system. This is a dig-in format and requires post mix.

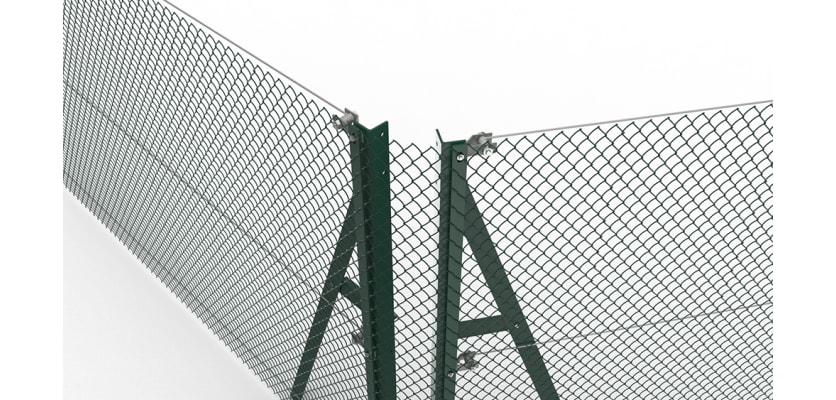

It is made from 50 x 50mm rolled steel angle and is heavier-duty than the intermediate post, as it must withstand additional strain from the change in direction. When set deep into the ground and secured with post mix, the post can fully handle the tension applied at the corner. This post comes with 40 x 40mm RSA struts to suit the 1.5m high system.
Function of Corner Strainer Posts
Corner strainer posts are vital to the stability and structure of chain link fencing, especially where the fence changes direction (at corners). Their primary function is to secure and support the fencing system at these crucial points where tension forces are increased due to the change in direction.

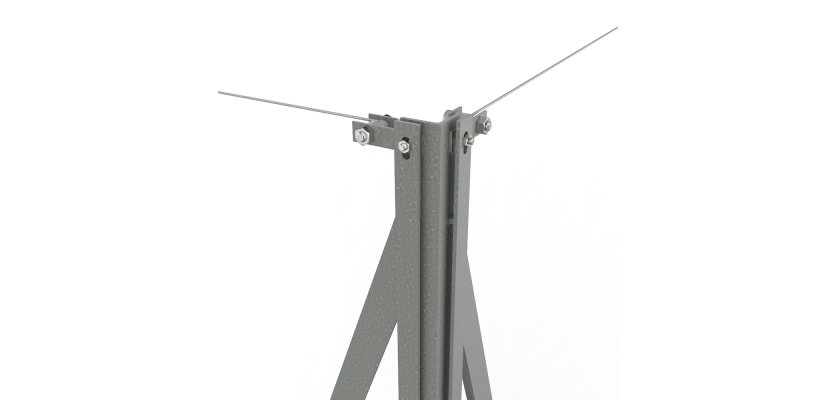

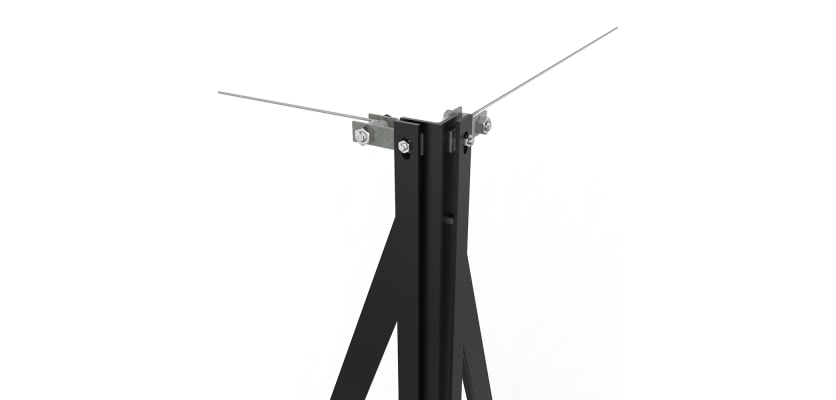

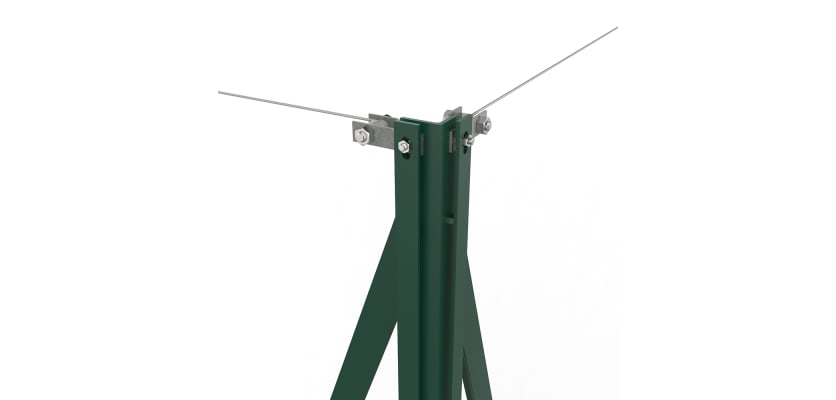

Manage Tension at Turns: When a chain link fence changes direction, the wire and mesh create increased tension. Corner strainer posts help absorb and evenly distribute this force, preventing sagging or loosening. They also support the tension wires, keeping the mesh firm and secure.

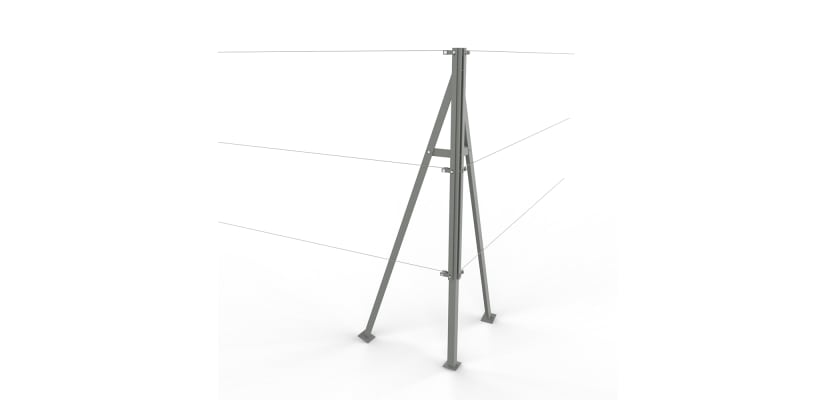

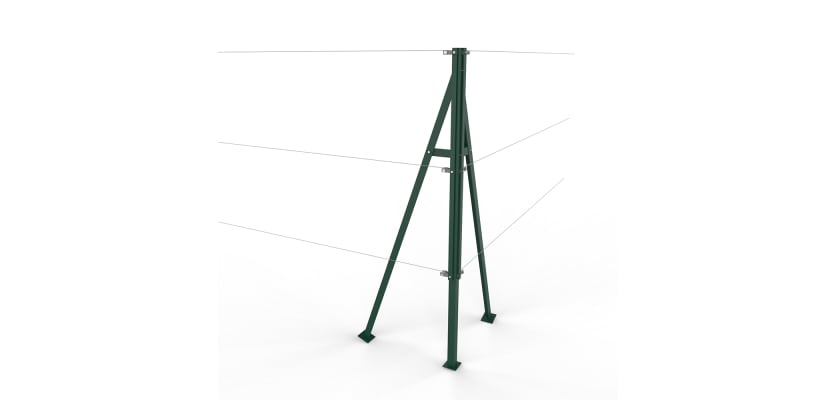

Reinforce Structural Stability: Serving as key support points where the fence line shifts, these posts are embedded deeper into the ground and often reinforced with diagonal bracing. This added strength ensures the fence remains sturdy and well-supported.
Maintain Proper Alignment: Corner posts help keep the fence straight and secure at turning points, preventing shifting or misalignment. This is particularly important for long fence lines and areas exposed to wind or environmental stressors.
Many Applications
- Schools & Playgrounds: Improves safety without obstructing visibility.
- Sports Facilities: Widely used around tennis courts, football pitches, and multi-use game areas.
- Industrial Sites: Offers secure fencing for warehouses, factories, and storage areas.
- Residential Boundaries: A cost-effective way to safeguard homes and gardens.
- Parks & Recreational Spaces: Clearly defines areas while maintaining an open, accessible feel.
- Farms & Agricultural Land: Well-suited for safeguarding livestock and crop areas.
- Construction Sites: Provides adaptable fencing for both short-term and long-term site protection.
- Airports & Transport Hubs: Enhances perimeter security and controlled access.
- Car Parks & Commercial Premises: Protects vehicles and business assets with reliable fencing.
Other Products to Consider
First Fence offers all the essentials for your new chain mesh fencing, including intermediate posts, end strainer posts, two-way strainer posts, chain link rolls, hog ring clips and pliers, rapid-set post mix, and touch-up spray paint.
Why not take a look at our other fencing styles? Choose from palisade, mesh, railings, recycled plastic, and composite; we are certain to have just what you need!
Contact Us
If you need any assistance with our products, please get in touch. The First Fence sales team is friendly and knowledgeable and ready to help you. They can be contacted by calling 01283 512 111 or by using the online chat tool.
Specifications & Downloads
| Post Height | 1.5m [Installed] 2.1m [total] |
| Post Dimensions | 50 x 50 x 5mm Rolled Steel Angle [RSA] |
| Post Type | Dig In [Posts have a dig-in base plate] |
| Material | Hot-Dip Galvanised Steel [to ISO 1461 standards] |
| Finish | Galvanised, Powder Coated Green [to BS EN 13438 standards] |
| PPC Colours | Green or Black |
What's Included
| Name | Quantity |
|---|---|
| Chain Link Corner Strainer Post 2100mm x 50 x 50 x 5mm RSA [c/w 40 x 40mm RSA Struts] | 1 |
| Chain Link 30 x 5mm Stretcher Bar for 1.5m System | 2 |
| Ferrule Winder to suit Chain Link Post | 6 |
| Support Beam 50 x 50 x 5mm RSA 2110mm to suit 1.5m System | 2 |
| Brace Cross Beam 50 x 50 x 5mm RSA 200mm | 2 |
| M8 x 30mm BZP Hex Head Bolt | 6 |
| M8 Head Nut | 6 |
