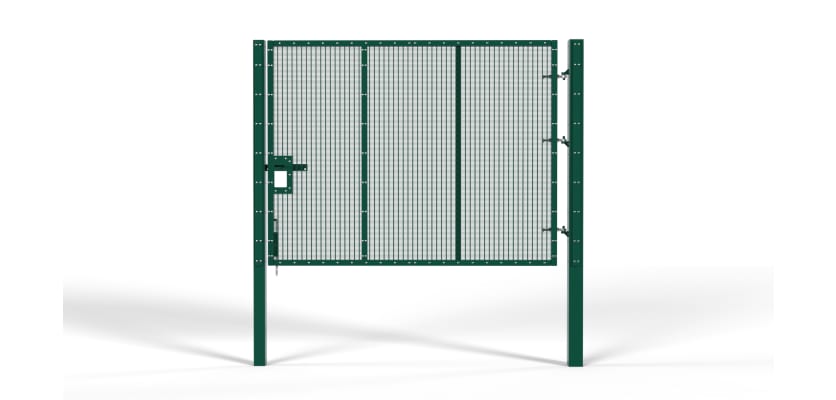

2.0m x 2.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2370mm |
| Box Sections of Posts | [Hinge Post: 120mm x 120mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.0m x 2.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Certified Security with Wider Access
The ProFence® 2X SR2 (B3) single leaf gate provides a robust and versatile access point for sites that demand certified high-security performance. With a clear width of 2.0m, it is ideally suited for allowing passage of small vehicles, ATVs, quad bikes, and maintenance equipment—while maintaining the proven resilience of the ProFence® 2X system.
Proven Delay Against Forced Entry
Independently tested and certified to LPS 1175 Issue 8, Security Rating B3, this gate offers a guaranteed three-minute delay against forced entry using Toolkit B implements. Such protection is vital for utility substations, secure compounds, and critical national infrastructure, where operational access must never come at the cost of perimeter strength.
This gate is equally effective in internal security divisions, such as segregating high-value research areas or restricted compounds from wider facilities. When used in combination with the 2.0m high ProFence® 2X fencing system, it forms a continuous, accredited line of defence.
As a Red Book listed product, it has been rigorously tested to withstand sustained and aggressive attacks, delivering assurance far beyond conventional gates and fencing.
Features & Benefits
- Complete Kit: includes one 2.0m single gate leaf, a heavy-duty hinge post, a reinforced catch post, and three SR2-rated gate eyes.

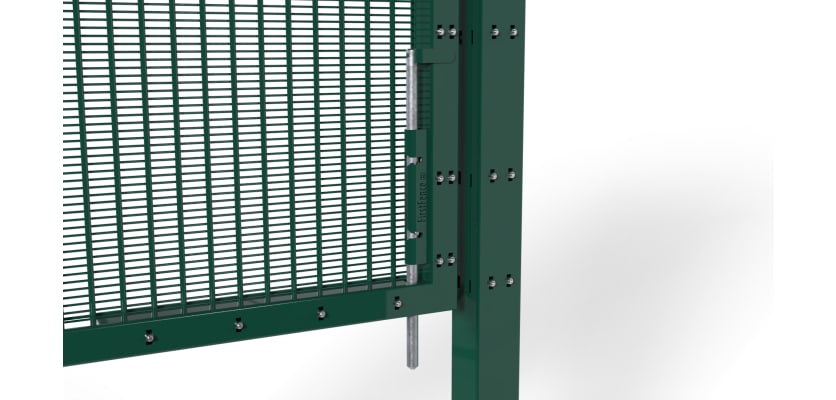

- Secure Closure: fitted with a sliding latch bolt designed for reliable, padlock-compatible security.
- Resilient Construction: made from premium steel, hot-dip galvanised to ISO 1461 and powder coated for long-lasting protection against corrosion and abrasion.
- MeshPro® 10 Infill: anti-climb, anti-cut mesh that preserves visibility for security monitoring.

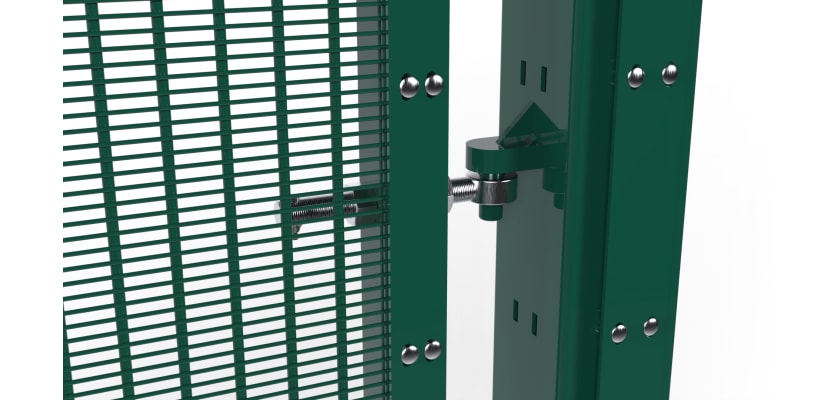

- Tamper-Resistant Hinges: installed with shear nuts to prevent removal or interference once fixed.
Installation Options
Available in two formats to suit ground conditions:
- Bolt-down version supplied with ground anchor bolts for surface fixing.
- Dig-in version requires a solid foundation; we recommend C20 or C25 grade concrete with 3 bags of Post Mix per post to achieve optimum stability and alignment.
Get in Touch
Need advice on choosing or installing your gate? Our security specialists are here to help. Call us on 01283 512 111 or connect with us via live chat for tailored guidance on high-security perimeter solutions.
