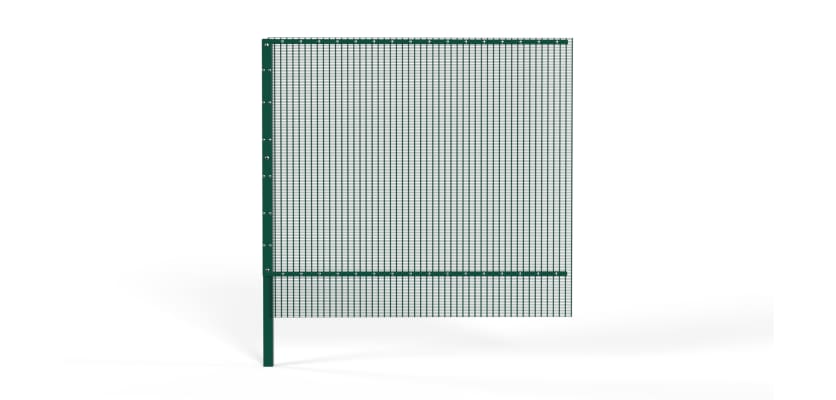

ProFence® 2X SR2 (B3) LPS 1175 2.0m High Mesh Fencing Kit
Product Description
ProFence® 2X SR2 (B3) LPS 1175 2.0m High Mesh Fencing Kit
Certified High-Security Perimeter Protection
The ProFence® 2X SR2 (B3) is a premium perimeter fencing system, purpose-built for sites requiring certified resistance against forced entry. Tested and approved to LPS 1175 Issue 8, Security Rating B3, this 2.0m high fencing kit delivers a robust barrier designed to withstand bodily force and a variety of hand tools typically used in attacks at this security level.
Advanced MeshPro® 10 Wire Design

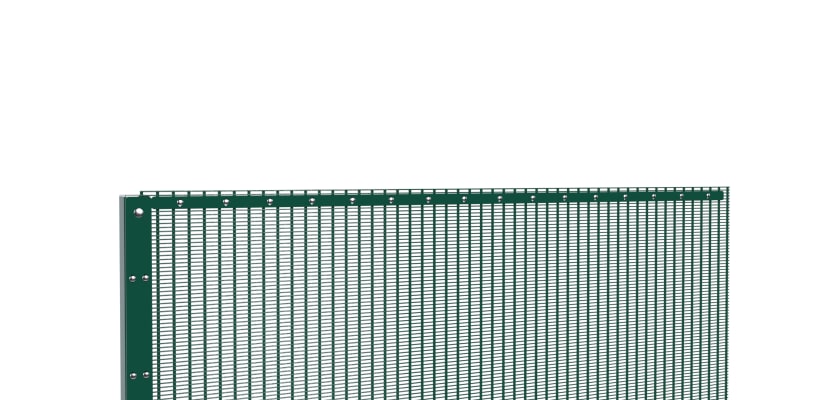

At the heart of this system is the innovative MeshPro® 10 wire configuration. With 10mm vertical wires combined with 4mm horizontal wires, the dense mesh creates an effective anti-climb surface while maintaining clear visibility. This structure not only improves strength but also resists tampering and cutting attempts.
Reinforced Fixings for Maximum Strength

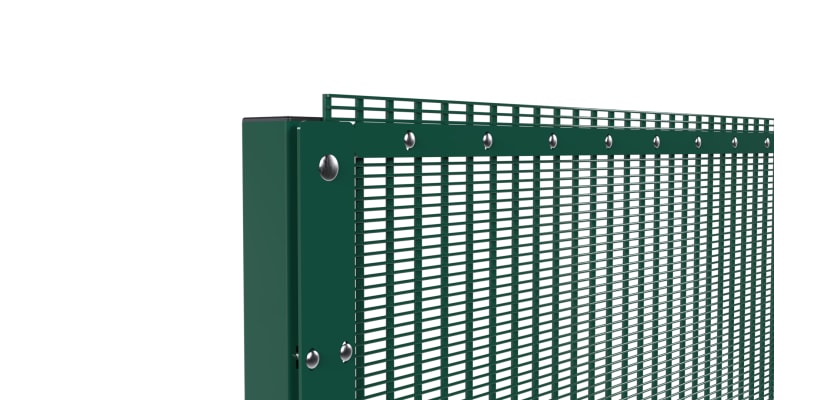

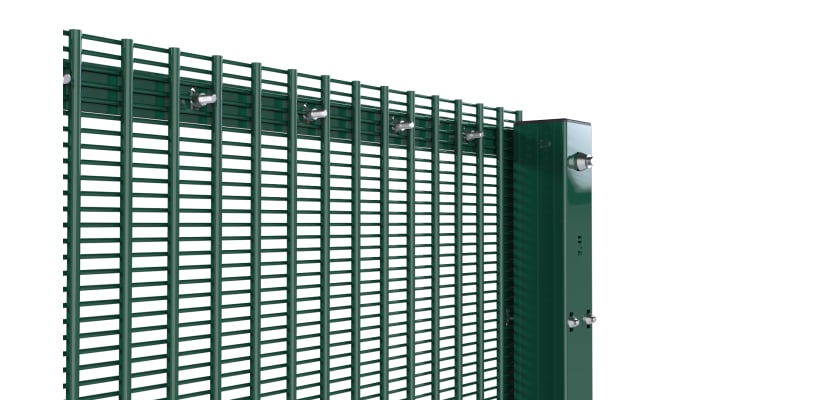

To ensure uncompromising rigidity, the system incorporates an extra-wide 80mm x 5mm galvanised clamp bar with side-by-side fixings. Horizontal clamp bars are also positioned at both the top and bottom of each panel, securing potential weak points and preventing unauthorised access.
Seamless Integration with the ProFence® Range
Part of the wider ProFence® 2X family, this fencing kit is designed for compatibility with other system components, ensuring a secure, consistent, and professional installation. Most importantly, its B3-rated performance under LPS 1175 provides verifiable, tested delay, giving security teams critical response time in high-risk environments such as commercial sites and critical infrastructure. This fencing system is fully compatible with our ProFence 2X SR2 mesh gates, ensuring a seamless and secure integration.
To learn more about the LPS 1175 standard and discover the best security fencing solution for your project, visit our LPS 1175 blog.
Get in Touch
For specialist advice on your security fencing project, please speak to our team today by calling 01283 512 111 or using the website's live chat feature.
Specifications & Downloads
| Height | 2.0m [Installed] |
| Width | 2.5m |
| Vertical Wire Thickness | 10mm |
| Horizontal Wire Thickness | 4mm |
| Box Section of Posts | 80x80mm |

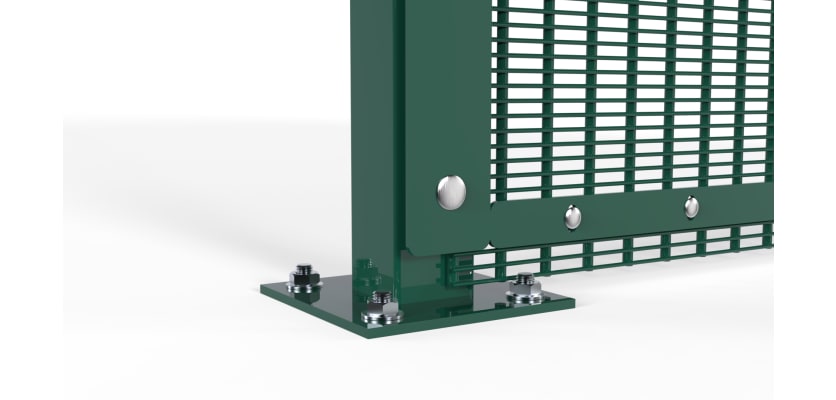

| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green and Black as standard, Blue, Red, Grey and Yellow also available on request |
| Ground Clearance | 10-50mm [Bolt Down Only] |
| Fixing Kit | M8x110mm [Mesh Fixings], M12x110mm [Clamp Bar Fixings] |
| Compliant to | LPS 1175 SR2 (B3) [Security Rating], ISO 1461 [Galvanising] & BS EN 13438 [Powder Coating] |
| Leading Edge Prevention | 40x5mm Cross Member Clamp Bar [2 Qty] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Pro Ten Fencing Panel [2.3m x 2.5m Dig In / 2.0m x 2.5m Bolt Down] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 1950mm] | 1 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 20 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M12x110mm] | 3 |
| ProFence® 2X Galvanised Horizontal Clamp Bar Fixing Bolts [M8x30mm] | 32 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 52 |
| ProFence® 2X Galvanised Snap Off Nut [M12] | 3 |
| ProFence® 2X Washer [M12] | 3 |
| ProFence® 2X Mesh Fencing Cross Member Clamp Bar [40x5mm x 2435mm] | 2 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
