3.0m x 9.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 9000mm |
| Total Width | 9670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
3.0m x 9.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
For securing exceptionally wide entrances with a maximum height barrier, this 3.0m high ProFence® 2X double gate offers an LPS 1175 SR2 (B3) rated solution.
The proven attack delay provided by the LPS 1175 B3 standard is indispensable for protecting sites of national critical importance, such as aviation or defence manufacturing facilities. A 9.0m gate at a 3.0m height provides the necessary clearance for large components or aircraft parts, ensuring that logistical requirements do not compromise the site's ability to resist a sophisticated, determined physical attack.
This specification is also critical for securing the construction phase of major infrastructure projects like new power stations or reservoirs. The vast opening accommodates the largest items of plant and machinery, while the B3 rating and 3.0m height protect the high-value project from theft and sabotage. A fully compliant site boundary is created by installing this gate with the 3.0m high ProFence® 2X fence kit.
This Red Book listed gate system provides ultimate confidence that your perimeter's largest opening is secured.
Features & Benefits

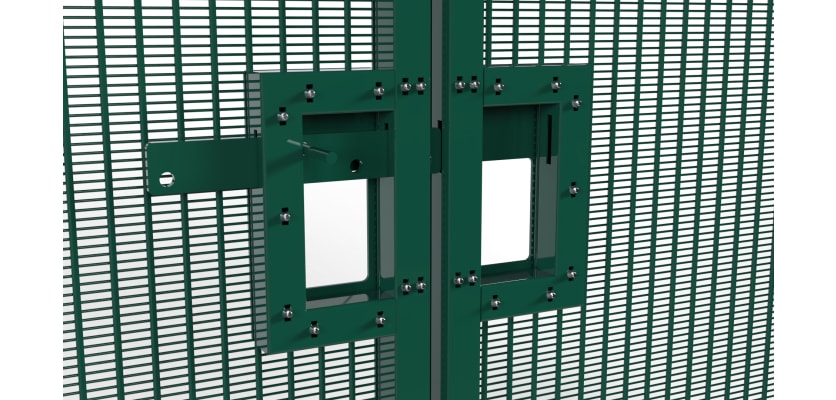

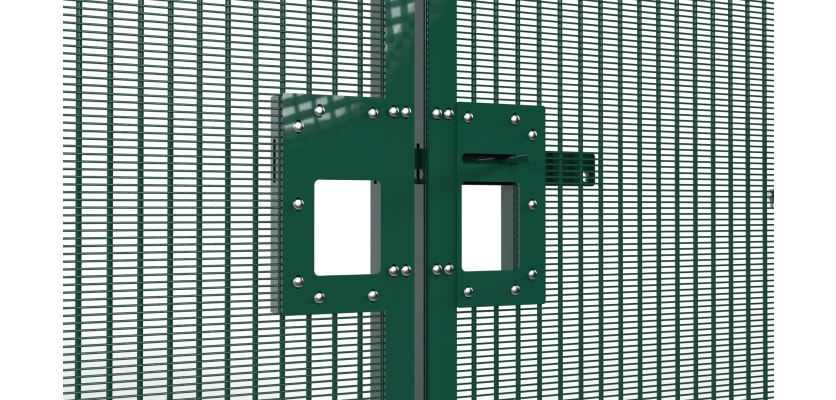

This 3.0m x 9.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 4.5m gate leaves, two hinge posts, and all the SR2-rated hardware needed. When closed, the leaves are secured by a central heavy-duty slide latch and two drop bolts that plunge into the ground, creating an immovable barrier.
The gate's all-steel construction is protected by a dual-layer finish, combining hot-dip galvanisation with a durable polyester powder coat. The gate is infilled with the renowned MeshPro® 10, an extreme anti-climb and anti-cut barrier at this height. All six hinge points are fitted with shear nuts, a one-way security fixing.
Installation Made Easy
Available in both bolt-down and dig-in formats. All ground anchor bolts are supplied with the bolt-down option. For a secure and lasting installation of the dig-in posts, we advise using C20 or C25 grade concrete with a minimum of five bags of Post Mix for each post.
