ProFence® 2X SR2 (B3) LPS 1175 3.0m High Mesh Fencing Kit
Product Description

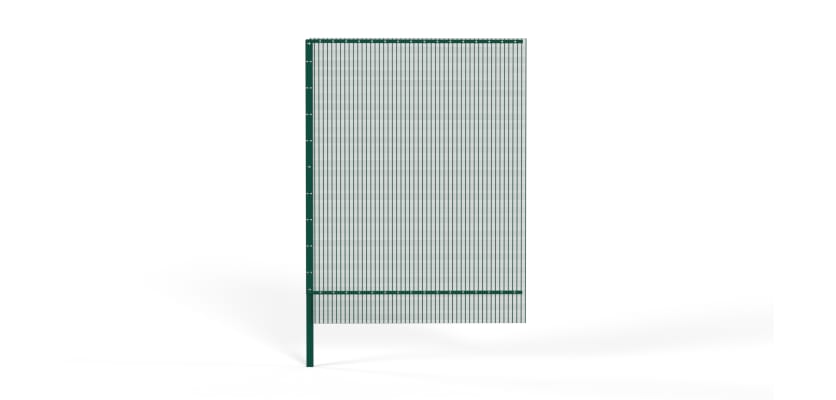

ProFence® 2X SR2 (B3) LPS 1175 3.0m High Mesh Fencing Kit
Maximum Height, Maximum Security
The ProFence® 2X SR2 (B3) at 3.0m high provides an enhanced perimeter barrier for sites that demand certified protection against intrusion. Independently tested and approved to LPS 1175 Issue 8, Security Rating B3, this fencing kit is built to resist sustained attacks involving bodily force and the specific hand tools covered within this security rating.
MeshPro® 10 Technology
At the core of the system is the proven MeshPro® 10 wire configuration, combining 10mm verticals with 4mm horizontals. This dense mesh creates an effective anti-climb surface while ensuring visibility is not compromised. Its robust design significantly improves resistance against cutting, tampering, and climbing attempts.
Built for Strength Under Pressure

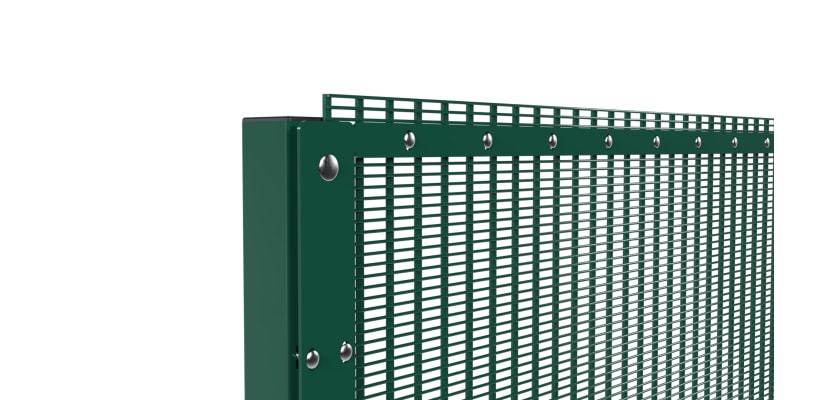

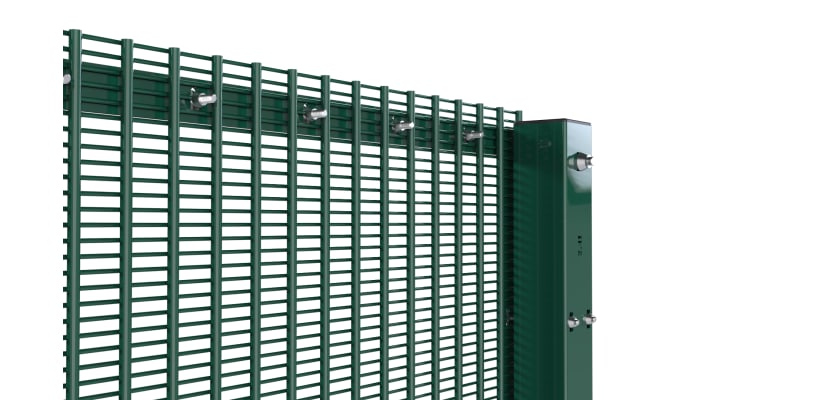

The fencing kit is reinforced with an extra-wide 80mm x 5mm galvanised clamp bar featuring side-by-side fixings for exceptional rigidity. To further eliminate weak points, horizontal clamp bars are securely fitted at both the top and bottom of the panel, preventing prising, lifting, or unauthorised access through panel edges.
Designed for Seamless Integration

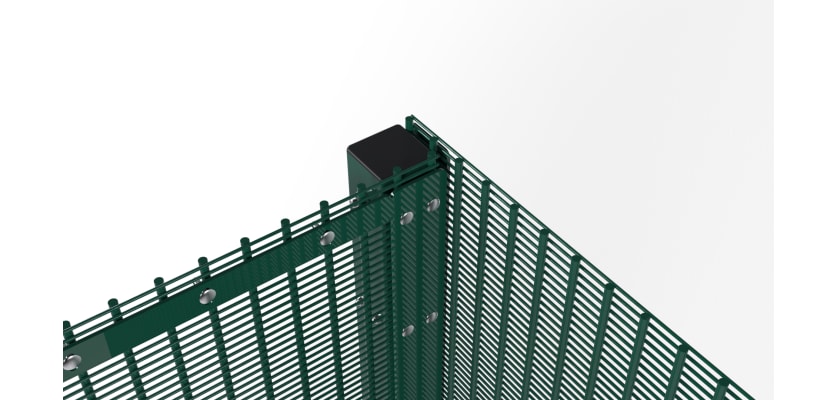

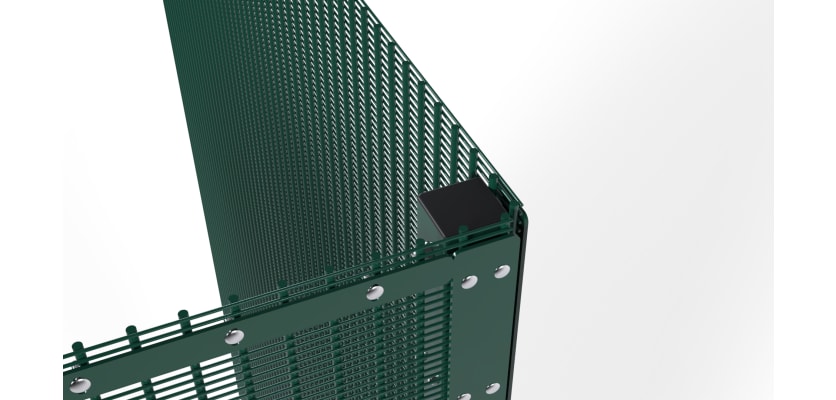

As part of the wider ProFence® 2X system, this 3.0m kit integrates easily with other components, allowing for a consistent and secure perimeter line across diverse site layouts. Most importantly, its B3-rated performance under the LPS 1175 standard provides proven intrusion delay, offering vital response time for security personnel in high-risk or sensitive environments.
Learn More About LPS 1175
For further guidance on the LPS 1175 certification and help choosing the best perimeter defence solution for your site, take a look at our LPS 1175 blog.
Get in Touch
For specialist advice on your security fencing project, please speak to our team today by calling 01283 512 111 or using the website's live chat feature.
Specifications & Downloads
| Height | 3.0m [Installed] |
| Width | 2.5m |
| Vertical Wire Thickness | 10mm |
| Horizontal Wire Thickness | 4mm |
| Box Section of Posts | 80x80mm |

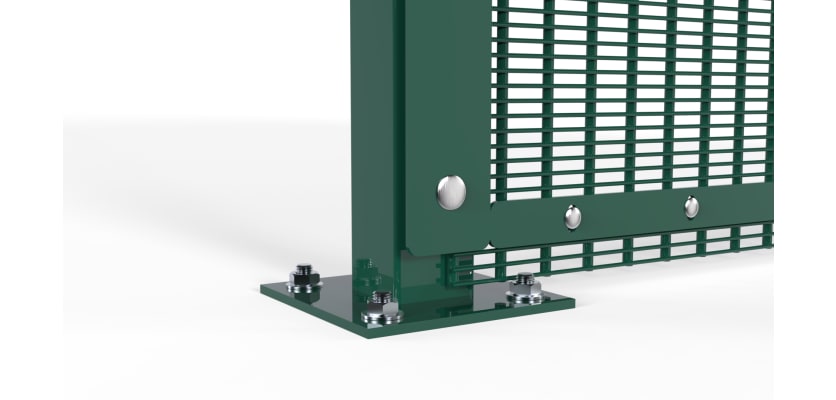

| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green and Black as standard, Blue, Red, Grey and Yellow also available on request |
| Ground Clearance | 10-50mm [Bolt Down Only] |
| Fixing Kit | M8x110mm [Mesh Fixings], M12x110mm [Clamp Bar Fixings] |
| Compliant to | LPS 1175 SR2 (B3) [Security Rating], ISO 1461 [Galvanising] & BS EN 13438 [Powder Coating] |
| Leading Edge Prevention | 40x5mm Cross Member Clamp Bar [2 Qty] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Pro Ten Fencing Panel [3.3 x 2.5m Dig In / 3.0m x 2.5m Bolt Down] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 2950mm] | 1 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 32 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M12x110mm] | 3 |
| ProFence® 2X Galvanised Horizontal Clamp Bar Fixing Bolts [M8x30mm] | 32 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 64 |
| ProFence® 2X Galvanised Snap Off Nut [M12] | 3 |
| ProFence® 2X Washer [M12] | 3 |
| ProFence® 2X Mesh Fencing Cross Member Clamp Bar [40x5mm x 2435mm] | 2 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
