3.0m x 6.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 6000mm |
| Total Width | 6570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
3.0m x 6.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit

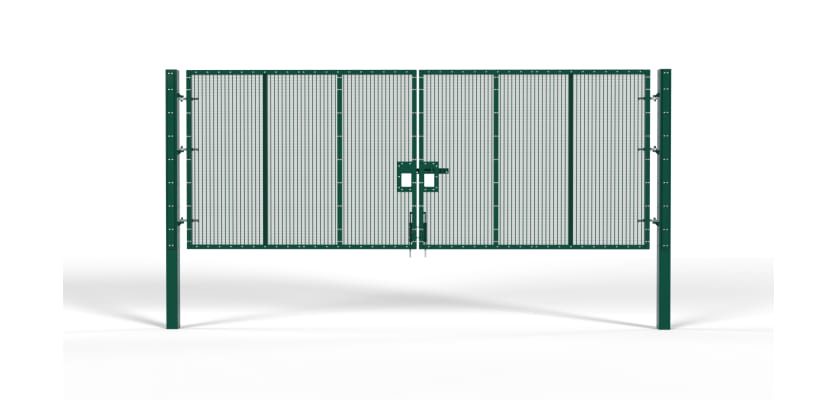

This 3.0m high, 6m wide ProFence® 2X double gate is one of the most formidable security barriers available, certified to the LPS 1175 SR2 (B3) standard.
The robust nature of the LPS 1175 B3 certification gives security managers the confidence to specify wide-opening gates without fear of creating a vulnerability. This 6.0m gate is ideal for the main entrance to large-scale data centres or nuclear facilities, where the 3.0m height provides a powerful visual deterrent and the certified construction provides a proven delay against hostile acts.
It is also a critical security element for securing Ministry of Defence (MoD) sites and contractor facilities. The 6.0m width allows for the movement of heavy military vehicles and equipment, while the maximum height and B3 rating meet the stringent security protocols required for such establishments. Ensure a fully compliant perimeter by using this gate with the 3.0m high ProFence® 2X fence kit.
Its inclusion in the Red Book guarantees its elite security credentials.
Features & Benefits

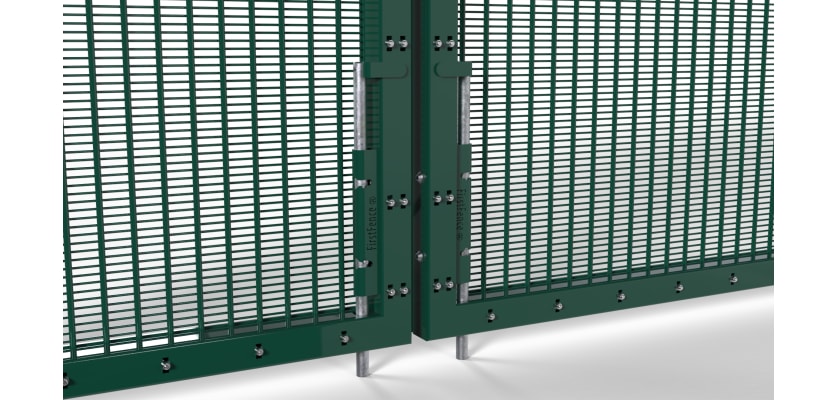

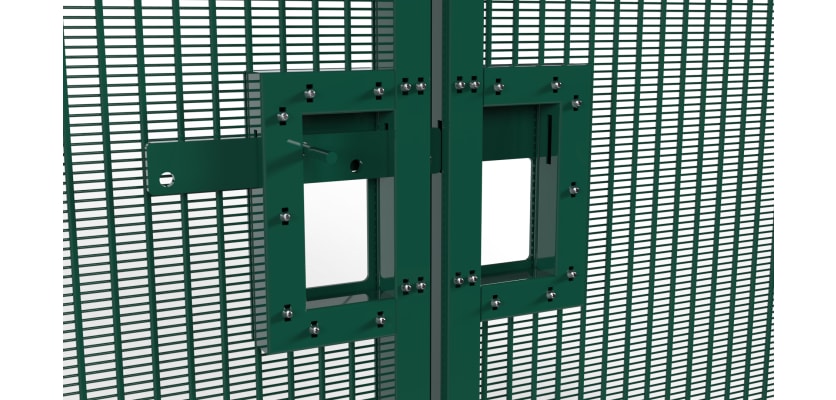

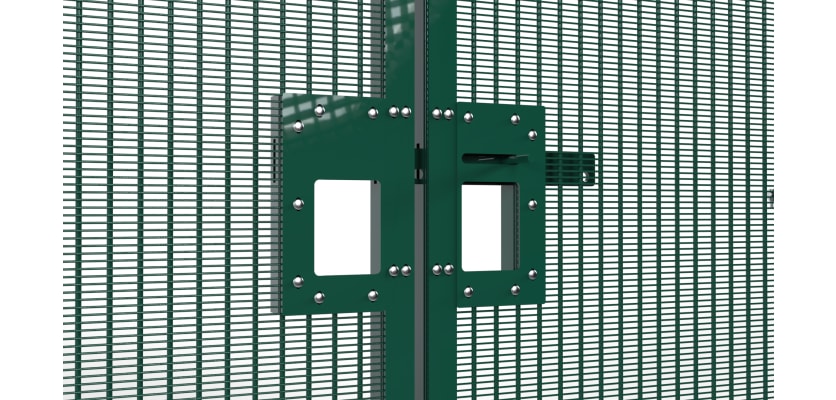

The 3.0m x 6.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 3.0m wide gate leaves, two hinge posts, and all essential SR2-rated hardware. Security is assured by a powerful central sliding latch and dual drop bolts, which create an incredibly secure, unified barrier when closed.

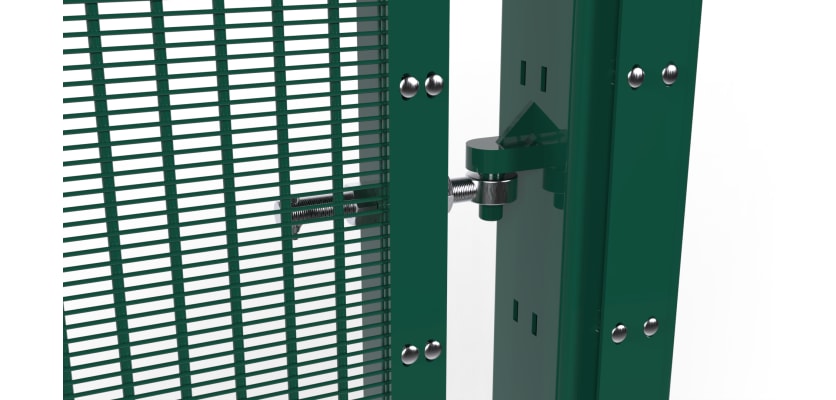

Its robust steel frame is protected against the elements by a hot-dip galvanised coating and a tough polyester powder finish. The gate leaves are filled with MeshPro® 10 mesh, which, at this height, provides an exceptional anti-climb deterrent. The six gate eyes are attached using shear nuts for a permanent, tamper-proof fit.
Installation Made Easy
Supplied in either dig-in or bolt-down options. The bolt-down version includes all necessary ground anchor bolts. For a permanent and stable installation of the 3.0m dig-in posts, we recommend using a minimum of four bags of Post Mix per post with C20 or C25 grade concrete.
