3.0m x 4.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description
3.0m x 4.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
The 3.0m high, 4m wide ProFence® 2X double gate is a certified high-security solution for wide vehicular access points where maximum deterrence is required.
This gate’s LPS 1175 B3 certification and 3.0m height provide a layered defence vital for facilities such as data centres. The height deters opportunistic climbing, while the B3 rating provides a guaranteed delay against a determined attack. This 4.0m width is ideal for main access routes, allowing for the safe passage of service vehicles and equipment deliveries while maintaining a maximum-security posture.
Beyond the tech sector, this is an exemplary choice for securing the entrances to police vehicle compounds and emergency service depots. The 4.0m width allows for rapid entry and exit of multiple vehicles, while the maximum height and B3 rating ensure the site and its critical assets are protected. A seamless high-security perimeter is formed by installing this gate with the 3.0m high ProFence® 2X fence.
Its LPS 1175 SR2 (B3) certification and Red Book listing guarantee it has been tested to withstand a three-minute, intensive attack from an intruder using advanced tools like axes and drills (Toolkit B).
Features & Benefits

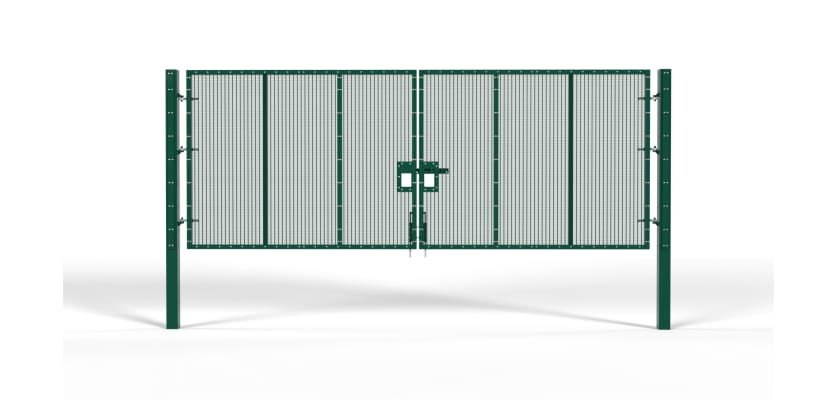

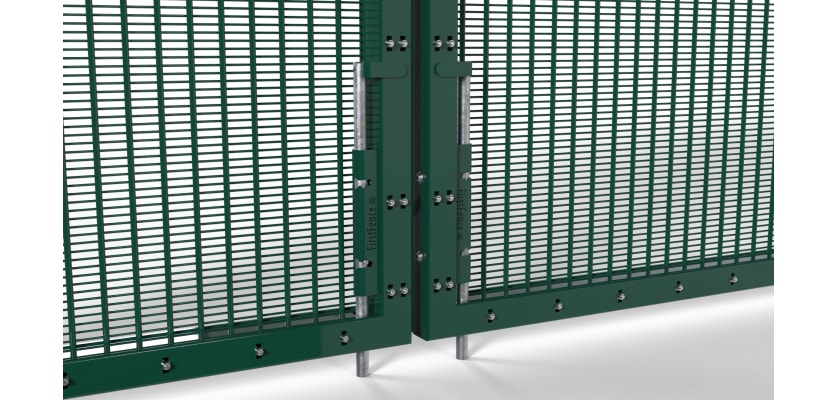

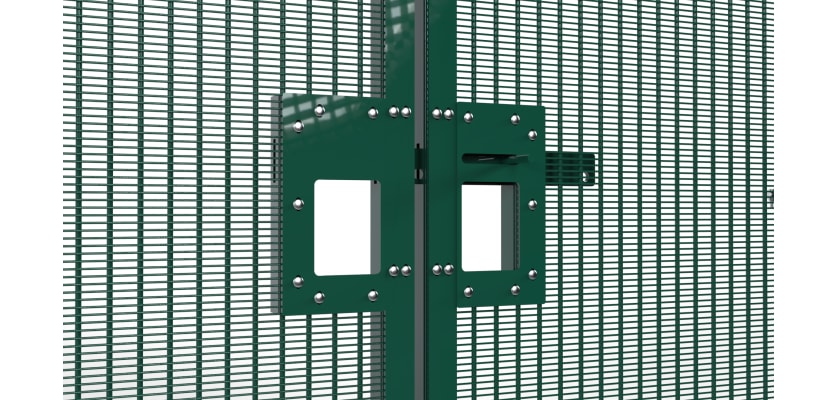

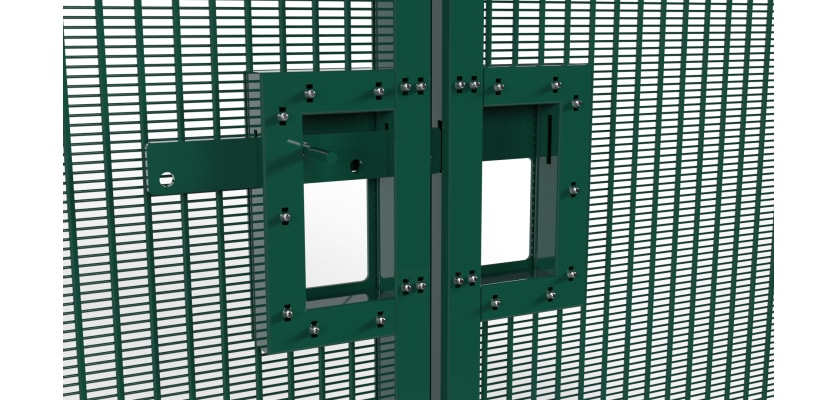

The complete 3.0m x 4.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit comprises two 2.0m wide gate leaves, two corresponding hinge posts, and six heavy-duty, SR2-rated gate eyes. Its locking system features a central sliding latch for a padlock, reinforced by two substantial drop bolts that secure the base of each tall gate leaf.

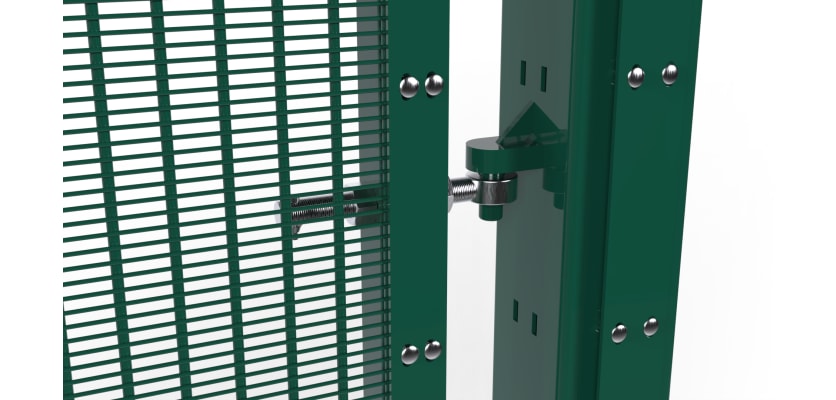

Fabricated from steel, the gate is protected by a hot-dip galvanised treatment and a tough polyester powder-coated layer for ultimate weather resistance. The gate's extreme anti-climb properties are delivered by its 3.0m height and the dense MeshPro® 10 infill. The hinge system is secured with high-security shear nuts that cannot be removed.
Contact Us
If you have any questions, please get in touch with our friendly team. Our experts are available by phone on 01283 512 111 or by email at sales@firstfence.co.uk. You can also connect with us via our live chat service.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
