3.0m x 10.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
3.0m x 10.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Providing a maximum width opening at our maximum 3.0m height, the 10-metre ProFence® 2X double gate is the premier solution for sites accommodating oversized vehicles without any compromise on security.
This gate is the ultimate expression of the LPS 1175 B3 standard, designed for the most critical access points in the country. It is specified for locations like major port authorities, large-scale data centre campuses, and government reserve sites where the ability to move the largest possible loads must co-exist with the highest level of certified physical security against determined hostile threats.
It is also the definitive choice for securing the entrances to heavy industrial sites, such as chemical processing plants or steelworks. The 10.0m width and 3.0m height are essential for specialist haulage and abnormal loads, while the B3 rating provides certified protection for nationally critical manufacturing and processing operations. The gate forms part of a complete, certified solution when installed with the 3.0m high ProFence® 2X fence.
It is certified to the demanding LPS 1175 SR2 (B3) standard and is Red Book listed.
Features & Benefits

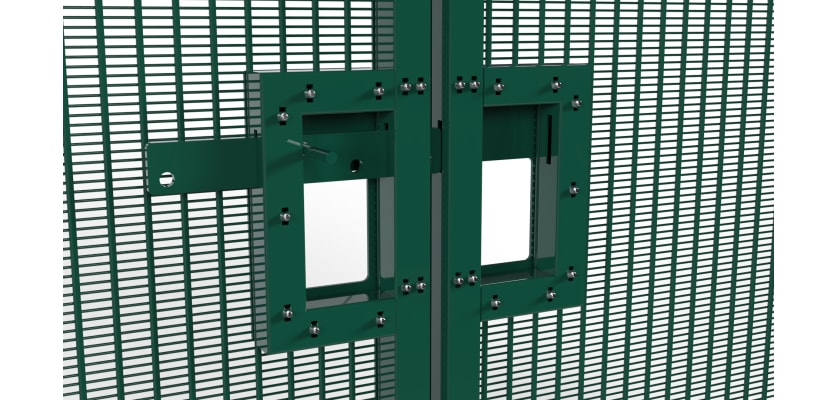

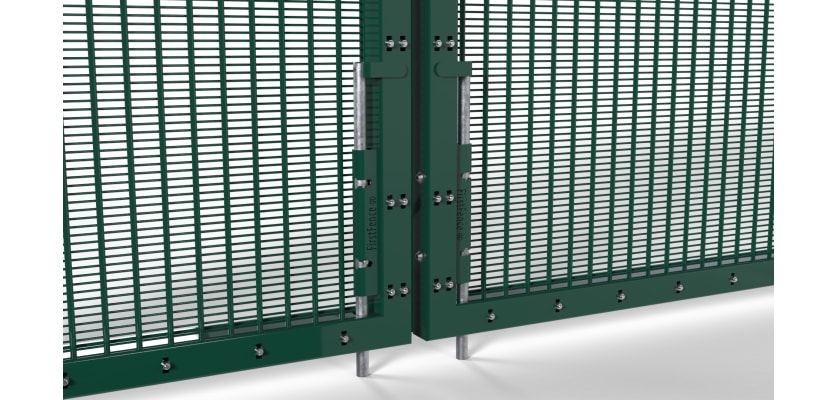

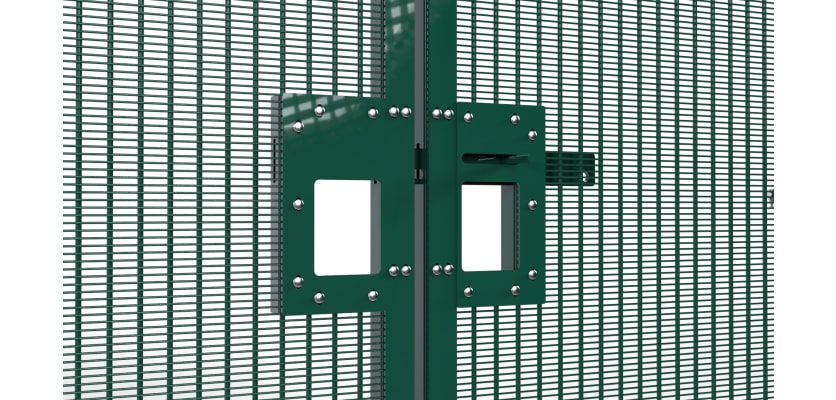

The 3.0m x 10.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a comprehensive package containing two 5.0m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate's substantial span is secured through a robust central slide latch and two lockable drop bolts that anchor the gate firmly into the ground, ensuring total rigidity and security.

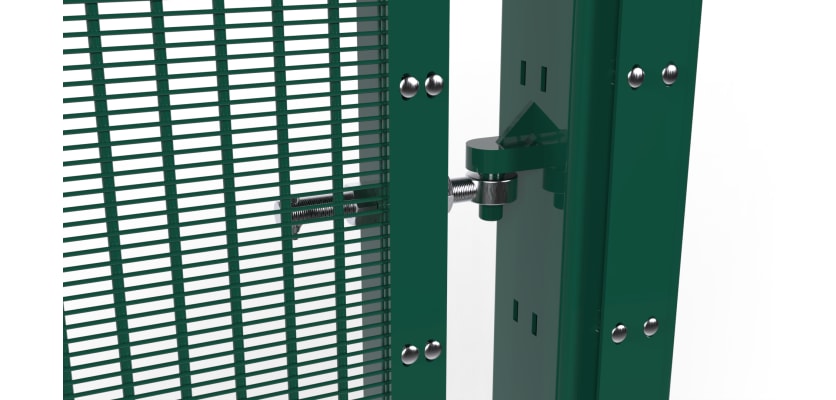

Fabricated from high-grade steel, the gate system is protected by a hot-dip galvanised coating and an additional polyester powder-coated finish for superior durability. The gate features the formidable MeshPro® 10 infill, which at 3.0m high makes it a supreme anti-climb barrier. The six hinges are permanently installed using tamper-resistant shear nuts.
Installation Made Easy
This gate system can be ordered in a dig-in format for soft ground or a bolt-down format for concrete. Bolt-down versions are supplied with all the required ground anchor bolts. To support the immense weight and height of these gate leaves, we strongly recommend using C20 or C25 concrete with at least five bags of Post Mix per dig-in post.
