Height | 2000mm [Installed] |
Access Width | 2000mm |
Total Width | 2510mm |
Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
ProFence® 2X is our premier SR2 (B3) LPS 1175 certified security gate system, engineered to provide a robust access point for the most secure perimeters. It's the definitive choice for sites where a breach is not an option.
Achieving the LPS 1175 B3 rating provides independently verified assurance that this gate can delay a determined attacker for a crucial three-minute window, allowing for an on-site security response. For sectors like data centres or sites of national critical importance, this delay is vital. This particular gate size is ideal for controlled secondary access points or pedestrian thoroughfares within these secure compounds, ensuring that even smaller entrances meet the stringent security requirements needed to protect critical assets.
This gate is also an excellent specification for securing individual, high-value assets within a larger site, such as an external generator or fuel storage compound. Its compact size provides controlled access for maintenance staff and authorised utility vehicles (ATVs), preventing opportunistic vandalism or sabotage that could disrupt operations. For complete compound security, the gate can be paired with our matching ProFence® 2X fence system, ensuring the entire enclosure meets the same SR2 standard.
This gate has undergone exhaustive testing against aggressive attack methods, certified to withstand a three-minute assault from an attacker with advanced tools (Toolkit B), including axes and hand drills. Its certification places it in the prestigious Red Book, signifying its quality and performance.

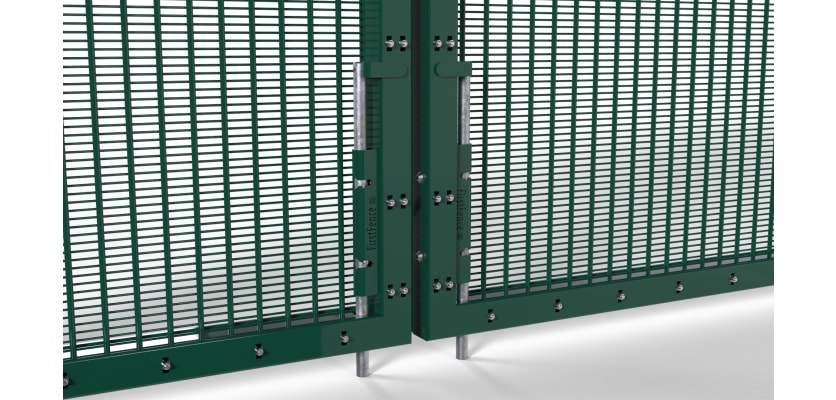

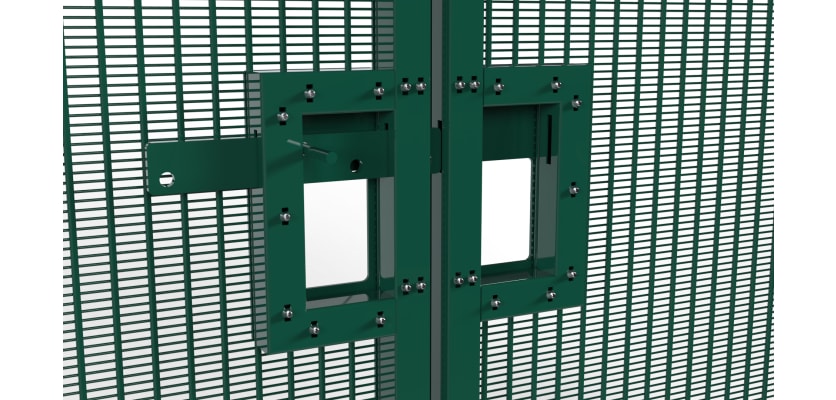

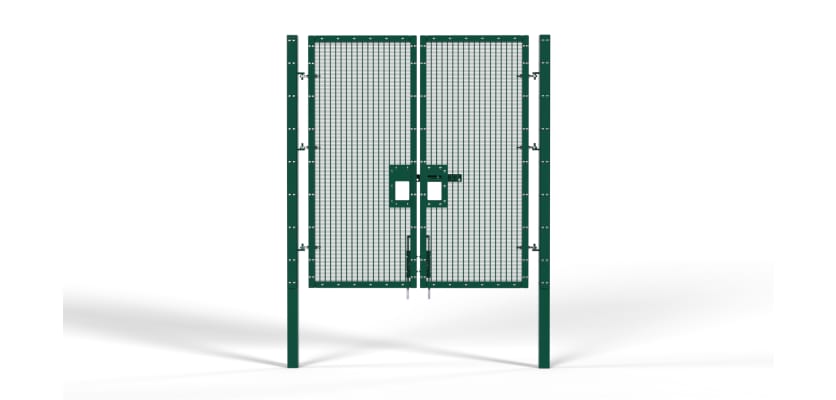

The 2.0m x 2.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 1.0m wide gate leaves, two hinge posts, six SR2-rated gate eyes, and a secure locking system. To ensure maximum stability and security, the gate leaves are secured in the closed position with a central heavy-duty slide latch and two lockable ground drop bolts.

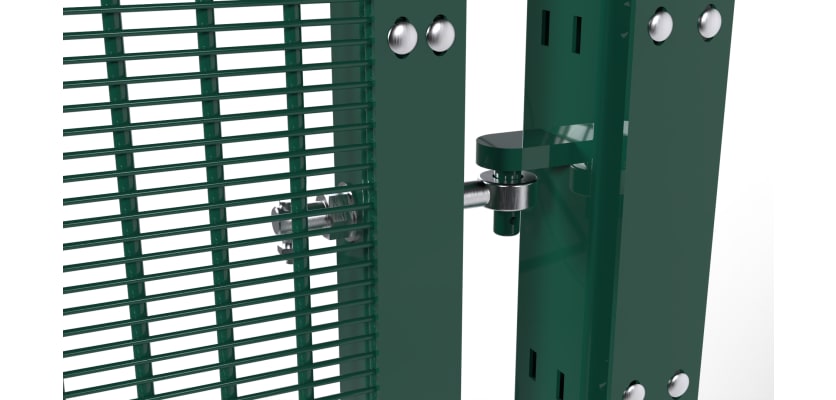

Built for longevity, the entire system is fabricated from high-grade steel, which is hot-dip galvanised to ISO 1461 standards. A final polyester powder coating adds another layer of protection, making it exceptionally resilient to corrosion and harsh weather. The gate leaves are infilled with a dense MeshPro® 10 panel, which provides excellent visibility for surveillance while being incredibly difficult to cut or climb. Each of the six heavy-duty hinges is affixed with tamper-proof shear nuts, which break off when tightened to prevent unauthorised removal.
To accommodate different ground surfaces, this gate system is offered with a choice of installation methods: dig-in or bolt-down. Bolt-down kits include the necessary ground anchor bolts. For a solid footing with the dig-in version, we recommend using two to three bags of Post Mix per post. We suggest using C20 or C25 grade concrete.
Should you have any questions about this range of LPS 1175 rated fencing, or for more information on stock and availability, please don’t hesitate to contact us. We can be reached via phone on 01283 512 111, via email at sales@firstfence.co.uk or we can be reached via our online chat system where one of our helpful and friendly staff will be more than happy to assist you.
