2.4m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
2.4m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Engineered for high-risk locations, the 2.4m high, 5m wide ProFence® 2X SR2 (B3) double gate is a superior security solution.
Specifying an LPS 1175 B3 certified gate demonstrates a commitment to robust, tested security protocols, a key requirement for operators of data centres and other critical facilities. This 5.0m gate provides a wide and imposing entrance, suitable for delivery bays and service access, ensuring that every point of the secure perimeter meets the same high standard of forced entry resistance.
This configuration is also highly suited for securing the perimeters of communication and satellite uplink stations. The 5.0m width allows access for specialist vehicles and equipment, while the 2.4m height and B3 rating protect nationally important communication links from disruption. For a holistic security approach, pair this gate with the 2.4m high ProFence® 2X fence kit.
Its LPS 1175 certification verifies that it can withstand a rigorous, tool-heavy attack (Toolkit B) for at least three minutes. This Red Book listed system ensures your perimeter's access point is comprehensively secured with an imposing, certified barrier.
Features & Benefits

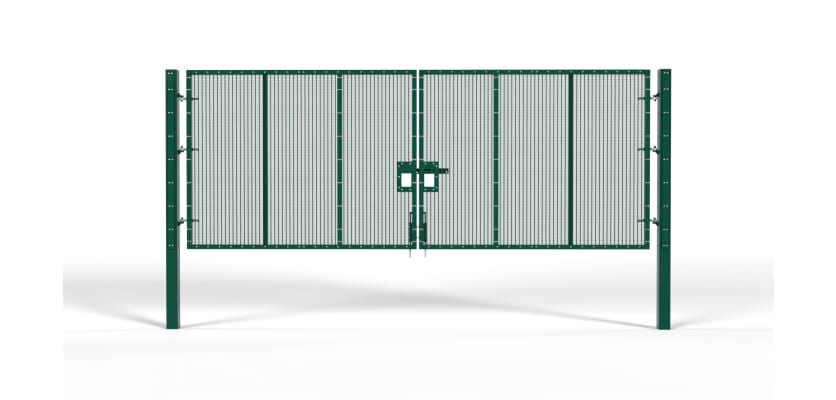

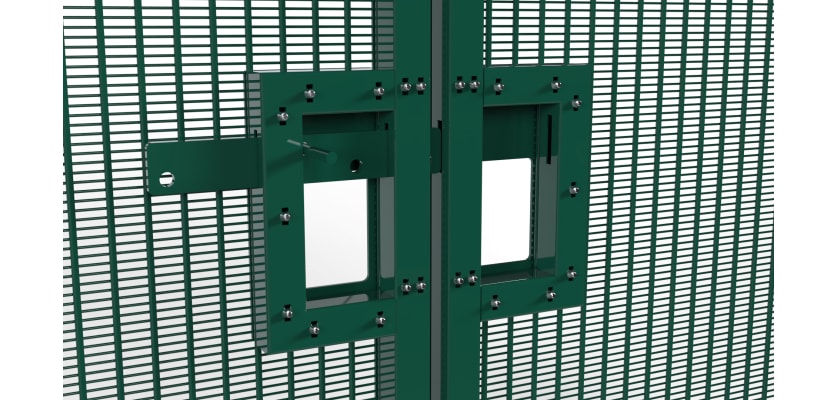

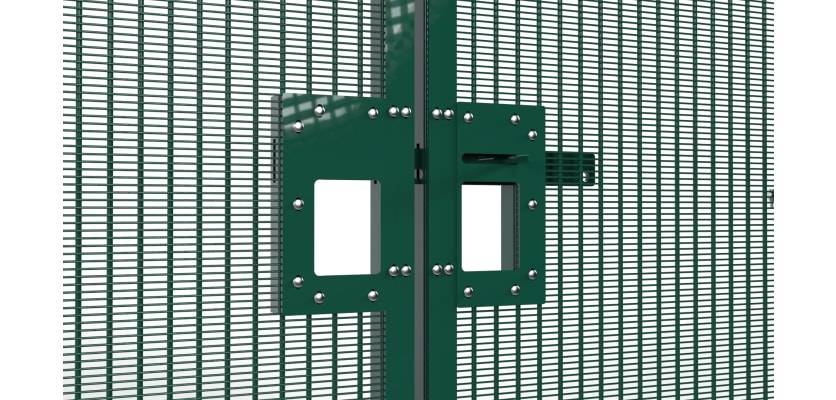

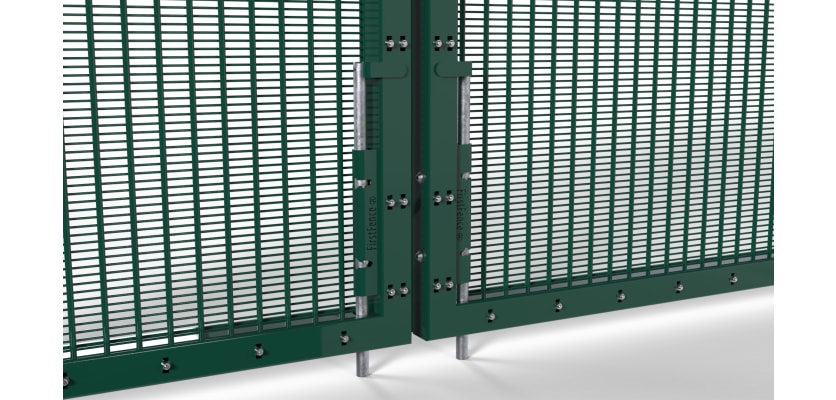

This 2.4m x 5.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is supplied with two 2.5m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate is secured via a central slide latch mechanism and twin, lockable drop bolts that anchor the gate to the ground.
The gate's construction features a dual-layer of protection: a hot-dip galvanised base and a polyester powder-coated topcoat. The gate leaves feature our signature MeshPro® 10 mesh, a design renowned for its anti-climb and anti-cut properties. All hinge fixings are high-security shear nuts.
Installation Made Easy
The gate system is available in dig-in or bolt-down configurations. Bolt-down posts are supplied with ground anchor bolts. For dig-in posts of this height, we advise using C20 or C25 grade concrete and suggest three to four bags of Post Mix per post for a robust foundation.
