ProFence® 2X SR2 (B3) LPS 1175 2.4m High Mesh Fencing Kit
Product Description
ProFence® 2X SR2 (B3) LPS 1175 2.4m High Mesh Fencing Kit
Trusted Protection for Demanding Sites
The ProFence® 2X SR2 (B3) delivers a reliable perimeter defence solution for facilities that require certified resistance against intrusion. Independently tested to LPS 1175 Issue 8, Security Rating B3, this 2.4m high fencing kit is designed to withstand attempts using bodily force and the defined set of basic hand tools associated with this security level.
Engineered MeshPro® 10 Wire Construction
The system features the advanced MeshPro® 10 configuration, pairing 10mm vertical wires with 4mm horizontal wires. This tight-knit mesh profile creates a strong anti-climb barrier that maintains good site visibility while offering superior durability and resistance to tampering.
Reinforced with Heavy-Duty Fixings

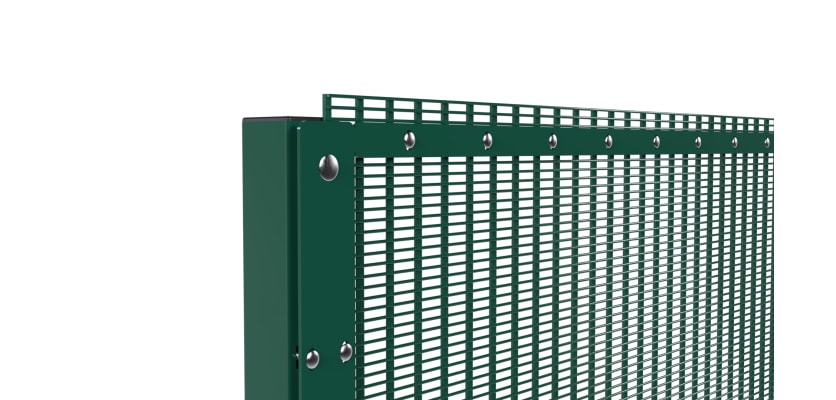

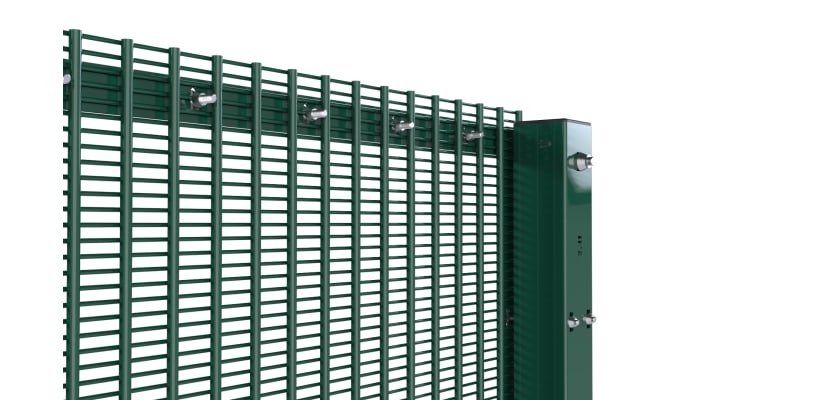

To maximise structural integrity, the kit includes a robust 80mm x 5mm galvanised clamp bar with side-by-side fixings. This ensures outstanding rigidity across the panel. Additional horizontal clamp bars are fitted at both the top and bottom to protect against prising or lifting, safeguarding areas that are typically vulnerable to attack.
Part of the ProFence® 2X Family
As a core product within the ProFence® 2X system, this kit is designed to integrate seamlessly with other components, enabling secure installation across varied layouts and site requirements. Crucially, its B3-certified performance provides proven delay against intruders, giving on-site security teams the time needed to respond effectively in high-risk or sensitive environments. Our ProFence 2X SR2 mesh gates are designed to work seamlessly with this fencing system, providing a secure and consistent finish.
Learn More About LPS 1175
For additional details on the LPS 1175 certification and guidance in choosing the right perimeter security solution, visit our LPS 1175 blog.
Get in Touch
For specialist advice on your security fencing project, please speak to our team today by calling 01283 512 111 or using the website's live chat feature.
Specifications & Downloads
| Height | 2.4m [Installed] |
| Width | 2.5m |
| Vertical Wire Thickness | 10mm |
| Horizontal Wire Thickness | 4mm |
| Box Section of Posts | 80x80mm |

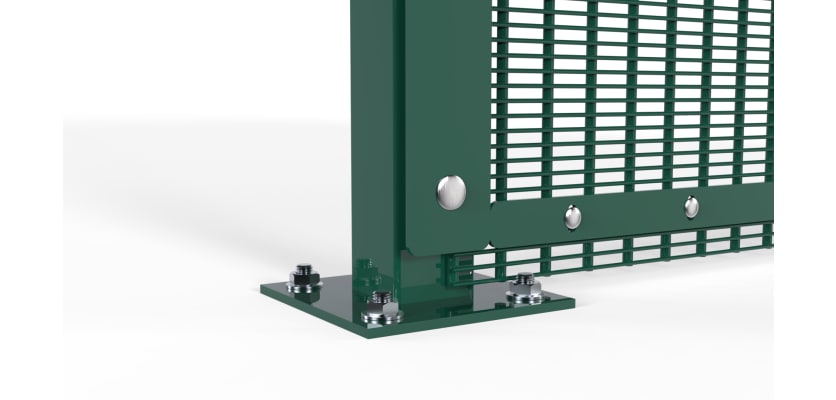

| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green and Black as standard, Blue, Red, Grey and Yellow also available on request |
| Ground Clearance | 10-50mm [Bolt Down Only] |
| Fixing Kit | M8x110mm [Mesh Fixings], M12x110mm [Clamp Bar Fixings] |
| Compliant to | LPS 1175 SR2 (B3) [Security Rating], ISO 1461 [Galvanising] & BS EN 13438 [Powder Coating] |
| Leading Edge Prevention | 40x5mm Cross Member Clamp Bar [2 Qty] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Pro Ten Fencing Panel [2.7m x 2.5m Dig In / 2.4m x 2.5m Bolt Down] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 2350mm] | 1 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 24 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M12x110mm] | 3 |
| ProFence® 2X Galvanised Horizontal Clamp Bar Fixing Bolts [M8x30mm] | 32 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 56 |
| ProFence® 2X Galvanised Snap Off Nut [M12] | 3 |
| ProFence® 2X Washer [M12] | 3 |
| ProFence® 2X Mesh Fencing Cross Member Clamp Bar [40x5mm x 2435mm] | 2 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
