3.0m High x 1.2m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
3.0m High x 1.2m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit

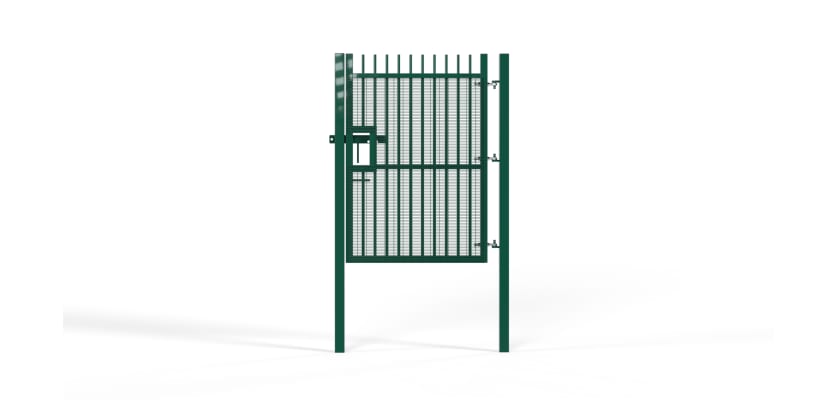

Designed for maximum-security pedestrian access, this 3.0m high x 1.2m wide EnviroProtect® Anti-Climb gate is built to protect the most sensitive sites. Its towering height and welded 358 ‘prison mesh’ infill form a formidable anti-climb and anti-cut barrier. Fully certified to LPS 1175 A1 (SR1), it offers verified, uncompromising protection for your perimeter.
Dual-Layered Defence: Certified Strength & Anti-Climb Protection
Independently tested to meet SR1 standards, this gate is proven to resist tool-based attacks. The 358 mesh infill prevents climbing attempts and withstands cutting, providing a complete defence system for securing high-risk entry points.
Built for Maximum Resilience
The gate leaf is engineered from a 60x60mm box section frame, with mesh panels securely welded in place for superior rigidity. Every component is supplied pre-galvanised, ensuring long-lasting resistance to rust and corrosion even in challenging environments.
Technical Specification
- Height: 3.0m (3000mm)
- Clear access width: 1.2m (1200mm)
- Total overall width: 1490mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 80x80x3mm hinge & catch posts
- Finish: Pre-galvanised steel
Flexible Installation Options

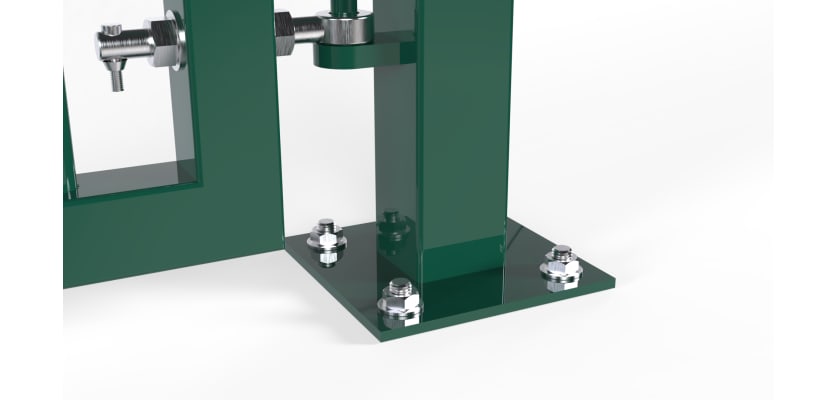

To guarantee a stable and secure fit, this kit includes both Bolt-Down posts (3000mm) for existing hardstanding and Dig-In posts (3700mm) for deeper concrete foundations.
Applications and Integration

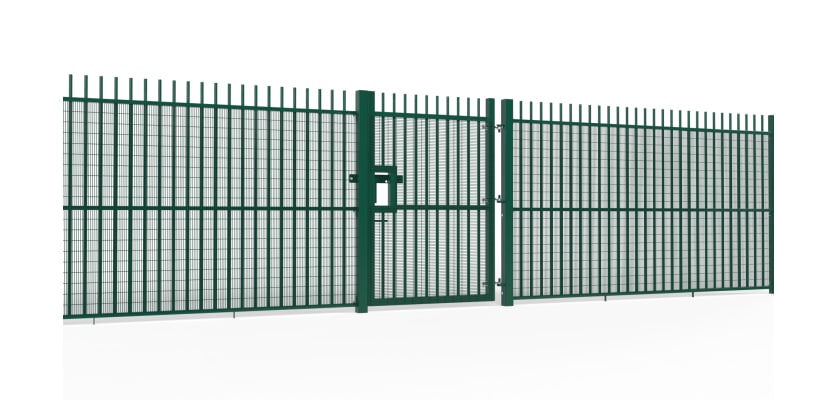

The 1.2m span makes this gate an ideal choice for staff entrances at prisons, CNI facilities, and government compounds requiring the highest anti-climb standards. It is designed to integrate seamlessly with the 3.0m high EnviroProtect® Anti-Climb railing system for a continuous line of defence.
Get in Touch
Ready to secure your perimeter with the ultimate solution? For technical data sheets and quotations on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111 or email sales@firstfence.co.uk.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
3.0m High x 1.2m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Designed for maximum-security pedestrian access, this 3.0m high x 1.2m wide EnviroProtect® Anti-Climb gate is built to protect the most sensitive sites. Its towering height and welded 358 ‘prison mesh’ infill form a formidable anti-climb and anti-cut barrier. Fully certified to LPS 1175 A1 (SR1), it offers verified, uncompromising protection for your perimeter.
Dual-Layered Defence: Certified Strength & Anti-Climb Protection
Independently tested to meet SR1 standards, this gate is proven to resist tool-based attacks. The 358 mesh infill prevents climbing attempts and withstands cutting, providing a complete defence system for securing high-risk entry points.
Built for Maximum Resilience
The gate leaf is engineered from a 60x60mm box section frame, with mesh panels securely welded in place for superior rigidity. Every component is supplied pre-galvanised, ensuring long-lasting resistance to rust and corrosion even in challenging environments.
Technical Specification
- Height: 3.0m (3000mm)
- Clear access width: 1.2m (1200mm)
- Total overall width: 1490mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 80x80x3mm hinge & catch posts
- Finish: Pre-galvanised steel
Flexible Installation Options
To guarantee a stable and secure fit, this kit includes both Bolt-Down posts (3000mm) for existing hardstanding and Dig-In posts (3700mm) for deeper concrete foundations.
Applications and Integration
The 1.2m span makes this gate an ideal choice for staff entrances at prisons, CNI facilities, and government compounds requiring the highest anti-climb standards. It is designed to integrate seamlessly with the 3.0m high EnviroProtect® Anti-Climb railing system for a continuous line of defence.
Get in Touch
Ready to secure your perimeter with the ultimate solution? For technical data sheets and quotations on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111 or email sales@firstfence.co.uk.
