3.0m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description
3.0m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit

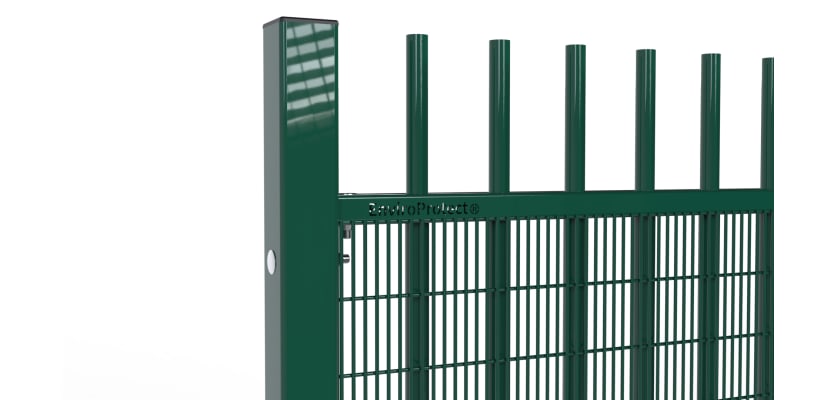

The 3.0m High EnviroProtect® Anti-Climb Vertical Bar Railing Kit delivers the highest level of perimeter protection within the range, combining visual authority with cutting-edge security performance. Designed for the most sensitive and high-risk sites, it incorporates a concealed inner layer of 358 ‘prison mesh’ welded to the panel’s interior. This prevents any possibility of climbing, while the outward-facing vertical bar design ensures a professional, uncluttered appearance. Fully tested and certified to LPS 1175 A1 (SR1), this is the premier solution for facilities that cannot compromise on safety.
Dual Security: Anti-Climb and Certified Protection
At its core, this railing system is accredited to LPS 1175 A1 (SR1), confirming its ability to resist a tool-based intrusion attempt for a minimum of 60 seconds. In addition to this certified strength, the welded 358 mesh on the secure side provides an anti-climb safeguard, leaving no gaps or holds for would-be intruders. Together, these features deliver a layered defence that protects against both physical force and climbing access, while still allowing clear lines of visibility for surveillance teams.
Built for Maximum Durability
Constructed from heavy-duty steel, the 3.0m kit is purpose-built for environments where strength and resilience are essential. The tall frame of vertical bars is reinforced by horizontal rails and the welded mesh infill, creating an exceptionally rigid structure. To extend service life, all components are supplied with a pre-galvanised finish, giving long-term resistance to rust and corrosion even in challenging outdoor conditions.
Technical Details
- Height: 3.0m finished fence line
- Panel width: 2900mm
- Vertical bars: 25.4mm diameter tube, set at 100mm centres
- Infill: Welded 358 anti-climb mesh to rear (secure) face
- Finish: Supplied in pre-galvanised steel for durability
Applications and Integration
With its commanding height and uncompromising design, this kit is the standard choice for the UK’s highest-security facilities. It is ideally suited for Critical National Infrastructure, Ministry of Defence properties, custodial institutions, and other sensitive locations. For complete perimeter protection, it can be paired with our range of 3.0m EnviroProtect® Anti-Climb single and double leaf gates, ensuring system-wide compliance and consistency.
Get in Touch
To specify the highest level of certified perimeter protection for your project, contact our team for a free, no-obligation quotation. Call us on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Installed Height | 3000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 3000mm] [Dig In: 3700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 91.88kg] [Dig In: 94.9kg] |
| Box Section of Posts | 60mm x 60mm |

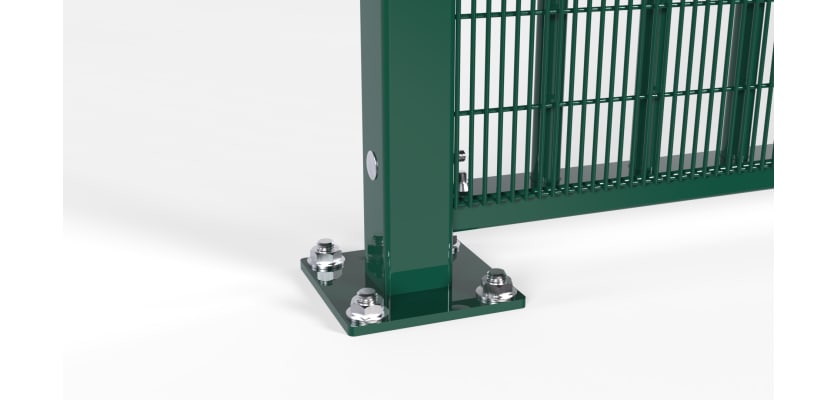

| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| M10 x 80mm Bolts | 3 |
| M10 x 45mm Bolts | 6 |
| M10 Shear Nuts | 9 |
| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
