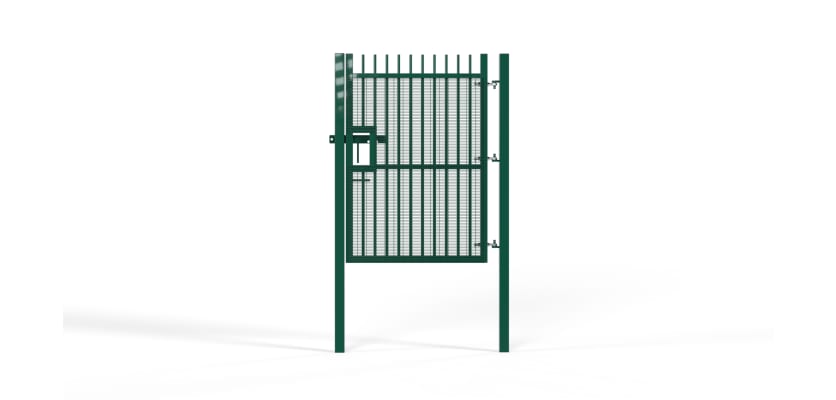

2.4m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
2.4m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
When wide vehicle access points need maximum protection, this 2.4m high x 3.0m wide EnviroProtect® Anti-Climb gate is the go-to solution. Its imposing height and welded 358 ‘prison mesh’ infill combine to create a powerful anti-climb, anti-cut barrier. Fully tested to LPS 1175 A1 (SR1) and supported by a heavy-duty hinge post, this gate offers long-lasting strength and a superior security standard.
Dual-Layer Security: Certified & Anti-Climb
Independently SR1 certified, the frame is proven to resist a sustained tool-based attack. The tightly spaced 358 mesh enhances this defence by preventing climbing and making cutting extremely difficult. Together, these features deliver comprehensive protection against intrusion attempts.
Engineered for Durability

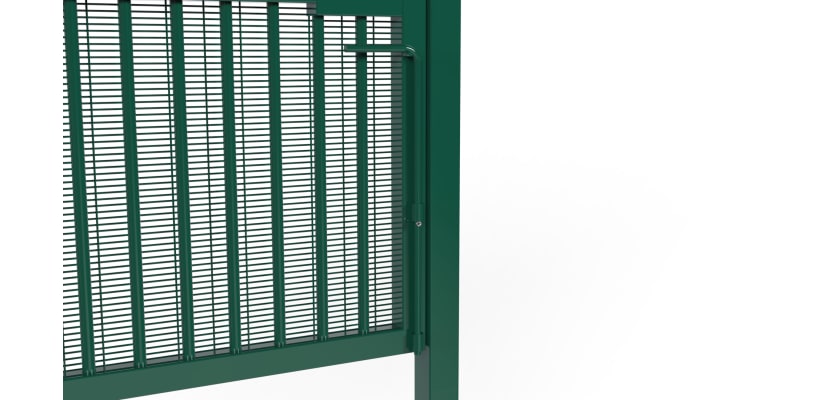

The gate leaf is manufactured from a 60x60mm box section frame with the 358 mesh securely welded inside, forming a rigid and reliable unit. To handle the weight of the wider span, the kit includes an uprated 100x100mm hinge post. All components are pre-galvanised for lasting corrosion resistance and minimal upkeep.
Technical Specification
- Height: 2.4m (2400mm)
- Clear access width: 3.0m (3000mm)
- Overall installed width: 3330mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 100x100x3mm hinge post & 80x80x3mm catch post
- Finish: Pre-galvanised steel
Flexible Installation Options

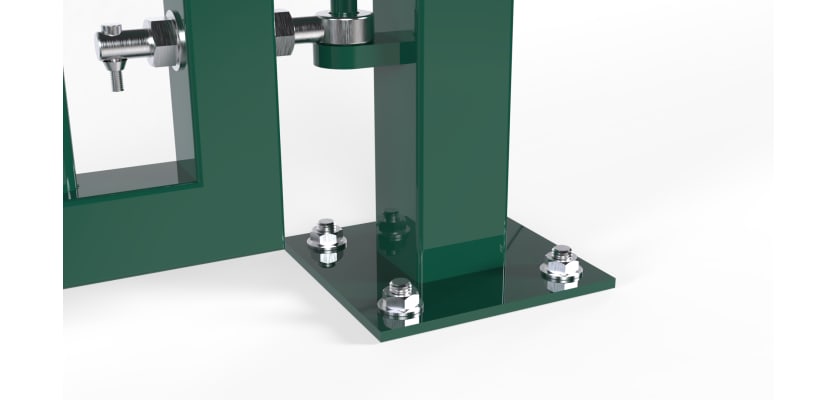

This kit includes both Bolt-Down posts (2400mm) for existing hard standings and Dig-In posts (3100mm) for concrete foundations, ensuring secure installation across different ground types.
Applications and Integration

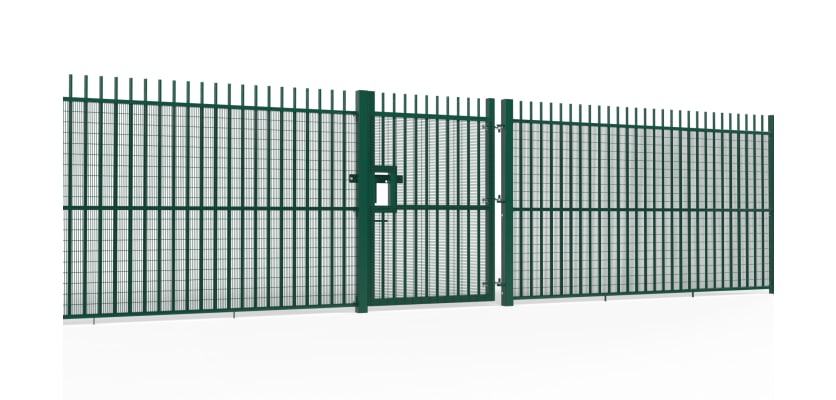

Ideal for logistics depots, industrial estates, correctional facilities, and high-risk entrances, this wide gate balances accessibility with formidable security. It is designed to integrate seamlessly with the 2.4m EnviroProtect® Anti-Climb fencing system for a consistent and secure perimeter.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |

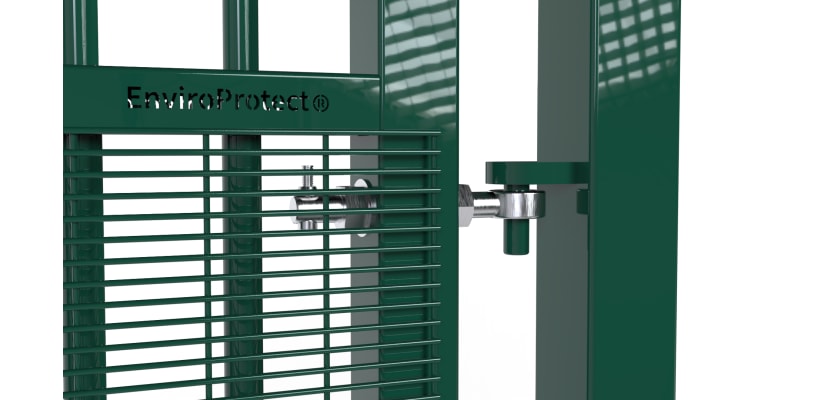

| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 140mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |

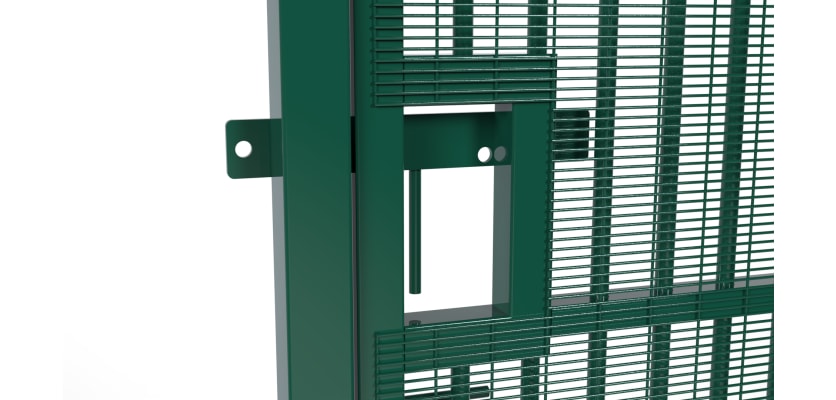

| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 1 |
| 120x120mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
