2.4m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description
2.4m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit

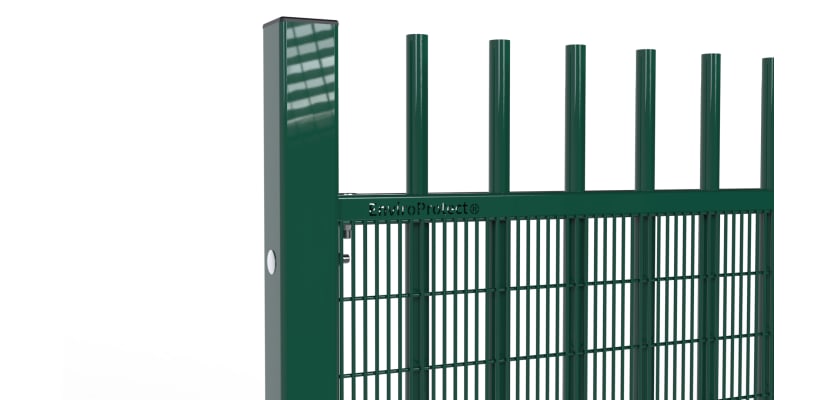

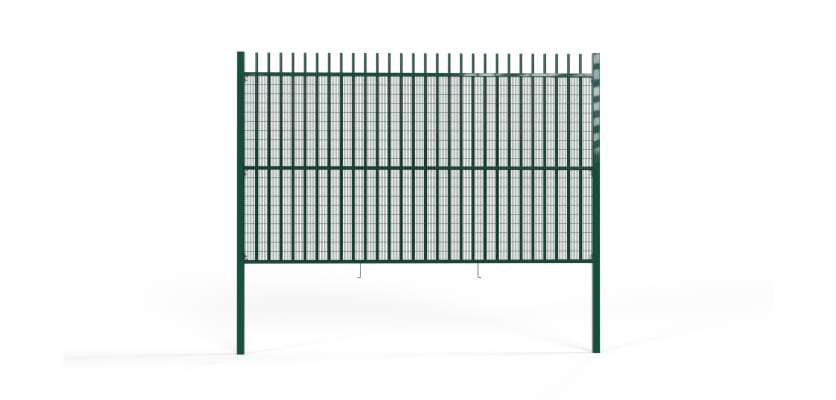

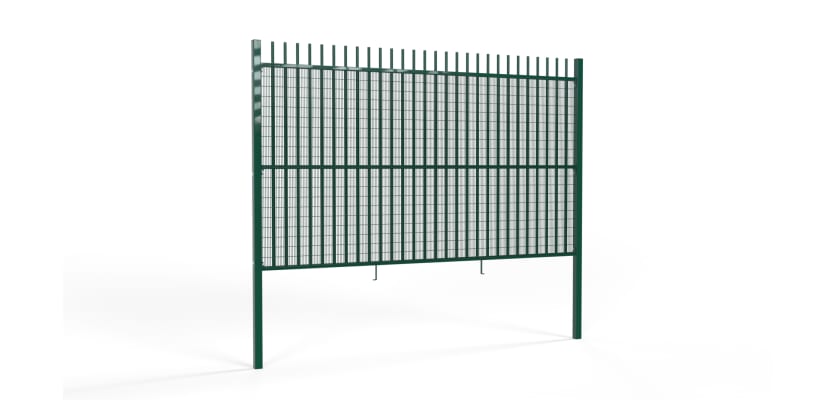

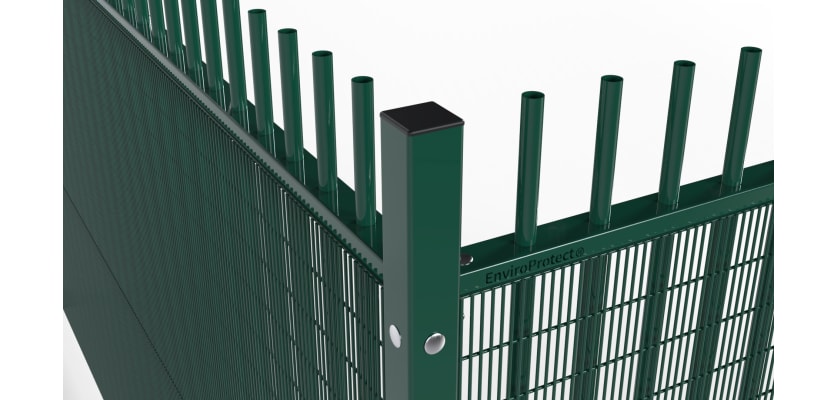

When maximum site security is a priority, the 2.4m High EnviroProtect® Anti-Climb Vertical Bar Railing Kit delivers the perfect balance of strength, deterrence, and professional appearance. Standing at an imposing 2.4 metres, this system is designed to stop intruders in their tracks. Each panel combines the smart, traditional look of vertical bar railings with a hidden layer of 358 ‘prison mesh’ fixed to the internal side, ensuring there are no footholds to exploit. Fully tested and approved to LPS 1175 A1(SR1), it’s a proven choice for safeguarding valuable sites and assets.
Dual-Layer Protection: Certified & Anti-Climb
This railing kit offers two levels of security in one system. The foundation is its SR1 (A1) certification, which demonstrates its tested ability to resist a one-minute manual attack using basic tools. On top of that, the integrated 358 mesh provides unbeatable anti-climb performance. While the mesh blocks scale attempts, the outward-facing vertical bars maintain a clean, professional aesthetic, combining visual appeal with serious protection.
Built to Last
Durability is built into every detail of this system. The panels are manufactured from strong steel verticals and horizontals, reinforced with the welded mesh infill for added rigidity. A pre-galvanised finish ensures resistance against rust and corrosion, guaranteeing a long service life with minimal maintenance — even in harsh environments.
Technical Details
- Height: 2.4m finished fence line
- Panel Width: 2900mm
- Vertical Bars: 25.4mm diameter tube, spaced at 100mm centres
- Mesh Infill: High-tensile 358 anti-climb mesh welded to the secure side
- Finish: Pre-galvanised steel for corrosion resistance
Applications & Integration
With its commanding height and certified performance, this system is ideally suited to high-security environments such as data centres, utilities, airports, transport hubs, and secure compounds. For a seamless perimeter, it can be paired with matching EnviroProtect® Anti-Climb gates, ensuring both consistency and compliance across your boundary.
Get in Touch
Discuss your high-security fencing requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Installed Height | 2400mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2400mm] [Dig In: 3200mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 73.5kg] [Dig In: 75.9kg] |
| Box Section of Posts | 60mm x 60mm |

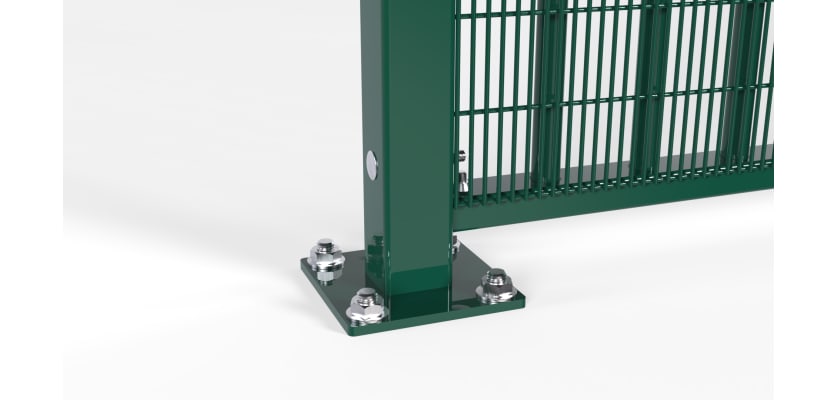

| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| M10 x 80mm Bolts | 3 |
| M10 x 45mm Bolts | 6 |
| M10 Shear Nuts | 9 |

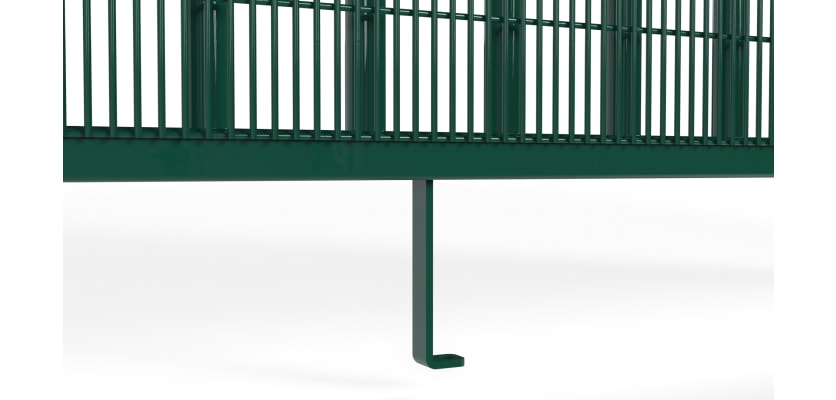

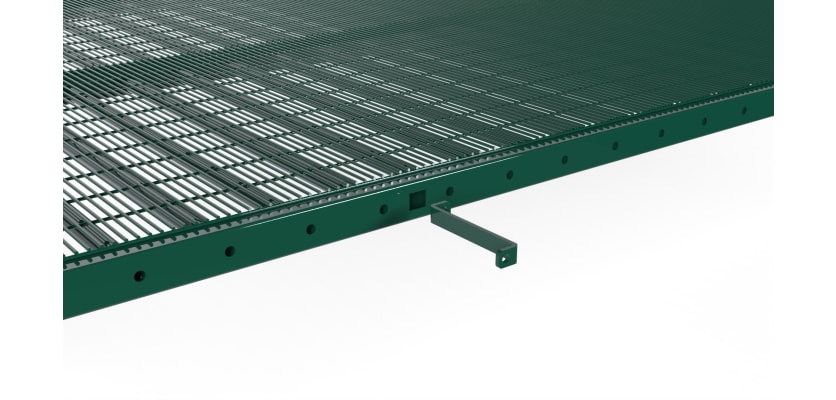

| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
