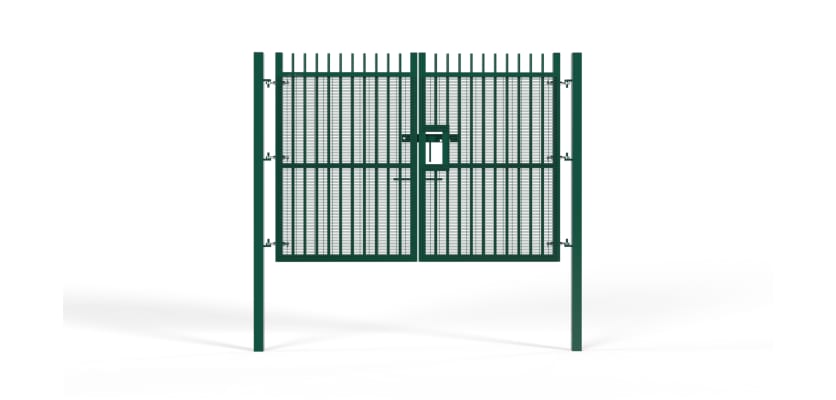

2.4m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
2.4m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
The 2.4m high, 3.0m wide EnviroProtect® Anti-Climb Double Leaf Gate Kit is designed for sites that demand both strong access control and enhanced perimeter security. With its tall, imposing height and versatile clear width for small commercial vehicles, it’s a proven solution for high-risk locations. Certified to the LPS 1175 A1 (SR1) standard and fitted with robust 358 ‘prison mesh’, this gate provides dependable resistance against climbing and cutting attempts, ensuring your boundary remains protected.
Dual-Layered Defence: Certified & Anti-Climb
This gate is fully tested to the LPS 1175 A1 (SR1) standard, demonstrating its ability to withstand a sustained attack using hand tools for at least 60 seconds. This certified delay is crucial for deterring intruders. Reinforcing this is the 358 mesh infill — its dense aperture design eliminates footholds, while its wire gauge makes cutting extremely difficult, delivering a dual-action defence.
Built for Maximum Strength
Engineered with 60x60mm box section frames and securely welded 358 mesh panels, the gate is designed for rigidity and resilience. Heavy-duty 80x80x3mm hinge posts support each leaf, ensuring smooth operation and structural stability over the long term. All steelwork is pre-galvanised, providing superior protection against corrosion and ensuring the system maintains both its strength and appearance.
Technical Specification
- Height: 2.4m (2400mm)
- Clear access width: 3.0m (3000mm)
- Total installed width: 3430mm
- Gate leaves: Two 60x60mm frames with 358 mesh infill
- Posts: Heavy-duty 80x80x3mm hinge posts
- Finish: Pre-galvanised steel
Flexible Installation Options
Each kit is supplied with two installation choices:
- Bolt-down posts (2400mm length) for quick fitting to existing hard standings.
- Dig-in posts (3100mm length) for casting into new concrete foundations where maximum stability is required.
Applications & Integration

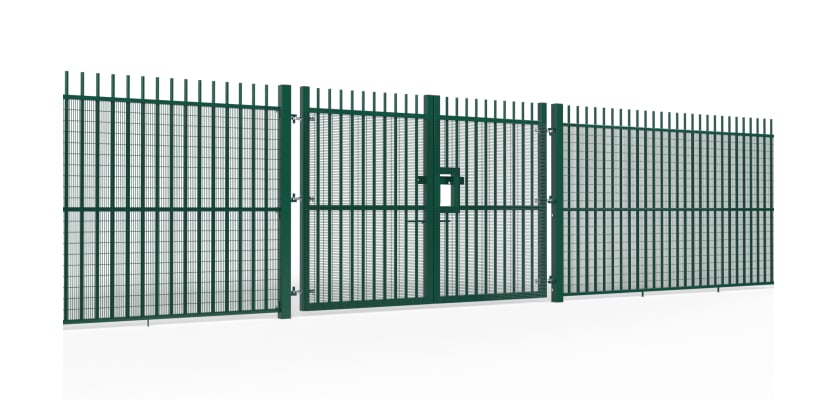

The increased height and robust security features make this gate ideal for securing entrances to research facilities, utilities infrastructure, commercial depots, and other locations where deterrence and resilience are essential. It integrates seamlessly with the 2.4m EnviroProtect® Anti-Climb fencing system for a continuous high-security perimeter.
