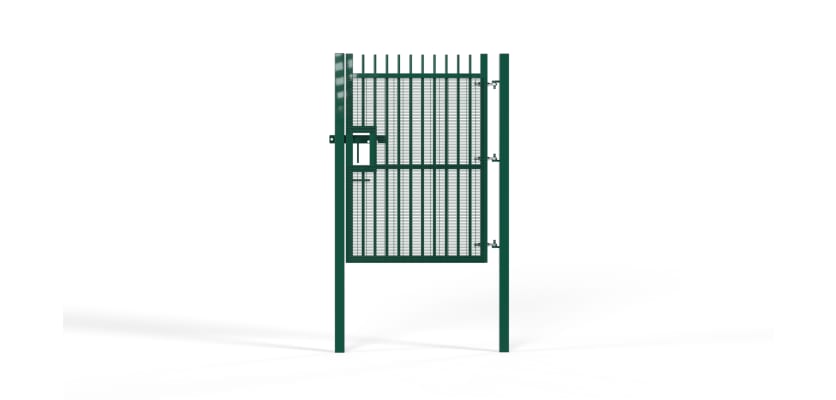

1.8m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
1.8m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Designed to secure wider pedestrian or light vehicle access points, this 2.0m wide EnviroProtect® Anti-Climb Single Leaf Gate Kit delivers maximum protection in a durable and professional design. At 1.8m high, it incorporates a fully welded 358 ‘prison mesh’ infill that eliminates climbing holds and resists cutting attempts. With full LPS 1175 A1 (SR1) certification and reinforced hinge posts, this gate provides strength, resilience, and long-term reliability.
Dual-Layer Security: Certified & Anti-Climb
Built to protect against multiple threats, the gate’s LPS 1175 A1 (SR1) rating verifies its ability to withstand a one-minute forced attack with hand tools. The addition of 358 mesh ensures an unclimbable surface that also resists tampering, offering both deterrence and tested performance.
Built for Strength and Longevity
Each 60x60mm box section frame is reinforced with welded mesh to create a solid, tamper-resistant leaf. Heavy-duty hinge and catch posts provide stability across the wider span, while the pre-galvanised steel construction offers robust protection against rust, corrosion, and harsh weather conditions.
Technical Details
- Finished height: 1.8m (1800mm)
- Clear access width: 2.0m (2000mm)
- Overall installed width: 2330mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Hinge post: 100x100x3mm uprated heavy-duty post
- Catch post: 80x80x3mm
- Supplied in a durable pre-galvanised finish
Installation Options
This gate kit comes with both fixing methods to suit different ground types:
- Bolt-down posts (1800mm) for existing hard surfaces
- Dig-in posts (2500mm) for concrete foundations in soft ground
Ideal Uses & Integration
Perfect for secure service entrances, utility compounds, and restricted zones, this gate allows controlled access for staff or light vehicles while maintaining a certified perimeter. It integrates seamlessly with the EnviroProtect® Anti-Climb railing system for consistent protection.
Get in Touch
Discuss your high-security requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Access Width | 2330mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 100x100mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Access Width | 2330mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 100x100mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Product Description
1.8m High x 2.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Designed to secure wider pedestrian or light vehicle access points, this 2.0m wide EnviroProtect® Anti-Climb Single Leaf Gate Kit delivers maximum protection in a durable and professional design. At 1.8m high, it incorporates a fully welded 358 ‘prison mesh’ infill that eliminates climbing holds and resists cutting attempts. With full LPS 1175 A1 (SR1) certification and reinforced hinge posts, this gate provides strength, resilience, and long-term reliability.
Dual-Layer Security: Certified & Anti-Climb
Built to protect against multiple threats, the gate’s LPS 1175 A1 (SR1) rating verifies its ability to withstand a one-minute forced attack with hand tools. The addition of 358 mesh ensures an unclimbable surface that also resists tampering, offering both deterrence and tested performance.
Built for Strength and Longevity
Each 60x60mm box section frame is reinforced with welded mesh to create a solid, tamper-resistant leaf. Heavy-duty hinge and catch posts provide stability across the wider span, while the pre-galvanised steel construction offers robust protection against rust, corrosion, and harsh weather conditions.
Technical Details
- Finished height: 1.8m (1800mm)
- Clear access width: 2.0m (2000mm)
- Overall installed width: 2330mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Hinge post: 100x100x3mm uprated heavy-duty post
- Catch post: 80x80x3mm
- Supplied in a durable pre-galvanised finish
Installation Options
This gate kit comes with both fixing methods to suit different ground types:
- Bolt-down posts (1800mm) for existing hard surfaces
- Dig-in posts (2500mm) for concrete foundations in soft ground
Ideal Uses & Integration
Perfect for secure service entrances, utility compounds, and restricted zones, this gate allows controlled access for staff or light vehicles while maintaining a certified perimeter. It integrates seamlessly with the EnviroProtect® Anti-Climb railing system for consistent protection.
