1.8m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description

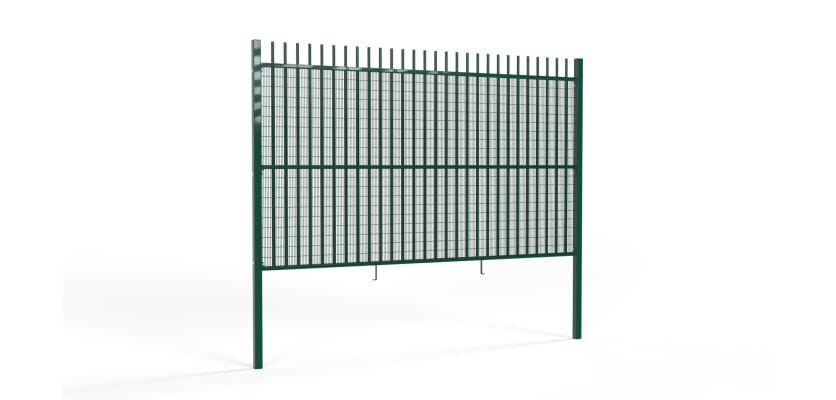

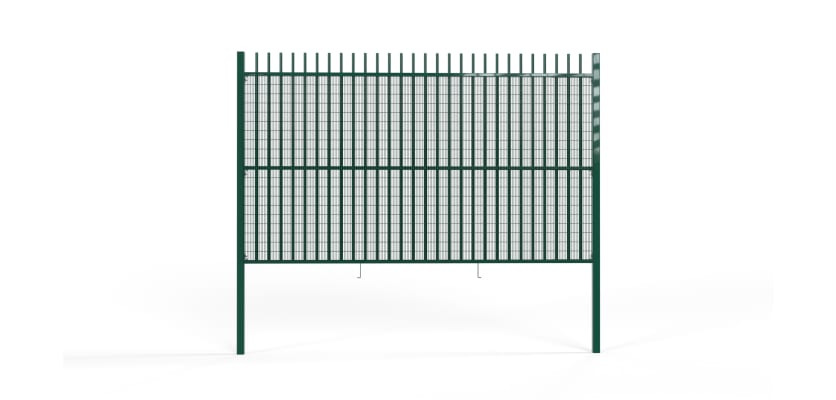

1.8m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit
The 1.8m High EnviroProtect® Anti-Climb Vertical Bar Railing Kit combines an elegant, professional finish with proven high-security performance. Designed with discreetly integrated 358 anti-climb mesh, this system delivers both a modern vertical bar aesthetic and a formidable physical deterrent, making it the ideal choice for sites where security and appearance are equally important. Certified to LPS 1175 A1(SR1), it provides trusted protection for schools, commercial sites, and public sector facilities.
Dual-Layered Security Protection
This system offers two layers of defence. First, its SR1 certification guarantees resistance against a sustained attack with basic tools for at least 60 seconds. Second, the 358 mesh layer, welded to the internal face of each panel, eliminates climbing opportunities by blocking footholds and handholds. Together, they create a security solution that is visually refined yet highly effective.
Built for Durability
Each panel is manufactured from strong, high-grade steel, with 25.4mm tubular vertical bars set at 100mm centres for strength and symmetry. The system is supplied with a pre-galvanised finish, providing excellent resistance against rust and weather damage for a long service life with minimal maintenance.
Technical Specification
- Finished height: 1.8m (1800mm)
- Panel width: 2900mm

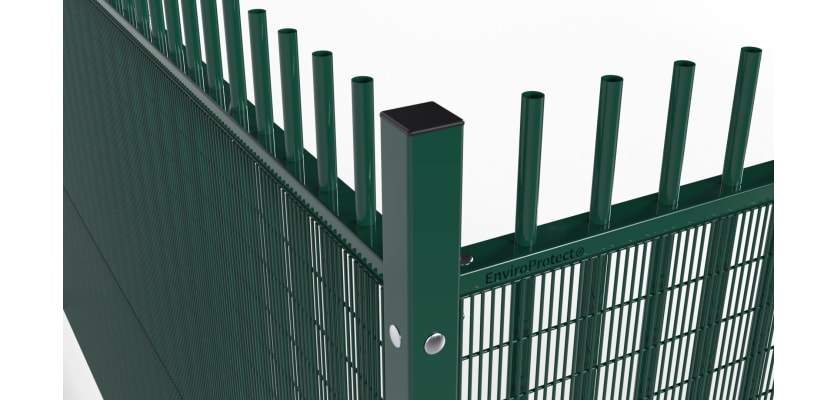

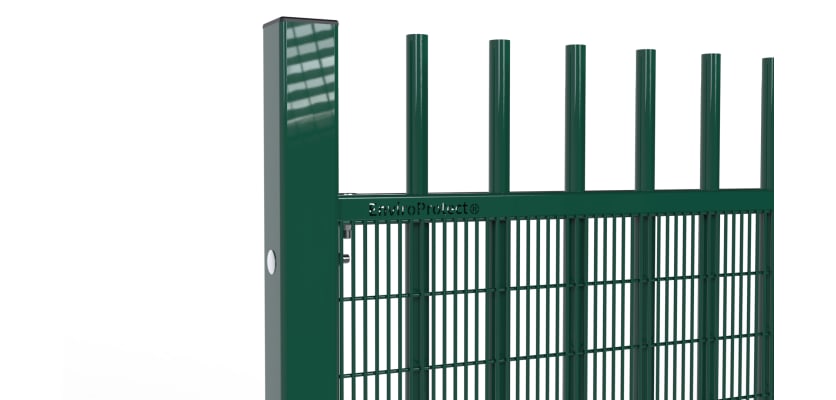

- Vertical bars: 25.4mm thick tube, set at 100mm centres
- Security mesh: 358 high-tensile anti-climb mesh, welded to the internal face
- Finish: Pre-galvanised steel
Applications
The 1.8m system is perfect for securing environments where a balance of aesthetics and security is required. Common applications include:
- Schools and colleges
- Transport hubs and retail centres
- Business parks and commercial premises
- Public sector and local authority sites
For a fully certified perimeter solution, pair these railings with matching EnviroProtect® Anti-Climb gates.
Get in Touch
For expert advice on planning your EnviroProtect® Anti-Climb project, for a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. You can reach us by phone on 01283 512 111, by email at sales@firstfence.co.uk, or use the Live Chat feature available on our website during business hours.
Specifications & Downloads
| Installed Height | 1800mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 1800mm] [Dig In: 2500mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 53.5kg] [Dig In: 55.4kg] |
| Box Section of Posts | 60mm x 60mm |

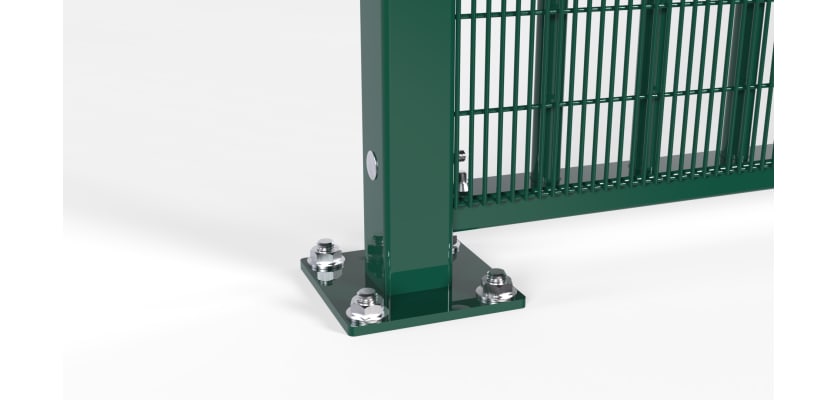

| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panels | 1 |
| Railing Posts | 1 |
| Large Twist Cleats | 6 |

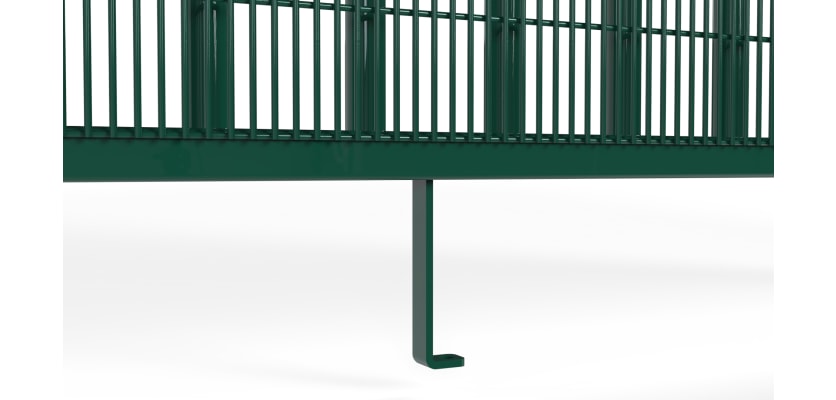

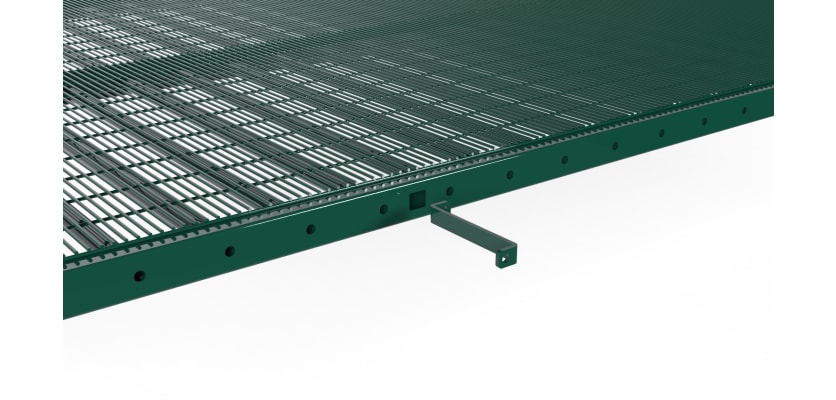

| Support Legs | 1 |
| M10 x 80mm Bolts | 3 |
| M10 x 45mm Bolts | 6 |
| M10 Shear Nuts | 9 |
| 60x60mm Ribbed Post Insert | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
