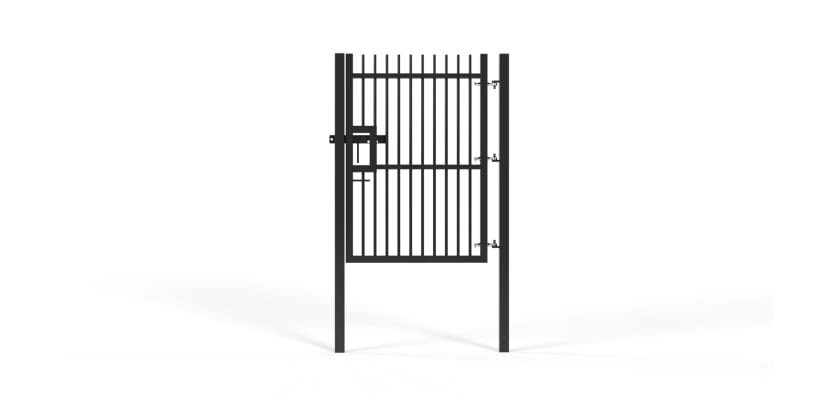

1.8m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
1.8m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Bridging the gap between pedestrian and light vehicular access, this 2.0m wide EnviroProtect® gate kit provides a versatile opening for maintenance vehicles, ride-on mowers, and large deliveries. Standing at 1.8m high, it presents a significant barrier, reinforced by its LPS 1175 A1(SR1) certification. This kit features uprated components to handle the increased span, ensuring long-term reliability and security.
Security is assured with the LPS 1175 A1(SR1) rating. This certification guarantees the gate's ability to withstand a 60-second assault from an attacker with basic tools, providing a crucial deterrent and delaying entry to your property.

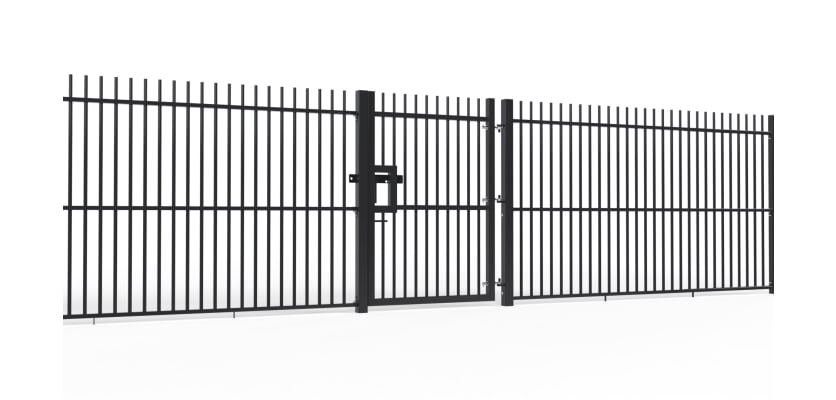

You can be assured of a perfect fit and consistent security, as this gate is engineered to be fully compatible with our 1.8m high EnviroProtect® railing line.
The low-weld design is fundamental to the gate's superior performance. By using mechanical fixings over welds, we ensure maximum corrosion resistance and structural integrity over the product's entire lifespan. This modern construction method delivers a robust, low-maintenance, and aesthetically clean security solution.
To manage the wider gate leaf, this kit has been engineered for enhanced strength. It offers a clear access width of 2000mm, suitable for small vans, with a total overall width of 2330mm. The gate leaf is formed from a 60x60mm steel box section, but to accommodate the wider span, the kit features an uprated, heavy-duty 100x100x3mm hinge post, paired with a robust 80x80x3mm catch post. A pre-galvanised finish with optional powder coating ensures maximum durability.
Installation Options
Designed for ultimate stability, this gate kit is supplied as standard with dig-in posts. The 2500mm long posts are intended for a deep concrete foundation to ensure the gate remains secure and operates smoothly under the load of the wider leaf, providing a solid, permanent installation.
Benefits and Applications
This gate is the perfect choice for locations that require occasional light vehicle access but need to maintain a high level of certified perimeter security. It is ideally suited for service entrances at schools, utility sites, commercial depots, and parks where both security and accessibility are priorities.
Get in Touch
Discuss your vehicle access requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 2000mm |
| Total Access Width | 2330mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 100x100mm Hinge Gate Post | 1 |

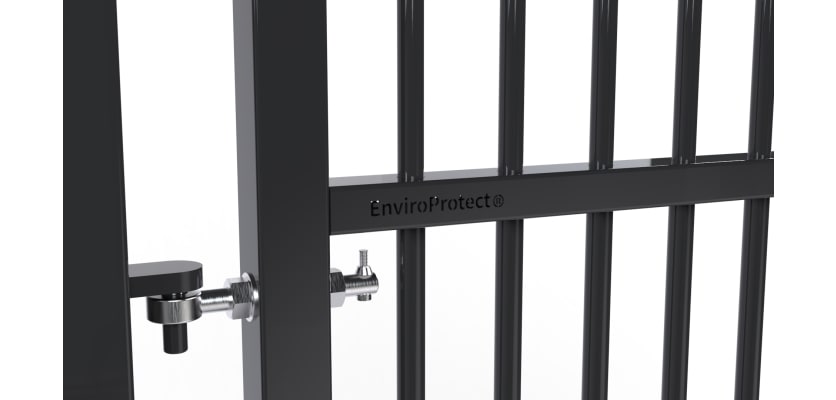

| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nuts | 6 |
| M10 X 120mm Bolts | 3 |
| M10 X 100mm Bolts | 3 |
| 80x80mm Ribbed Inserts | 1 |
| 100x100mm Ribbed Inserts | 1 |

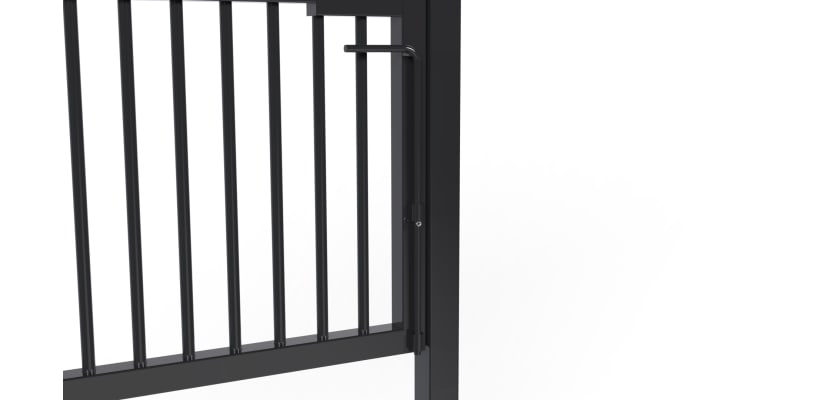

| Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
