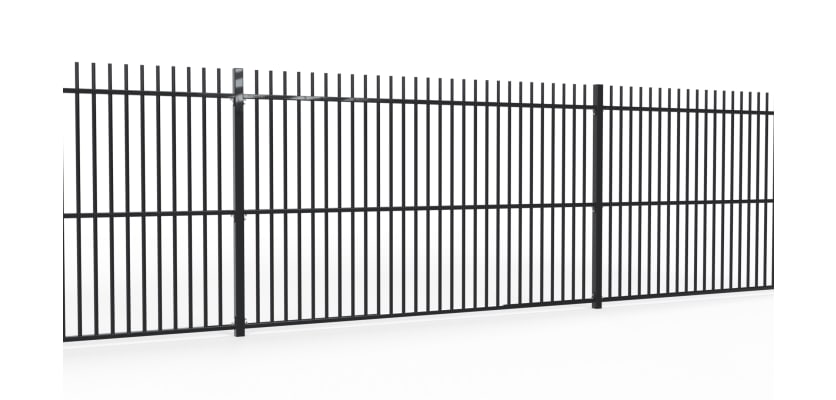

1.8m High EnviroProtect® SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description
EnviroProtect® SR1 (A1) LPS 1175 1.8m High Vertical Bar Railing Kit
The EnviroProtect® SR1 (A1) LPS 1175 Vertical Bar Railing Kit provides reliable perimeter security without compromising visibility. At 1.8m high, it offers a practical balance of security, durability and appearance, making it suitable for commercial, industrial and public sites.
The system features a low-to-no weld construction, pre-galvanised steel and a vertical bar design that provides a strong physical barrier while maintaining clear sight lines for CCTV and security patrols.
SR1 (A1) Security Rating
EnviroProtect® is certified to LPS 1175 SR1 (A1), providing resistance against opportunistic forced-entry attempts using Category A hand tools. The rating provides a minimum one-minute delay against this type of attack, helping give security personnel or emergency services additional time to respond. This makes the system suitable for low- to medium-risk sites where a recognised level of perimeter protection is required.
Key Features
LPS 1175 SR1 (A1) rated: Tested to provide a recognised level of forced-entry resistance.
- 1.8m high: Provides a strong security barrier while maintaining an open appearance.
- Vertical bar design: 25.4mm tubular steel bars are spaced at 100mm centres to help deter climbing and unauthorised access.
- Low-to-no weld construction: Uses mechanical fixings and secure clamping methods to reduce the number of welded joints.
- Pre-galvanised steel: Manufactured to BS EN 10346 for improved protection against corrosion and outdoor weather conditions.
- Clear visibility: The open vertical bar design maintains sight lines for CCTV and security patrols.
- Flexible installation: Available with both bolt-down and dig-in installation options.
Benefits
- Reliable Perimeter Security: The LPS 1175 SR1 (A1) rating provides a tested level of resistance against opportunistic intrusion, helping protect your site's perimeter.
- Durable Construction: Pre-galvanised steel provides long-term protection against rust and corrosion, making the system suitable for outdoor use.
- Low-Weld Design: The low-to-no weld construction reduces the number of welded joints while providing a clean, consistent finish.
- Security Without Blocking Visibility: The vertical bar design provides an effective physical barrier without creating a completely enclosed perimeter, making it suitable for sites where visibility is important.
- Flexible Installation: The system can be installed using either bolt-down or dig-in posts, allowing it to be adapted to different ground conditions.
Applications
The EnviroProtect® 1.8m railing kit is suitable for a range of low- to medium-risk sites, including:
- Commercial and retail parks
- Industrial estates
- Educational campuses
- Public buildings and facilities
- Commercial premises
- Sites requiring a balance of security and visibility
Installation Options
EnviroProtect® can be installed using either bolt-down or dig-in posts.
Bolt-down installation is suitable for hard surfaces such as concrete, with ground anchors securing the posts in place.
Dig-in installation is designed for softer ground, with the posts concreted into the ground for additional stability.
A site assessment is recommended to determine the most suitable installation method for your project.
Technical Specifications
- Height: 1.8m
- Panel width: 2900mm
- Overall panel width: 2960mm including posts and fixings
- Vertical bar: 25.4mm tubular steel
- Bar spacing: 100mm centres
- Material: Pre-galvanised steel
- Security rating: LPS 1175 SR1 (A1)
- Steel standard: BS EN 10346
Contact Us
Not sure whether EnviroProtect® is suitable for your site? Our expert sales team can help you choose the right security solution and installation method. Call 01283 512 111, email sales@firstfence.co.uk, or contact us through our online chat.
Specifications & Downloads
| Installed Height | 1800mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 1800mm] [Dig In: 2500mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 53.5kg] [Dig In: 55.4kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panels | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |

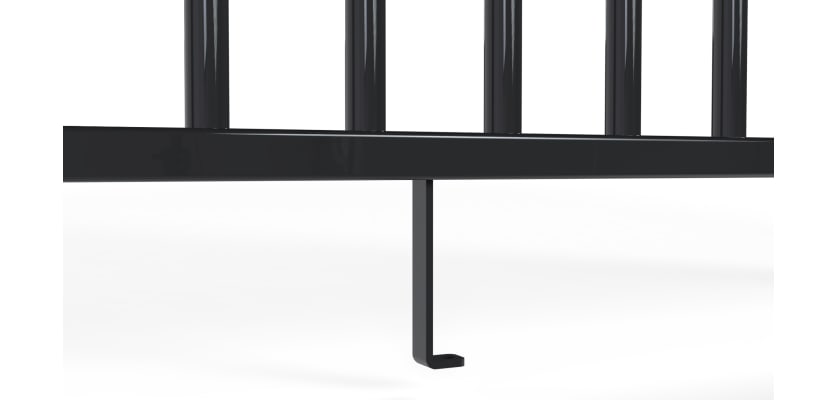

| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
Specifications & Downloads
| Installed Height | 1800mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 1800mm] [Dig In: 2500mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 53.5kg] [Dig In: 55.4kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panels | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Legs | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
