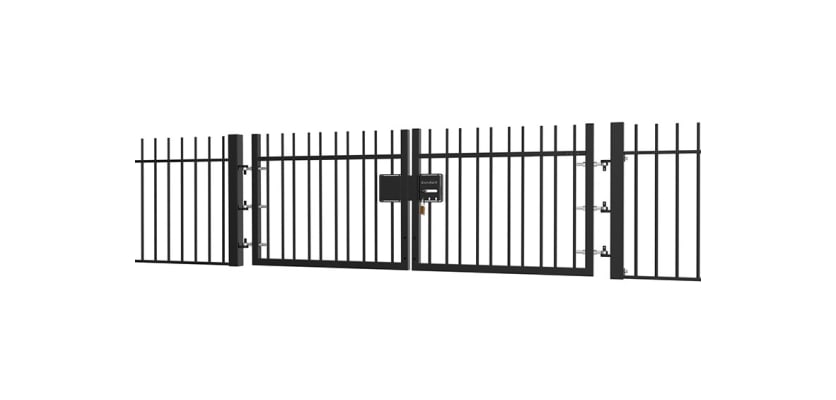

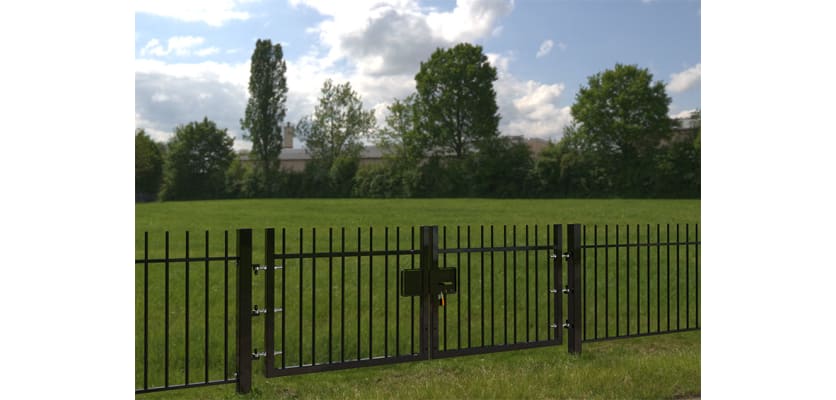

1.8m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit

1.8m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit

Presenting our latest development to the product line up – the EnviroRail® Vertical Bar Gate by First Fence. This innovative gate collection is crafted to accompany our popular EnviroRail® Vertical Bar Railing range, elevating both looks and functionality in any installation. Take a look at the innovative design that effortlessly merges affordability with classy looks, promising timeless allure and robust resilience.

These gates, available in a good selection of widths and heights, offer complete versatility with options for both dig-in and bolt-down styles, ensuring their adaptability across varied ground materials. Before making your gate purchase, we highly recommend conducting a ground assessment to ensure the appropriate product selection for your specific location. Our knowledgeable sales team is ready to assist; please feel free to reach out to them at 01283 512111.

Features and Advantages

The EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 1.8m in height and 5.0m in width, provides a substantial span that is ideal for larger spaces, facilitating the passage of both foot traffic and vehicles. The double-leaf gate design offers enhanced flexibility by allowing one or both leaves to be in open or closed positions, enabling personalised access control.

While appearing to be conventionally designed, the unique feature of the vertical bar gate lies in its environmentally mindful manufacturing style. It employs unconventional low-weld techniques on custom-made, laser-cut pre-galvanised components, which, when pressed together during assembly, ensure robust connections without the need for resource-intensive and energy-consuming welding. For the customer prioritising reduced ecological impact, this could be the perfect choice.

Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.

First Fence's EnviroRail® Double Gates offer an advanced, fully modular yet lightweight gate solution, ensuring quick installation to meet diverse gate hardware needs. Universally handed, they provide on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move, an asset fixed hardware lacks.

Each gate in the kit arrives pre-drilled with holes, making easy the installation of the six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face, and a locking drop bolt is available as an optional addition, highly recommended for double-leaf gate security.

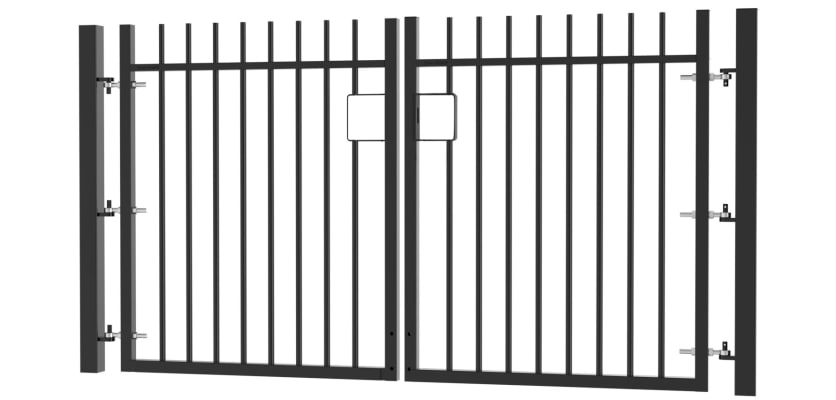

The kit includes two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. Moreover, the gate hooks are securely welded to the gate post, featuring fixed-axis hinges that eliminate any vertical movement.

Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain such as grass and soil, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.

Compatible with our security locks, which are available to add to your order today, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with the gates having 50mm ground clearance.

In addition to this gate kit, First Fence offers a comprehensive range of EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure for both domestic and professional users.

Get in Touch

For guidance in selecting the ideal product, contact the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
