1.5m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Product Description
1.5m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Introducing the newest addition to the First Fence product portfolio, the EnviroRail® Vertical Bar Gate. This innovative gate collection is designed to to complement our popular EnviroRail® Vertical Bar Railing series, harmonising aesthetics with functionality in every installation.. Immerse yourself in this revolutionary design and manufacturing, where affordability meets style and promises enduring charm and robust durability.
These vertical rail gates are offered in a variety of widths and heights, providing complete versatility for both dig-in and bolt-down configurations. These gates are designed to work across a wide range of ground types, however before finalising your gate purchase, we strongly urge you to conduct a ground assessment to guarantee the selection of the most fitting product for your specific location. Our knowledgeable sales team stands ready to offer guidance, so don't hesitate to contact them at 01283 512111.
Features and Benefits

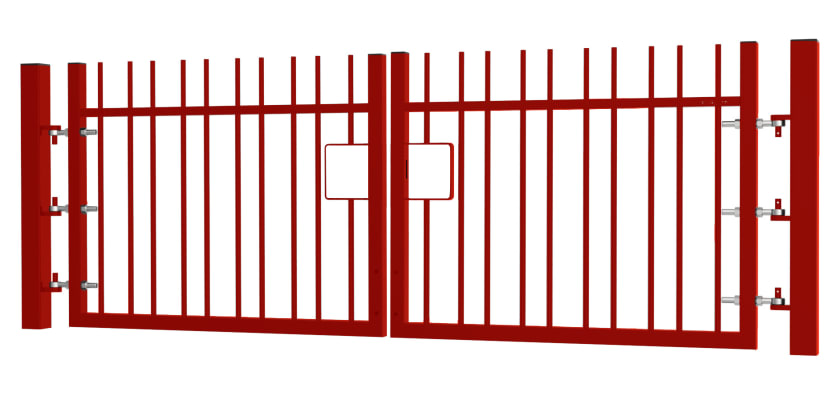

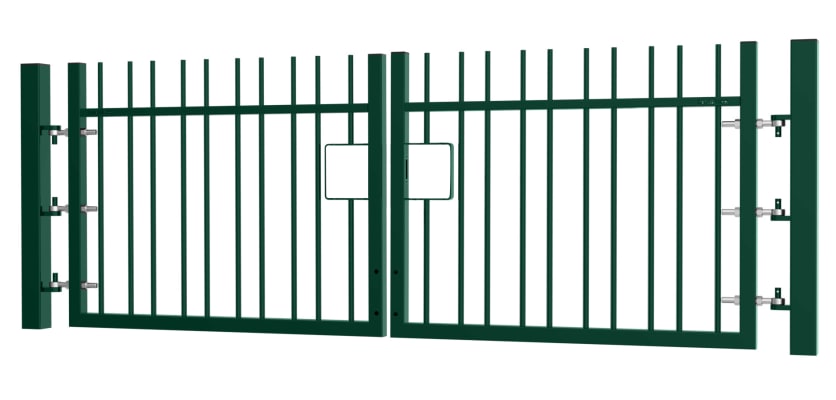

The EnviroRail® Vertical Bar Double Leaf Gate Kit, boasting dimensions of 1.5m in height and 5.0m in width, is crafted for the larger gate or driveway. This size allows easy passage of pedestrian traffic and the double-leaf gate design enhances flexibility, enabling you to decide the access limitations and control by allowing one or both leaves to be in open or closed positions.
What distinguishes this vertical bar gate from other similar-looking products, is its environmentally conscious manufacturing approach. By employing an innovative, low-weld technique on custom-made, laser-cut pre-galvanised components, it ensures robust interconnected joins without resorting to resource-intensive and energy-consuming welding. This makes it an optimal choice for customers prioritising reduced environmental impact, an aspect that First Fence takes pride in offering.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Double Gates provide an advanced, fully modular yet lightweight gate solution. Their universally handed configuration offers on-site flexibility without fixed left or right-hand specifications, allowing adjustments in case the gates move, a significant advantage over fixed hardware.
Each gate in the kit arrives pre-drilled with holes, simplifying fitting of the six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face, and a locking drop bolt is available as an optional addition, highly recommended for double-leaf gate security.
The kit comprises two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even in the event of one hinge failing. This is crucial for preventing injury to people and property damage. The gate hooks are securely welded to the gate post giving fixed-axis hinges that stop any vertical movement. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Offered in various heights and widths, the gate kits are available in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain such as grass and soil, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, available to add to your order, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with the gates having 50mm ground clearance.
In addition to this gate kit, First Fence presents a comprehensive range of EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure for both domestic and professional users.
Get in touch
If you need any assistance with this or any of our products then please get in touch! The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Height | 1500mm [Installed] |
| Access Width | 5000mm |
| Total Post Length | 1500mm [Bolt Down], 2000mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 1500mm [Installed] |
| Access Width | 5000mm |
| Total Post Length | 1500mm [Bolt Down], 2000mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
