Height | 1500mm [Installed] |
Access Width | 1200mm |
Total Post Length | 1500mm [Bolt Down], 2000mm [Dig In] |
Box Sections of Posts | 80x80mm |
Box Section of Gate Leaf | 50x50mm |
Rail Style | Bow Top - Hollow Tubular |
Post Type | Dig In, Bolt Down |
Gate Hanging Side | Universally Handed |
Material | Pre-Galvanised Steel to BS EN 10346 |
Finish | Polyester Powder Coated |
PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
Name | Quantity |
---|---|
Envirorail® Sliding Gate Leaf | 1 |
Catch Gate Post | 1 |
Hinge Gate Post | 1 |
Adjustable Gate Eyes | 3 |
Ribbed Inserts for Gate Frame | 2 |
Ribbed Inserts for Posts | 2 |
UniSlide Slider Kit | 1 |
The Bow Top railings and gates stand as a favoured selection among fencing and gating systems, recognised for their signature curved or arched top design. They bring an element of sophistication to their surroundings, elevating the aesthetics of gardens, parks, schools, and residential areas while harmonising seamlessly with diverse architectural styles.
Crafted prioritising safety, these bowed tops feature smooth edges, mitigating the risk of injury. They serve as a deterrent against unauthorised access while maintaining visibility into the enclosed area.
First Fence proudly introduces the EnviroRail® Bow Top Gate range, meticulously fashioned to complement the EnviroRail® Bow Top Railing collection. The EnviroRail® line from First Fence encompasses both gate and railing panel kits. These gates are available as both single and double leaf options, offering a selection of widths, heights, and a variety of polyester powder-coated colours.
The EnviroRail® Bow Top gate may appear conventional, yet its manufacturing process utilises a low-weld method, making it an environmentally conscious system. Through a series of laser-cut, custom pre-galvanised components, robust connections form upon assembly, eliminating the need for high-energy and resource-intensive welding.
Fashioned from quality pre-galvanised steel conforming to BS 10346 standards, further enhanced with polyester powder coating in standard or non-standard RAL colours, this product is built to endure permanent outdoor installation, enduring varying weather conditions.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
EnviroRail® Gates present a versatile and easily installable system characterised by modularity and a lightweight design. Their universal handedness provides unmatched on-site flexibility, eradicating constraints associated with fixed left or right-hand leaf gates. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give.
Each EnviroRail® gate arrives pre-drilled, streamlining hinge and drop bolt installation. The package includes convenient plastic hole plugs for any unused holes. Customers can choose additional locking drop bolts.

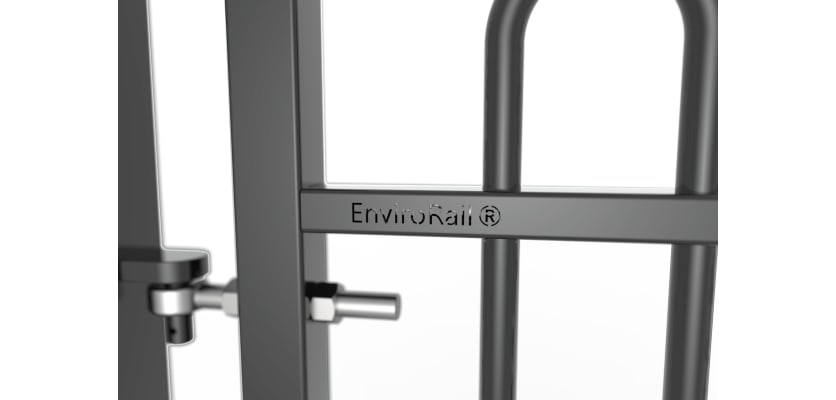

The comprehensive kit includes an EnviroRail® gate leaf, hinge and catch post, and three adjustable gate eyes. Prioritising safety, it adheres to BS 12604 safety guidelines. In the event of hinge failure, multiple hinges work together to prevent the gate leaf from falling, prioritising safety and averting potential injury or damage. The gate hooks are fully welded to the gate post for added security, these are fixed axis hinges with no up or down movement.
Offering various widths and heights, this gate kit caters to diverse installation requirements, providing options for both dig-in and bolt-down installations. The dig-in option suits softer ground, necessitating Post Mix for post stability, while the bolt-down alternative is suitable for harder ground, secured using four M16 x 125mm anchor bolts.
This gate kit is compatible with our security locks and when installed correctly will give up to 30mm of adjustment from the catch post. The gates have 50mm ground clearance.
First Fence expands its offerings to encompass EnviroRail® Railings and Estate Railings and Gates, providing a wider array of high-quality fencing solutions for customers seeking superior options.
