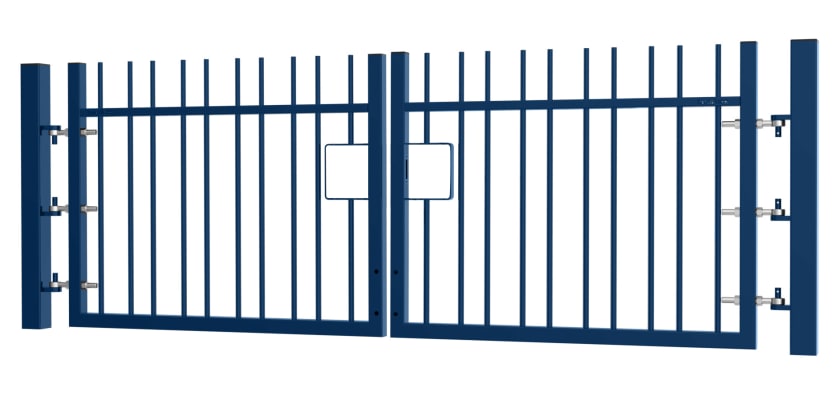

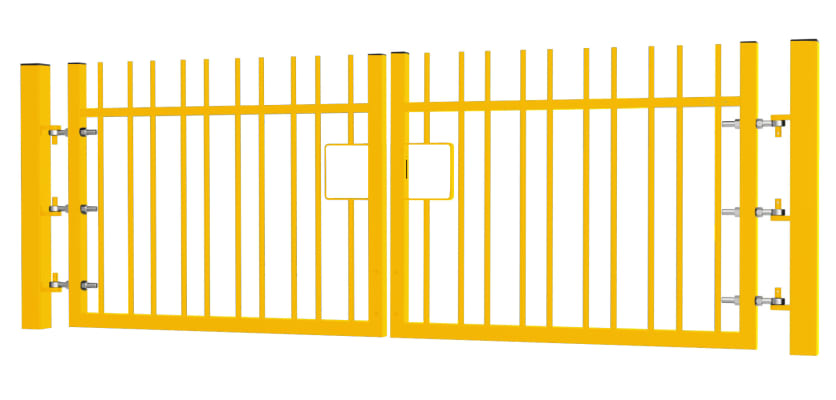

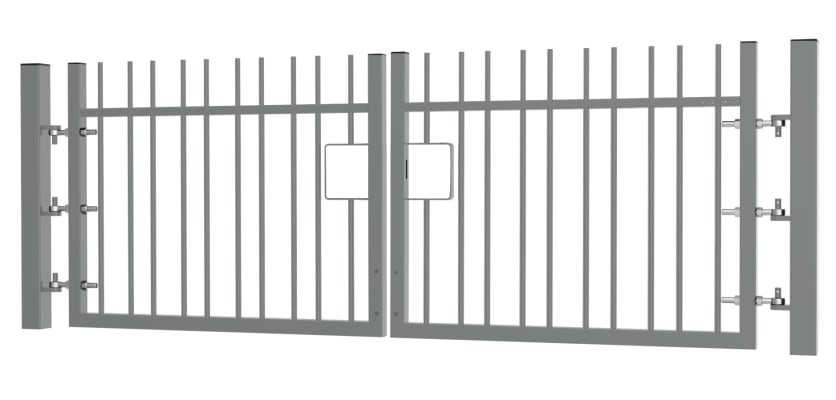

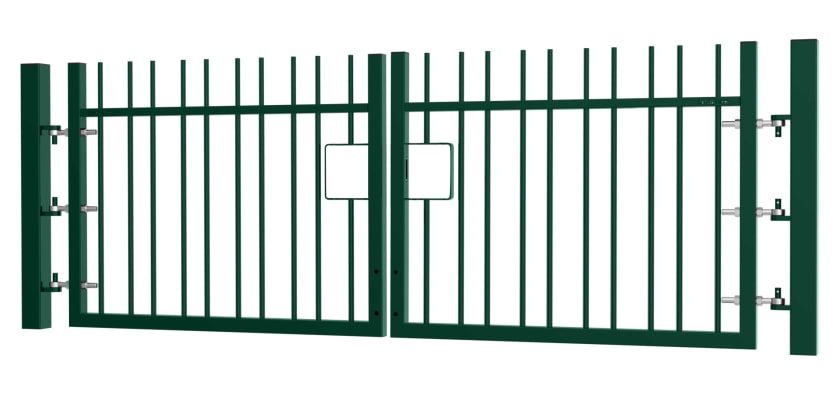

1.2m High x 6.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Slider and Drop Bolt Sold Separately
| Height | 1200mm [Installed] |
| Access Width | 6000mm |
| Total Post Length | 1200mm [Bolt Down], 1700mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
1.2m High x 6.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Take a look at our EnviroRail® Vertical Bar gates, now a part of First Fence's extensive collection. Available in various widths and heights, and in a wide choice of RAL colours, these gates offer adaptability to many sorts of ground substances and terrains, with options for both dig-in and bolt-down formats. To ensure you get the correct post format for your site, it is important to assess the ground type of your proposed site before purchasing. For guidance, reach out to our sales team at 01283 512111 and they will be happy to advise you.
Key Features and Advantages
Explore the versatility of the EnviroRail® Vertical Bar Double Leaf Gate Kit, measuring 1.2m high x 6.0m wide. This double leaf format, is suited to the larger gate or driveway and gives much more flexibility than the single leaf does in that you can choose between open or closed positions for one or both leaves, giving total control of access to your property. This is one of the widest gates available in this height range and is an excellent choice when you need to gate a broader area.
Taking an eco-conscious approach, these gate kits minimise welding reliance by utilising custom-made, laser-cut components. Their modular and lightweight design simplifies installation, featuring pre-drilled holes for adjustable hinges and a drop bolt while strictly adhering to BS 12604 safety standards, ensuring maximum stability. Even in the event of hinge failure, these gates remain upright and secure, significantly reducing the risk of injury or damage. The modular functionality gives adjustability in case the gates move, which fixed hardware doesn't give. Additionally, the gate hooks are fully welded to the gate post giving fixed-axis hinges that eliminate vertical movement.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
Offered in various heights and widths, the gate kits are available in both dig-in and bolt-down versions. The dig-in variant is suitable for softer terrain, requiring Post Mix for secure installation, while the bolt-down option suits harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, which are available to add to your order, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with gates having a 50mm ground clearance. An optional separate locking drop bolt enhances security and is recommended for the double leaf gate.
In addition to the gate kit, First Fence offers EnviroRail® Railings, Estate Railings, and Gates to enhance security. Consider adding a heavy-duty padlock as an additional measure.
Contact Us
For assistance in selecting the ideal product, contact the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
