1.2m High x 1.5m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Product Description
1.2m High x 1.5m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Introducing the latest addition to our product line-up, the EnviroRail® Play Sec Railing Gate stands out as a well-crafted solution seamlessly integrated with the EnviroRail® Play Sec Railing range. This environmentally friendly gate is designed to establish secure boundaries around parks and playing fields, prioritising children's safety while enhancing the overall visual appeal of the surroundings.
When choosing equipment for recreational spaces, careful consideration is paramount. The product's height must be sufficient to discourage scaling or passage by children, and vertical railings should be closely spaced to prevent any risk of a child's head becoming trapped while maintaining clear visibility. Smooth surfaces are imperative to prevent cuts or abrasions, and the product should lack sharp edges or protruding elements that may pose a risk of injury. Furthermore, durability, weather resistance, and low-maintenance features are crucial for enduring outdoor conditions while adhering to safety standards.
Key Features and Benefits
Employing an innovative and environmentally conscious approach, the EnviroRail® Play Sec Gate minimises its ecological impact during the production phase by using a low-weld technique. Custom laser-cut components pressed together form robust connections, reducing the need for energy-intensive welding and resulting in pressed bonds as sturdy as their welded counterparts.
Each EnviroRail® Play Sec Gate Kit is expertly crafted from pre-galvanised steel, meeting BS 10346 standards, and coated with polyester powder, ensuring durability and resistance to challenging outdoor conditions. This dual-layer protection not only guarantees reliable functionality but also preserves its aesthetic appeal over an extended period. A vibrant range of RAL colours is available to personalise your gate's finish.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gate series offers complete modularity and a lightweight system, enabling rapid installation and accommodating various gate hardware. Universally handed, these gates provide on-site flexibility without specific right or left-hand specifications, streamlining the decision-making process during installation. This modular functionality ensures adjustability in case the gates move, something that fixed hardware cannot do.

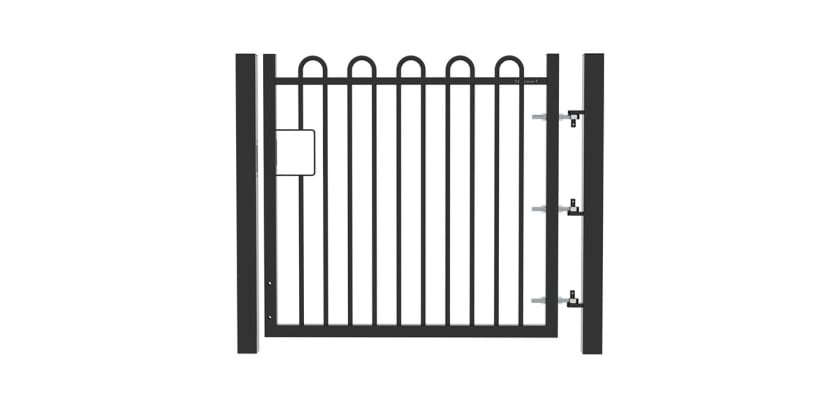

The single-leaf gate kit includes a hinge and catch post, a Play Sec Railing leaf, and three adjustable gate eyes. Compliance with BS 12604 standards is ensured by three hinges, ensuring safety even in the unlikely event of one hinge failing. The gate hooks, fully welded to the gate post, establish a fixed-axis hinge, eliminating any potential vertical movement.
Pre-drilled holes facilitate the attachment of gate eyes and a drop bolt, with plastic plugs included to cover unused holes on the gate's attack face. Compatible with security locks, the gate allows for up to 30mm of adjustment from the catch post, ensuring a straightforward installation process. The UniSlide Slider Single Gate Kit comes included with all EnviroRail single gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Safety Compliance
The spacing of the rails at 100mm intervals is designed to eliminate the risk of entrapment, while the top bows are 90mm to prevent potential hazards to the wrists or neck. The design and production of the EnviroRail® Play Sec Railing Gate adhere to the regulations outlined in BS EN 1176.
The gate offers 50mm ground clearance when correctly installed, opening 90° in and out as a single leaf gate.
Available in various heights and widths, these gates come in dig-in or bolt-down versions, suitable for diverse environments. For the dig-in variant, Post Mix needs to be added to the order, and the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
Contact Us
For inquiries about this product range, reach out to our sales team at 01283 512111 or utilize the online chat tool for immediate assistance.
Specifications & Downloads
| Height | 1200mm [Installed] |
| Access Width | 1500mm |
| Total Post Length | 1200mm [Bolt Down], 1700mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Gate Frame | 2 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 1200mm [Installed] |
| Access Width | 1500mm |
| Total Post Length | 1200mm [Bolt Down], 1700mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Bow Top Play Sec - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Ribbed Inserts for Gate Frame | 2 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Product Description
1.2m High x 1.5m Wide EnviroRail® Play Sec Railing Single Leaf Gate Kit
Introducing the latest addition to our product line-up, the EnviroRail® Play Sec Railing Gate stands out as a well-crafted solution seamlessly integrated with the EnviroRail® Play Sec Railing range. This environmentally friendly gate is designed to establish secure boundaries around parks and playing fields, prioritising children's safety while enhancing the overall visual appeal of the surroundings.
When choosing equipment for recreational spaces, careful consideration is paramount. The product's height must be sufficient to discourage scaling or passage by children, and vertical railings should be closely spaced to prevent any risk of a child's head becoming trapped while maintaining clear visibility. Smooth surfaces are imperative to prevent cuts or abrasions, and the product should lack sharp edges or protruding elements that may pose a risk of injury. Furthermore, durability, weather resistance, and low-maintenance features are crucial for enduring outdoor conditions while adhering to safety standards.
Key Features and Benefits
Employing an innovative and environmentally conscious approach, the EnviroRail® Play Sec Gate minimises its ecological impact during the production phase by using a low-weld technique. Custom laser-cut components pressed together form robust connections, reducing the need for energy-intensive welding and resulting in pressed bonds as sturdy as their welded counterparts.
Each EnviroRail® Play Sec Gate Kit is expertly crafted from pre-galvanised steel, meeting BS 10346 standards, and coated with polyester powder, ensuring durability and resistance to challenging outdoor conditions. This dual-layer protection not only guarantees reliable functionality but also preserves its aesthetic appeal over an extended period. A vibrant range of RAL colours is available to personalise your gate's finish.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
The EnviroRail® gate series offers complete modularity and a lightweight system, enabling rapid installation and accommodating various gate hardware. Universally handed, these gates provide on-site flexibility without specific right or left-hand specifications, streamlining the decision-making process during installation. This modular functionality ensures adjustability in case the gates move, something that fixed hardware cannot do.
The single-leaf gate kit includes a hinge and catch post, a Play Sec Railing leaf, and three adjustable gate eyes. Compliance with BS 12604 standards is ensured by three hinges, ensuring safety even in the unlikely event of one hinge failing. The gate hooks, fully welded to the gate post, establish a fixed-axis hinge, eliminating any potential vertical movement.
Pre-drilled holes facilitate the attachment of gate eyes and a drop bolt, with plastic plugs included to cover unused holes on the gate's attack face. Compatible with security locks, the gate allows for up to 30mm of adjustment from the catch post, ensuring a straightforward installation process. The UniSlide Slider Single Gate Kit comes included with all EnviroRail single gates, ensuring a secure and smooth sliding mechanism for reliable operation.
Safety Compliance
The spacing of the rails at 100mm intervals is designed to eliminate the risk of entrapment, while the top bows are 90mm to prevent potential hazards to the wrists or neck. The design and production of the EnviroRail® Play Sec Railing Gate adhere to the regulations outlined in BS EN 1176.
The gate offers 50mm ground clearance when correctly installed, opening 90° in and out as a single leaf gate.
Available in various heights and widths, these gates come in dig-in or bolt-down versions, suitable for diverse environments. For the dig-in variant, Post Mix needs to be added to the order, and the bolt-down version requires four M16 x 125mm ground anchor bolts per post.
Contact Us
For inquiries about this product range, reach out to our sales team at 01283 512111 or utilize the online chat tool for immediate assistance.
