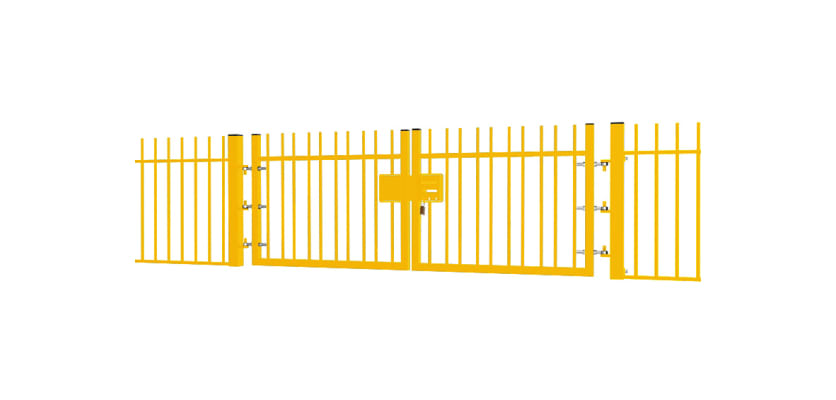

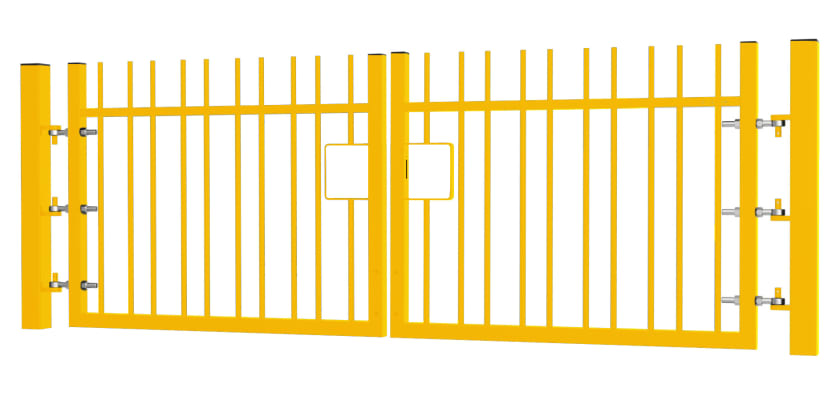

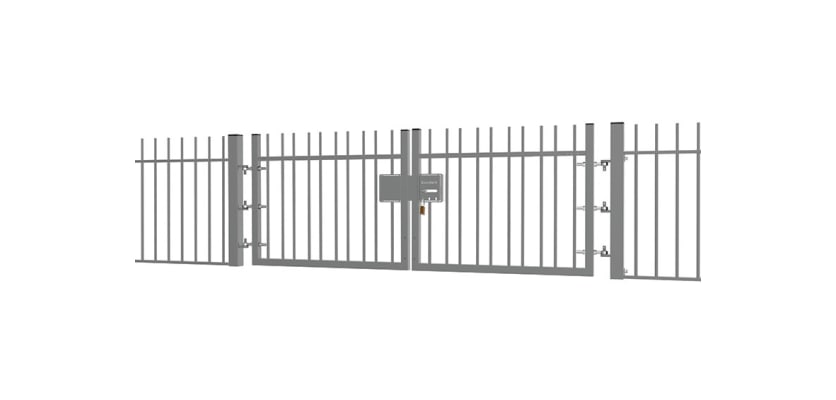

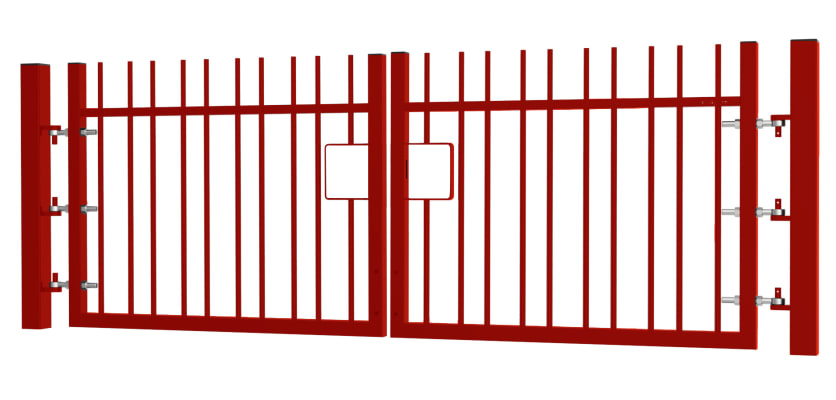

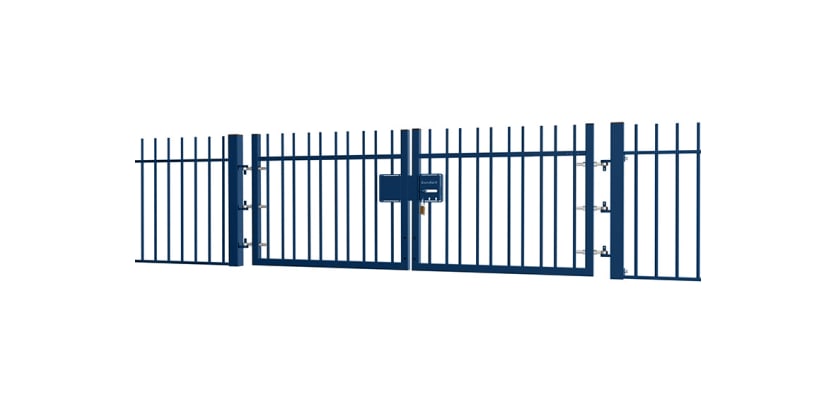

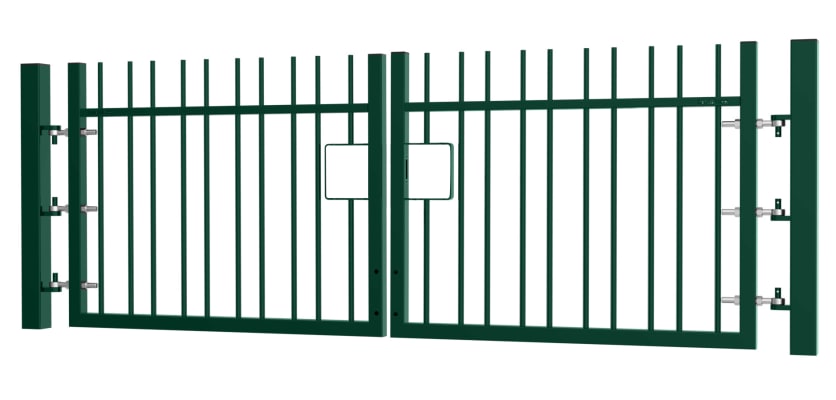

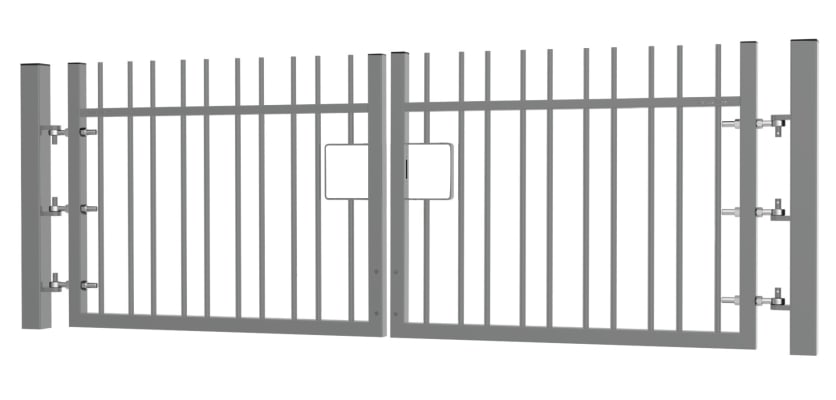

1.0m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Product Description
1.0m High x 5.0m Wide EnviroRail® Vertical Bar Double Leaf Gate Kit
Introducing the latest addition to our product family, the EnviroRail® Vertical Bar Gate by First Fence. This innovative gate collection is designed to work perfectly with our popular EnviroRail® Vertical Bar Railing range, enhancing both the visual appeal and practicality of anywhere that it is installed. Immerse yourself in the cutting-edge design that combines affordability with sophistication, promising timeless allure and sturdy durability.
Available in various widths and heights, these gates offer complete versatility with options for both dig-in and bolt-down formats, ensuring they can adapt to diverse ground types. Prior to your gate purchase, we strongly suggest that you conduct a ground assessment to ensure the appropriate product selection for your location. Our knowledgeable sales team is poised to advice you so please feel free to reach out to them at 01283 512111.
Features and Benefits
The EnviroRail® Vertical Bar Double Leaf Gate Kit, with dimensions of 1.0m in height and 5.0m in width, offers a considerable width ideal for larger gates or driveways, facilitating the passage of pedestrian traffic and vehicles. The double-leaf gate design provides users with enhanced flexibility, allowing one or both leaves to be in open or closed positions, giving you total control.
While the vertical bar gate may initially seem conventional however, its unique feature lies in its environmentally aware fabrication method. It applies an unconventional low-weld technique on custom-made, laser-cut pre-galvanised components, ensuring robust connections without the need for resource-intensive and energy-consuming welding. For customers prioritising reduced environmental impact, this could be the optimal choice.
Each EnviroRail® kit is comprised of hollow tubular sections. These hollow tubes provide an incredibly high level of strength whilst helping to keep the weight to a minimum, making handling, transport and installation much easier.
First Fence's EnviroRail® Double Gates offer an advanced, fully modular yet quite lightweight, gate solution, ensuring quick installation to meet diverse gate hardware needs. Designed to be universally handed, they provide on-site flexibility without fixed left or right-hand specifications, allowing adjustments if the gates move, an advantage fixed hardware lacks.
Each gate in the kit arrives pre-drilled with holes, simplifying the installation of the six adjustable gate eye hinges and a locking drop bolt. Plastic hole plugs are included to conceal any unused openings on the attack face, and a locking drop bolt is available as an optional addition, highly recommended for double-leaf gate security. The UniSlide Slider Double Kit comes included with all EnviroRail double gates, ensuring a secure and smooth sliding mechanism for reliable operation.
The kit includes two EnviroRail® gate leaves, two gate posts, and six adjustable gate eyes (three for each gate leaf), adhering to BS 12604 safety guidelines for gate stability, even if one hinge fails. This is crucial for preventing injury to people and property damage. Moreover, the gate hooks are securely welded to the gate post, featuring fixed-axis hinges that eliminate any vertical movement.
Available in various heights and widths, the gate kits come in both dig-in and bolt-down versions, catering to installation needs in diverse locations. The dig-in variant suits softer terrain such as grass and soil, requiring Post Mix for secure installation, while the bolt-down option is ideal for harder ground surfaces, secured using four M16 x 125mm anchor bolts per post.
Compatible with our security locks, available to add to your order, this gate kit allows up to 30mm of adjustment from the catch post when installed correctly, with the gates having 50mm ground clearance.
In addition to this gate kit, First Fence offers a comprehensive range of EnviroRail® Railings, Estate Railings, and Gates. Enhance security by incorporating a robust padlock as an extra precautionary measure for both domestic and professional users.
Get in Touch
For guidance in selecting the ideal product, contact the First Fence sales team today at 01283 512111 or use the convenient online chat tool.
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 5000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
Specifications & Downloads
| Height | 1000mm [Installed] |
| Access Width | 5000mm |
| Total Post Length | 1000mm [Bolt Down],1500mm [Dig In] |
| Box Sections of Posts | 100x100mm |
| Box Section of Gate Leaf | 50x50mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
What's Included
| Name | Quantity |
|---|---|
| Envirorail® Sliding Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Ribbed Inserts for Gate Frame | 4 |
| Ribbed Inserts for Posts | 2 |
| UniSlide Slider Kit | 1 |
