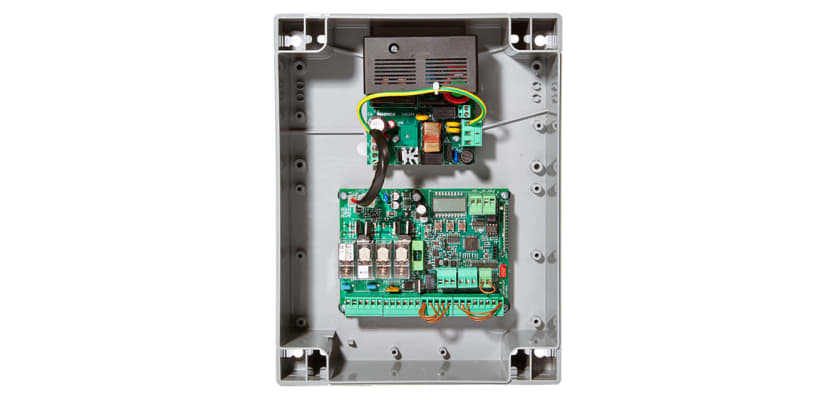

BRAINY24.T 24v Full Feature Gate Control Panel
Product Description
BRAINY24.T 24v Full Feature Gate Control Panel
The BRAINY24.T Full Featured Control Panel is designed for one or two motors and is ideal for swing gates and industrial folding doors with a maximum of two sections.
Features
The unit features an integrated LCD display and a 433.92 MHz 64-code receiver with three encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code. It includes removable terminal boards and separate limit switch inputs for each motor, along with inputs for open, close, and pedestrian functions. There are photocell inputs for both the opening-closing and closing phases, as well as an input for N.C. or 8K2 sensitive edges. The output for an electric lock is 12 Vdc, and it also provides configuration options for a gate open indicator, service light, second radio channel, and photocell testing. The unit supports auto-setting of operating parameters and offers separate electronic torque adjustments for each motor. It features anti-crushing safety through amperometric detection and encoder management, as well as adjustable slowdowns for each motor during both opening and closing phases. The Advantouch system is included for configuring parameters and managing radio transmitters, along with a count of manoeuvres, a programming access password, and maintenance warnings.
First Fence has a full range of gate automation products and accessories for you to choose from, including loop cables and detectors, safety edge components and gate control panels, as well as a huge range of access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to Help
If you need any assistance with this product range, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Dimensions | 0 |
| Control Unit Supply | 24 Vdc |
| Power Supply | 100 ÷ 250 Vac 50/60Hz |
| Output Supply | 1/2 Motor - 24 Vdc |
| Maximum Motor Current | 5+5 A |
| Output, power supply of accessories | 24 Vdc 500mA max |
| Protection Level | IP55 |
| Operating Temperature | -20°C/+50°C |
| Radio Receiver | 433.92 MHz, incorporated and configurable |
| Number of codes storable in memory | 64 |
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
Specifications & Downloads
| Dimensions | 0 |
| Control Unit Supply | 24 Vdc |
| Power Supply | 100 ÷ 250 Vac 50/60Hz |
| Output Supply | 1/2 Motor - 24 Vdc |
| Maximum Motor Current | 5+5 A |
| Output, power supply of accessories | 24 Vdc 500mA max |
| Protection Level | IP55 |
| Operating Temperature | -20°C/+50°C |
| Radio Receiver | 433.92 MHz, incorporated and configurable |
| Number of codes storable in memory | 64 |
What's Included
| Name | Quantity |
|---|---|
| Control Panel | 1 |
| Integrated Radio Receiver | 1 |
