Apollo® 3.0m High x 1.2m Wide 868 Twin Mesh Single Leaf Gate Kit
Product Description

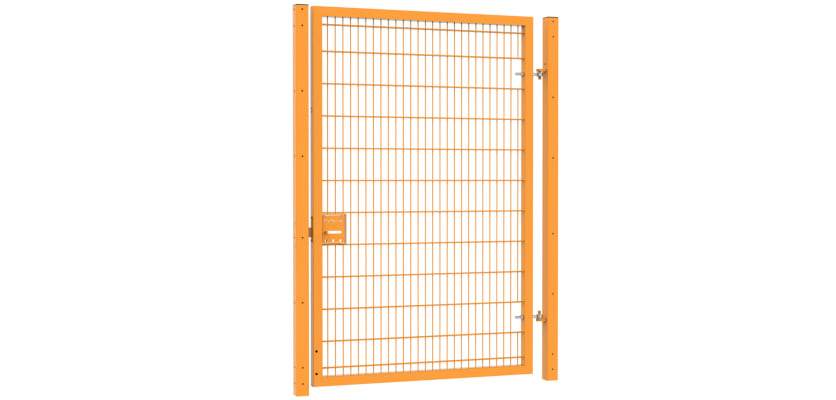

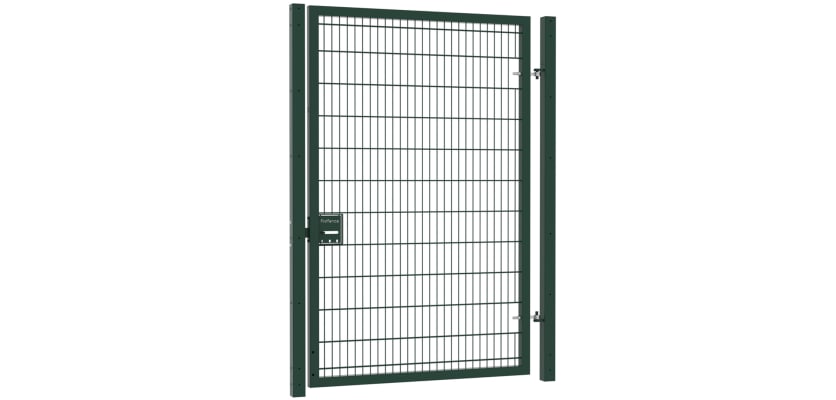

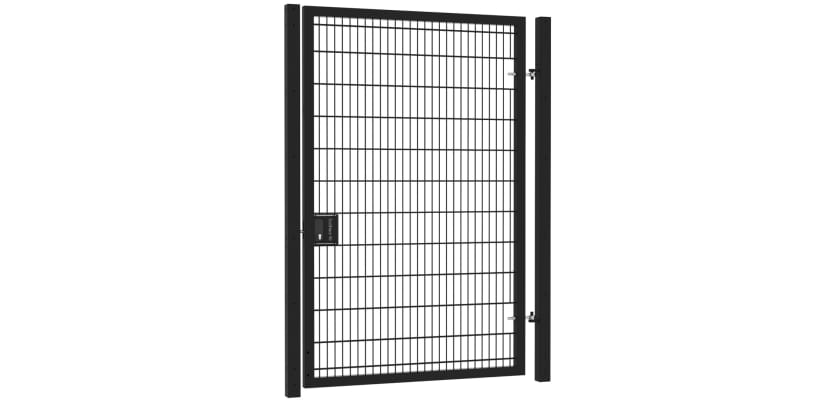

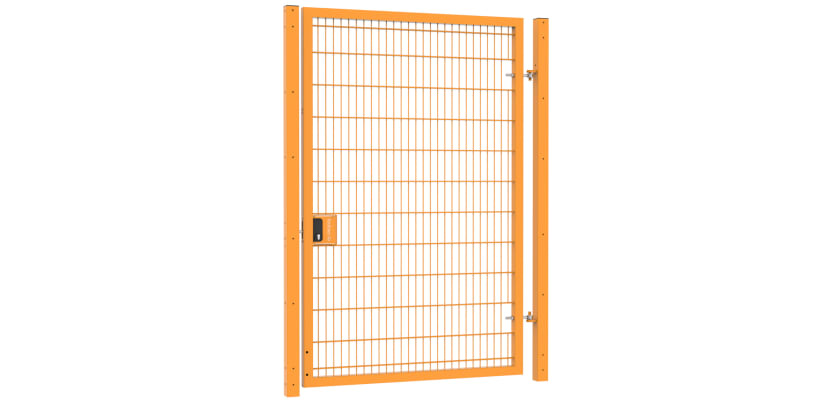

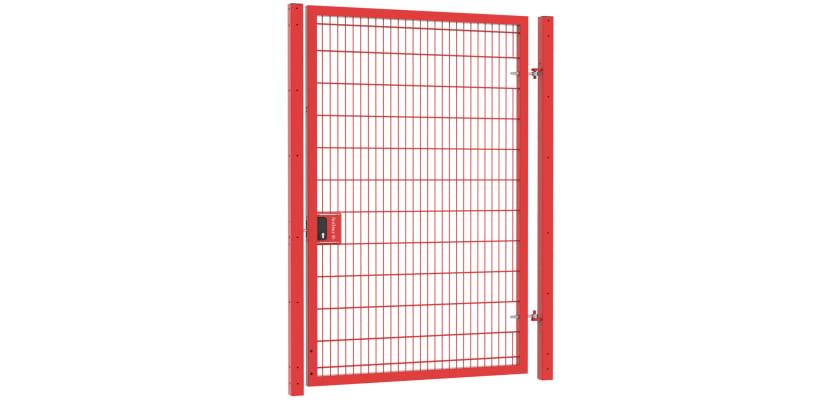

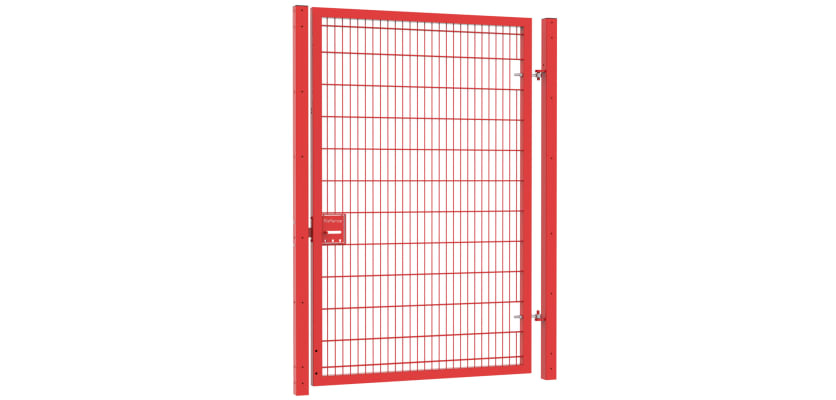

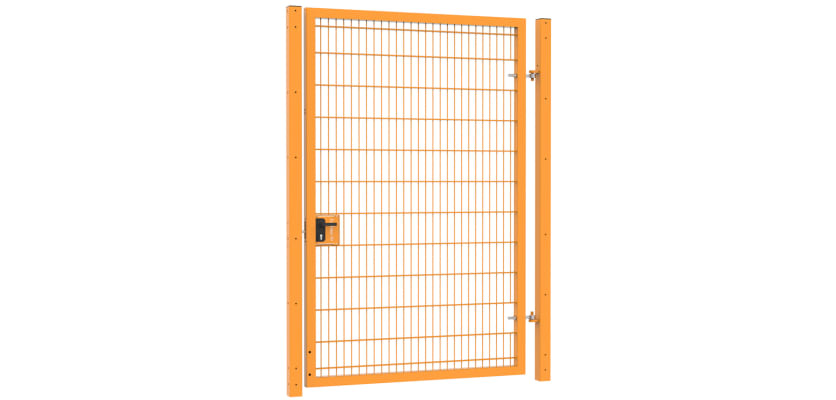

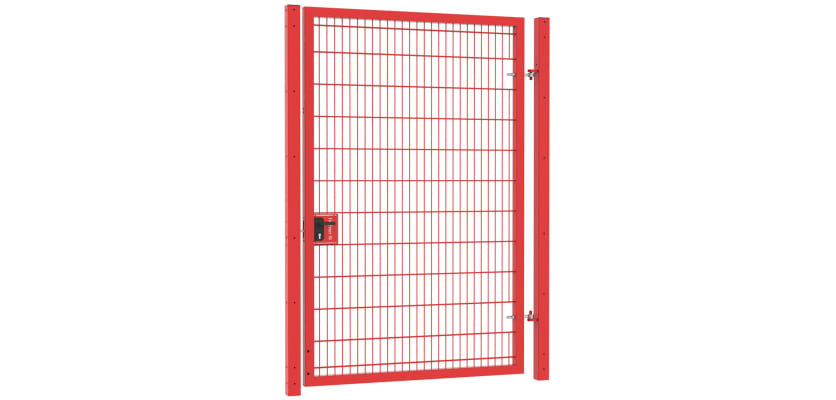

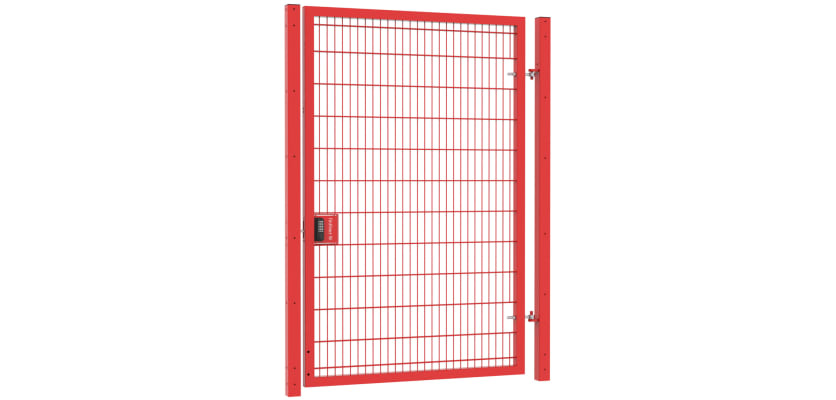

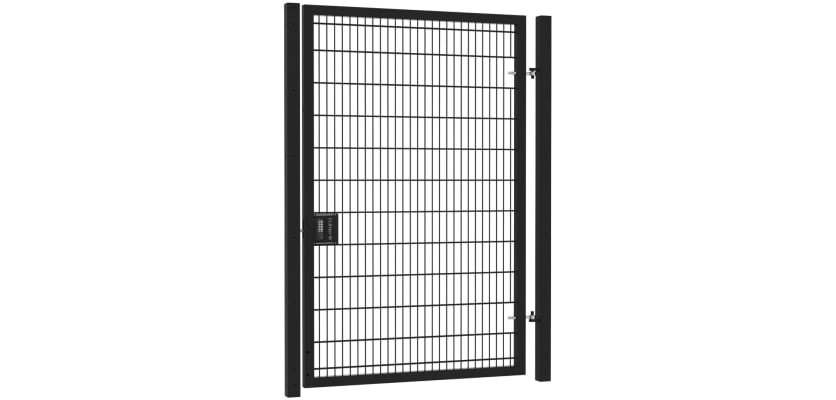

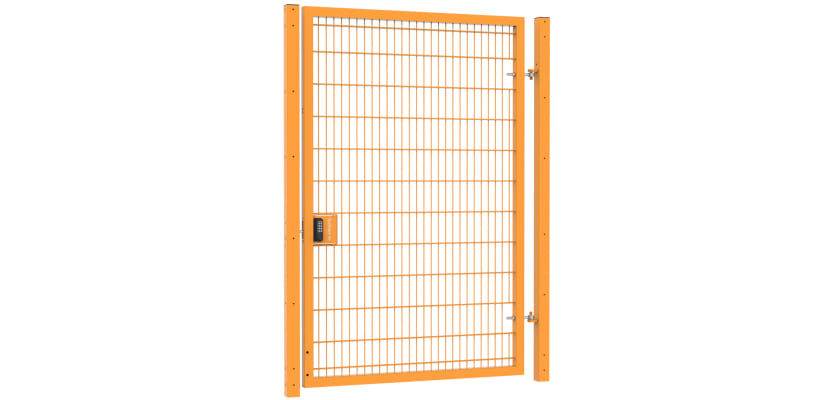

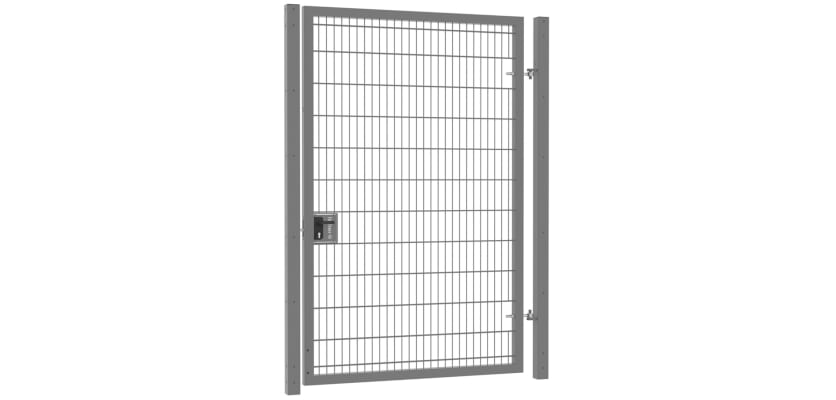

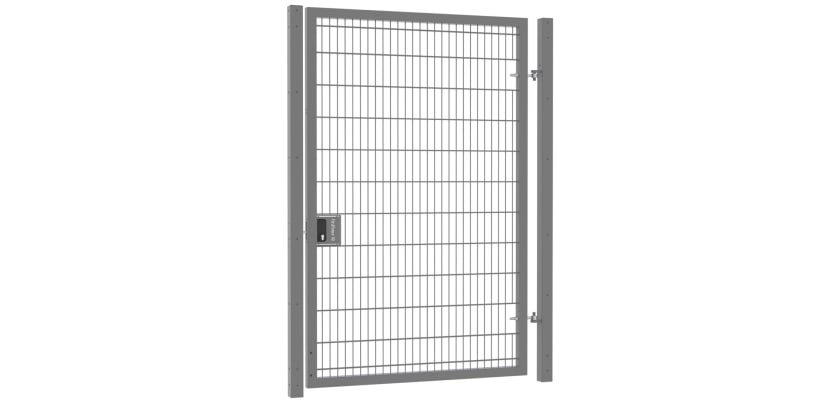

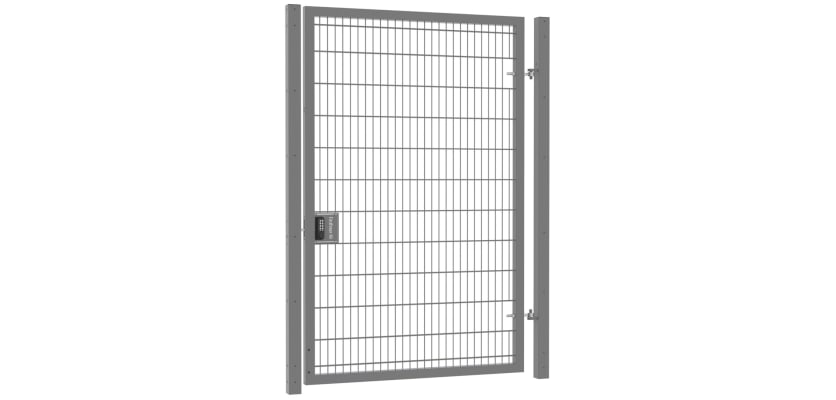

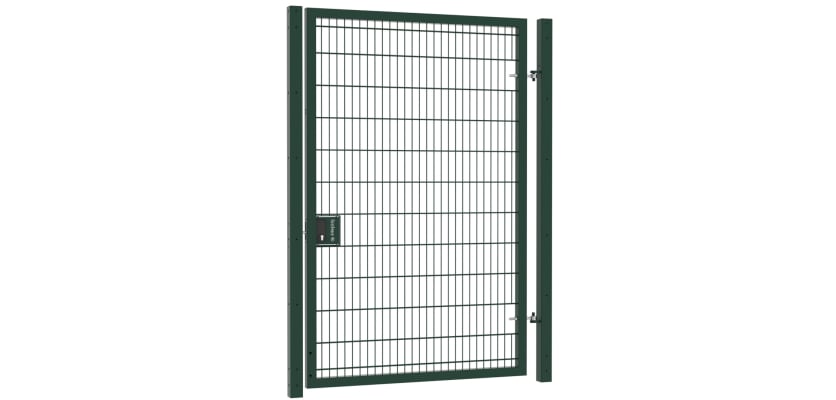

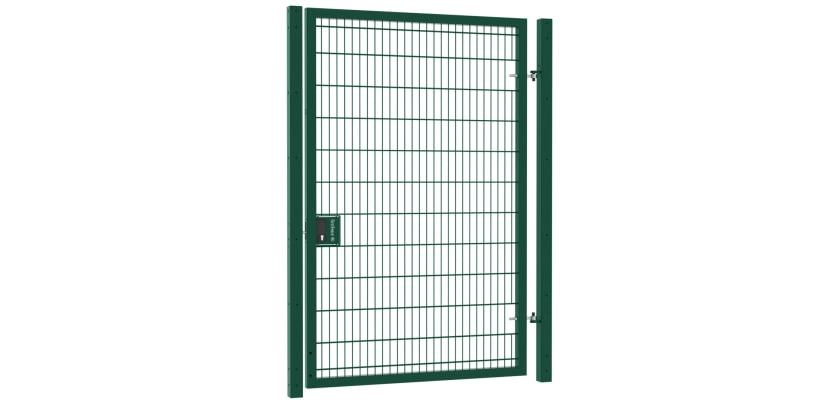

Apollo® 3.0m High x 1.2m Wide 868 Twin Mesh Single Leaf Gate Kit
Enhance your perimeter with the Apollo® 3.0m x 1.2m 868 Twin Mesh Gate Kit, a practical and secure entry solution for commercial sites, schools, parks, and other areas that demand controlled pedestrian access.
The gate is available in two installation formats: bolt down for hard surfaces like tarmac and concrete, or dig in for softer ground such as soil or grass. Unsure which setup suits your project? Our knowledgeable sales team is here to guide you through the best option based on your site conditions.
Key Features & Benefits
- 868 Twin Mesh Infill Panel Engineered with double 8mm horizontal wires and a 6mm vertical wire, the twin mesh structure is built for high strength and resistance to tampering or cutting. The narrow wire spacing also prevents climbing, but still offers a high level of visibility for additional security systems such as CCTV.
- 3.0m Height for Increased Protection: The 3.0m tall design acts as a robust physical and visual barrier, ideal for deterring unauthorised access in public or semi-secure areas.
- Corrosion-Resistant Steel with Optional PPC Finish: Built from pre-galvanised steel, each gate is optionally powder-coated in a range of RAL colours to deliver both aesthetic appeal and long-term protection against the elements.
- Professional, Smooth Finish: Mitred corners and clean finishes reduce the chance of injury while providing a polished and professional appearance.
Fully Modular for Quick & Simple Setup
The Apollo® gate is designed with modularity in mind:
- Universal Opening Direction: Install to open either left or right, thanks to a universal gate leaf, removing the risk of the incorrectly handed gate being ordered before installation.
- Pre-drilled Components: Simplify hardware installation with pre-drilled holes for latches, hinges, and accessories.
- Plastic Inserts: Seal unused holes to provide a clean and professional-looking appearance whilst also helping to protect the gate from water or debris collecting inside the gate or posts.
Ground Fixing Options to Suit a Range of Ground Types
- Bolt Down Posts: Ideal for hard-standing areas. Secure using 4x M16 x 125mm ground anchor bolts (sold separately).
- Dig-In Posts: Best suited to softer surfaces like turf or loose soil. Requires Post Mix for a stable install (available separately).
Enhanced Safety with a Gate Restrainer
When fitted with an optional Gate Restrainer, the gate complies with BS 12604 standards and DHF guidance. This added safety feature ensures that, in the rare case of a top hinge failure, the gate remains close to its original position, minimising risk to users.
What's included in the kit
Your complete Apollo® 3.0m x 1.2m Single Leaf Gate Kit comes with:
- 1x 1.2m Wide Gate Leaf (868 mesh)
- 1x Hinge Post
- 1x Receiver Post
- 1x Sliding Latch Kit
- 2x Adjustable Gate Eyes
- Plastic Ribbed Inserts for Posts and Gate Leaf
Upgrade your setup with a Gatemaster locking system, compatible with Apollo® gates, for improved control over site access.
This gate is fully compatible with First Fence’s 868, 656, and 358 mesh fencing systems, allowing for integration into new or existing fence lines with ease.
Need Advice?
Our Professional and friendly team are here to help with any questions you may have, from installation advice to delivery information. Please get in touch. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk or through our online live chat system.
Specifications & Downloads
| Height Above Ground | 3000mm |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Hinge Post Size | 80mm x 80mm |
| Hinge Gap | 100mm |
| Leaf Gap | 30mm |
| Gate Hanging Side | Universally Handed |
| Thickness of Wires | 868 (8mm and 6mm) |
| Post Type | Square Hollow Section |
| Gate Type | Pedestrian Gate |
| Material | Pre-Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green & Black as Standard, Others Available On Request |
| Compliant To | Pre-Galvanised Steel to BS EN 10346 / Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| Apollo 868 Mesh Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 2 |
| Ribbed Inserts for Posts | 2 |
| Unislide Single Slider Padlockable Gate Kit | 1 |
| Apollo Plate Kit | 1 |
