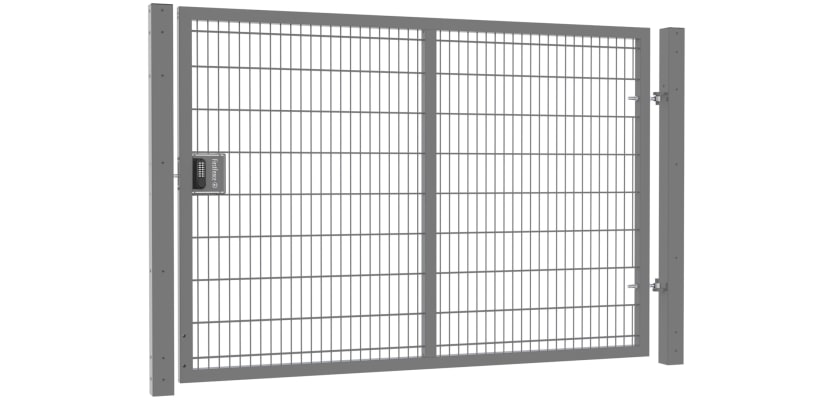

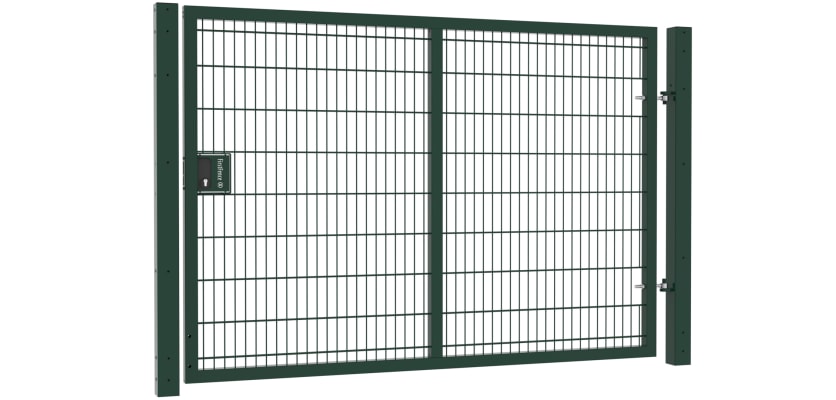

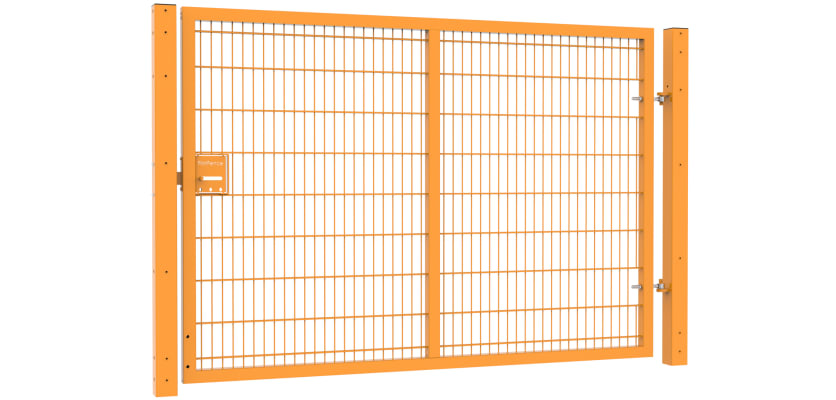

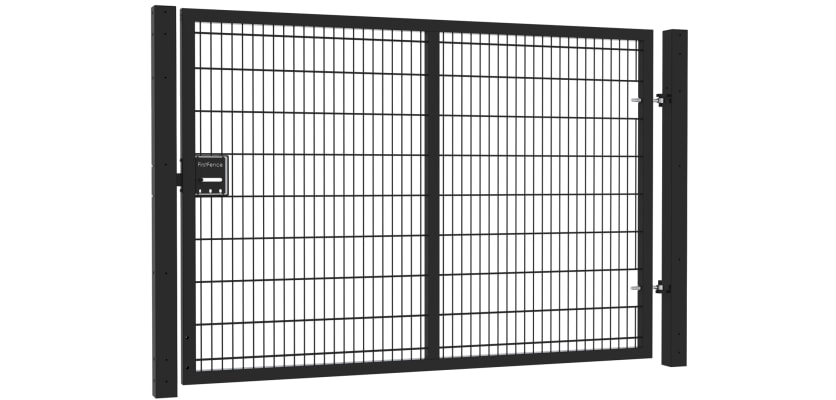

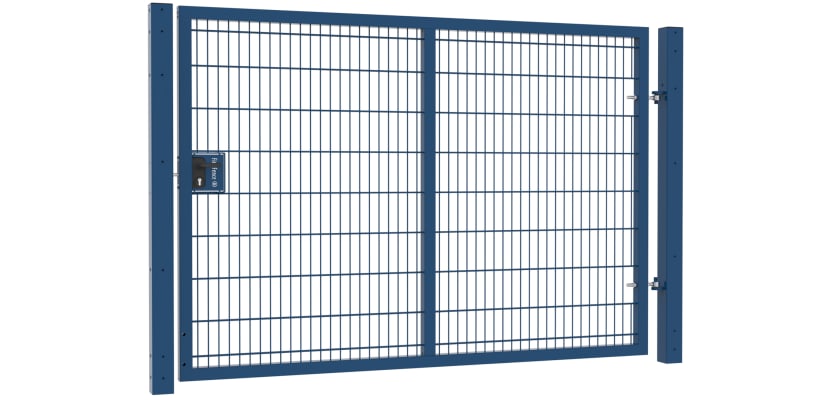

Apollo® 1.8m High x 2.5m Wide 868 Twin Mesh Single Leaf Gate Kit

The Apollo® 1.8m x 2.5m 868 Twin Mesh Single Leaf Gate Kit is an ideal access point solution designed for locations that may require controlled pedestrian or light vehicle access. With its 1.8m height and wide span, this gate is perfectly suited to locations such as industrial estates, school perimeters, distribution yards, and public parks.

Built to integrate seamlessly with mesh fencing systems, this robust gate combines visibility, security, and durability—making it an excellent choice for protecting your site.

Key Features and Benefits

868 Twin Mesh Infill

The gate’s infill panel is made from 868 twin mesh, which combines two 8mm thick horizontal wires with a 6mm vertical wire sandwiched between them. This structure offers an excellent level of strength and rigidity, providing protection against opportunistic attacks by would be intruders.

The apertures within the mesh infills provides a clear line of sight for CCTV or visual monitoring whilst making climbing difficult for intruders with gaps which are too small to effectively create finger and foot holds.

High-Strength Steel Frame with Protective Coating

Manufactured from premium-grade steel, each gate is finished with a polyester powder coating that provides resistance to corrosion, UV exposure, and general wear. A variety of RAL colours is available to blend in with existing fencing perimeters or to create a distinct and eye catching access point.

868 Twin Mesh Infill

The gate’s infill panel is made from 868 twin mesh, which combines two 8mm thick horizontal wires with a 6mm vertical wire sandwiched between them. This structure offers an excellent level of strength and rigidity, providing protection against opportunistic attacks by would be intruders.

The apertures within the mesh infills provides a clear line of sight for CCTV or visual monitoring whilst making climbing difficult for intruders with gaps which are too small to effectively create finger and foot holds.

High-Strength Steel Frame with Protective Coating

Manufactured from premium-grade steel, each gate is finished with a polyester powder coating that provides resistance to corrosion, UV exposure, and general wear. A variety of RAL colours is available to complement surrounding fencing or meet site branding requirements.

Smooth Mitred Finish

Each gate has mitred corners for a flush, clean finish, the gate eliminates sharp edges—minimising the risk of injury to users and delivering a smart, professional look suitable for both public and private installations.

Locking Drop Bolt

This gate includes a locking drop bolt as standard—an essential feature for wide access gates:

• Keeps the gate leaf securely closed when not in use, adding an additional physical barrier and making it more difficult for unauthorised access.
• Allows the gate to be held open safely, ideal for daytime operations, maintenance access, or deliveries.

Whether you’re securing the gate overnight or holding it open temporarily, the drop bolt offers practical control and increased safety on-site.

Modular Design

The Apollo® 1.8m x 2.5m gate is built for modular, hassle-free installation. Thanks to its universal handing, there's no need to select a left- or right-handed version—handing can be determined on site to suit your layout.

The gate is supplied with a slider kit pre-installed and pre-drilled holes for quick and tidy hardware mounting. For enhanced access control, the slider can easily be upgraded with a Gatemaster lock system—no welding or leaf removal required. Plastic plugs are included to cap unused holes for a clean, weather-resistant finish.

Ground Type Compatibility

This gate kit is adaptable for use on various ground conditions:

• Bolt-Down Posts: Ideal for installation on concrete or other hard surfaces. Each post requires 4 x M16 x 125mm Ground Anchor Bolts (sold separately).
• Dig-In Posts: Suitable for soil, grass, or softer terrain. Requires Post Mix—quantities vary depending on ground conditions and gate size (see the recommended quantities when ordering for details).

Safety Compliant Design

With the optional addition of a Safety Tether, this gate can meet BS 12604 safety standards. The steel tether ensures the gate remains within 300mm of its vertical axis in the unlikely event of top hinge failure—helping to protect users and reduce liability in public spaces. Installation is quick using the gate’s pre-drilled attachment points.

What's included:

Your Apollo® 1.8m x 2.5m Single Leaf Gate Kit comes complete with:

• 1 x Hinge Post
• 1 x Catch Post
• 1 x 868 Mesh Gate Leaf (1.8m High x 2.5m Wide)
• 1 x Slider Kit
• 1 x Plate Kit
• 2 x Adjustable Gate Eyes
• 1 x Locking Drop Bolt
• Plastic Inserts for Posts and Gate Leaf

For increased functionality and site control, consider pairing this gate with one of our Gatemaster locking systems—available in mechanical and digital configurations. These modular systems are easy to fit to enhance your gate’s security performance.
