6.0ft Wide 7-Rail Farm Gate Kit
Product Description
6.0ft Wide 7-Rail Farm Gate Kit
Metal Farm Gates are a must for any agricultural business, whether it is to protect your livestock or to restrict access to vehicles, or prevent theft of valuable assets. They have to put up with a lot of harsh treatment whether it is from being hit by farm vehicles or large livestock such as bulls, or from the changing weather conditions, so they need to be made well and be constructed from high-quality material. This type of galvanised field gate should be considered as an investment and should serve its purpose well for many years when installed correctly and routinely maintained.
The Farm Gate Kits from First Fence are available in a large range of widths from 3ft to 16ft and consist of a single Gate Leaf, a Hanging and Slotted Post, a Spring Bolt Kit, Adjustable Gates Eyes and Ribbed Inserts. Manufactured from galvanised steel the kit is durable and strong and ideal for permanent outdoor use as the galvanising adds a protective layer to the steel and helps to prevent damage and rust

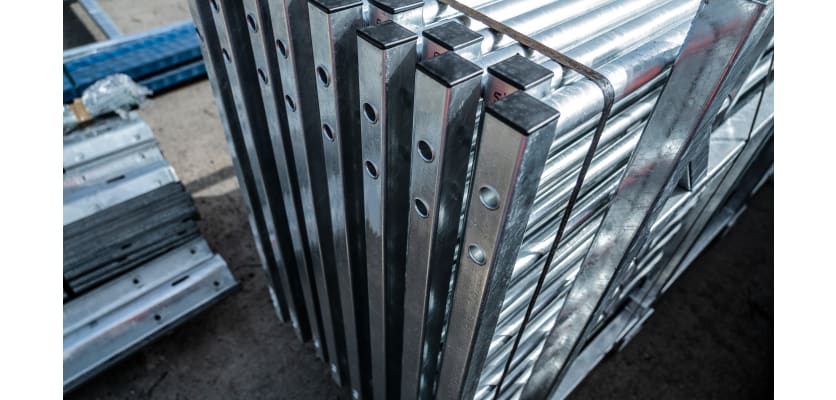

The Gate Leaf is a classic 7-rail design that is very recognisable in rural settings. The horizontal rails are welded to box section ends forming a very solid unit. The leaf is attached to the post lugs with adjustable gate eyes, if your ground surface is uneven or uphill they can be easily altered to accommodate this gradient change.
The two posts are 114.3mm in 4.5" in diameter and are to be concreted into the ground. First Fence stocks Post Mix that is perfect for this job and is available in single or multi-buys.
Get In Touch
If you have any questions about this product range or indeed any of our products, then please get in touch and a member of the sales team will be happy to answer them and assist you with your project requirements. We can be contacted by calling 01283 512111 or by using the online chat system.
Specifications & Downloads
| Height | 1145mm |
| Total Post Length | Actual Length 2000mm [600mm Minimum Dig In] |
| Width | 2178mm [Including Posts] |
| Access Width | 1830mm [6ft] |
| Weight | 46.8kg |
| Post Types | Dig In |
| Gate Hanging Side | Right or Left-hand |
| Material | Galvanised Steel |
| Finish | Galvanised |
| Post Diameter | 114.3mm [4.5"] |
What's Included
| Name | Quantity |
|---|---|
| 7-Rail Farm Gate Leaf [1830mm W] | 1 |
| Hanging Post 114.3mm OD | 1 |
| Slotted Post 114.3mm OD | 1 |
| Adjustable Gate Eye | 2 |
| Spring Bolt Kit | 1 |
| Black Ribbed Insert 50mm x 50mm | 1 |
| Black Ribbed Insert 50mm x 25mm | 1 |
Specifications & Downloads
| Height | 1145mm |
| Total Post Length | Actual Length 2000mm [600mm Minimum Dig In] |
| Width | 2178mm [Including Posts] |
| Access Width | 1830mm [6ft] |
| Weight | 46.8kg |
| Post Types | Dig In |
| Gate Hanging Side | Right or Left-hand |
| Material | Galvanised Steel |
| Finish | Galvanised |
| Post Diameter | 114.3mm [4.5"] |
What's Included
| Name | Quantity |
|---|---|
| 7-Rail Farm Gate Leaf [1830mm W] | 1 |
| Hanging Post 114.3mm OD | 1 |
| Slotted Post 114.3mm OD | 1 |
| Adjustable Gate Eye | 2 |
| Spring Bolt Kit | 1 |
| Black Ribbed Insert 50mm x 50mm | 1 |
| Black Ribbed Insert 50mm x 25mm | 1 |
