2.4m High Diamor™ Chain Link Single Leaf Gate Kit
Product Description
2.4m High Diamor™ Chain Link Single Leaf Gate Kit
Achieve maximum perimeter protection and install a high-level access point with our 2.4m High Chain Link Single Leaf Gate Kit. Engineered as an ultra-robust, industrial-grade pedestrian security gate, this towering steel system establishes a formidable, anti-climb entry point. It is the premier choice for high-security commercial perimeters, industrial compounds, and restricted public infrastructure.
Designed to seamlessly integrate with 2.4m security fencing layouts, this 8ft chain link gate offers an exceptional high-tier physical barrier that delivers serious deterrence against unauthorised climbing and breaching attempts without blocking vital security camera sightlines.
Product Specifications & Customisation
Tailor this industrial single leaf mesh gate to your exact site requirements with our versatile range of sizes and finishes:
Available Widths: 1.0m, 1.2m, 1.5m, 2.0m, 2.5m, and 3.0m
Available Finishes: Standard Galvanised Steel, Polyester Powder-Coated Black, or Polyester Powder-Coated Green
Installation Type: Dig-in posts only (engineered for deep below-ground anchoring in soft ground, soil, or concrete foundations)
Features and Benefits
Structural Integrity: Fabricated from heavy-duty structural steel, the robust 2.4m gate frame and supporting posts offer maximum rigidity. They are engineered to withstand heavy, high-frequency commercial usage while remaining efficient for professional contractors to install.
Ultimate Weatherproofing Shield: Every kit is galvanised or polyester powder-coated as standard. This provides an uncompromising, rust-resistant barrier inside and out, ensuring a completely rot-proof, low-maintenance commercial service life.
Aerodynamic Wind Defiance: At a commanding 8ft height, solid gates face immense wind loading risks. Our open-weave diamond mesh design allows heavy winds to pass cleanly through the structure, completely eliminating the ‘sail effect’ and preventing the warping or hinge snapping common with solid timber or sheet-metal gates.

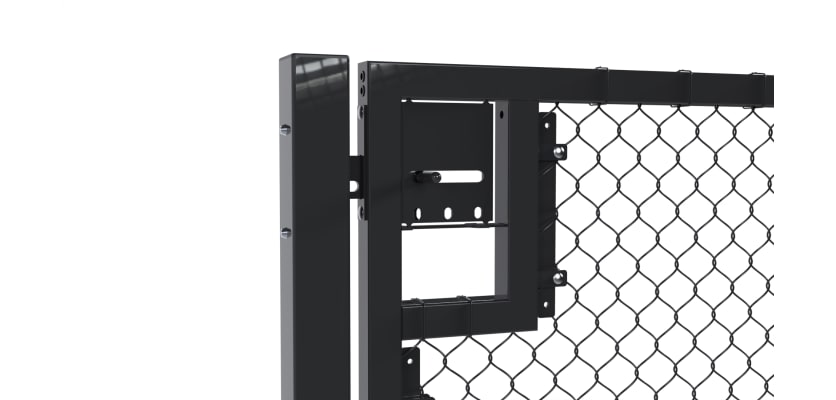

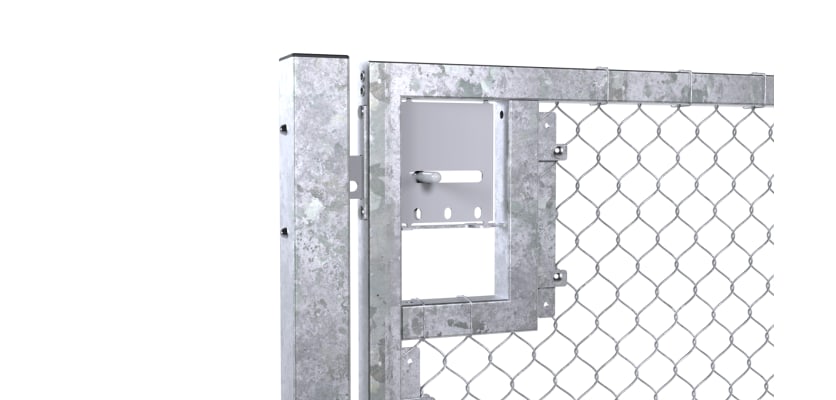

Advanced Security Modularity (Unislide Kit Included): Each gate system is equipped with a versatile Unislide Kit. This hardware can be effortlessly upgraded to secure mechanical digital locks, heavy-duty keypad entry, or key-access systems to match your site's access control protocols.
Cost-Effective Commercial Security: When securing an expansive industrial boundary line, a chain link steel gate offers an unbeatable cost-to-benefit ratio. Get a towering, lockable physical barrier at a fraction of the cost of bespoke automated gates.
What’s Included in Your Kit?
Our industrial chain link gate kits are supplied as comprehensive, high-security systems ready for immediate deployment:

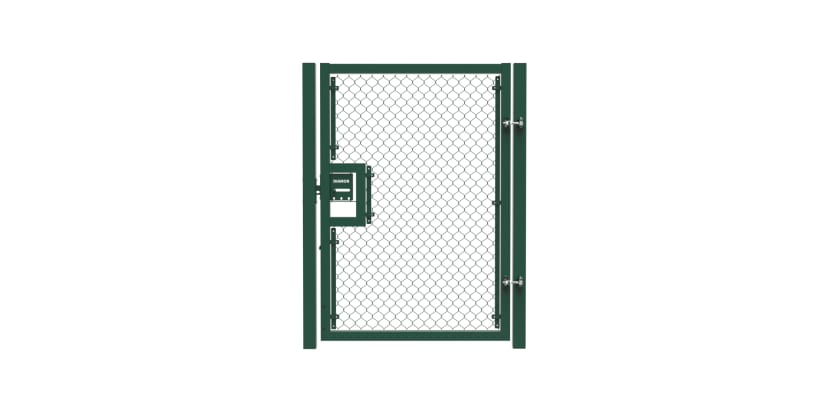

2.4m High Single Leaf Gate: The main structural steel gate leaf, pre-filled with high-tensile galvanised chain link wire mesh.

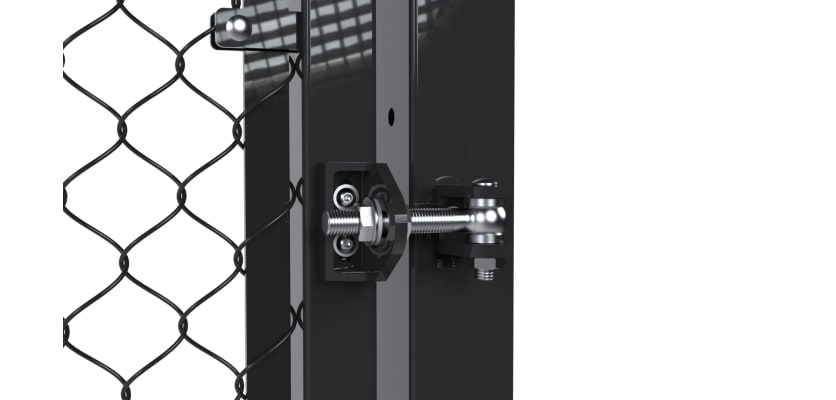

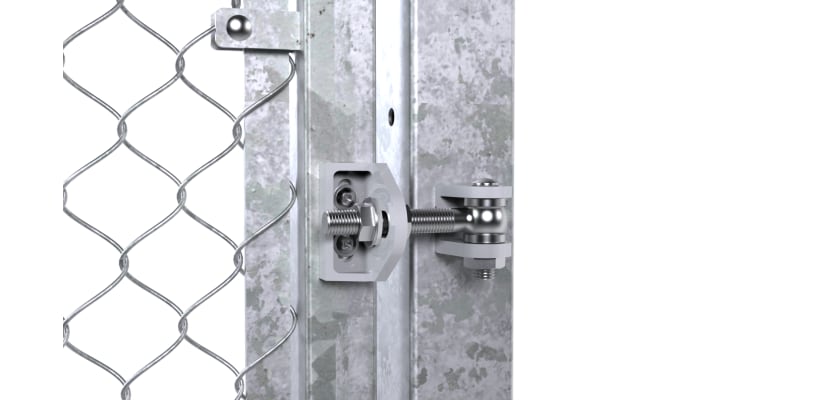

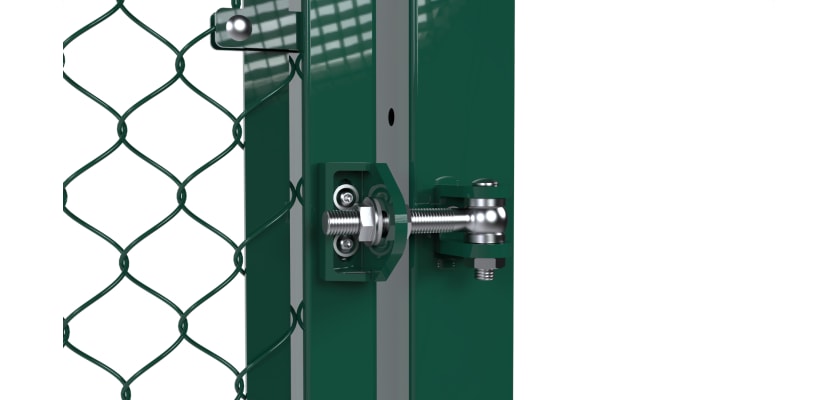

Heavy-Duty Hinge & Catch Posts: Two matching industrial steel posts engineered for deep below-ground anchoring to safely support the substantial swinging weight. These gates include the Locinox Bolt On HD 4D Adjustable Hinges for precise adjustment.
Commercial Hardware: Fully adjustable hinges and a secure, heavy-duty latch mechanism.
Installation Tip: This is a dig-in only format. Due to the full 2.4m industrial height and increased dynamic weight of the gate leaf, you must use a minimum of 4 bags of post mix per post to guarantee maximum structural stability and a perfectly plumb line under heavy daily usage.
Versatile Applications
Industrial & Commercial Compounds: Functions as a highly secure, low-maintenance pedestrian side gate alongside larger commercial security fencing and palisade installations.
Utility Compounds & Critical Infrastructure: Creates clean, highly visible entry points around restricted sub-stations, water works, and storage yards, maintaining clear visibility for site security cameras.
Schools, Colleges & Sports Facilities: Allows installers to establish secure, towering boundary lines to control public access while keeping high-flying sports balls contained.
High-Security Storage Yards: Providing heightened pedestrian security for 8ft perimeter lines requiring maximum physical protection and structural longevity.
Explore Complementary Products

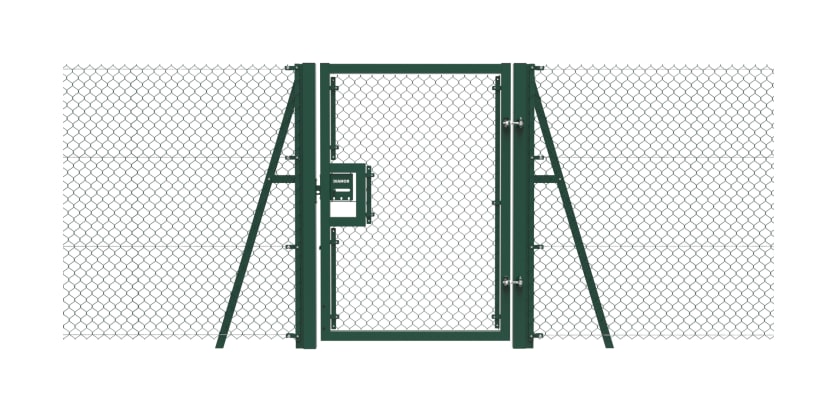

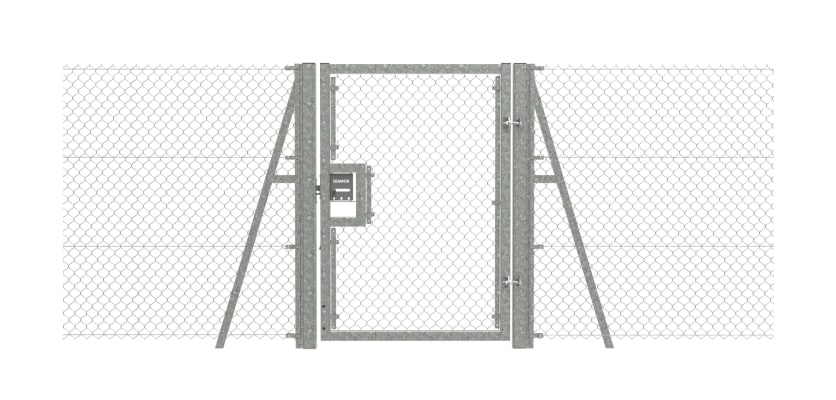

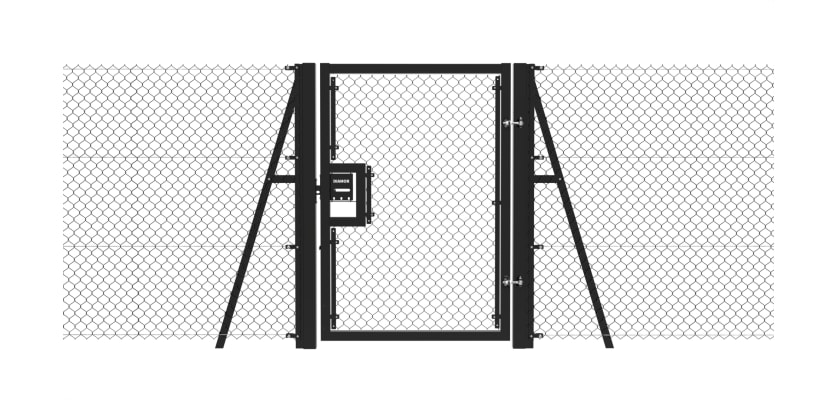

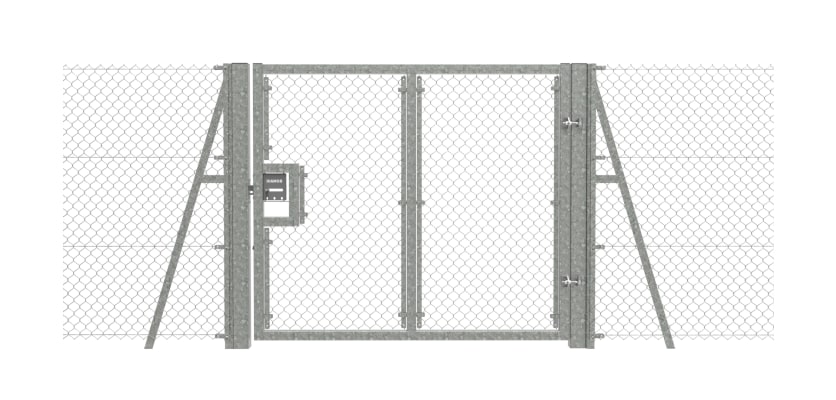

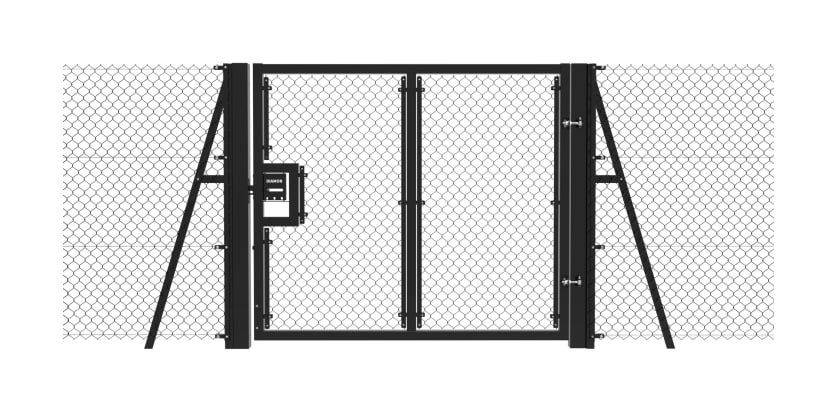

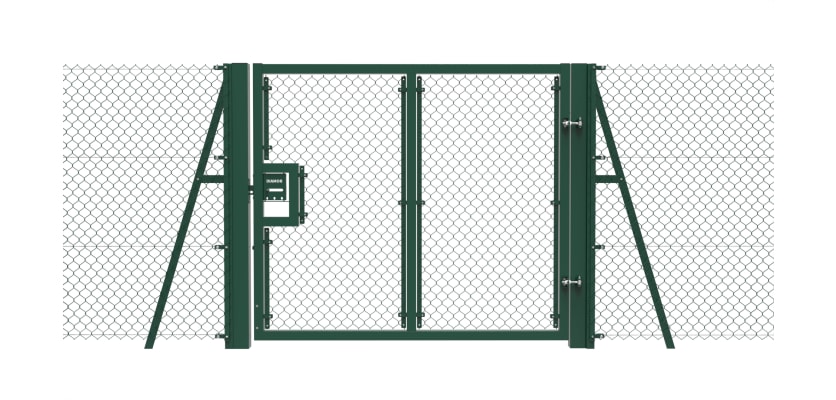

To create a uniform, gap-free perimeter, pair this gate kit with our standard 2.4m Chain Link Fencing Rolls, Steel Strainer Posts, and Intermediate Fencing Posts for a long-lasting, completely rot-free installation.
Contact Us
Managing a commercial tender or public sector project? Our expert sales team is here to assist with technical drawings, trade accounts, lead times, and bulk pricing discounts.
Phone: 01283 512 111 - Email: sales@firstfence.co.uk - Live Chat: Click the chat icon in the bottom right corner of your screen to speak to an industrial fencing specialist.
Specifications & Downloads
| Height Above Ground | 2400mm |
| Width | 1.0m, 1.2m, 1.5m, 2.0m, 2.5m and 3.0m |
| Total Post Length | 3200mm |
| Post Box Section | 80mm x 80mm [1.0, 1.2, 1.5m wide], 100mm x 100mm [2.0, 2.5, 3.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 2.4m high chain link mesh dig in hinge post | 1 |
| 2.4m high chain link mesh dig in receiver post | 1 |
| 2.4m chain link universal mesh gate leaf cladded kit | 1 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 1 |
| Blank slide bolt security plate single kit | 1 |
| Unislide single slider padlockable gate kit | 1 |
| 60x60 black ribbed insert | 2 |
| 80x80 black ribbed inserts [1.0, 1.2, 1.5m wide only] | 2 |
| 100x100 black ribbed inserts [2.0, 2.5, 3.0m wide only] | 2 |
| 15mm plastic ribbed plug | 4 |

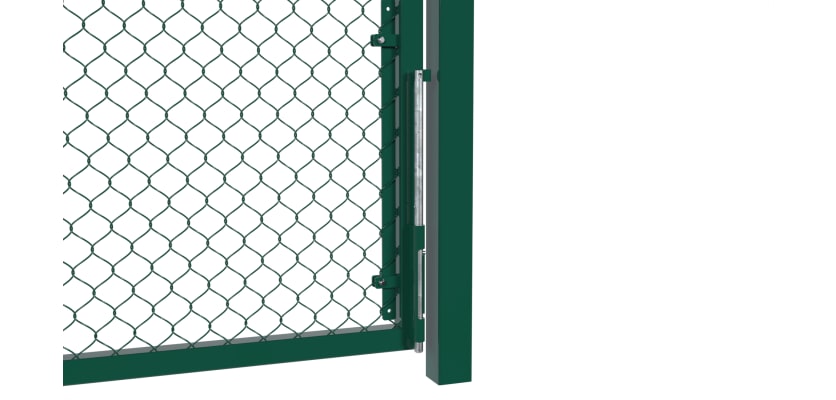

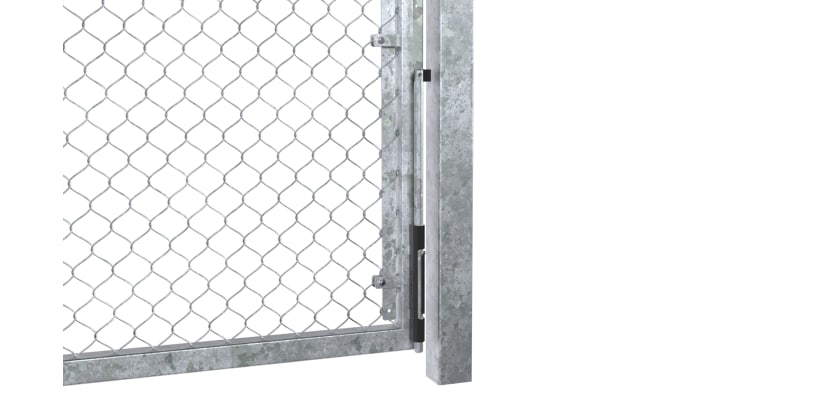

| First Fence branded locking drop bolt kit | 1 |
Specifications & Downloads
| Height Above Ground | 2400mm |
| Width | 1.0m, 1.2m, 1.5m, 2.0m, 2.5m and 3.0m |
| Total Post Length | 3200mm |
| Post Box Section | 80mm x 80mm [1.0, 1.2, 1.5m wide], 100mm x 100mm [2.0, 2.5, 3.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 2.4m high chain link mesh dig in hinge post | 1 |
| 2.4m high chain link mesh dig in receiver post | 1 |
| 2.4m chain link universal mesh gate leaf cladded kit | 1 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 1 |
| Blank slide bolt security plate single kit | 1 |
| Unislide single slider padlockable gate kit | 1 |
| 60x60 black ribbed insert | 2 |
| 80x80 black ribbed inserts [1.0, 1.2, 1.5m wide only] | 2 |
| 100x100 black ribbed inserts [2.0, 2.5, 3.0m wide only] | 2 |
| 15mm plastic ribbed plug | 4 |
| First Fence branded locking drop bolt kit | 1 |
