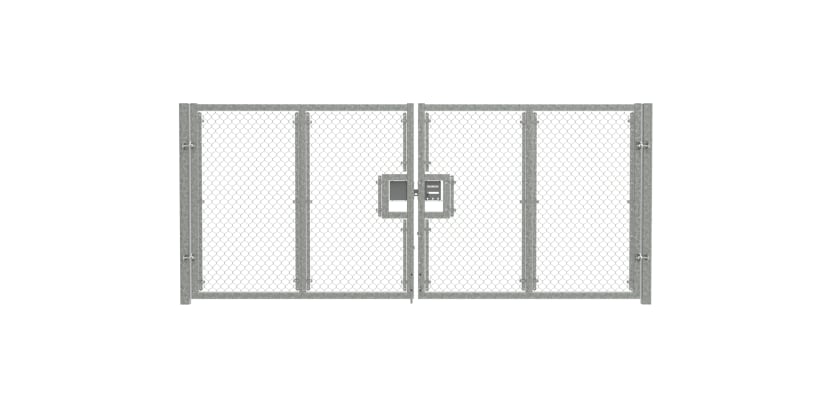

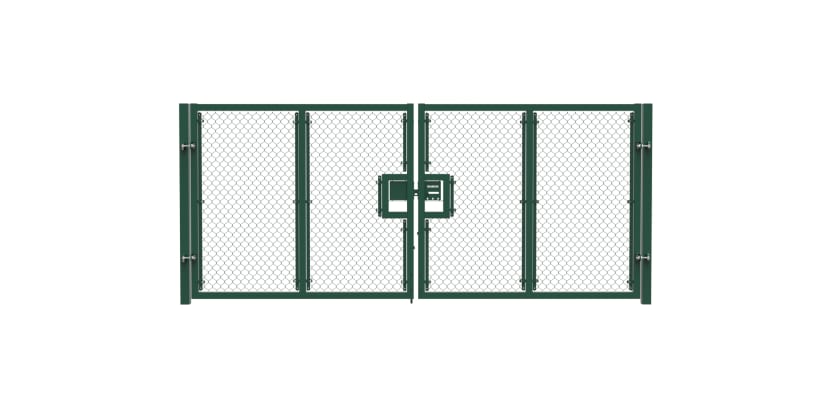

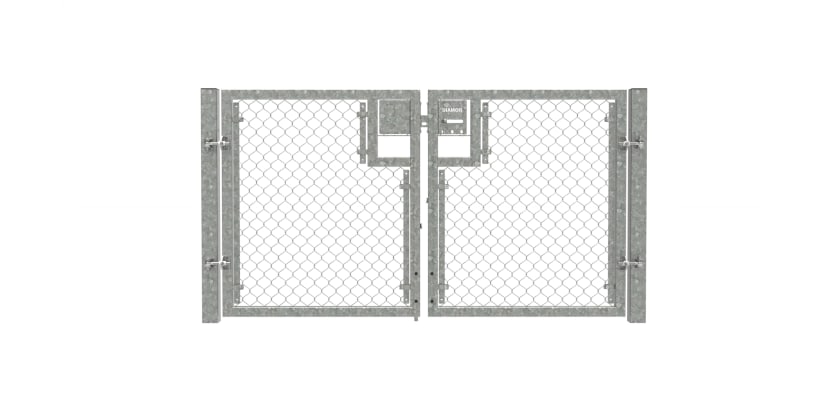

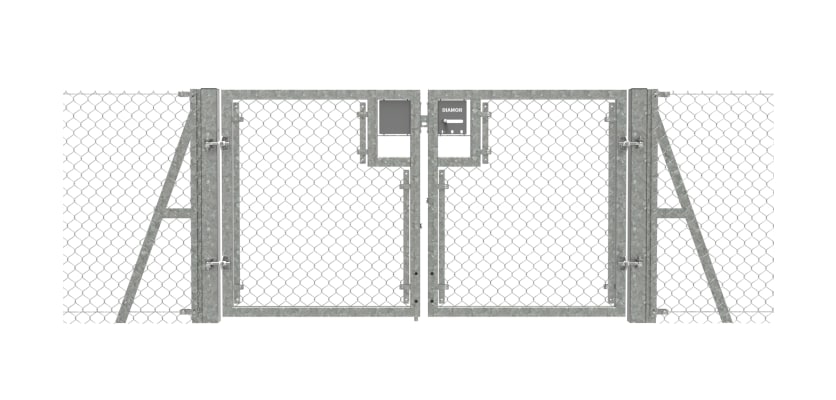

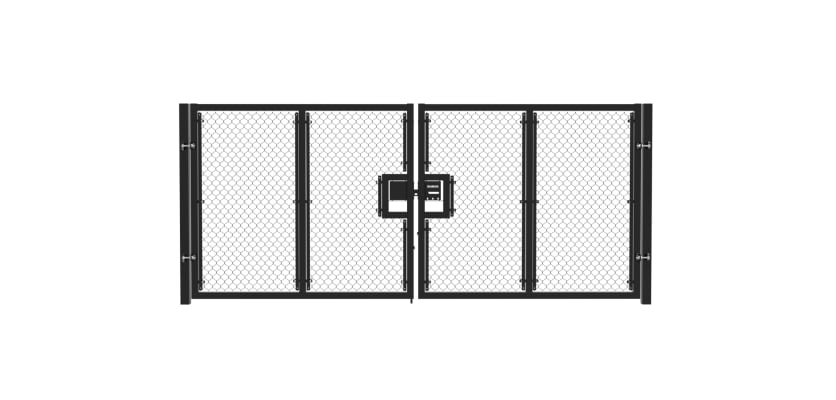

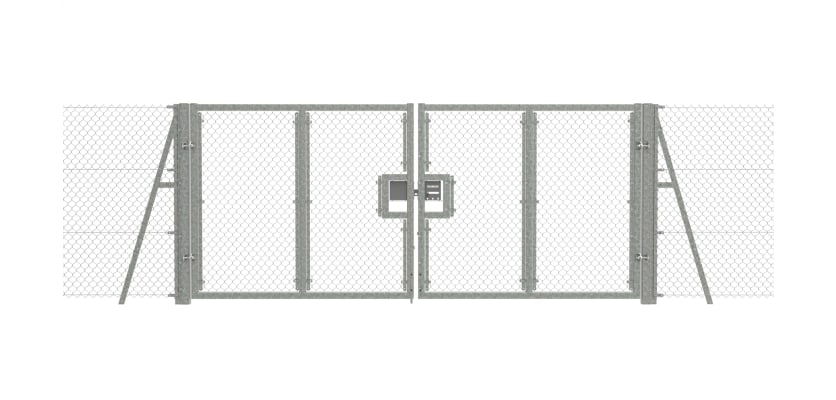

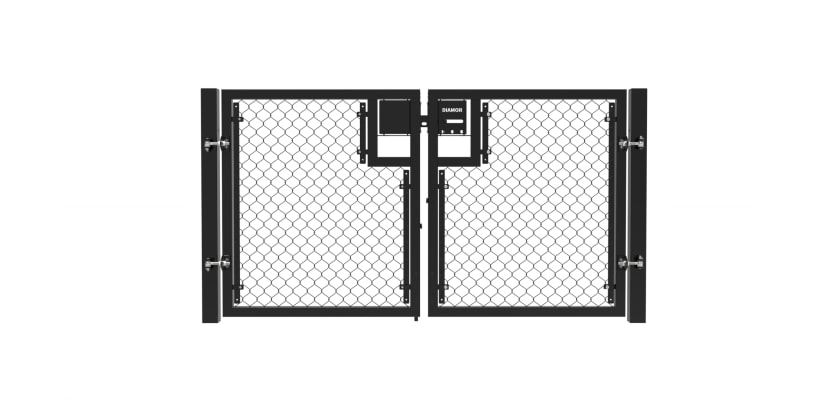

1.8m High Diamor™ Chain Link Double Leaf Gate Kit
Product Description
1.8m High Diamor™ Chain Link Double Leaf Gate Kit
Maximise your property’s perimeter security and establish dependable vehicle access control with our 1.8m High Chain Link Double Leaf Gate Kit. Designed as a heavy-duty, full-height dual-gate solution, this kit provides an expansive, unyielding entryway. It is the industry-standard choice for commercial yards, industrial compounds, school main entrances, and secure sports facilities.
Engineered to seamlessly integrate with standard 1.8m perimeter fencing, this 6ft double chain link gate offers a clean, low-profile aesthetic that delivers high-tier boundary protection and wide-clearance vehicle access without blocking vital security camera sightlines.
Product Specifications & Customisation
Tailor this heavy-duty dual-leaf mesh gate to your exact site requirements with our versatile range of total opening widths and finishes:
- Available Widths (Total Span): 2.0m, 3.0m, 4.0m, 5.0m, and 6.0m

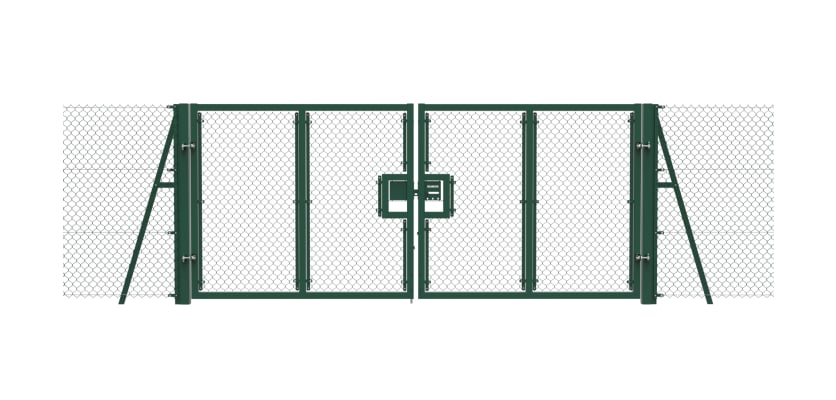

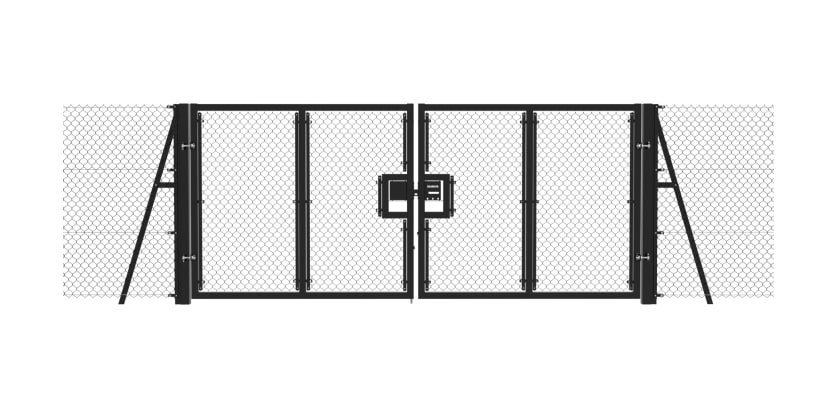

- Available Finishes: Standard Galvanised Steel, Polyester Powder-Coated Black, or Polyester Powder-Coated Green
- Installation Type: Dig-in posts only (engineered for deep below-ground anchoring to withstand heavy dynamic forces)
Features and Benefits
- Twin-Leaf Wide Vehicular Clearance: The dual-gate configuration provides maximum clearing widths, making it the ideal budget-friendly solution for HGV deliveries, commercial vehicles, tractors, and emergency service access tracks.
- Steel Strength: Fabricated from steel, the 1.8m double gate frames and matching support posts offer exceptional rigidity to withstand high-traffic commercial environments and deter unauthorised entry.
- Ultimate Corrosion & Rust Shield: Every kit is galvanised and finished with an optional powder coating as standard. This multi-layer defence protects the steel inside and out against harsh weather and industrial pollution, ensuring a completely rot-proof, low-maintenance service life.
- Aerodynamic Wind Defence: At a full 6ft high, a solid double gate faces extreme wind loading risks that strain hinges and foundations. Our open-weave diamond mesh allows heavy gales to pass cleanly through, eliminating the ‘sail effect’ and preventing structural warping or hinge failure.

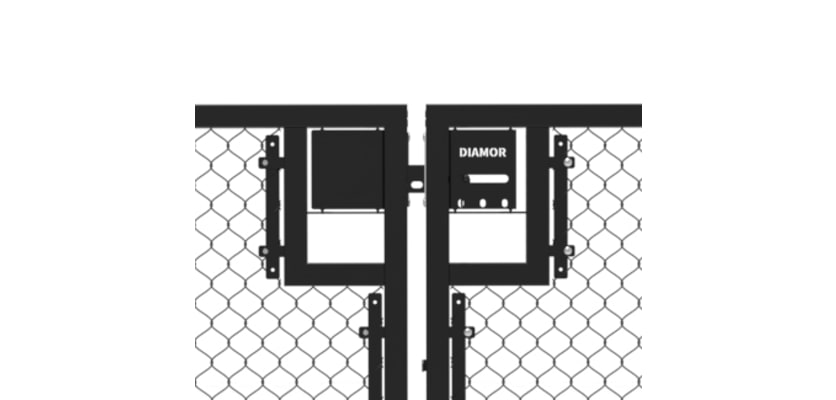

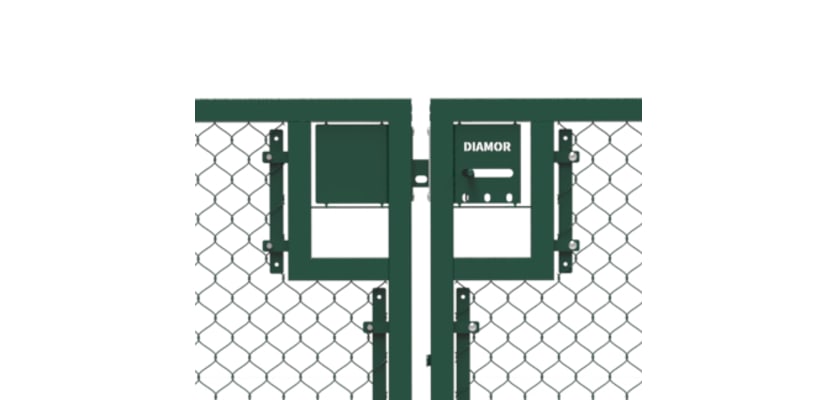

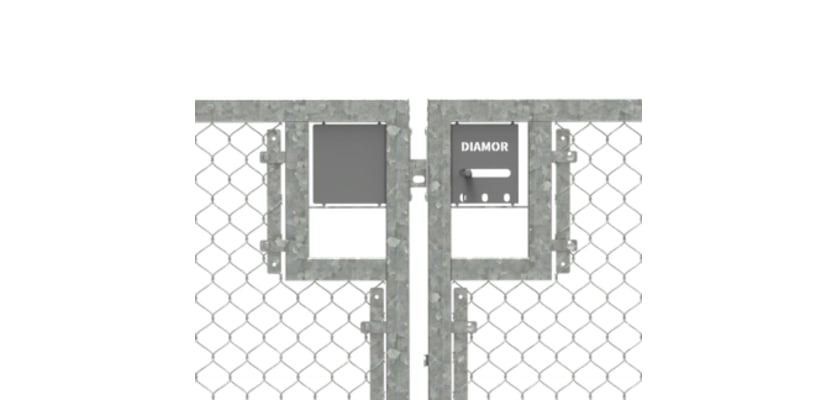

- Advanced Modularity (Unislide Kit Included): Each double gate system is equipped with a versatile Unislide Kit. This hardware allows security contractors to effortlessly upgrade from a standard latch to heavy-duty mechanical digital locks, electronic keypad entry, or mag-lock access control systems later on.
- Cost-Effective Commercial Security: When securing an expansive industrial entrance on a budget, a chain link double leaf gate offers an unbeatable cost-to-benefit ratio compared to heavy palisade or bespoke automated gate designs.
What’s Included in Your Kit?
Our double chain link gate kits are supplied as comprehensive, all-in-one systems ready for commercial installation:
- 1.8m High Double Leaf Gate (Chosen Width): Twin structural steel gate frames, pre-filled with high-tensile galvanised chain link wire mesh.

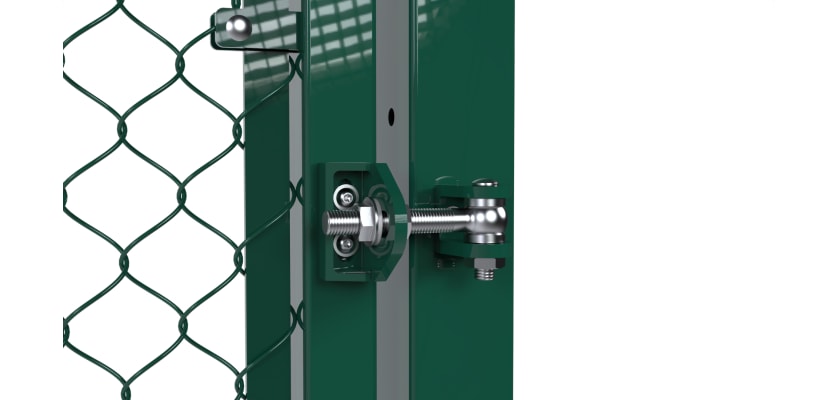

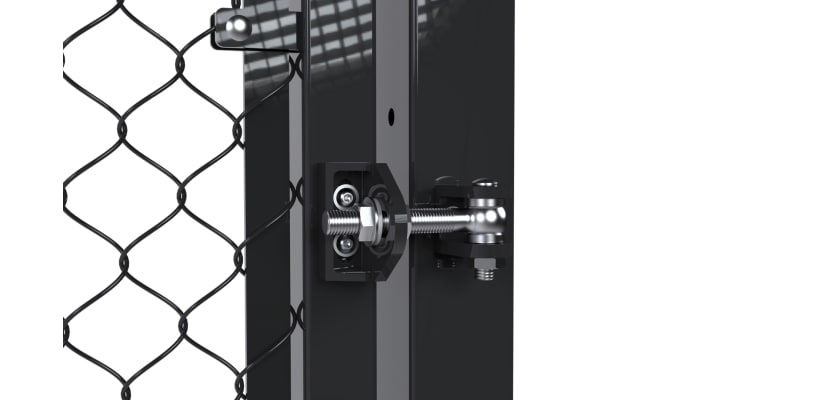

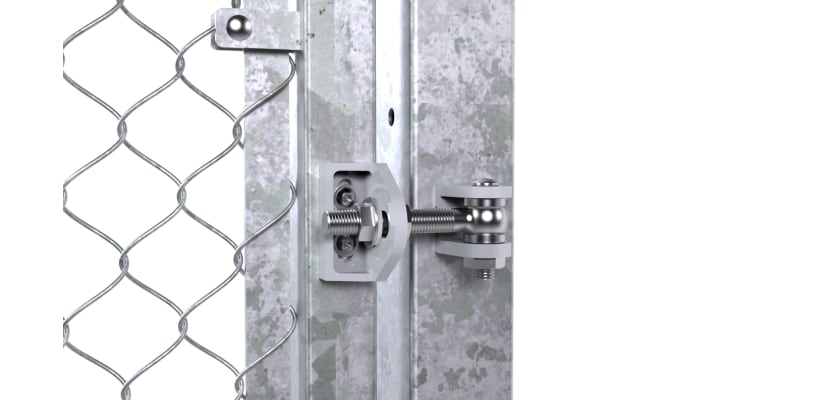

- Heavy-Duty Hinge & Catch Posts: Two matching industrial steel dig-in posts engineered for deep excavation to safely support the substantial swinging weight of both 6ft leaves. These gates include the Locinox Bolt On HD 4D Adjustable Hinges for precise adjustment.
- Drop Bolt & Central Catch: Includes a secure ground drop bolt mechanism, allowing you to lock one leaf firmly into the ground for pedestrian traffic, or open both sides fully for wide vehicle clearance.
- Professional Installation Tip: This is a dig-in only format. Because full-height double gates exert massive dynamic leverage on the outer support posts, a solid foundation is critical. We recommend using a minimum of 3 to 4 bags of rapid-setting post mix per post to guarantee absolute structural stability and prevent gate sagging over time.
Versatile Applications
- Industrial Compounds & Commercial Yards: Serves as a highly secure, low-maintenance main or side entry gate for delivery fleets alongside standard security fencing.
- Schools, Colleges & Academies: Establishes safe, wide-access perimeter lines to control public access while allowing maintenance and emergency vehicles onto the grounds.
- Sports Facilities & Public Arenas: Ideal for creating wide-clearance crowd flow points and maintenance tracks for tennis courts, fields, and stadiums.
- High-Security Residential Estates: Provides an imposing, wide-clearance pedestrian and vehicular entry point for larger 6ft domestic and estate boundaries.
Explore Complementary Products

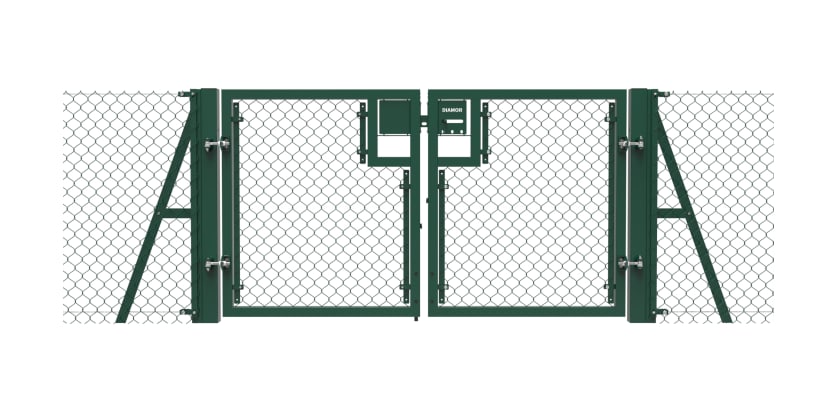

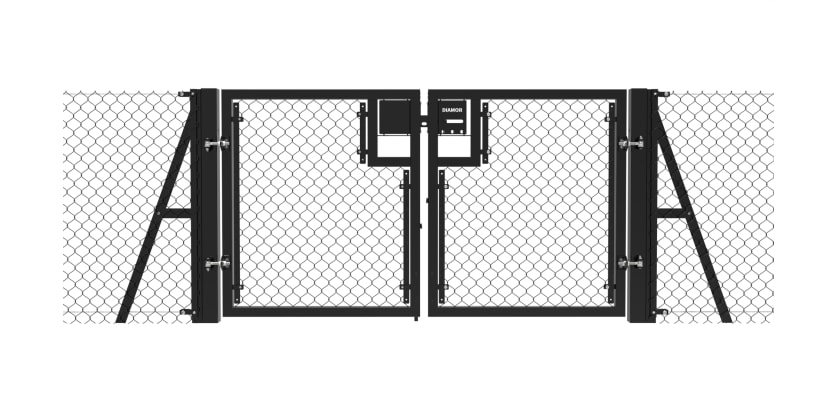

To create a seamless, high-security perimeter, pair this double gate system with our standard 1.8m Chain Link Fencing Rolls. We also stock a complete line of matching steel strainers, intermediate line posts, and accessories to ensure your entirely rot-free fencing installation lasts for many years.
Contact Us
Our friendly and helpful sales team is here to assist with any questions or technical queries you may have regarding these chain link gate kits or any of our other ground protection and perimeter fencing items. We can be reached by phone on 01283 512 111, by email at sales@firstfence.co.uk, or through our online live chat service.
Specifications & Downloads
| Height Above Ground | 1800mm |
| Width | 2.0m, 3.0m, 4.0m, 5.0m, 6.0m |
| Total Post Length | 2400mm |
| Post Box Section | 80mm x 80mm [2.0, 2.4 and 3.0m wide], 100mm x 100mm [4.0, 5.0 and 6.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 1.8m high chain link mesh dig in hinge post | 2 |
| 1.8m chain link universal mesh gate leaf cladded kit | 2 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 2 |
| Blank slide bolt security plate double kit | 1 |
| Unislide double slider padlockable gate kit | 1 |
| 60x60mm black ribbed inserts | 4 |
| 80x80 black ribbed inserts [2.0 and 3.0m wide only] | 2 |
| 100x100 black ribbed inserts [4.0, 5.0 and 6.0m wide only] | 2 |
| 15mm plastic ribbed plug | 8 |
| First Fence branded locking drop bolt kit | 2 |
Specifications & Downloads
| Height Above Ground | 1800mm |
| Width | 2.0m, 3.0m, 4.0m, 5.0m, 6.0m |
| Total Post Length | 2400mm |
| Post Box Section | 80mm x 80mm [2.0, 2.4 and 3.0m wide], 100mm x 100mm [4.0, 5.0 and 6.0m wide] |
| Post Type | Dig In |
| Gate Hanging Side | Universally Handed [When using Unislide Kit] |
| Thickness of Wires | Galvanised - 2.5mm, PVC Coated - 3.15/2.24mm |
| Material | Galvanised Steel |
| Finish | Powder Coated |
| PPC Colours | Green or Black |
| Compliant With | Powder Coated to BS 13438 |
What's Included
| Name | Quantity |
|---|---|
| 1.8m high chain link mesh dig in hinge post | 2 |
| 1.8m chain link universal mesh gate leaf cladded kit | 2 |
| M16 Locinox Bolt-On-HD-4D Adjustable Hinge [kit of 2] | 2 |
| Blank slide bolt security plate double kit | 1 |
| Unislide double slider padlockable gate kit | 1 |
| 60x60mm black ribbed inserts | 4 |
| 80x80 black ribbed inserts [2.0 and 3.0m wide only] | 2 |
| 100x100 black ribbed inserts [4.0, 5.0 and 6.0m wide only] | 2 |
| 15mm plastic ribbed plug | 8 |
| First Fence branded locking drop bolt kit | 2 |
