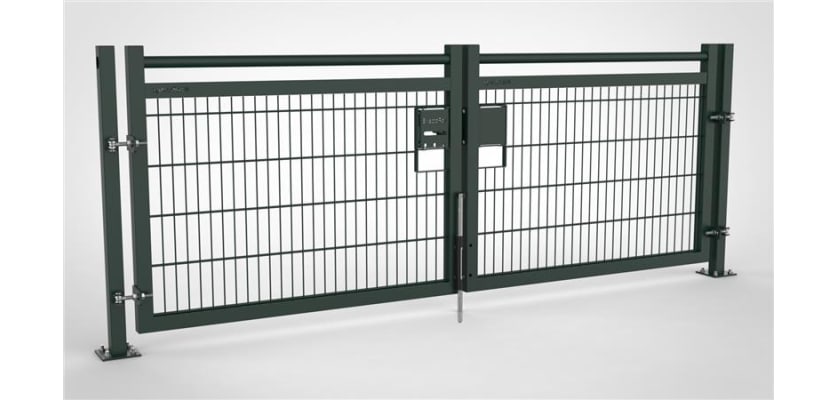

1.2m High x 3.0m Wide 868 Mesh SpectaRail® Double Leaf Gate Kit
Product Description

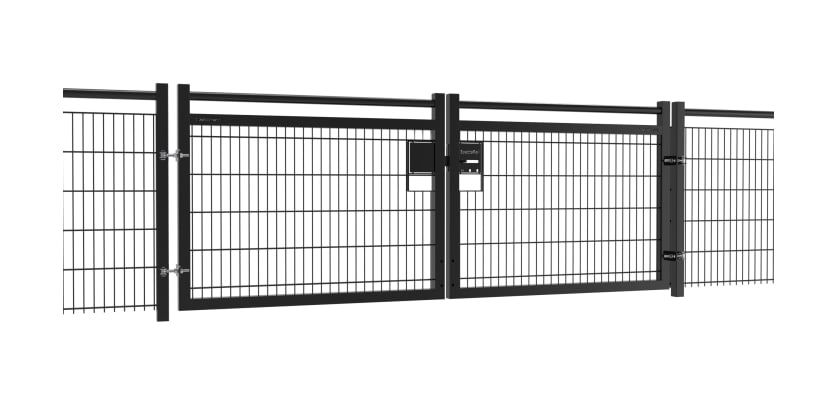

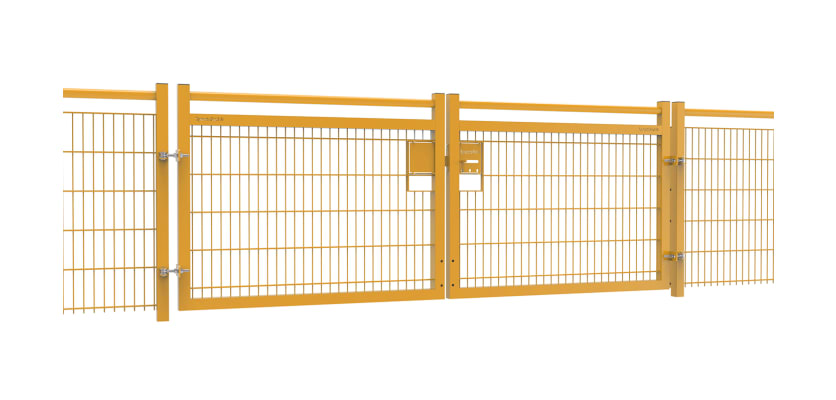

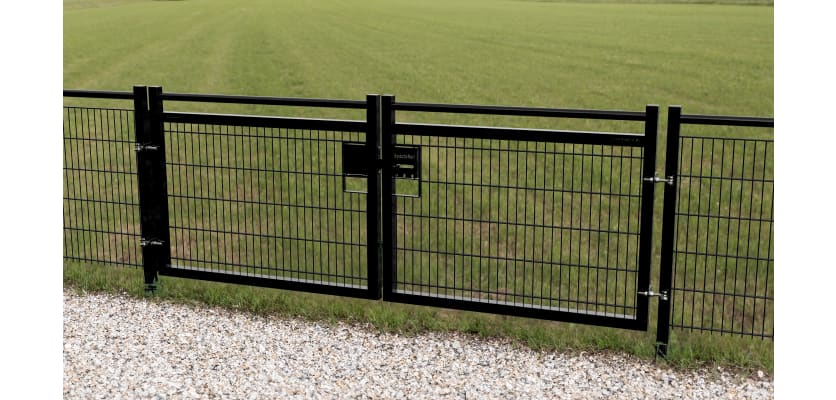

1.2m High x 3.0m Wide 868 Mesh SpectaRail® Double Leaf Gate Kit

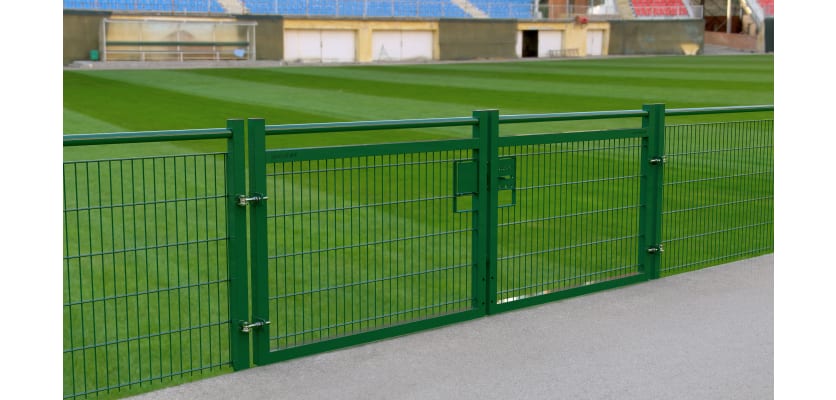

The 1.2m High x 3.0m Wide 868 Mesh SpectaRail® Double Leaf Gate Kit provides a secure and practical access point for sports facilities. Designed to integrate with SpectaRail® 868 Mesh Fencing, it allows controlled access for spectators, players and staff while maintaining a clear, safe perimeter.
The SpectaRail® range has been developed in accordance with the Sports and Play Construction Association (SAPCA) Code of Practice for fencing systems at sports facilities. This double-leaf gate is SAPCA compliant as a pedestrian barrier.
Please note: SpectaRail® is not designed to be used as a stadium crush barrier.
Key Features & Benefits
- 1.2m high x 3.0m wide double-leaf gate
- Designed for use with SpectaRail® 868 Mesh Fencing
- SAPCA-compliant pedestrian barrier
- Strong pre-galvanised steel construction
- Suitable for permanent outdoor installation
- Optional PPC finish available in a range of RAL colours
- 180° opening for unobstructed access
- 20mm ground clearance
- Clamp bar fixings help prevent finger entrapment and sharp edges
- Dig-in installation
- Padlockable Unislide double slider gate kit
- Recommended locking drop bolt for additional security
Durable Construction
Manufactured from high-quality pre-galvanised steel, the gate is designed to withstand regular outdoor use while resisting weathering and corrosion.

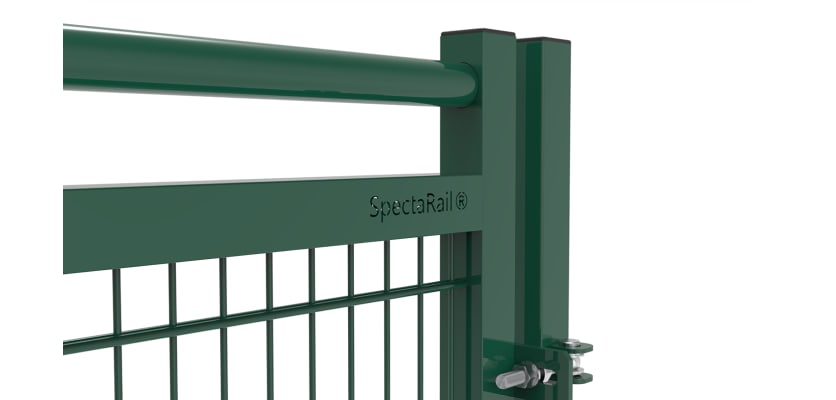

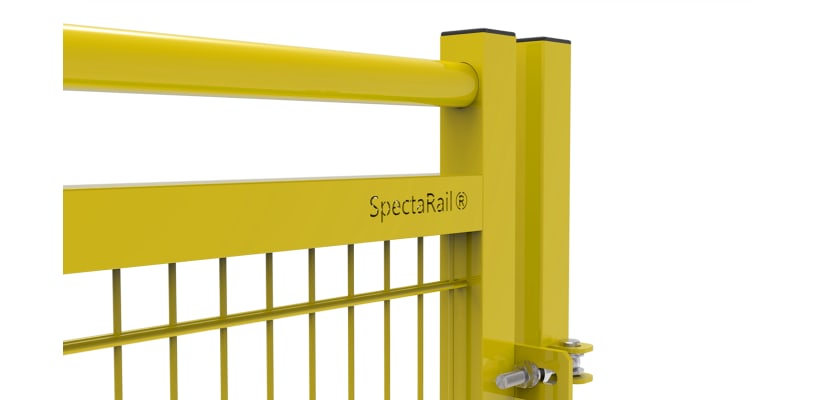

For a coordinated finish, choose a professionally applied Polyester Powder Coating (PPC) in a range of RAL colours. PPC provides additional protection against the elements while allowing the gate to match your existing SpectaRail® perimeter.
Custom colours are also available. Contact our sales team to discuss your requirements.
Safe & Practical Design

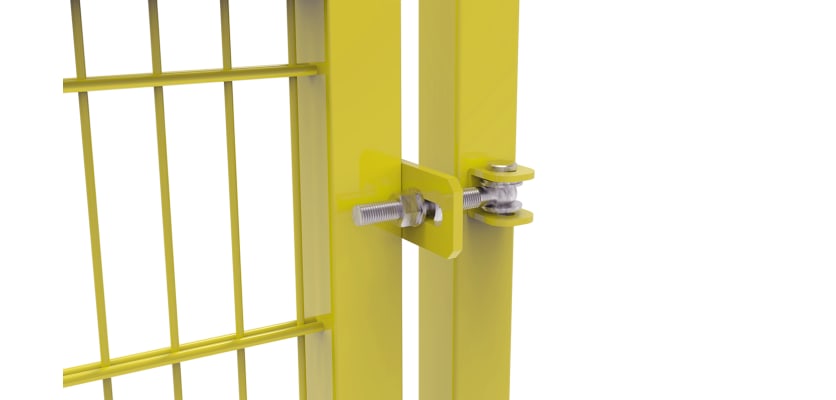

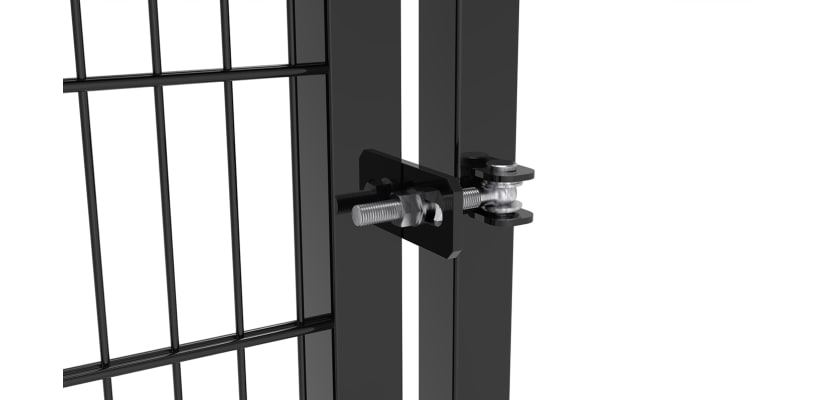

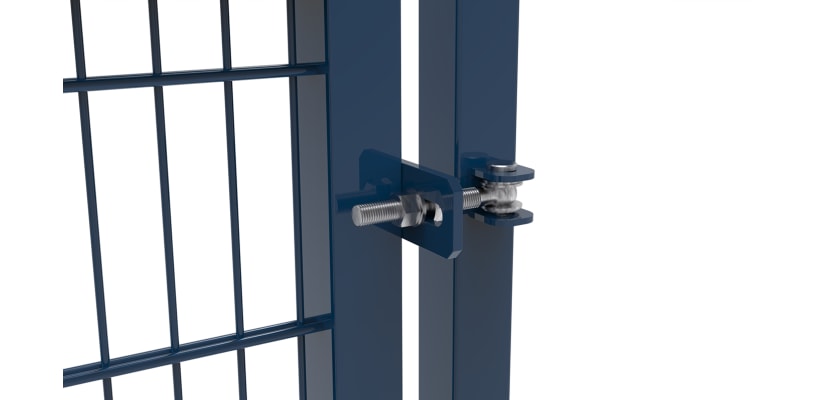

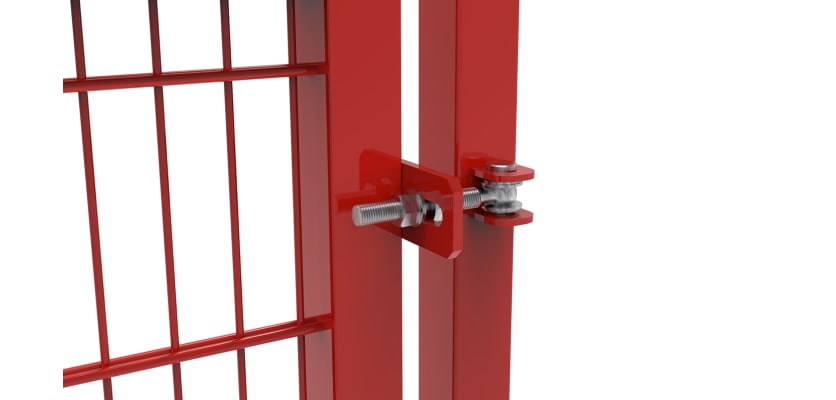

The gate features a 3-way weld-on hinge, allowing it to open through 180° and swing back against the fence without obstructing walkways.
It is installed with 600mm in the ground, providing 20mm ground clearance. This clearance should be maintained to help keep sports equipment safely within the designated area.
Clamp bar fixings help eliminate sharp edges and reduce the risk of finger entrapment, making the gate suitable for busy sports environments.
A locking drop bolt is highly recommended for securing the two gate leaves when closed.
Installation
SpectaRail® gates are supplied as a dig-in system. Gate posts should be installed 600mm into the ground and secured using Post Mix. We recommend two bags per gate post.
What's Included?
Each double-leaf gate kit includes:
- 2 x Gate Leaves
- Hinge Post
- Catch Post
- Folded Clamp Bars
- SpectaRail® Fixing Kit
- Unislide Double Slider Gate Kit
- Double Slide Bolt Security Plate
- SpectaRail® Fixing Kit
The SpectaRail® Fixing Kit includes:
- 12 x M8 x 40mm mesh security bolts
- 2 x M4.8 x 20mm self-tapping screws
- 6 x 60 x 60mm black ribbed inserts
- 4 x LOCINOX M14 bolts and nuts
- 4 x LOCINOX 110mm anti-sabotage eyebolts with M16 nuts
- 1 x SpectaRail® double slide bolt security plate kit
Complete Your SpectaRail® System
Create a complete sports perimeter with the matching SpectaRail® 868 Mesh Fencing or add a Single Leaf Gate where a smaller pedestrian access point is required.
Contact Us
For advice on SpectaRail® fencing and gates or help choosing the right solution for your sports facility, contact our sales team on 01283 512111 or use our online live chat.
Specifications & Downloads
| Height | 1.2m [Installed, 1.8m actual length for dig in] |
| Access Width | 3.0m |
| Overall Width | 3.2m |
| Post Type | Dig In or Bolt Down |
| Post Box Section | 60 x 60mm |
| Weight | 82.3kg |
| Material | Pre-Galvanised Steel |
| Ground Clearance | 20mm |
| Finish | Polyester Powder Coated |
| PPC Colours | Green or Black as standard [Other RAL colours available] |
| PPC Standards | BS EN 13438 |
| Galvanising Standards | ISO 1461 |
What's Included
| Name | Quantity |
|---|---|
| SpectaRail® Gate Leaf [1.2m x 1.5m] | 2 |
| SpectaRail® Hinge Gate Post [1.2m x 60 x 60mm, Left Hand Hung] | 1 |
| SpectaRail® Hinge Gate Post [1.2m x 60 x 60mm, Right Hand Hung] | 1 |
| Black Ribbed Inserts [60 x 60mm] | 6 |
| SpectaRail® Folded Clamp Bar [1.0m] | 2 |
| SpectaRail® Fixing Kit | 1 |
| Unislide Double Slider Gate Kit [padlockable] | 1 |
